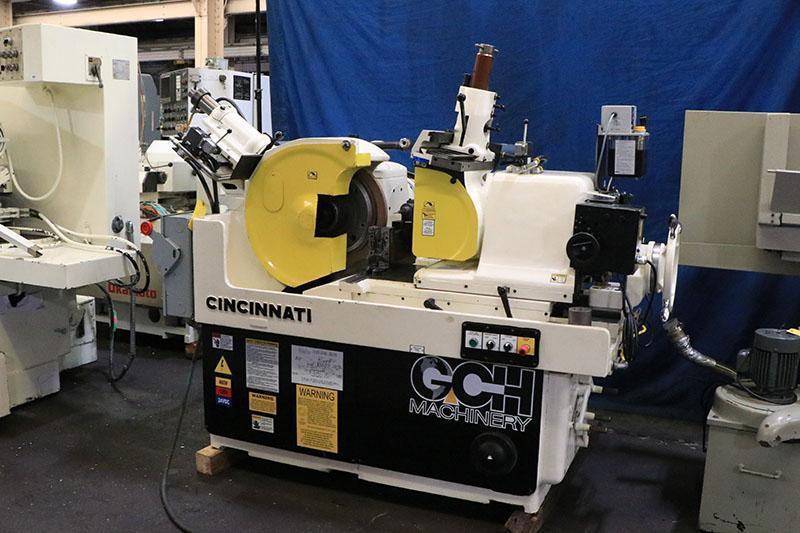

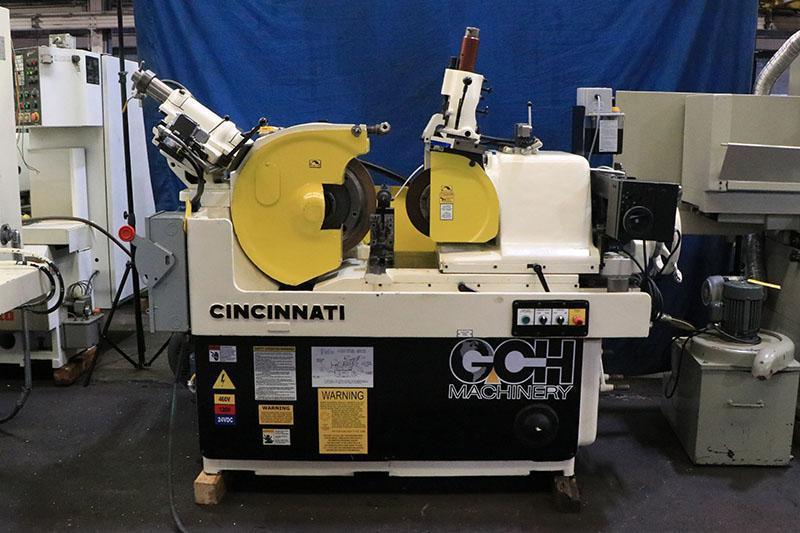

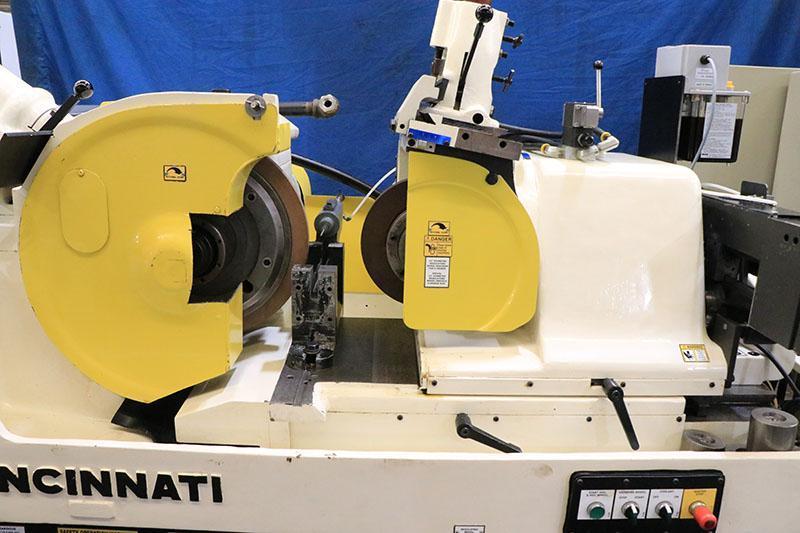

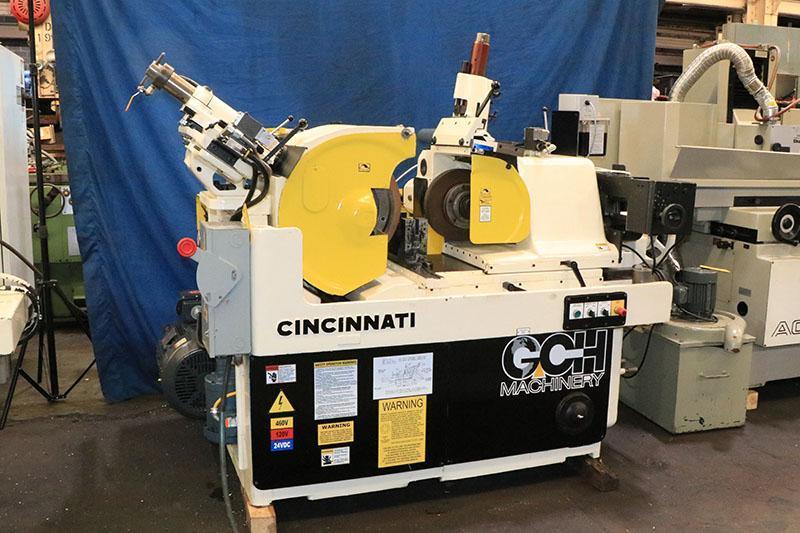

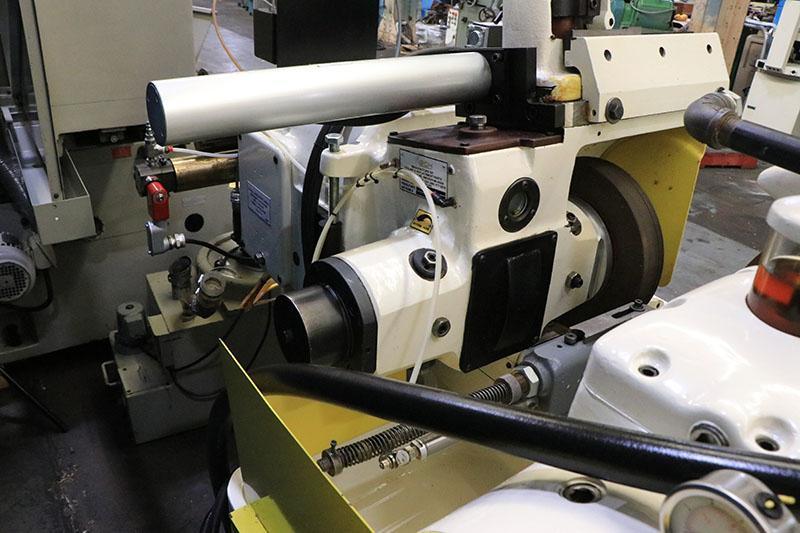

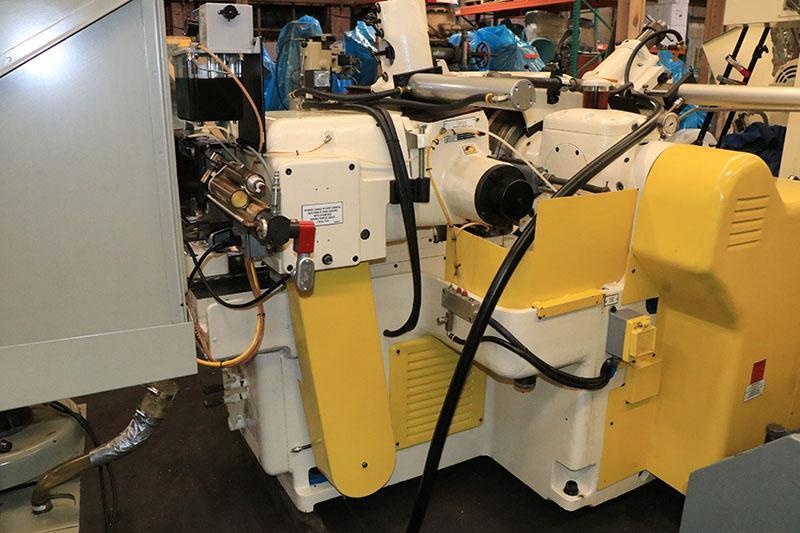

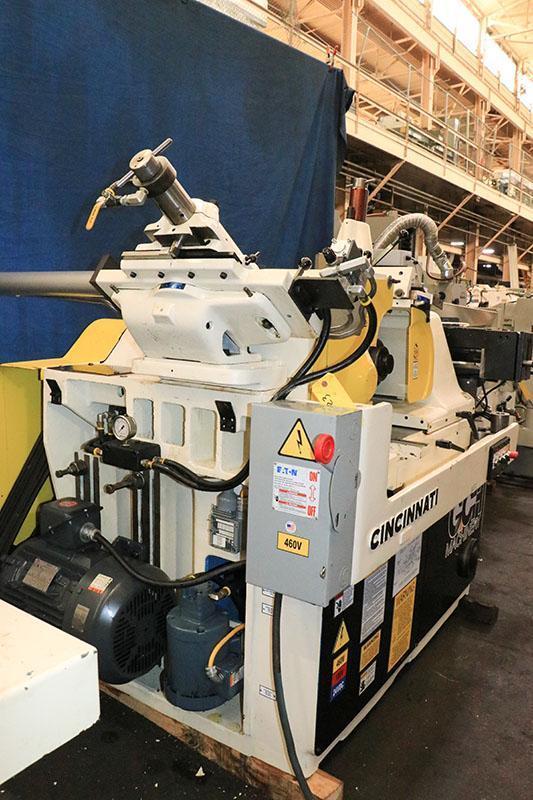

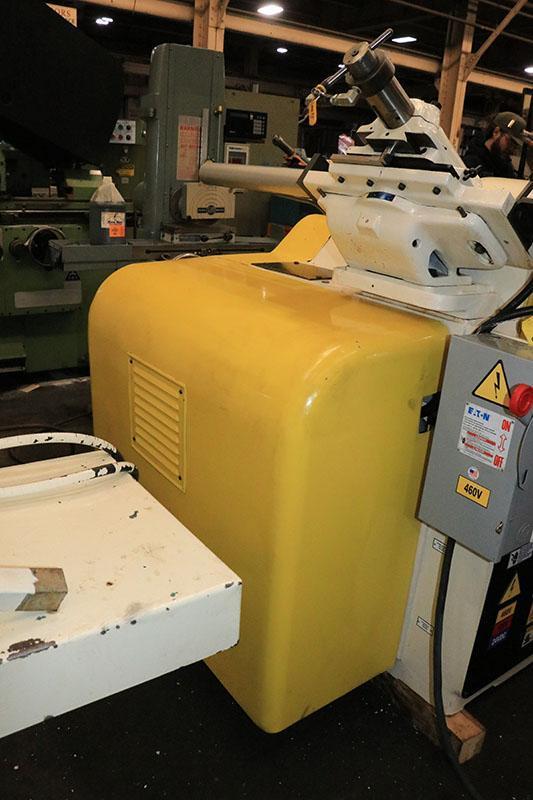

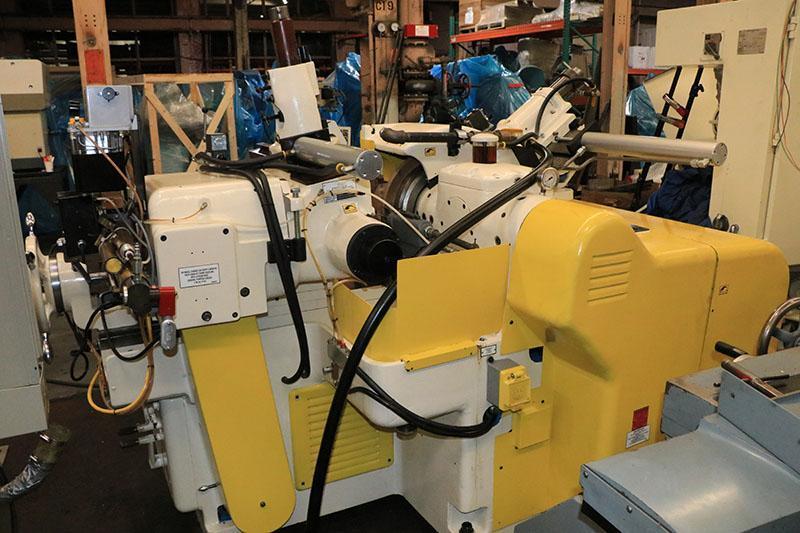

CINCINNATI No. 2 "OM" CENTERLESS GRINDER

SERIAL NO. 2M2H5B-79

REMANUFACTURED IN 2020 BY GCH MACHINERY

SPECIFICATIONS:

DIAMETER CAPACITY, STD. ........ 1/16" TO 3.5"

LOW THRU FEED WORK REST ........ 2" TO 4.75"

BAR WORK ................. 1/8" TO 2" DIA. 18" LONG

GRINDING WHEEL DIAMETER, MINIMUM ... 16"

GRINDING WHEEL DIAMETER, MAXIMUM ... 20"

GRINDING WHEEL WIDTHS. ........... 4", 6" OR 8"

GRINDING WHEEL HOLE DIAMETER ....... 12"

GRINDING WHEEL MOTOR ............... 20 H.P.

REGULATING WHEEL DIAMETER, MIN. .... 9"

REGULATING WHEEL DIAMETER, MAX. .... 12"

REGULATING WHEEL WIDTH, MAXIMUM .... 8"

REGULATING WHEEL WIDTHS. ........... 4", 6" OR 8"

REGULATING WHEEL HOLE DIAMETER ..... 5"

REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM

REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ............. 7,000 LBS.

FLOOR SPACE ........................ 53" x 86"

EQUIPPED WITH:

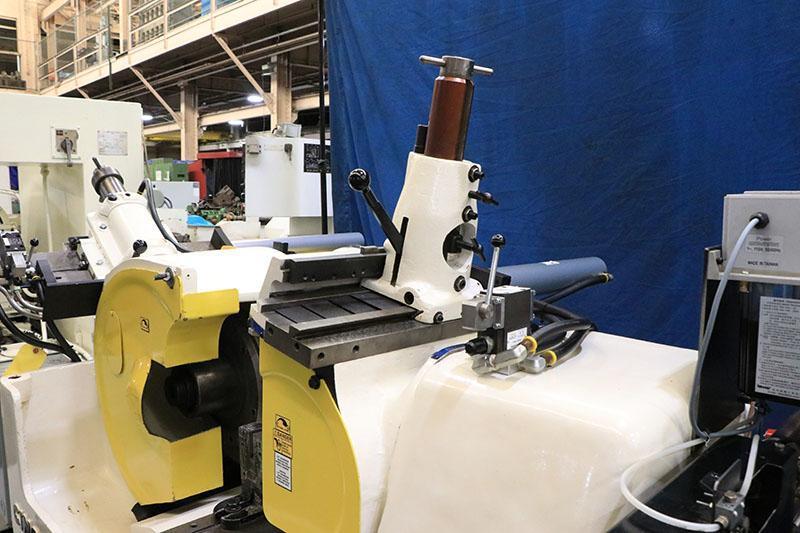

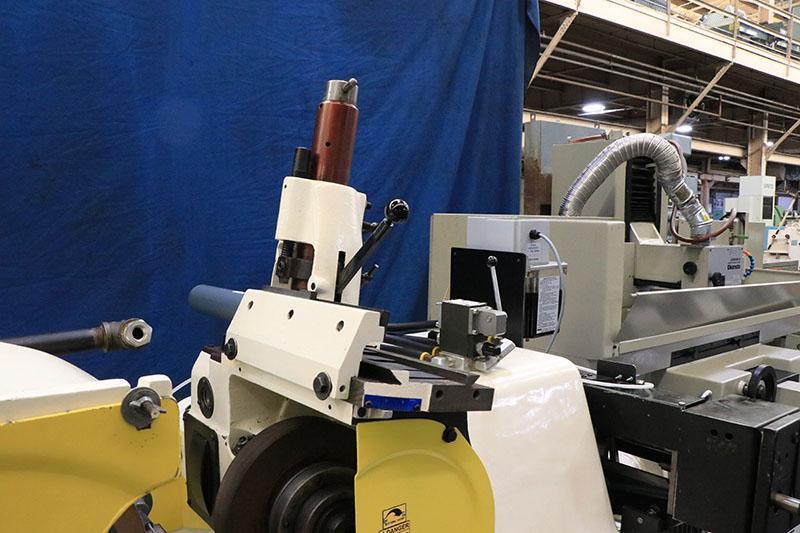

HYDRAULIC CONTOUR DRESSER FOR GRINDING WHEEL,

  WITH JOYSTICK

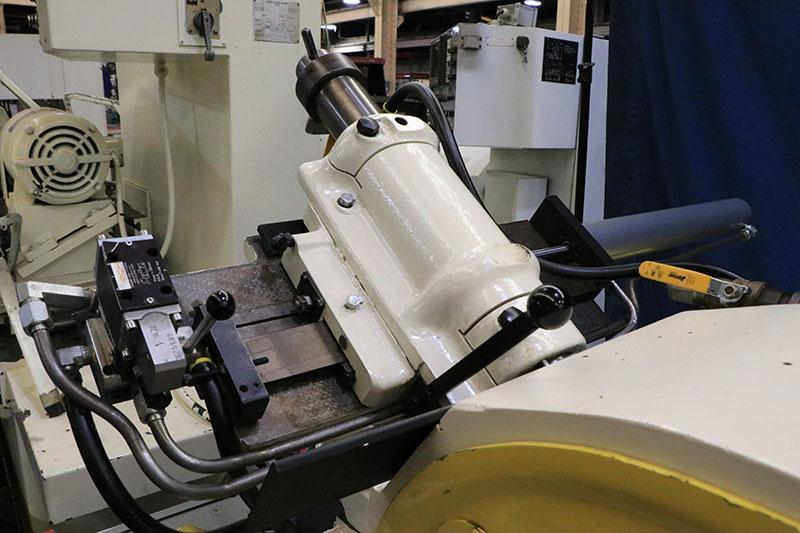

HYDRAULIC CONTOUR DRESSER FOR REGULATING WHEEL,

  WITH JOYSTICK

GCH MODEL "CLX" AIR-POWERED AUTO INFEED UNIT

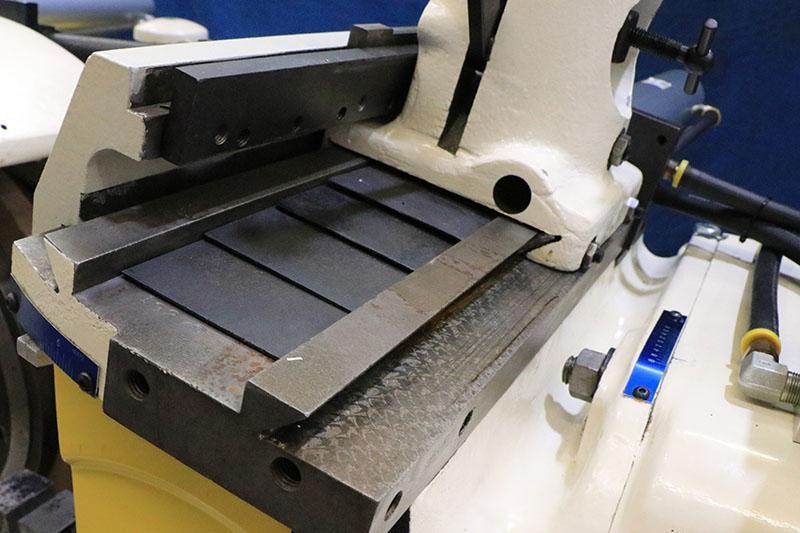

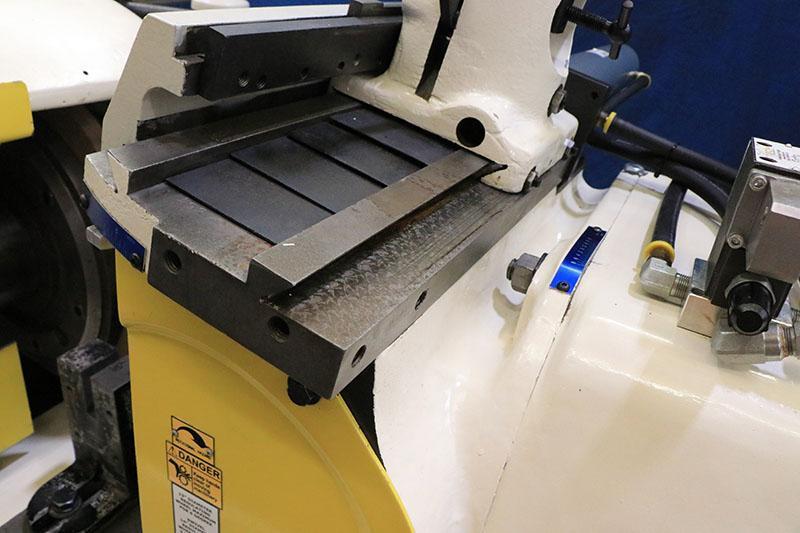

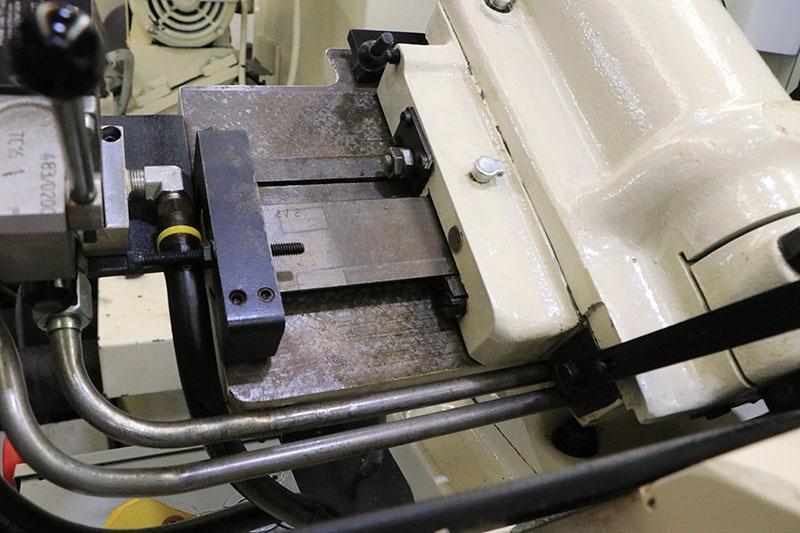

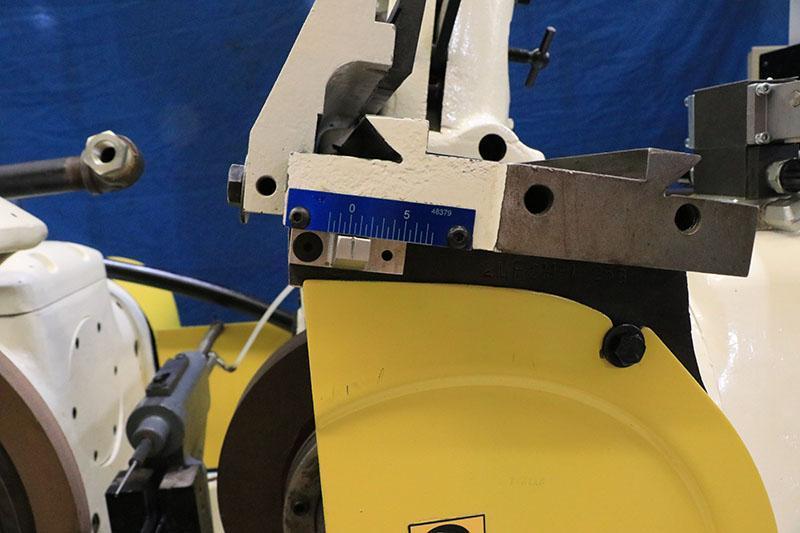

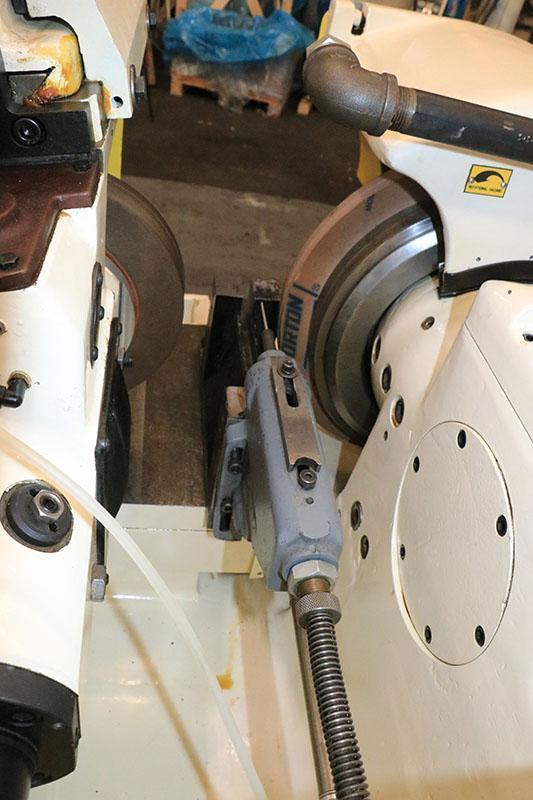

INFEED WORK REST WITHOUT BLADES, FOR 6" WIDE WHEELS

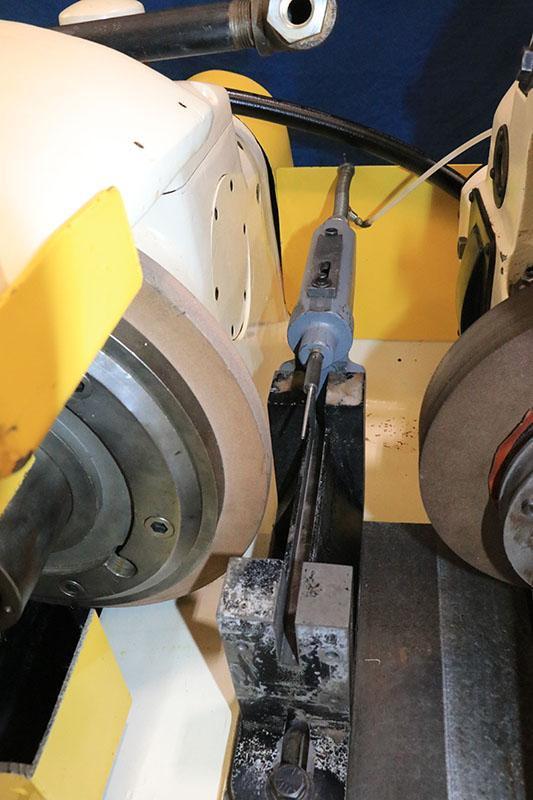

AIR KICKER, SYNCHED WITH THE AUTO INFEED UNIT

EXTERNAL COOLANT SYSTEM, TANK, WITH "NEW" PUMP

  TO BE SUPPLIED

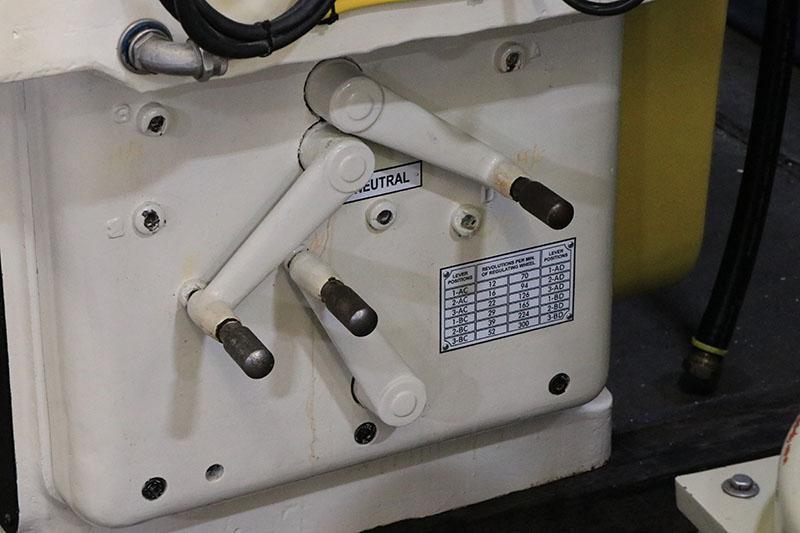

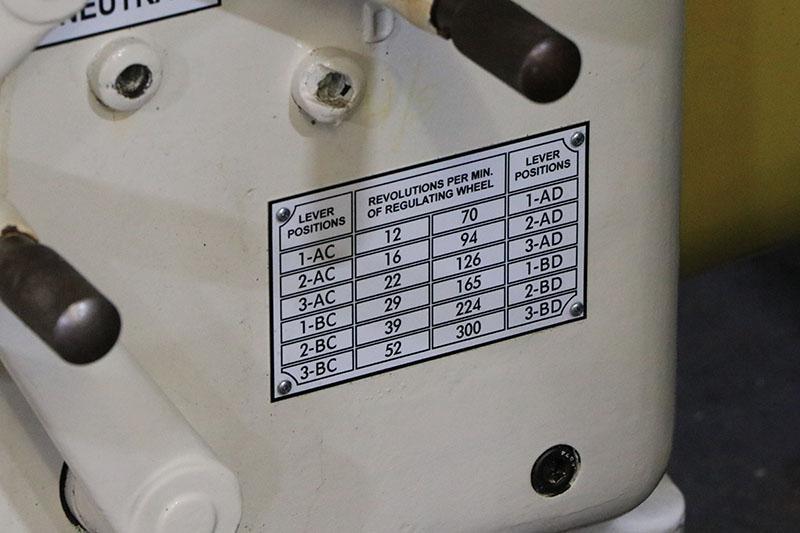

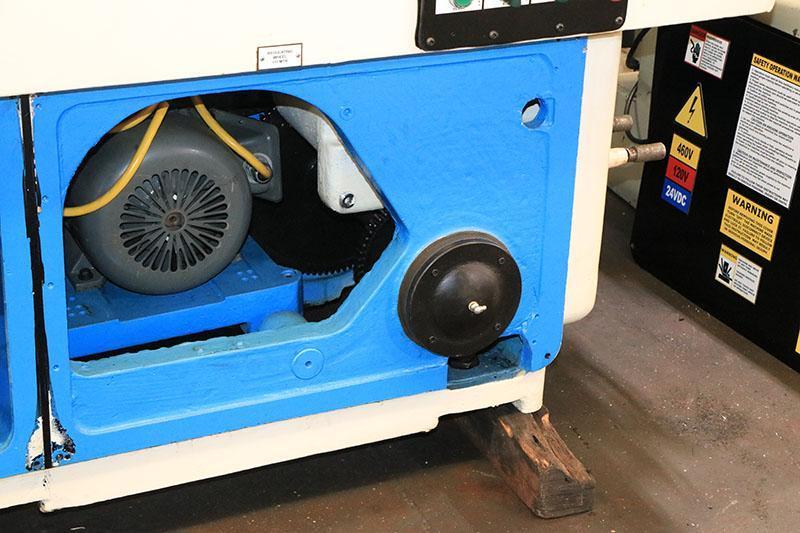

MECHANICAL TRANSMISSION, PROVIDING SET OF SPEEDS,

 FOR THE REGULATING WHEEL

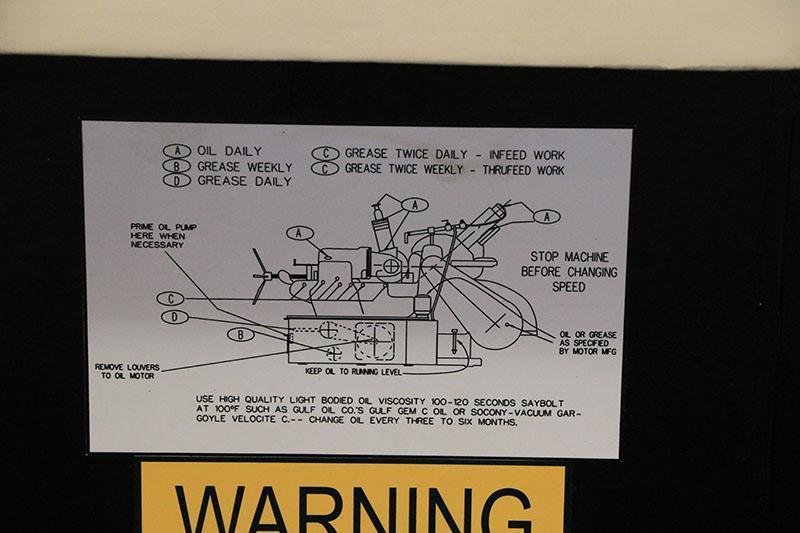

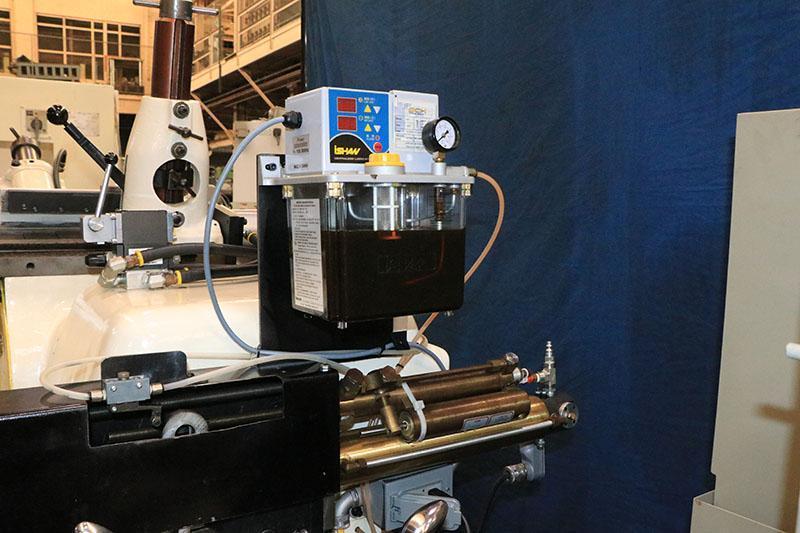

"ISHAW" AUTOMATIC CENTRALIZED LUBRICATION SYSTEM

SWIVEL-TYPE REGULATING WHEEL UNIT

  - TAPER ADJUSTMENT

FILAMTIC GRINDING WHEEL SPINDLE BEARINGS

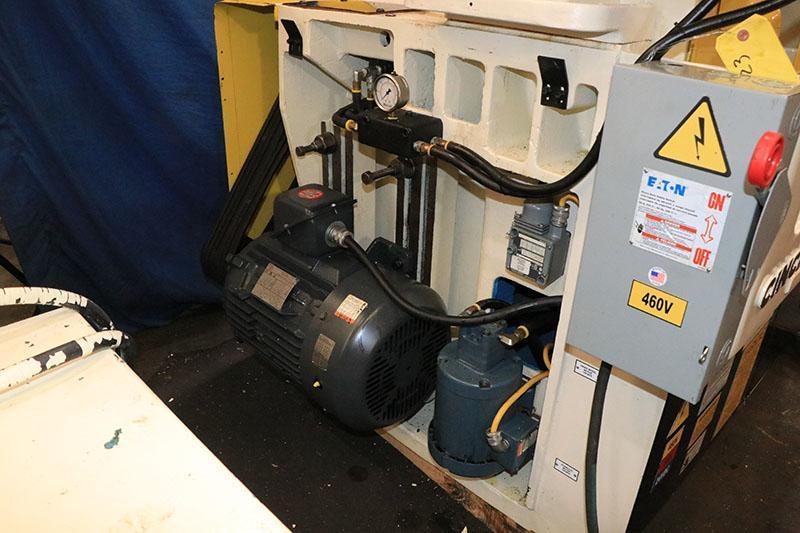

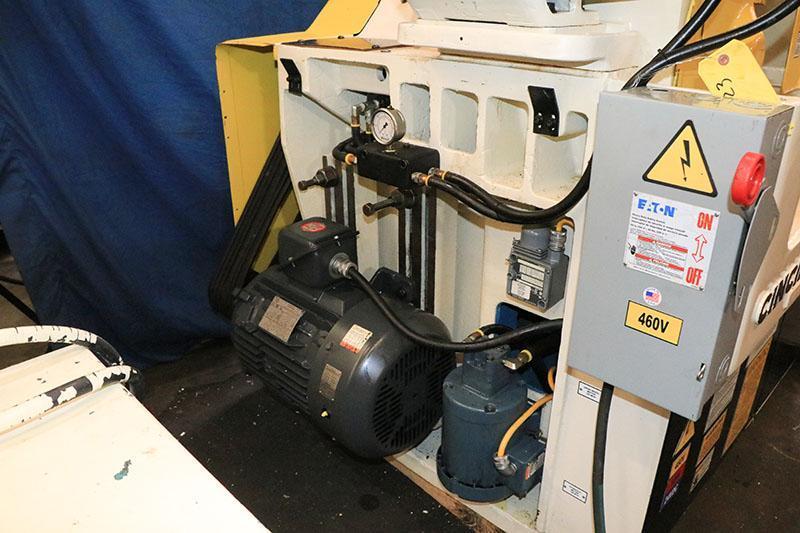

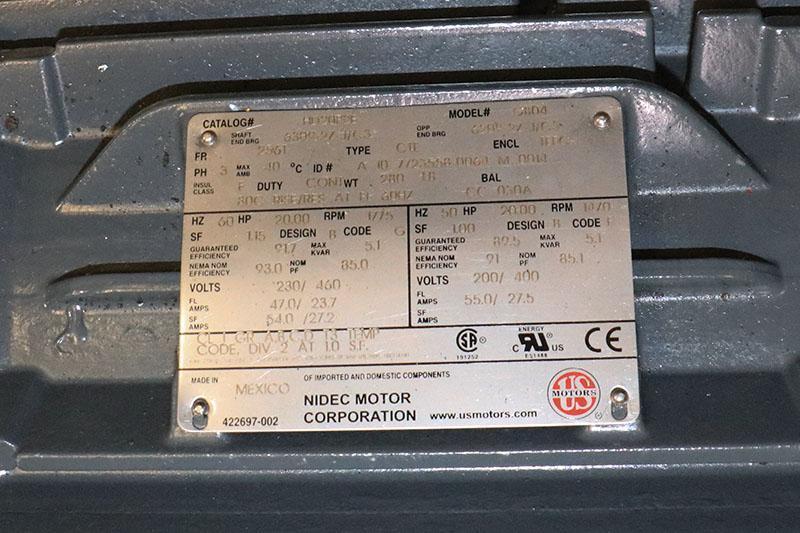

20 H.P./3/60/220-440 VOLT MOTOR

  FOR THE GRINDING WHEEL

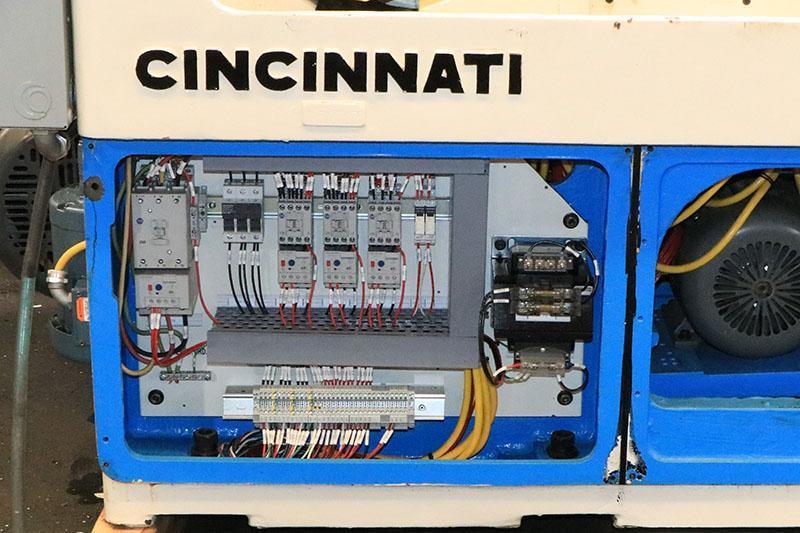

MACHINE IS WIRED FOR 460 VOLTS
