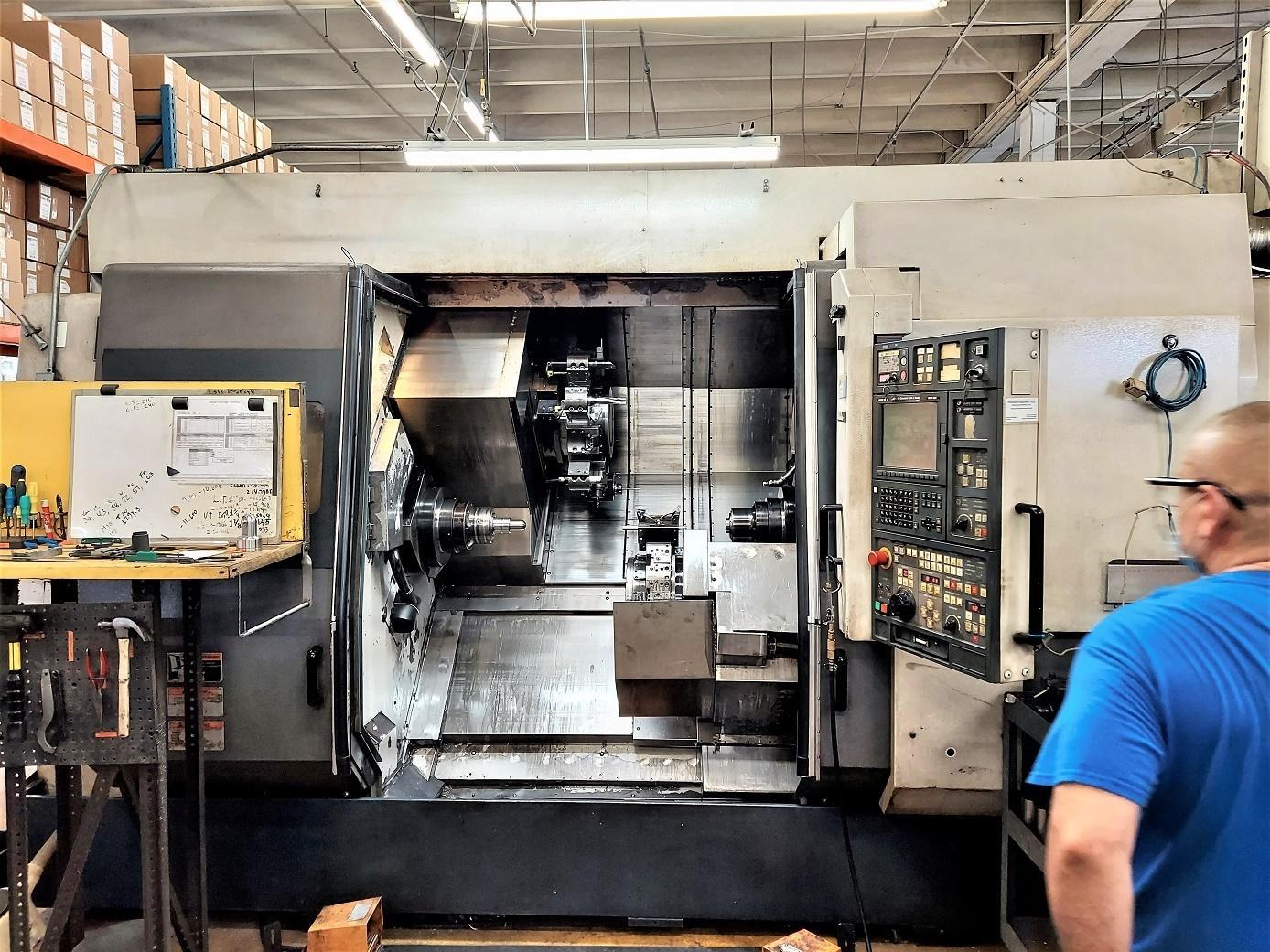

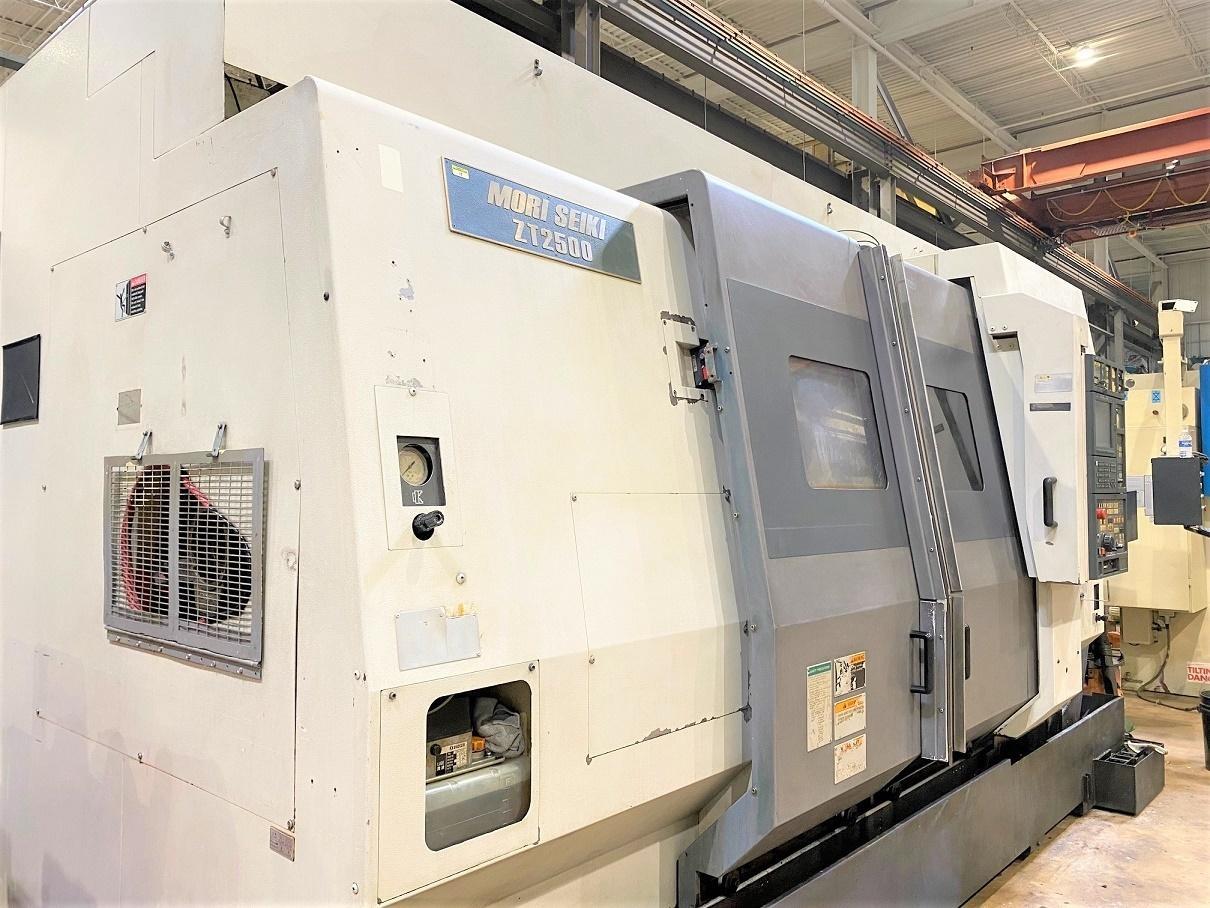

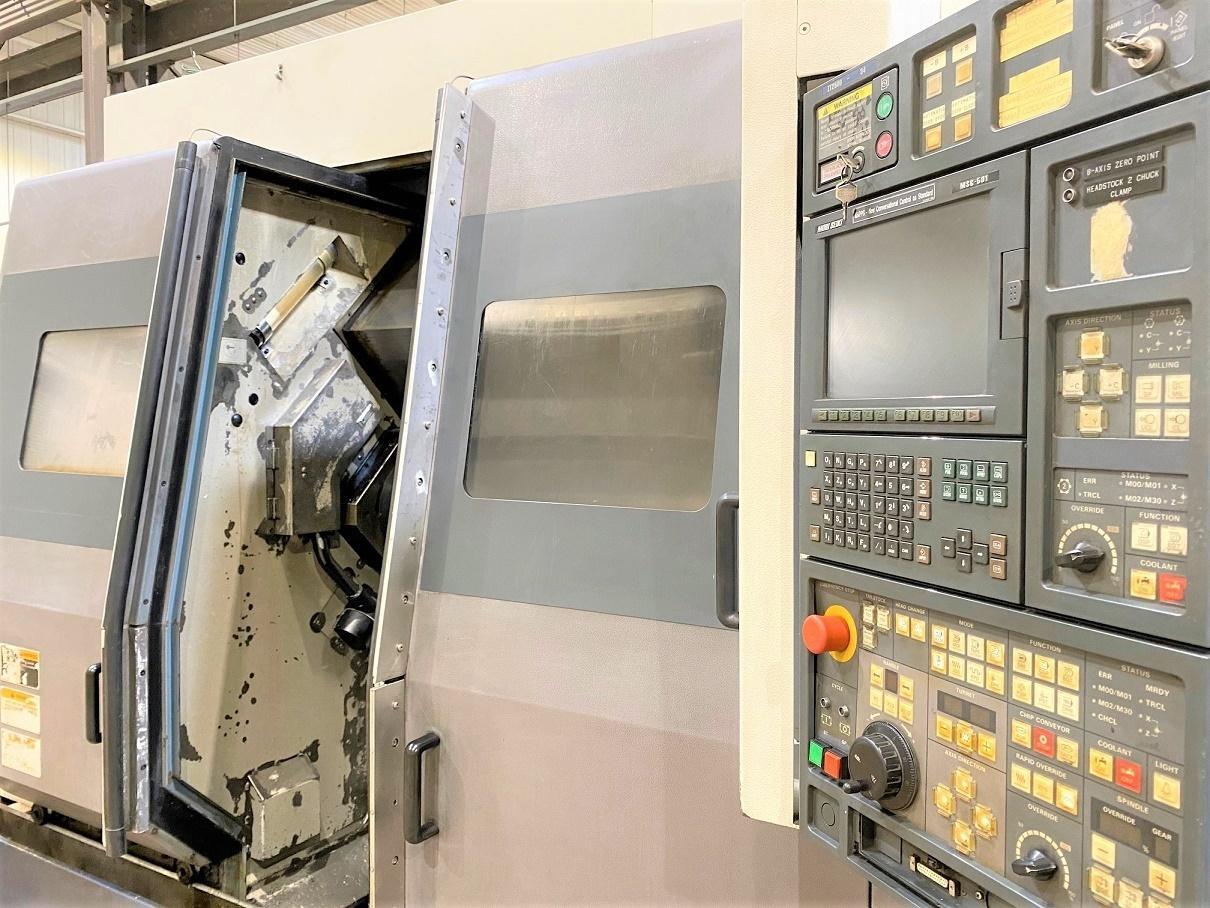

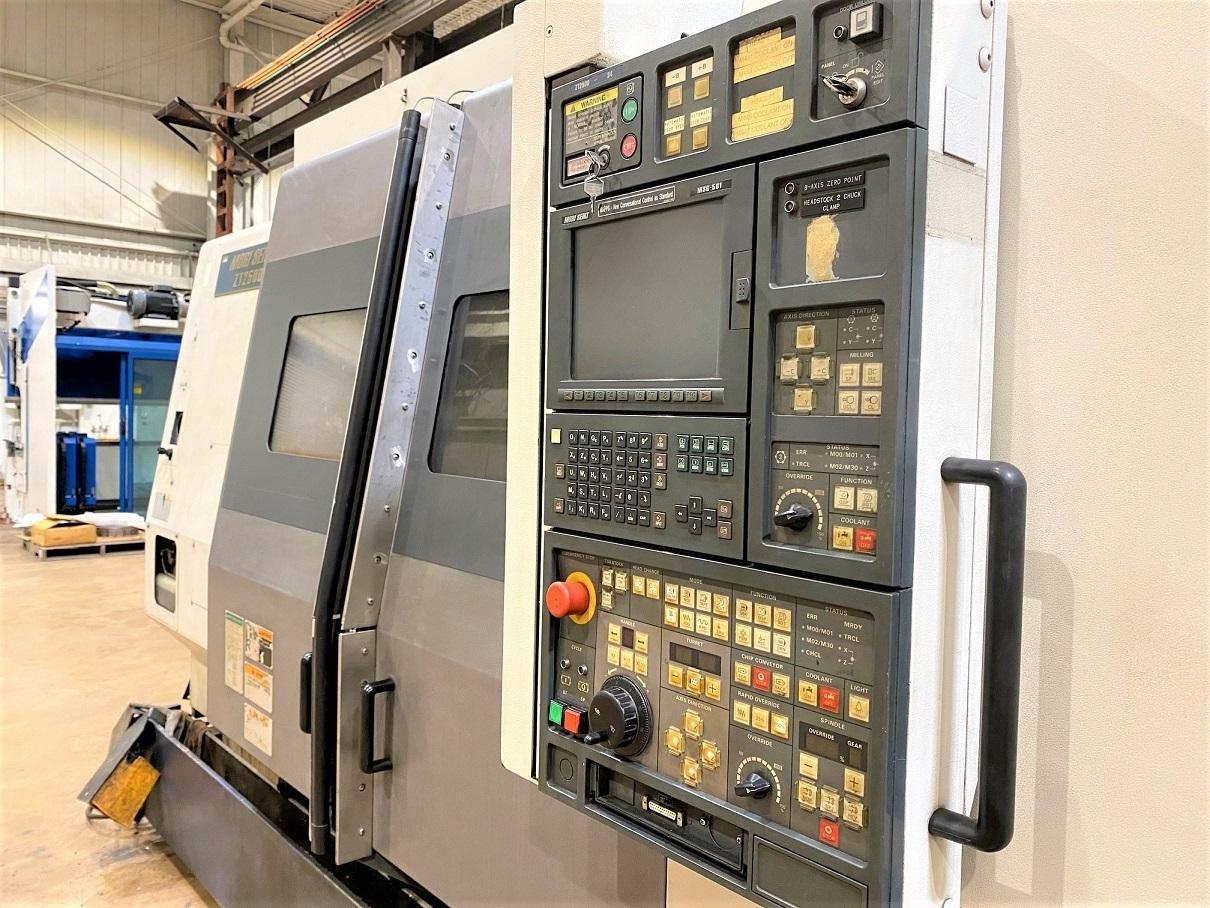

MORI SEIKI ZT-2500Y TWIN SPINDLE CNC LATHE WITH LIVE TOOLING
Year
2001
Stock #
30221
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
MORI SEIKI ZT-2500Y TWIN SPINDLE CNC LATHE WITH LIVE TOOLING
New 2001
Equipped With:
|
|

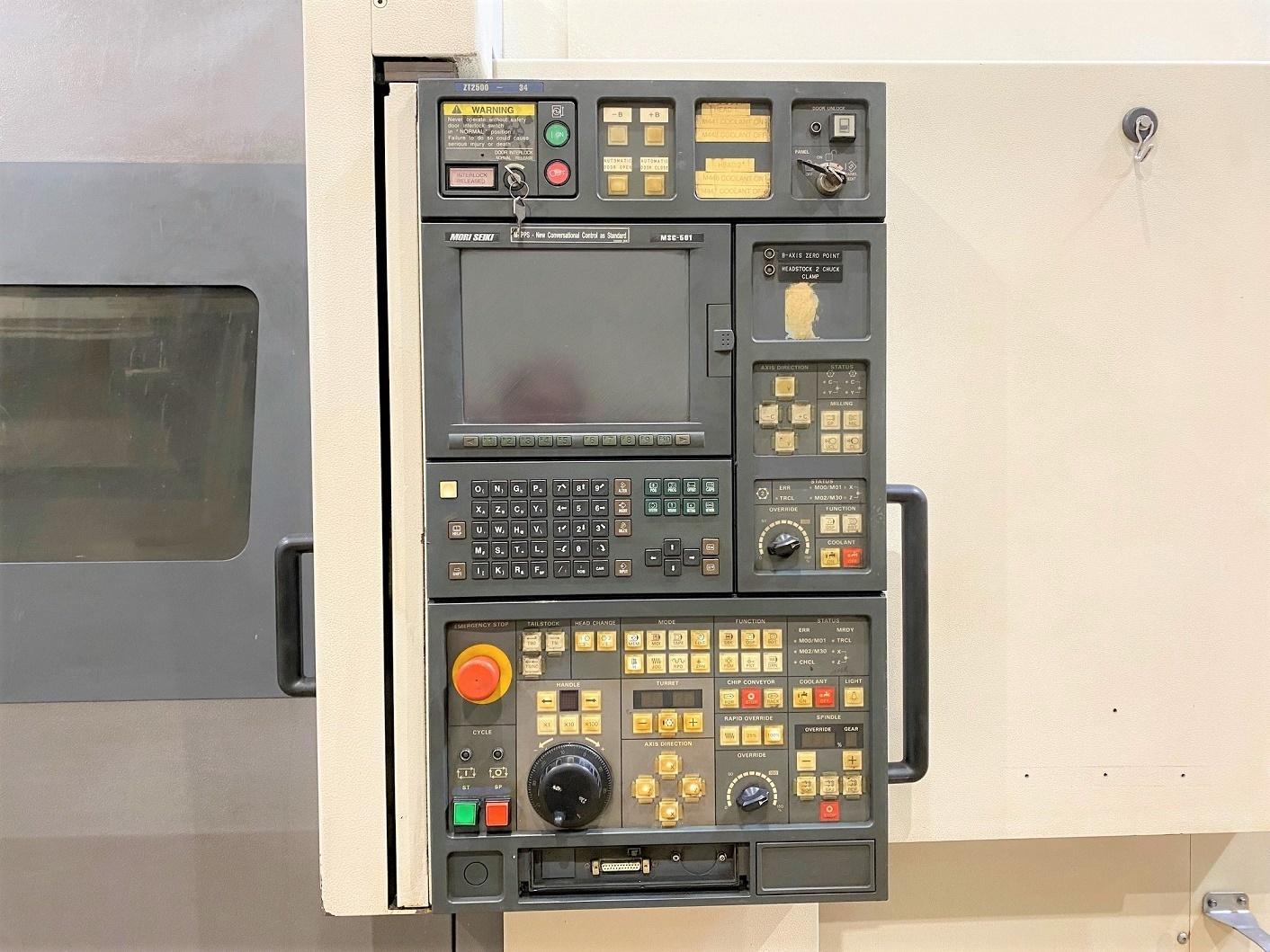

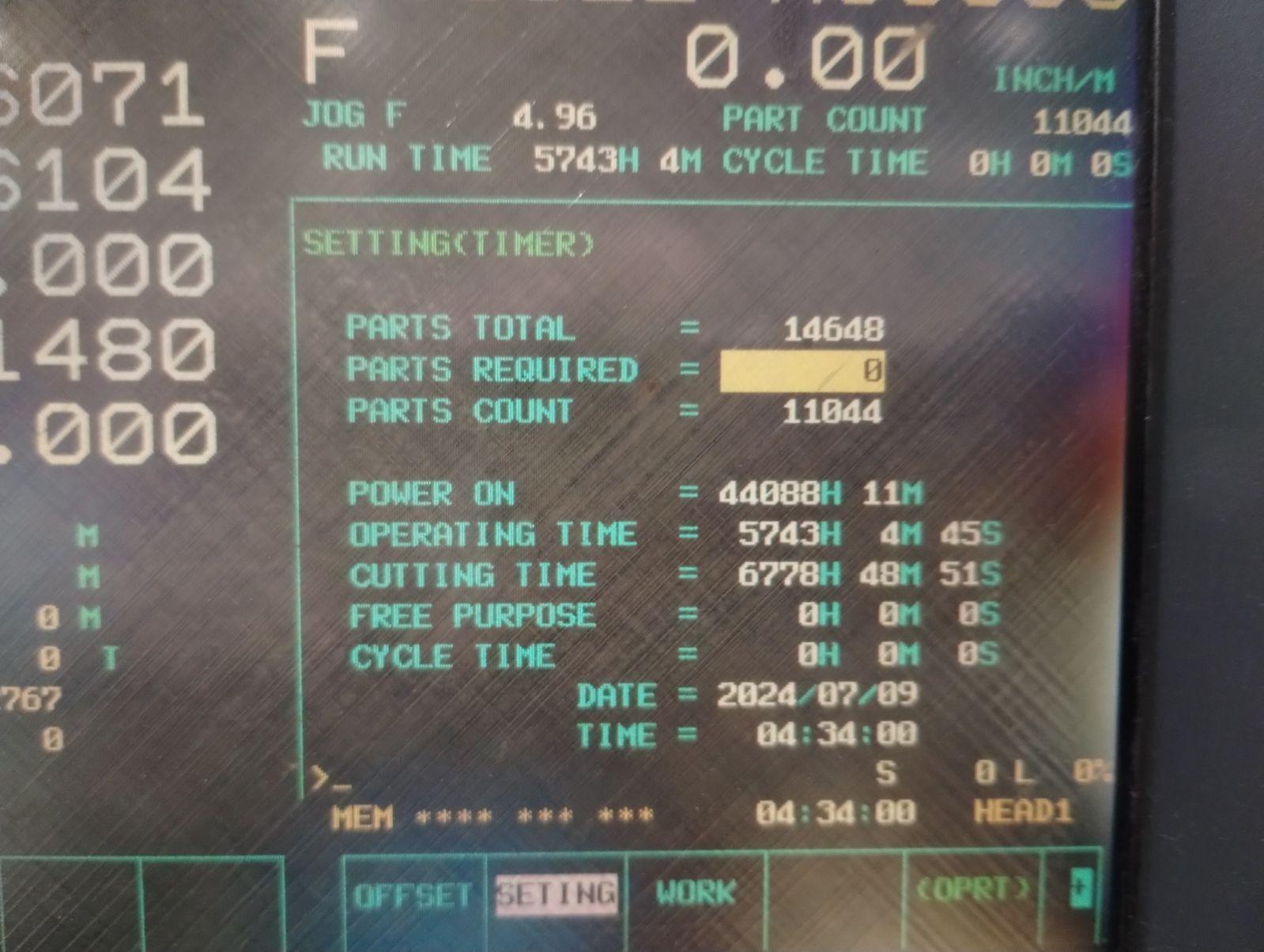

MSC 501 MAPPS Conversational Cnc Control
Tool Presetter
Chip Conveyor
Live Milling on all 12 Stations (both) ( Live Tooling on Lower Turret not Currently Functional )

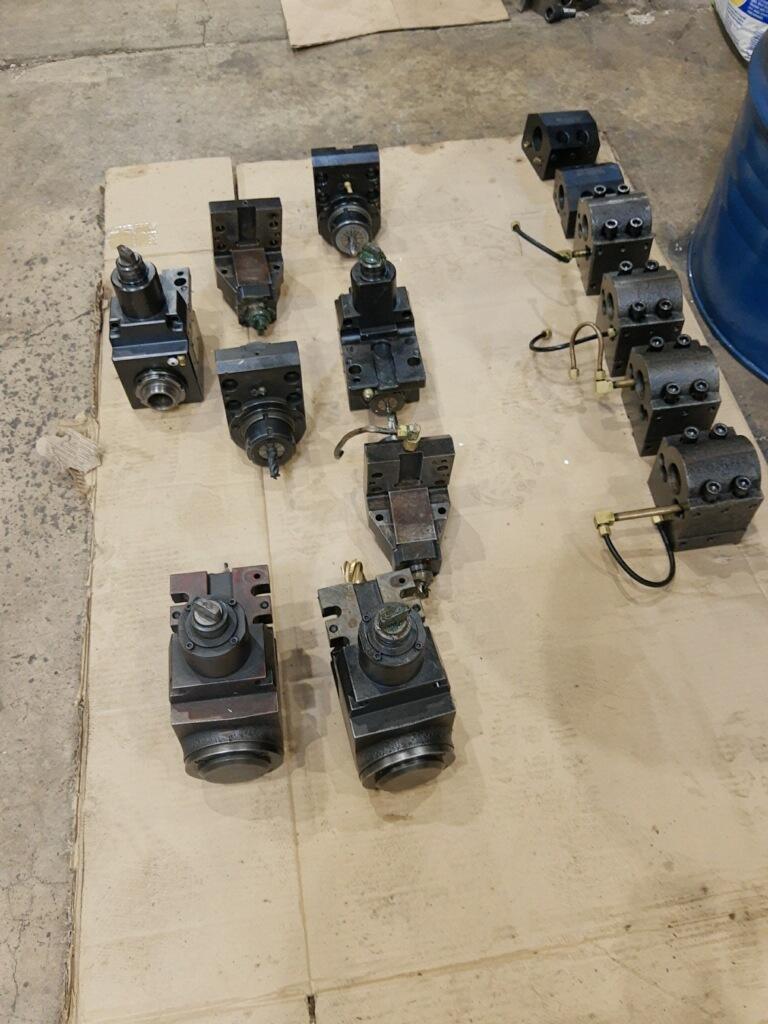

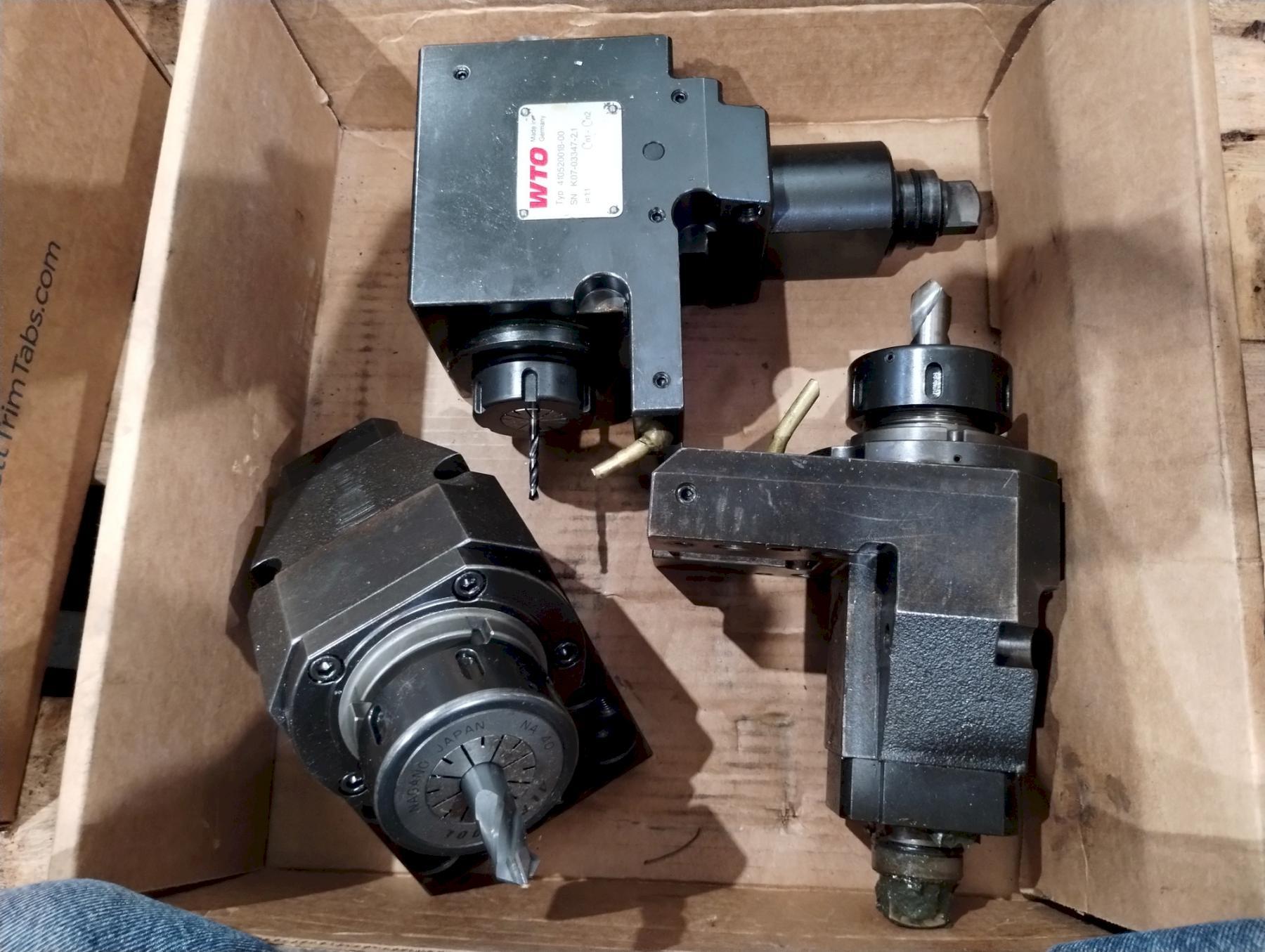

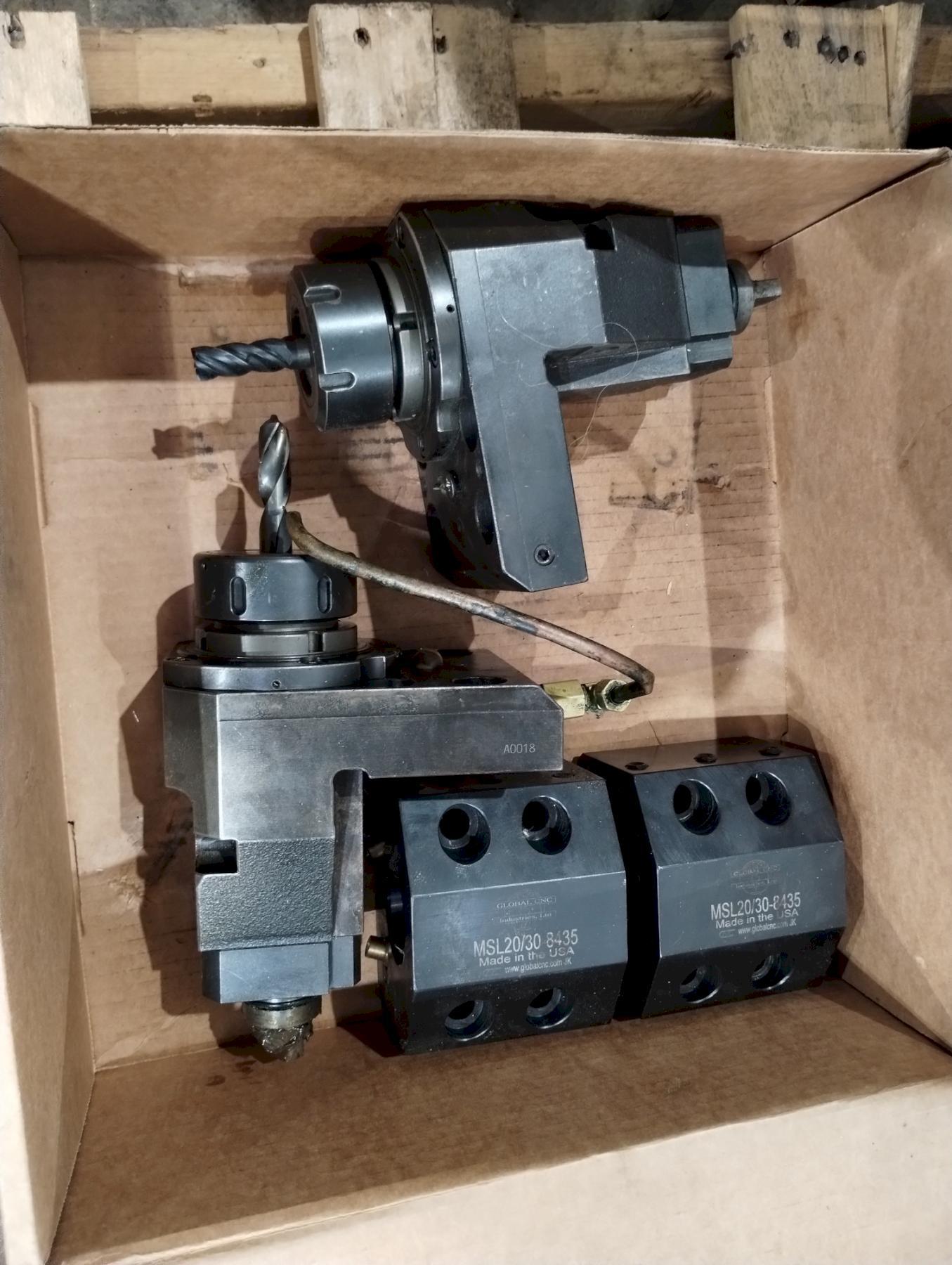

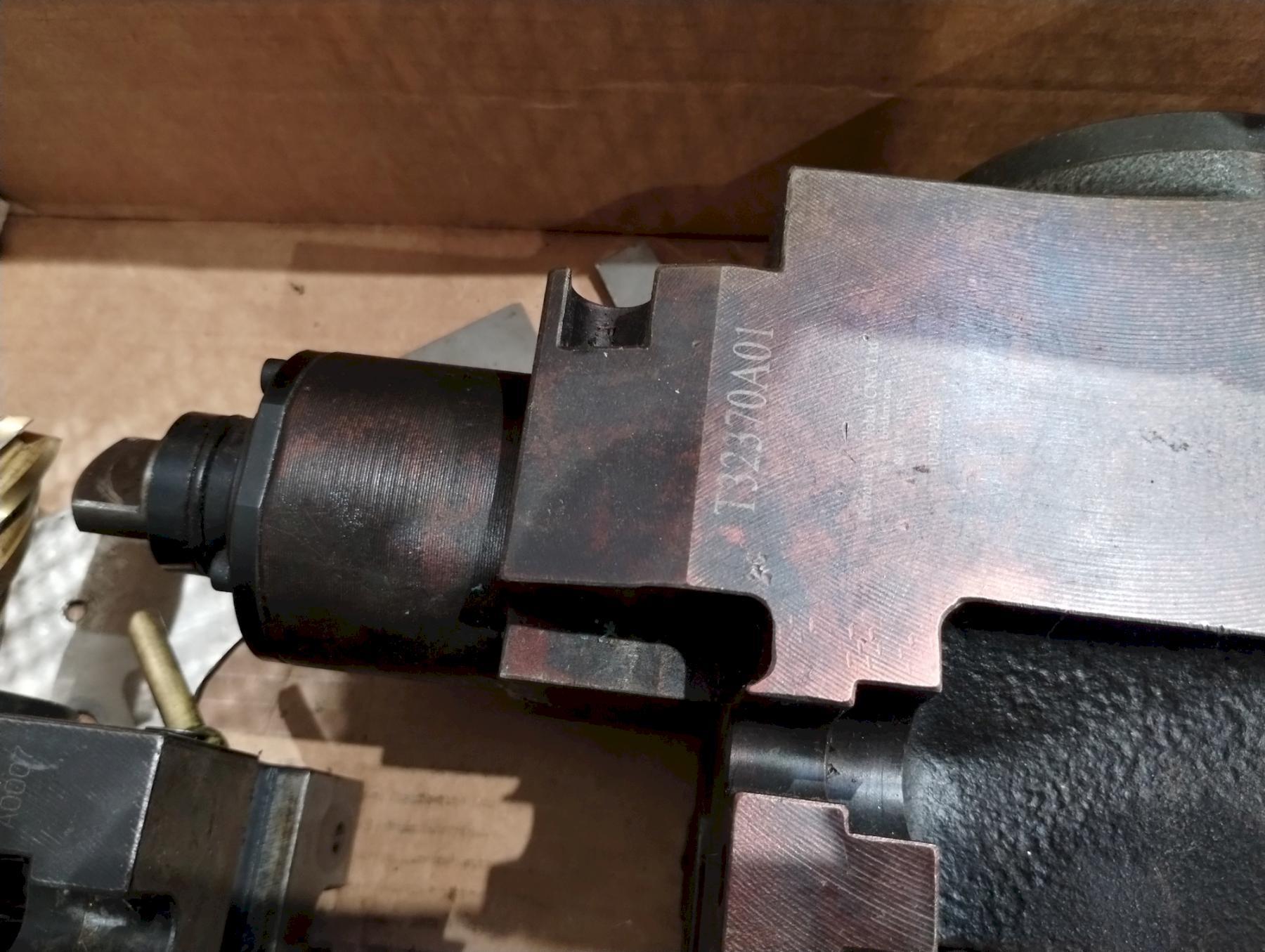

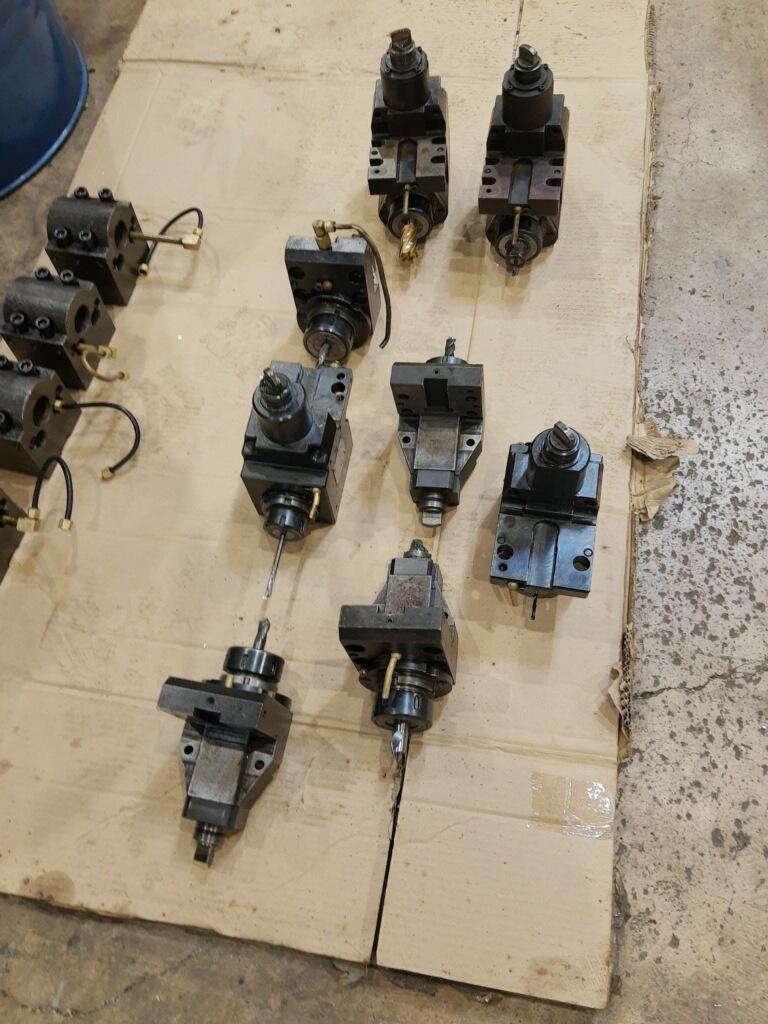

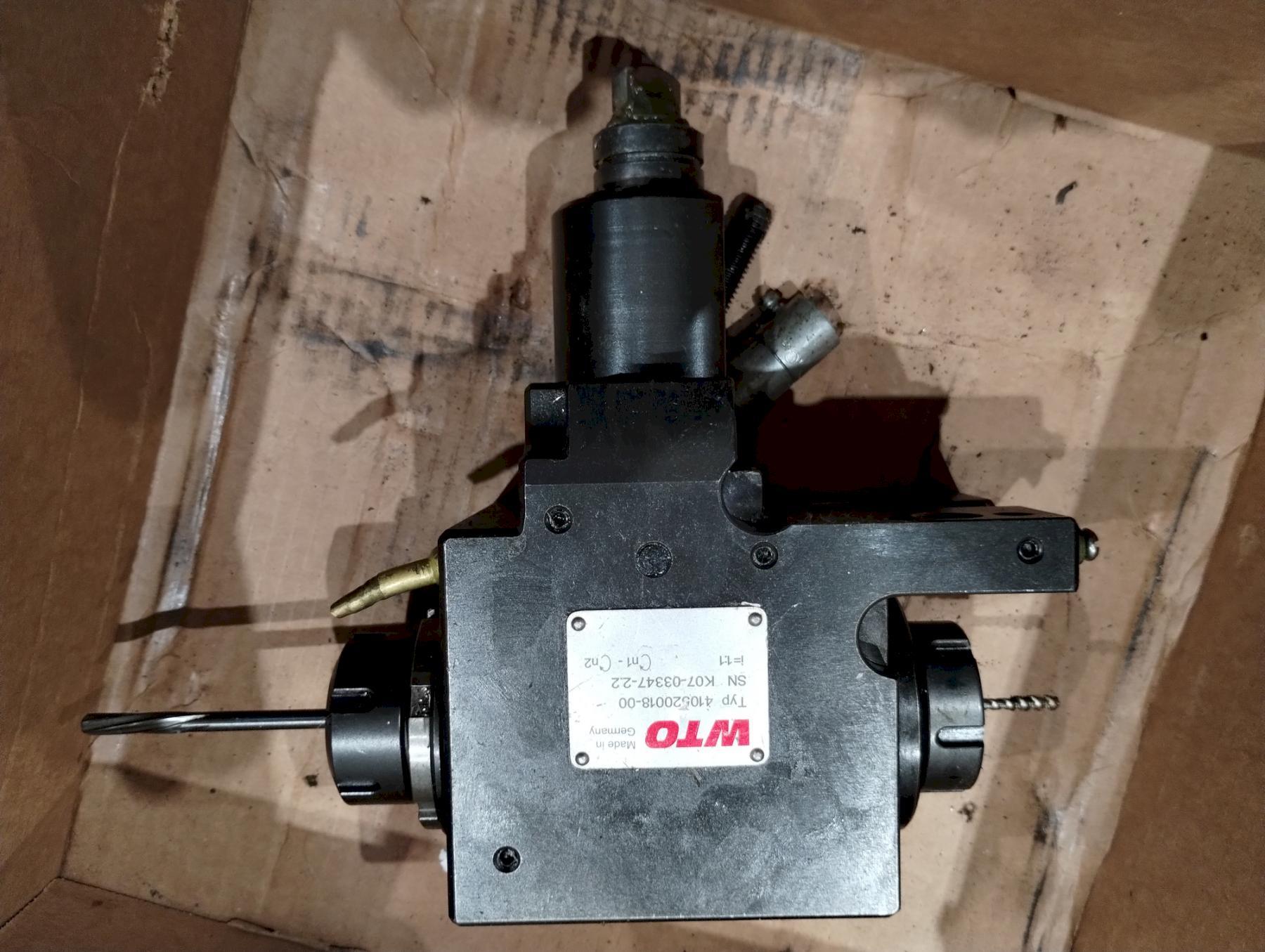

Miscellaneous live tool holders ( approx 10 available )

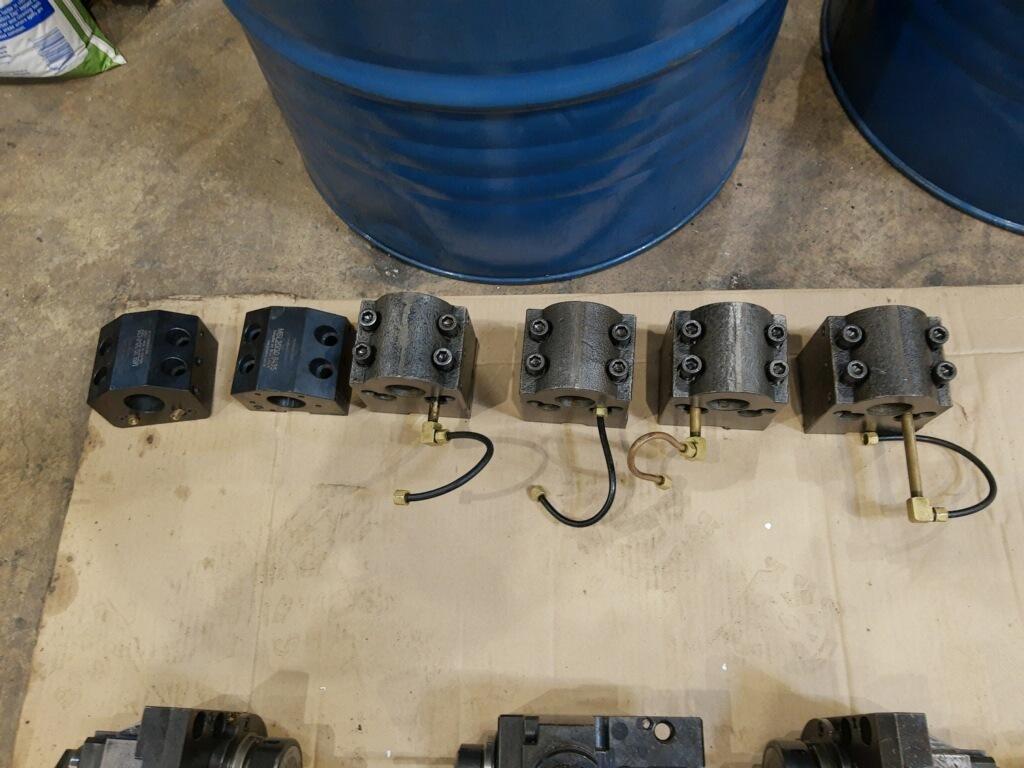

Miscellaneous tool static holders
(2) Electric Foot Pedals
Specifications:
Maximum Turning Diameter: 14.9"
Maximum Distance Between Spindles: 51.2"
Maximum Turning Length: 14"
Maximum Bar Capacity: 2.8"
X1-Axis Travel: 11"
X2-Axis Travel: Lower Turret 7.9"
Z1-AXIS Travel: 37.8"
Z2-Axis Travel: Lower Turret 38.8"
Y-Axis Travel: +/- 2.9"
C-Axis Indexing: 0.001 Degree
Spindle Speeds: 4,000 Rpm

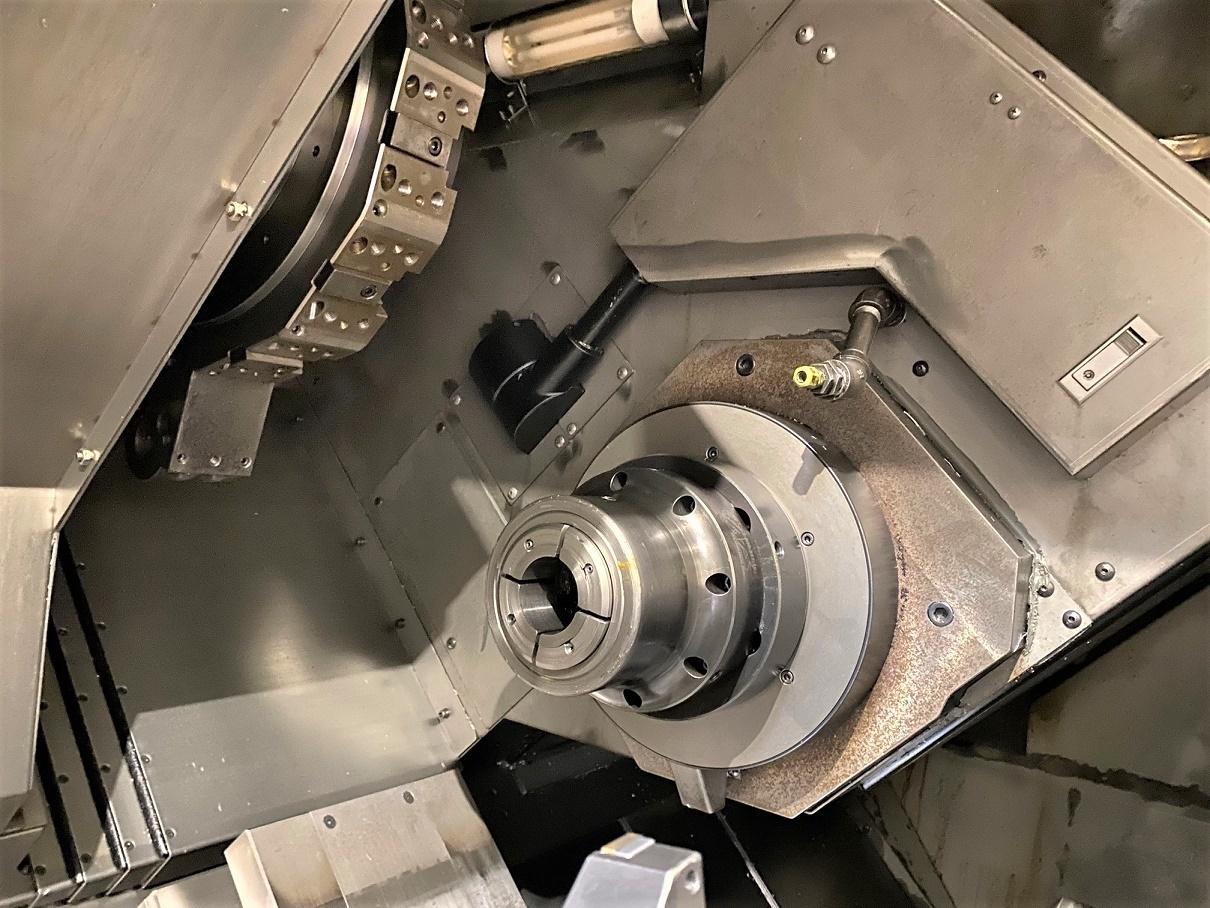

Spindle Nose (Both): A2-8
Hole Through Spindle: 3.5"

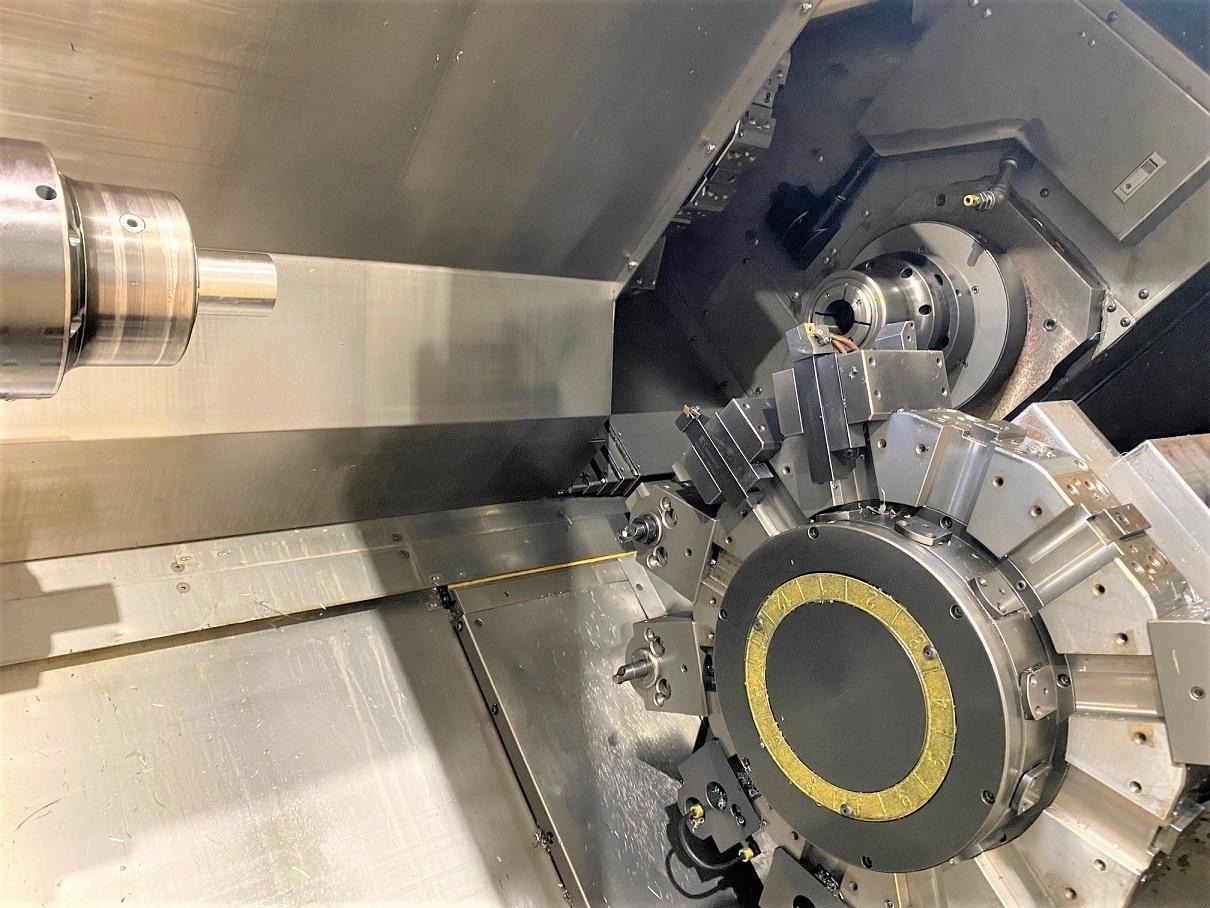

Number of Tool Positions: 12 Each Turret
Rotary Tool Speed Range: Up to 4,000 Rpm
X, Z, & B-Axes Rapid Traverse Rate: 945 Ipm
Y-Axis Rapid Traverse Rate: 472 Ipm
Approximate Machine Weight: 29,000 Lbs.
