Equipped With

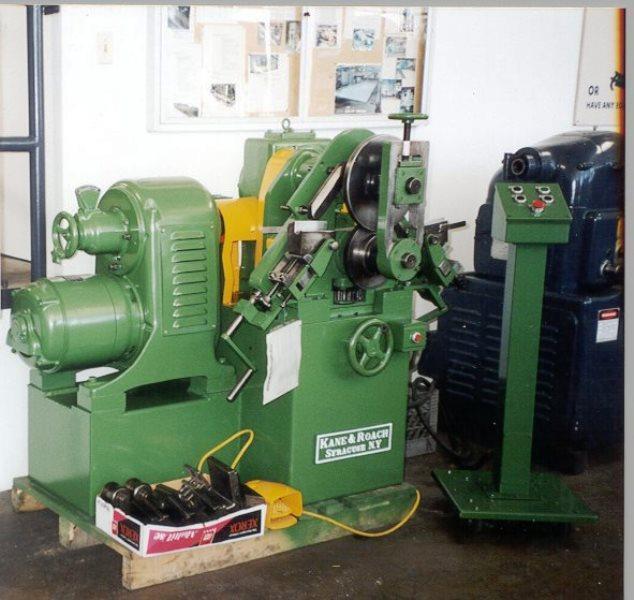

1½” x 1½” x 3/16″ KANE & ROACH MODEL 50 VERTICAL ANGLE BENDING ROLL

SPECIFICATIONS:

VERTICAL PINCH TYPE
ANGLES LEG OUT 1½" x 1½" x 3/16"
        Minimum Diameter 24"
        Smallest Angle ½" x ½" x 1/8"
        Minimum Diameter 8"
ANGLES LEG IN     1¼" x 1¼" x 3/16"
        Minimum Diameter 24"
        Smallest Angle ½" x ½" x 1/8"
        Minimum Diameter 9"
FLATS ON EDGE 1½" x 3/8"
        Minimum Diameter 8"
FLATS ON FLAT 3" x 3/8"
        Minimum Diameter 7"
ROUNDS and SQUARES ¾"
        Minimum Diameter 7"
R.P.M. ROLLS: Infinitely Variable 29 thru 86 FPM
UPPER SHAFT:
       Diameter 2-7/16"
LOWER SHAFT: Adjustment by Handwheel Up and Down
       Diameter 2-7/16"
UPPER & LOWER SHAFT HAVE EXTENSIONS 3-3/8" length x 1-11/16" dia.

EQUIPPED WITH:
       1-set LEG-IN Attachment Broad Roller Type., Adjustable up/down,
       Capacity 4½" and 3" widths.
       3-sets LEG-OUT SHOES
       Several set Outer guides
       2-sets SPOON-TYPE GUIDES
       LARGE SELECTION OF FORMING ROLLS and OUTER ROLLS
       1-Shaft Outboard Adjustable Support
OPERATORS' CONTROL STATIONS: Wired 110 volts
     Push to Stop and Pull to Start Button
     Forward & Reverse Direction Buttons.
     Jog Forward & Reverse Buttons.
     1- Remote Stop Button located below roll to right side.
     1- Remote Portable Stop Button.
MOTOR DRIVES:  Wired 440 volts, 3 phase
     Main Drive U.S Vari Drive 3 H.P. 220/440 volts.
COMPLETE FACTORY SAFETY GUARDS
