Equipped With

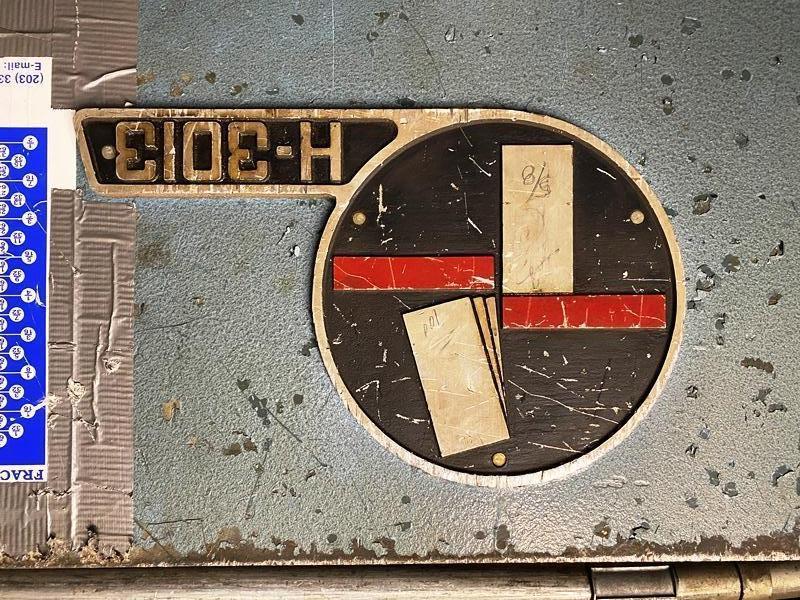

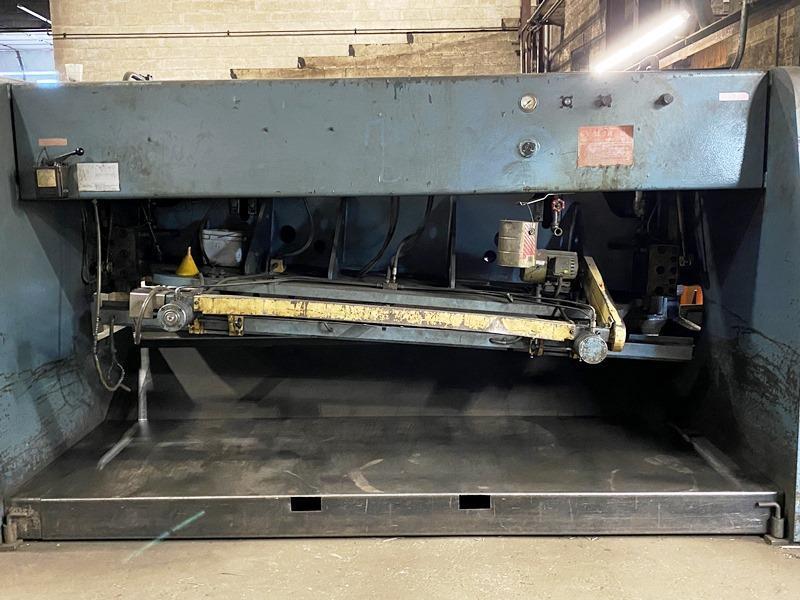

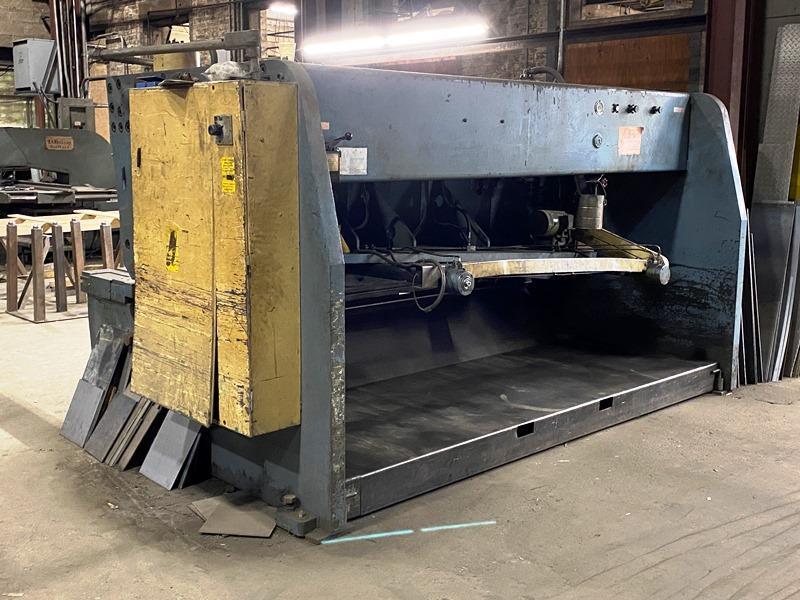

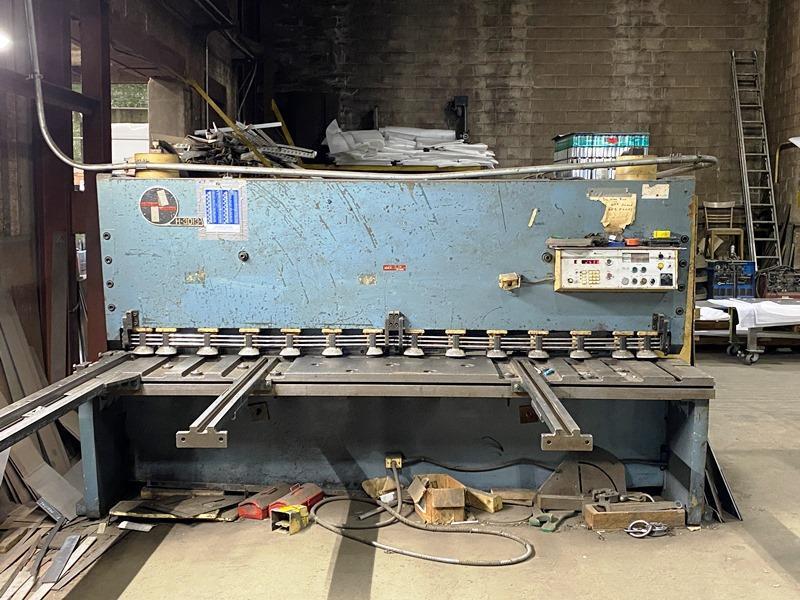

1/2" X 10' AMADA MODEL H-3013 HYDRAULIC SHEAR

New  1984

Motor Driven with 40 HP, #-Phase, 60 Cycle, AC Motor and Controls

EQUIPPED WITH:

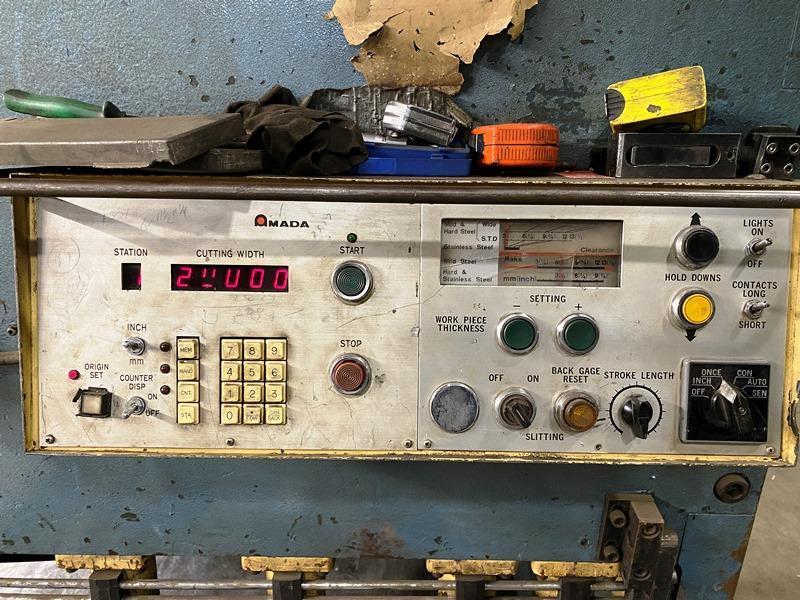

Front Operated Power Back Gauge with Digital Readout
Power Rake Angle with Gauge
Jog/Single Continuous Stroke
Foot Peddle
LH Squaring Arm
(2) Support Arms

SPECIFICATIONS
Max. Length Cutting Capacity                      10'
Max. Thickness Cutting Capacity                  1/2"
Speeds                                                          12 - 50 SPM
Number of Hold Down Clamps                    14
Back Gauge Capacity                                    39"

Approximate Dimensions                            13' x 8' x 7' H
Approximate Weight                                    32,000 Lbs.:
