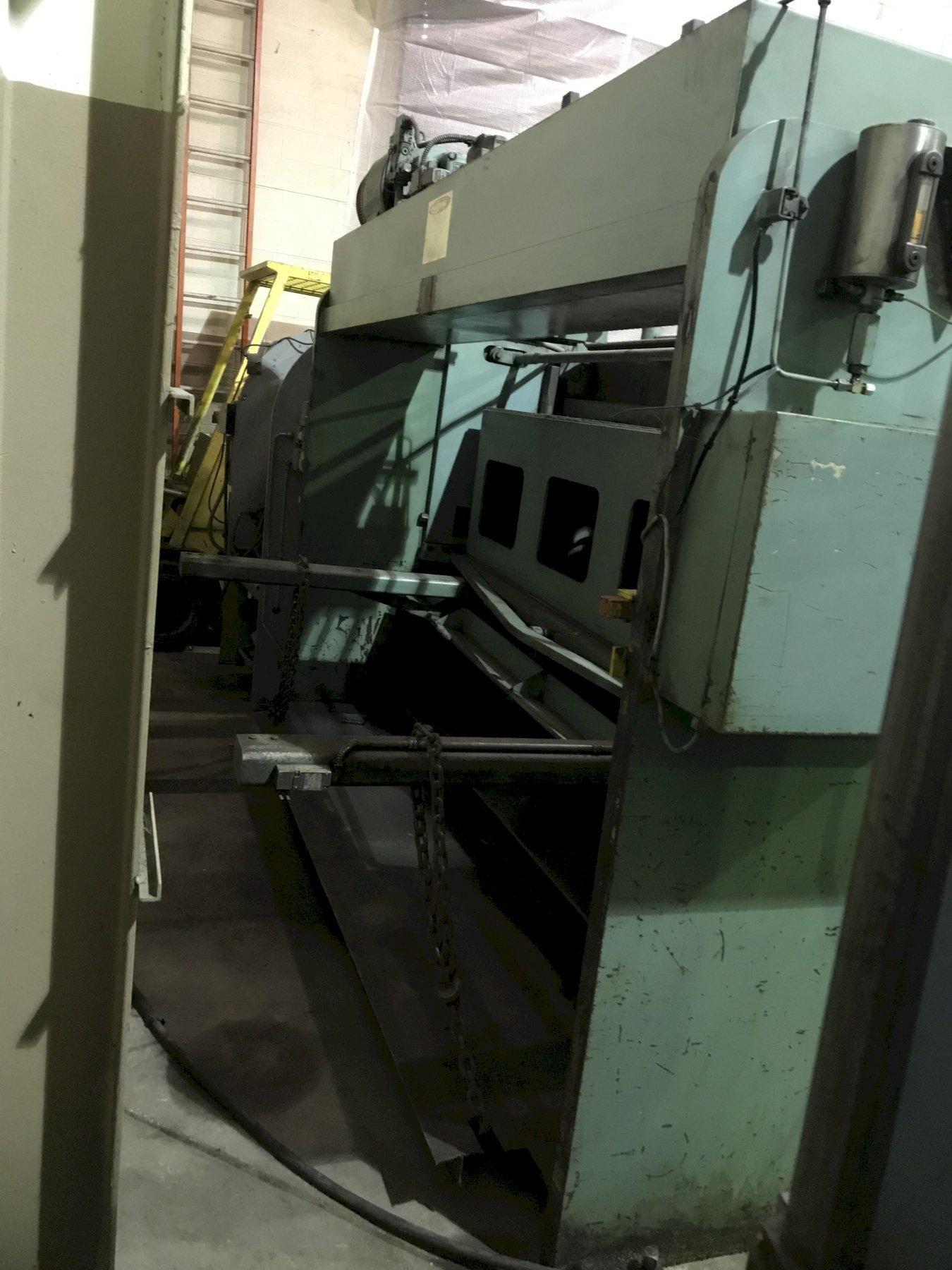

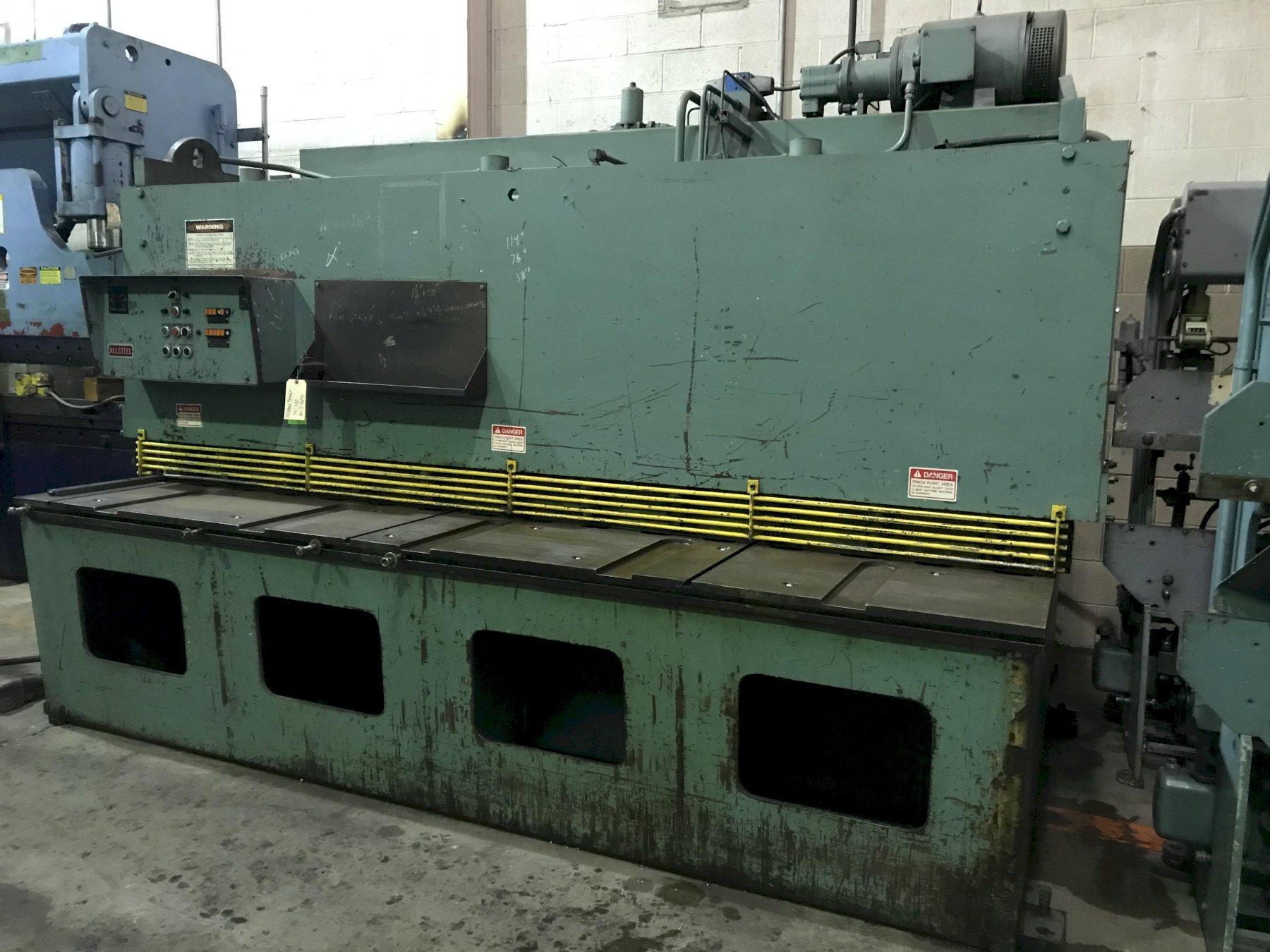

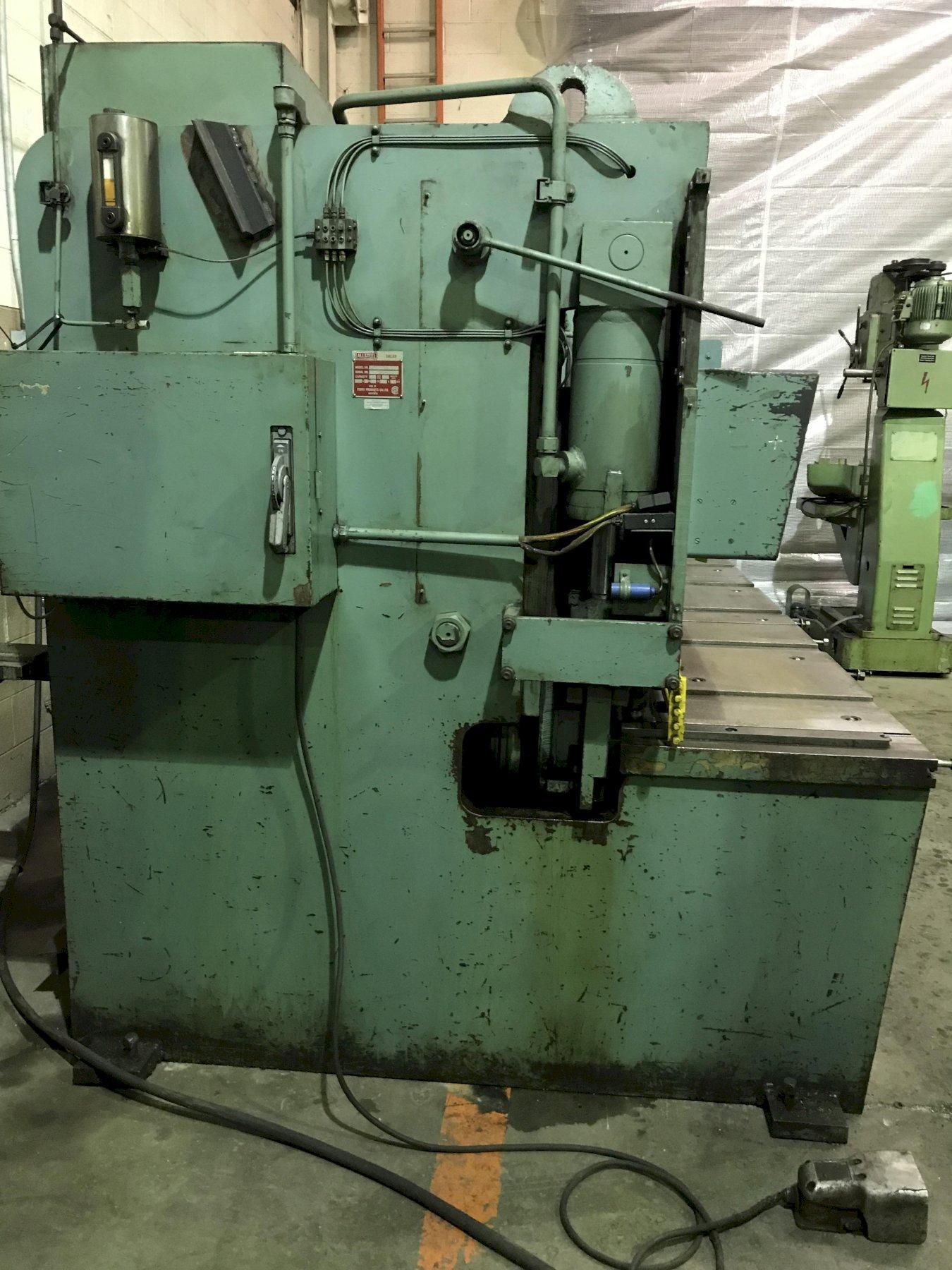

1/4" X 10' ALLSTEEL HYDRAULIC SHEAR

New 1981

SPECIFICATIONS:
Capacity: 1/4” mild steel, 3/16” stainless steel
Maximum Cutting Length: 10’
Throat Depth: 12”
Rake Angle: Powered adjustable 16 gauge - 1/4”
Gap adjustment: Manual
Strokes Per Minute: 20 min - 75 max
Number of Holddowns: 11
Hold down force: 16 tons
Blade Size: 1” x 3” x 120”


EQUIPPED WITH:
40” FOPBG with readout

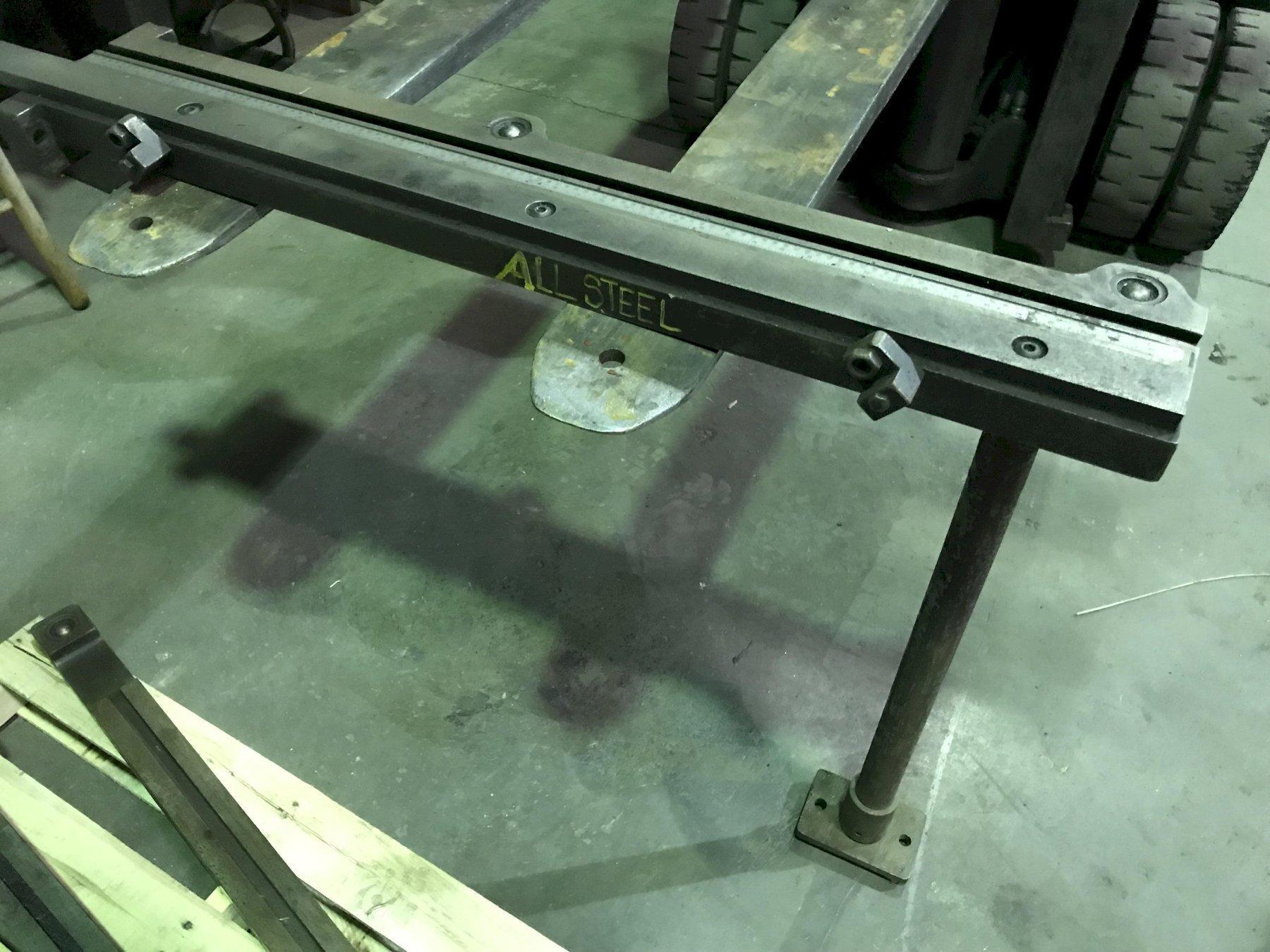

6’ squaring arm with scale & ball transfers

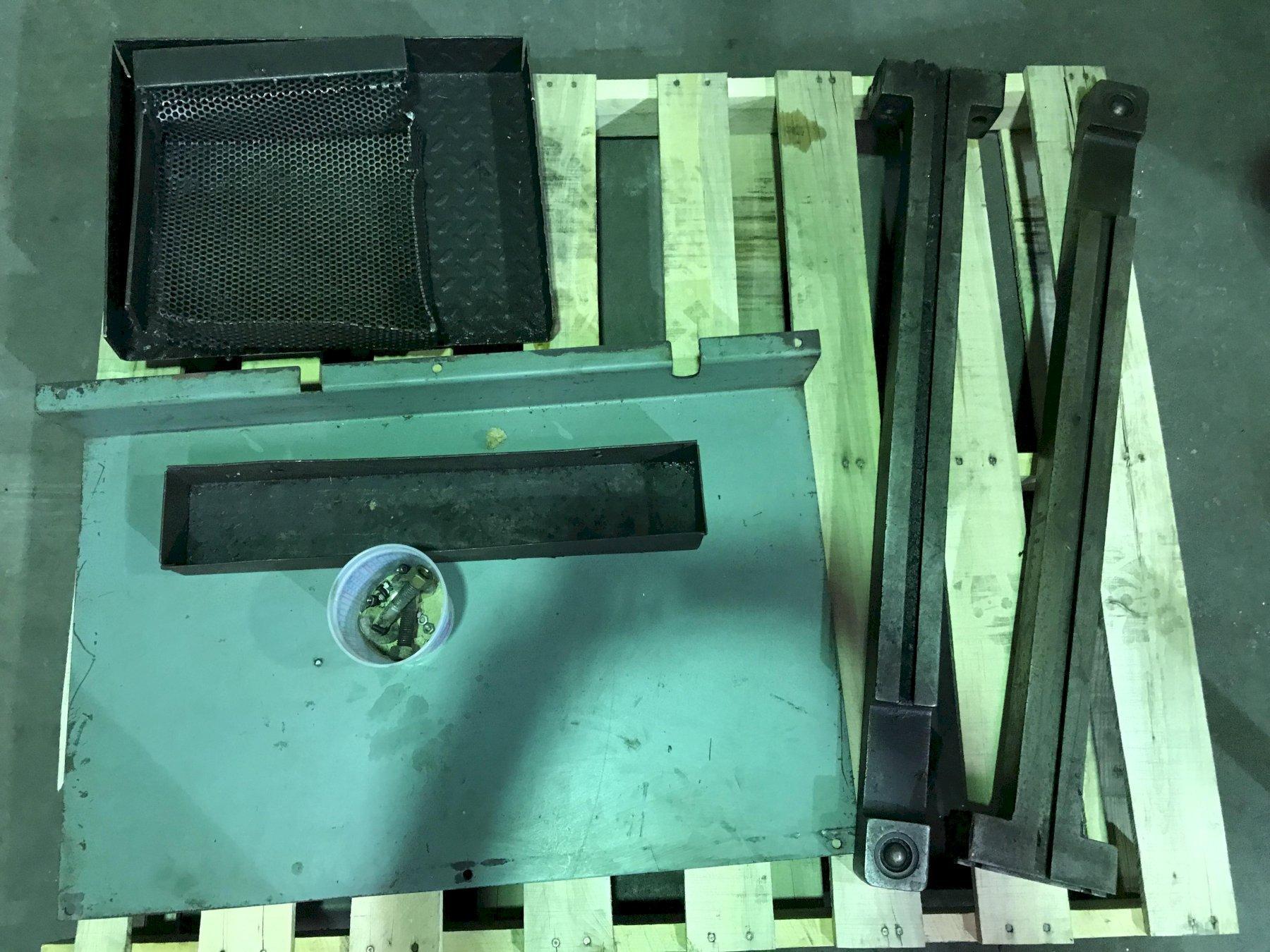

(2) 36” front support arms with ball transfers

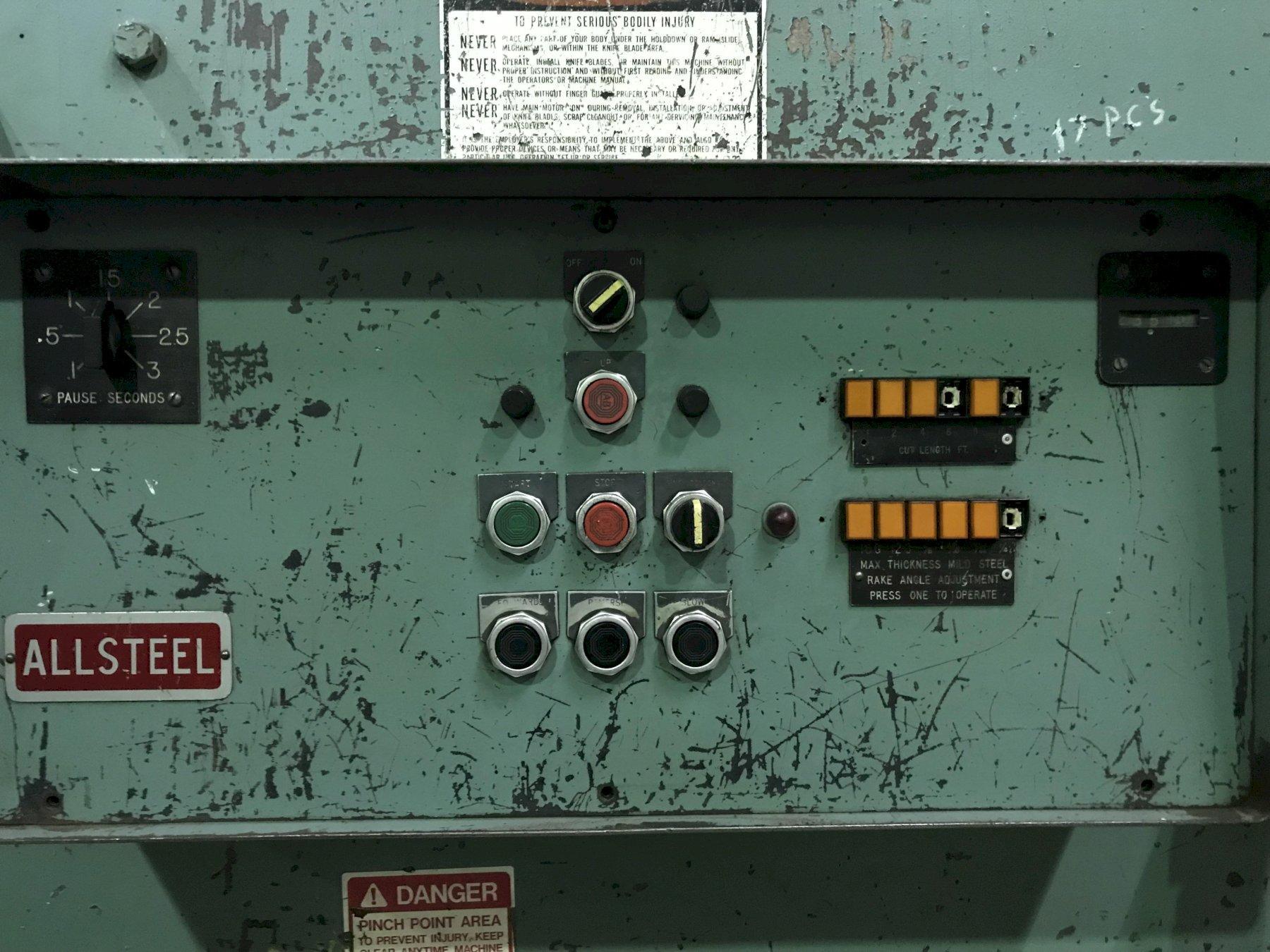

Powered push button rake adjustment, 16 ga, 12 ga, 1/8”, 3/16”, 7/32”, 1/4” settings
Powered push button stroke control, 1’, 2’, 4’, 6’, 8’, 10’ settings
Single, jog, continuos mode
Extra set of blades
Ball transfers in table
Full length t-slot in front of table
(3) T-slots F-B in table
5 hand clearance pockets
Auto lubrication
Shadow light
Manual gap adjustment

Backgauge range: 40”
Main Motor: 25 HP
Currently Wired: 550 volts
Table Height: 32”
Oil capacity: 100 gallons
Approximate Dimensions without gauges: 137” x 96” x 102”
Approximate Weight: 20,000 lbs
