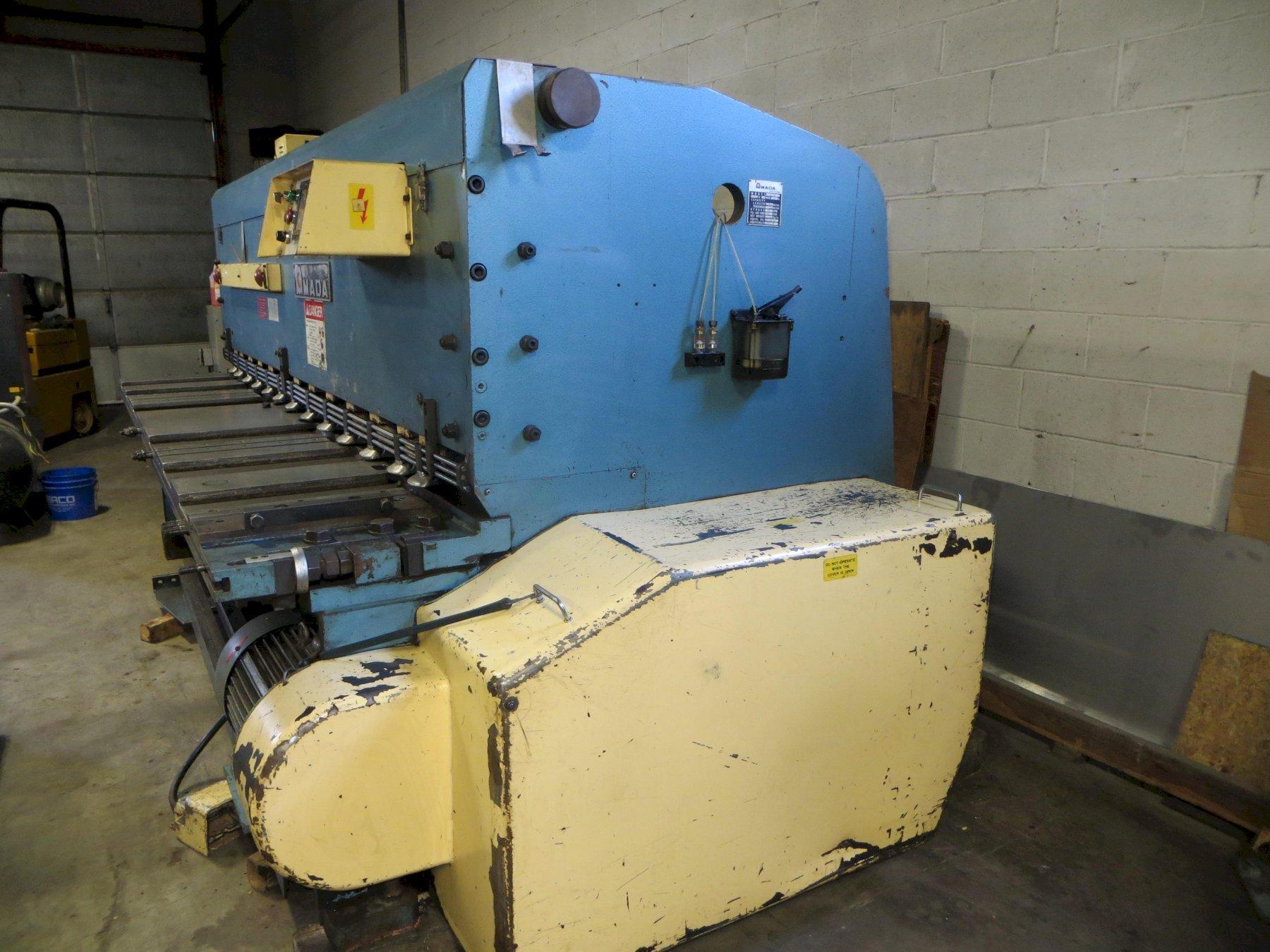

1/4" x 10' AMADA MODEL M-3060 MECHANICAL POWER SHEAR

Specifications:

CAPACITY, MILD STEEL ......................... 1/4"

SHEARING LENGTH .............................. 120"

BLADE LENGTH ................................. 133"

RAKE ANGLE ................................... 1 DEGREE 28'

SPEED ........................................ 60 SPM

BACKGAUGE RANGE .............................. .25" - 36"

NUMBER OF HOLDDOWNS .......................... 13

MOTOR SIZE ................................... 15 HP

DIMENSIONS .... L x W x H ............... 170" x 80" x 70"

WEIGHT ....................................... 18,500 LBS.

Equipped With:

36" AMADA FRONT OPERATED POWER BACKGAUGE

10' SQUARING ARM

(2)  30" FRONT SUPPORT ARMS
