Equipped With

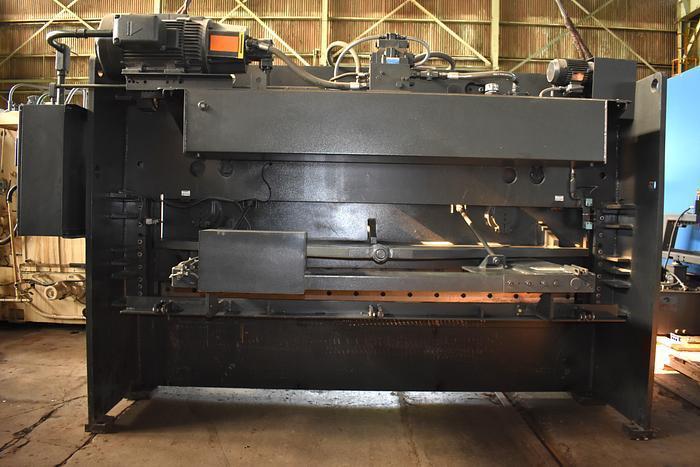

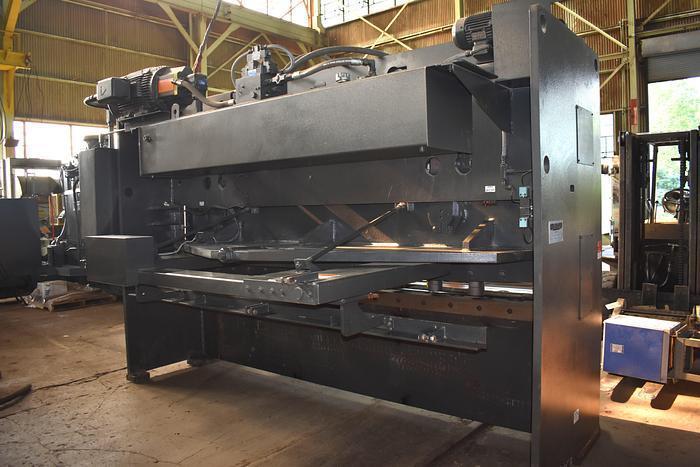

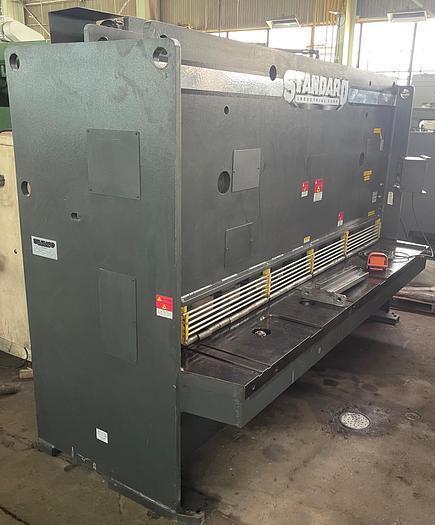

10' x 1/2" STANDARD-INDUSTRIAL MODEL AS500-10  CNC HYDRAULIC POWER SQUARING SHEAR

New 2013

EQUIPPED WITH:

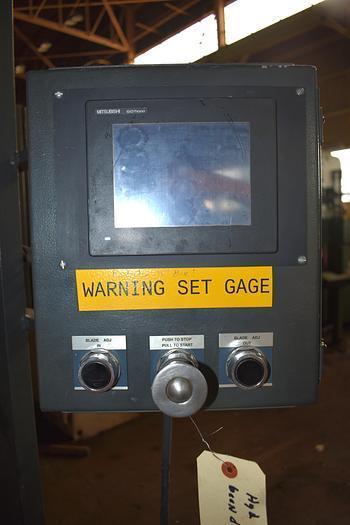

Mitsubishi GOT1000 PLC Control

36" Extremely Heavy-Duty Power Back Gauge w/Manual Swing-Up

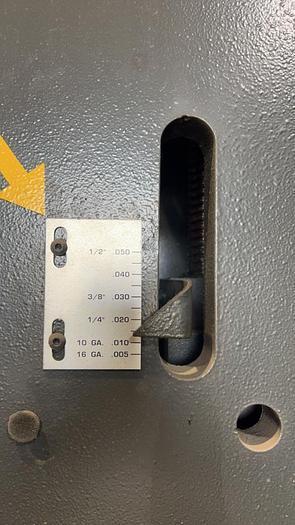

Infinitely Variable Quick Change Blade Gap Adjustment

4' Squaring Arm - Ball Rollers In Table

Hydraulic Hold-Downs

No Pit Required

CATALOG SPECIFICATIONS:

Shearing Capacity, Mild Steel 10' x 1/2"

Shearing Capacity, Stainless Steel 10' x 3/8"

Shearing Tons Available 90 TONS

Number of Hydraulic Hold-Downs 11

Total Hold-Down Pressure 99 TON

Rake Taper, Inch/Foot .4"

Blade Size 1" x 4" x 124"

Strokes Per Minute, Full-Width 9 SPM

Strokes Per Minute, 12"-Wide 24 SPM

Ram Speed Down 99 IPM

Ram Speed Up 179 IPM

Motor, Horsepower 40 HP

Overall Dimensions, L x W 150" x 85"

Overall Height 103"

Weight, Approximately 30000 LBS
