Equipped With

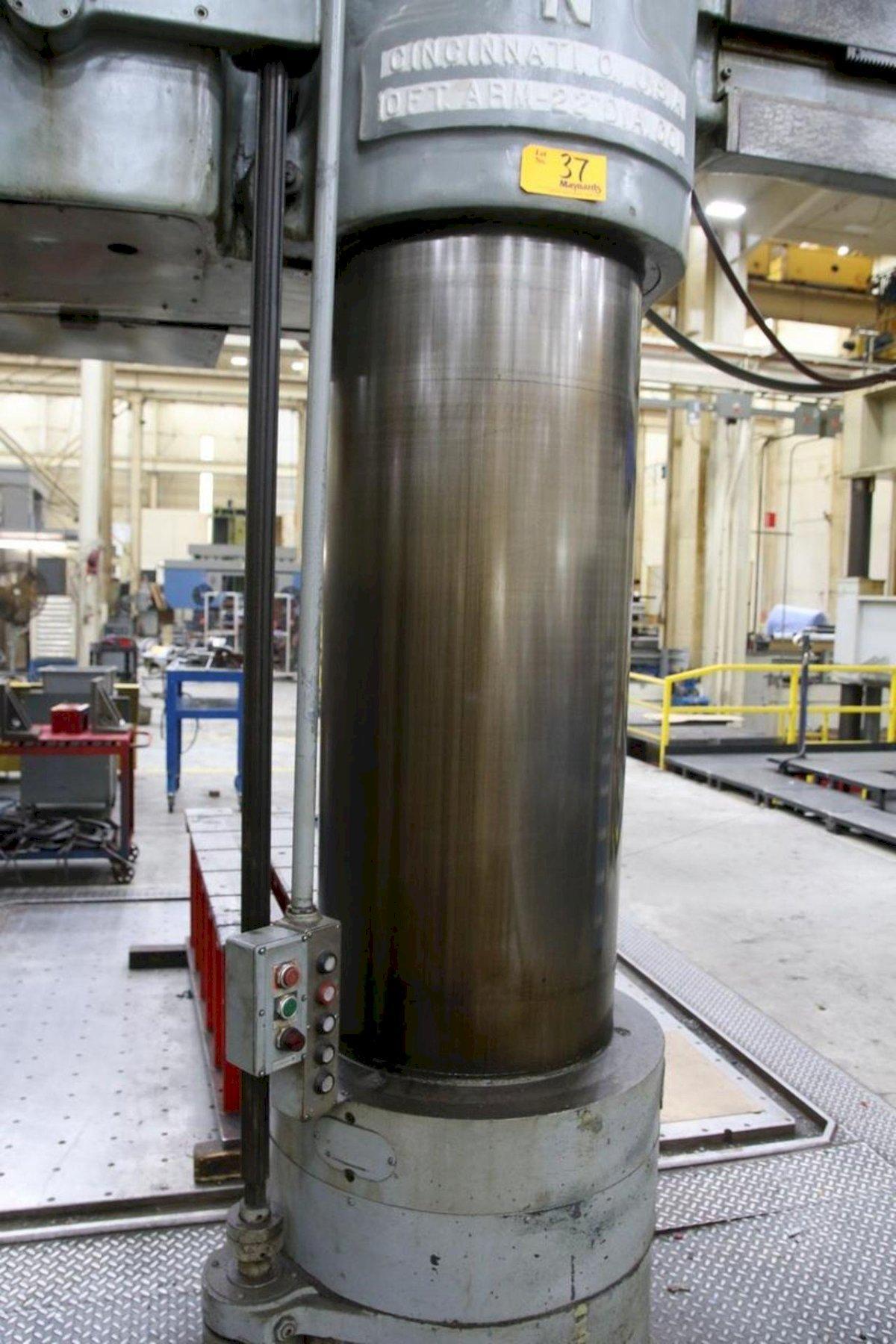

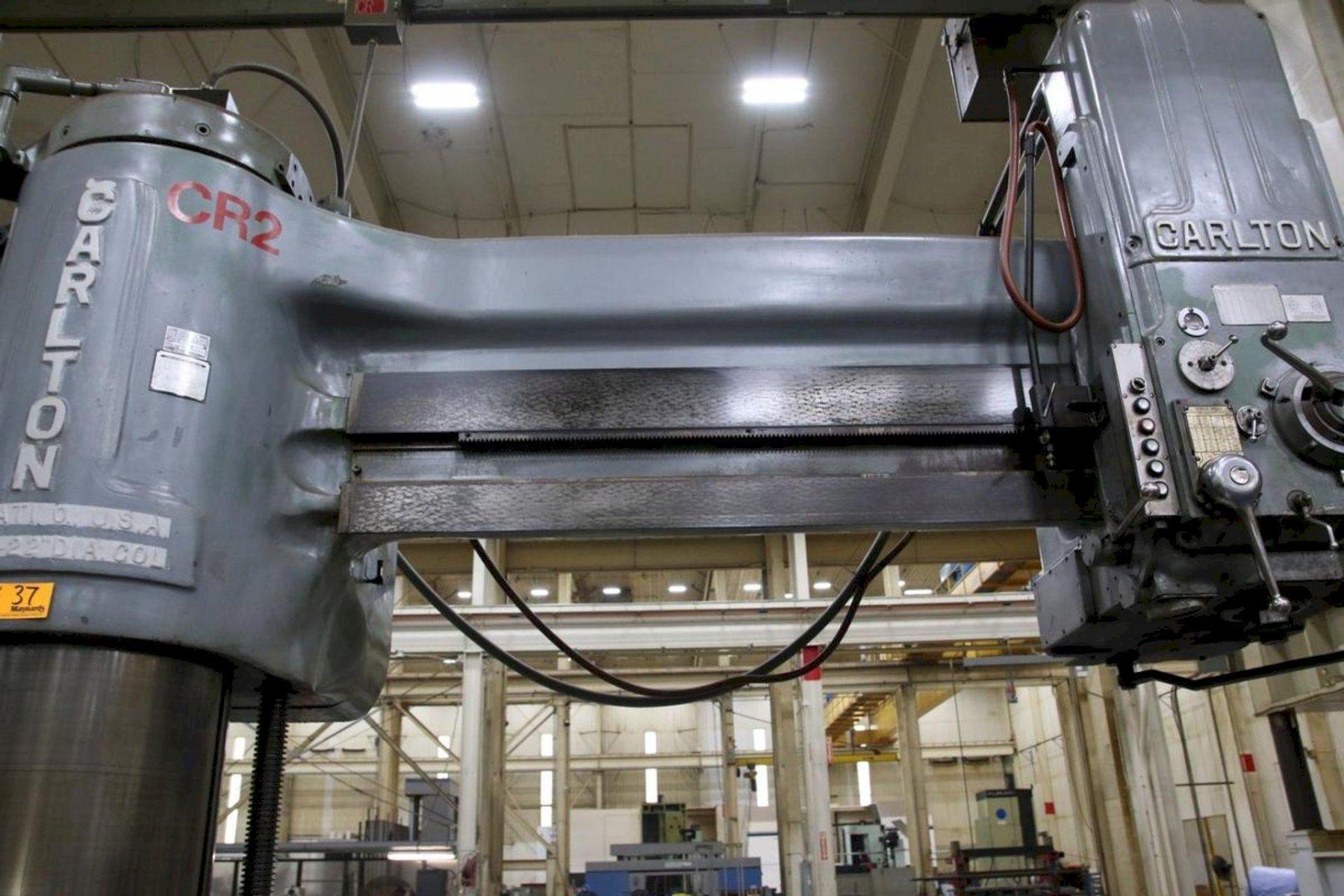

10' X 22" CARLTON MODEL #5A RADIAL DRILL
New 1977

SPINDLE SPEEDS ....................... (12) 10 TO 1000 RPM

THREADS .............................. (5) 6, 7, 8, 11-1/2, 18

DISTANCE SPINDLE TO FLOOR ............. 18-1/2" MIN, TO 98" MAX

SPINDLE TRAVEL ....................... 24"

TAPER IN SPINDLE ..................... #6 MT

DIAMETER OF SPINDLE .................. 4"

TRAVEL OF ARM ON COLUMN .............. 54"

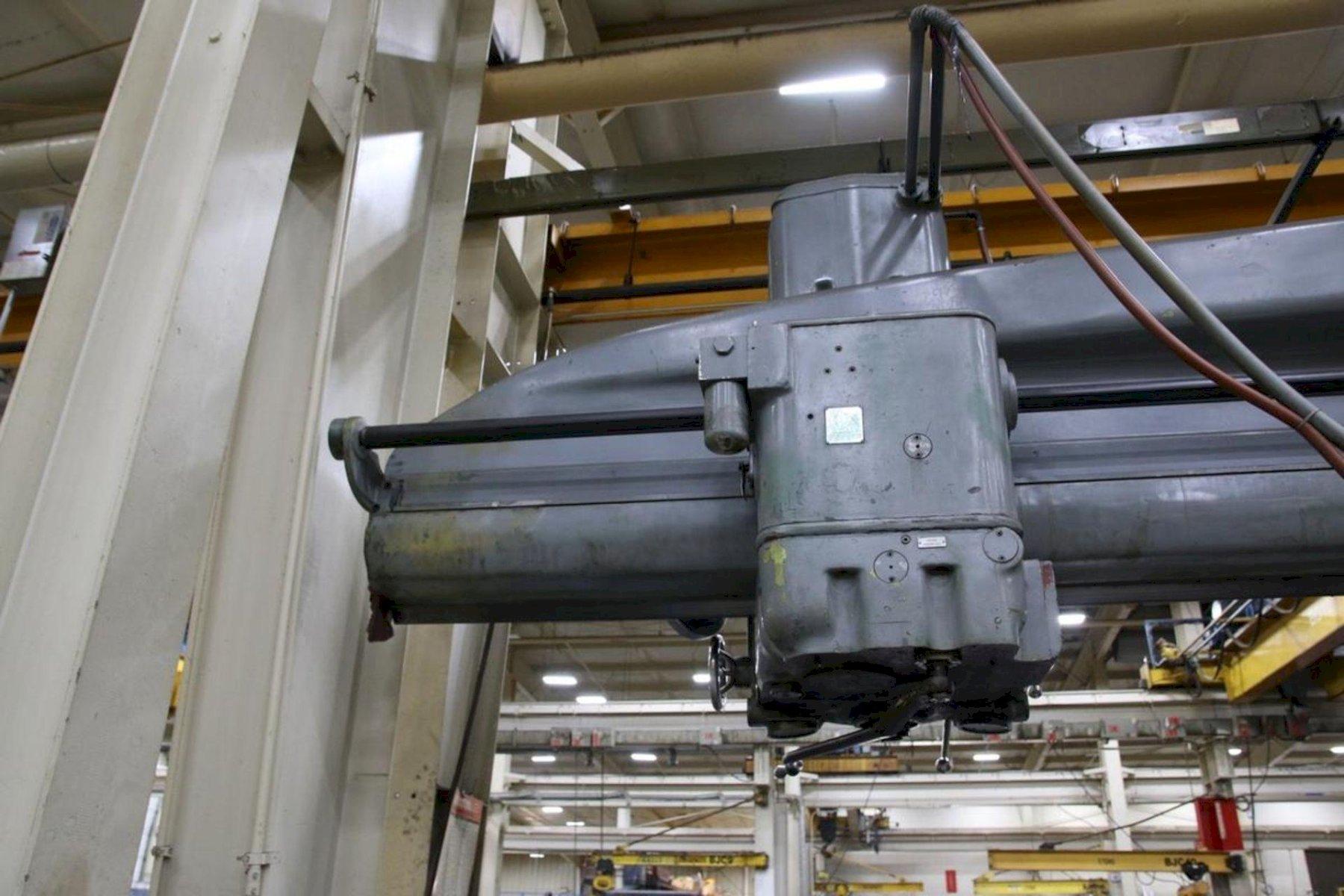

TRAVEL OF HEAD ON ARM ................ 105"

POWER HEAD CLAMPING .................. YES

POWER HEAD TRAVERSE .................. YES

POWER ELEVATION ...................... YES

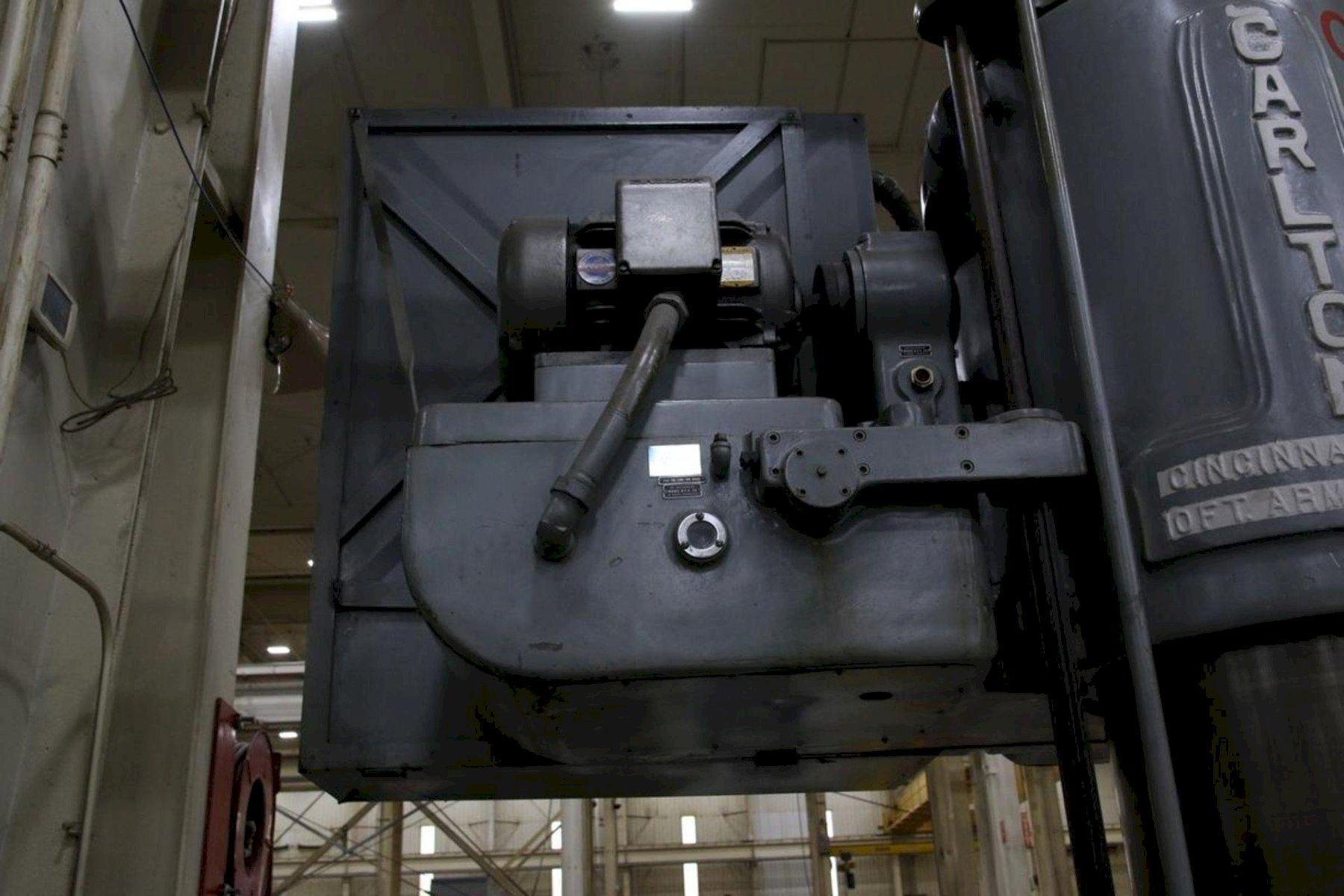

SPINDLE MOTOR ........................ 40 HORSEPOWER
