Equipped With

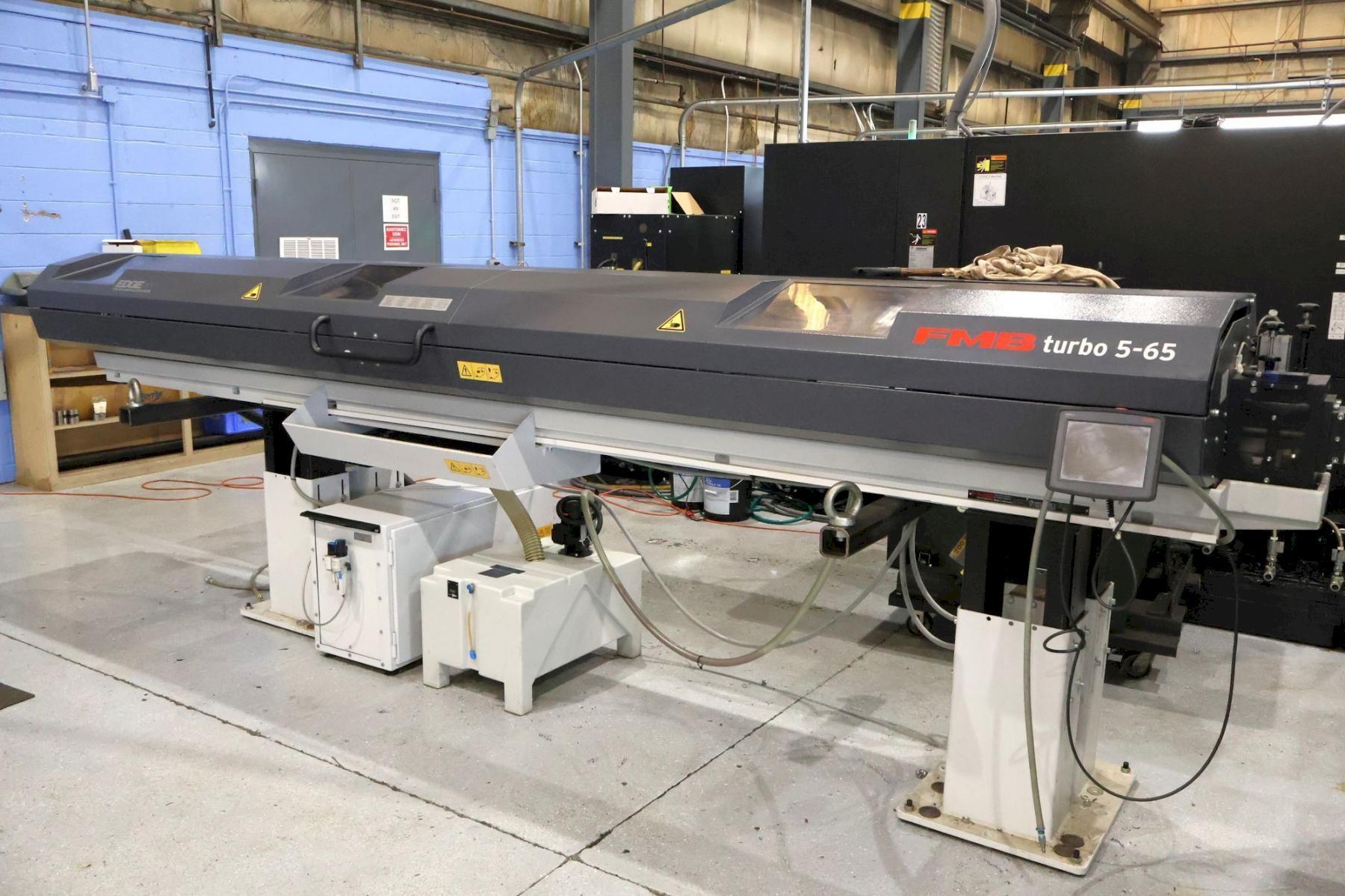

12' FMB TURBO 5-65 BARFEEDER

NEW 2021

SPECIFICATIONS:
BAR DIAMETER CAPACITY - NO BAR PREPARATION: 5MM TO 62MM
BAR DIAMETER CAPACITY - WITH BAR PREPARATION OR FRONT EJECT: 5MM TO 67MM
MAXIMUM BAR LENGTH: 3800MM (12 FEET 5 INCHES)
MINIMUM BAR LENGTH: 1000MM (39.4")
MAXIMUM REMNANT LENGTH: 530MM (20.8")
MAGAZINE RACK CAPACITY: 11
BAR LOADING CYCLE TIME:  35 SECONDS FOR 12-FOOT BAR
MATERIAL STRAIGHTNESS SPECIFICATION: .007" TIR/FOOT OF MATERIAL (V BLOCKS, 3 POINTS EQUIDISTANCE)
FEED FORCE PUSHER TORQUE):  MAX 750 N, ADJUSTABLE
FORWARD FEED RATE: 2360 INCHES/MINUTE MAX, ADJUSTABLE
IN-FEED RATE: 0 - 1650 INCHES/MINUTE MAX, ADJUSTABLE
POWER CONSUMPTION: 1.5 KW / 2KVA
OPERATING VOLTAGE: 230V/60HZ 3-PHASE
CONTROL VOLTAGE: 24V DC

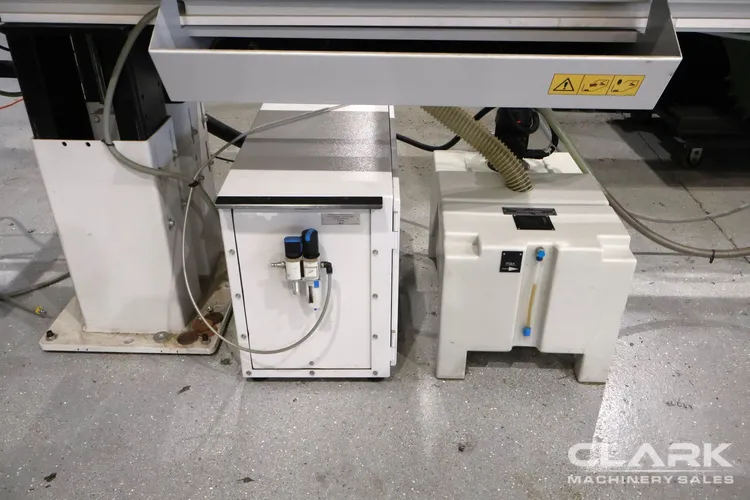

OIL CAPACITY: 80 LITERS (22 GALLONS)
OIL VISCOSITY: ISO 150 CST
COMPRESSED AIR SUPPLY: 0.6 MPA (6 BAR) - 90 PSI
COMPRESSED AIR CONSUMPTION: APPROX 10 LITERS PER LOADING CYCLE
MACHINE WEIGHT (WITHOUT OIL): 6,400 LBS

EQUIPPED WITH:
BAR DIAMETER CAPACITY: 5MM TO 67MM (.196" - 2.637")

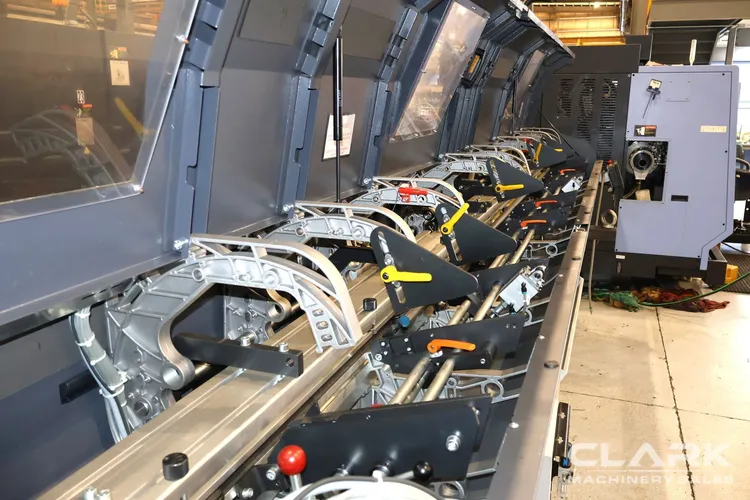

AUTOMATIC LOADING MAGAZINE - 11 LINEAR INCHES OF RACK CAPACITY
DOUBLE PUSHER, SPACE SAVING DESIGN
POLYURETHANE GUIDE CHANNEL SYSTEM -- NOISE & VIBRATION DAMPENING
QUICK CHANGE GUIDE CHANNELS AND PUSHER
HYRDODYNAMIC SUPPORT VIA HIGH VOLUME OIL FLOW INTO CHANNELS
BOSCH INDRADRIVE CONTROL SYSTEM WITH 48 PART PROGRAM STORAGE, ALLOWS EASY BAR FEEDER PARAMETER CHANGES
AUTOMATIC REMNANT RETRACTION, SELF-CENTERING GRIPPER
CUSTOM LATHE CABLE AND INTERFACE PLUGS
