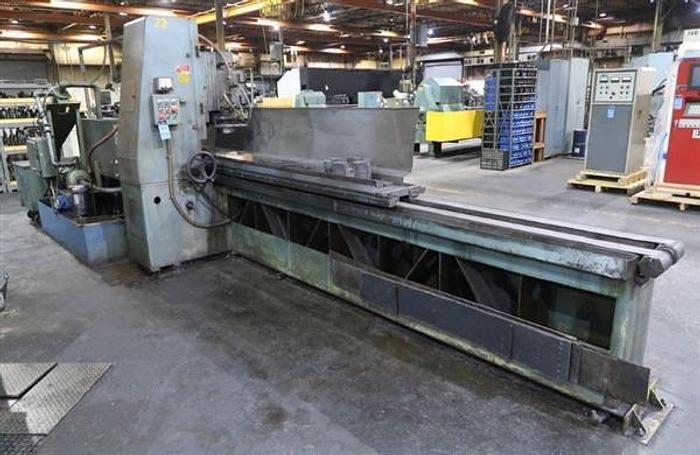

12" X 120" HANCHETT MODEL VS122 HYDRAULIC-FEED VERTICAL-SPINDLE KNIFE/SURFACE GRINDER
Year
1985
Stock #
17533
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
12" X 120" HANCHETT MODEL VS122 HYDRAULIC-FEED VERTICAL-SPINDLE KNIFE/SURFACE GRINDER
NEW 1985
SPECIFICATIONS:
Table Working Surface L-R 12" X 124"
Table Overall Dimensins 12" X 141"
Max. Grinding Width Capacity 12"
Height Under Grinding Wheel 12"
Height Under Grinding Wheel 12"
Table Longitudinal Stroke, Length 131.5"
Max. Grinding Wheel Diameter 14"
Number of Grinding Wheel Segments 6
Table longitudinal Feed Range 15 TO 75 FPM
Spindle Vertical Feeds Range .002 TO .0025 IPR
Grinding Wheel Spindle Motor 15 HP
Approximate Dimensions 287" X 70" X 85" H
Overall height 85"
EQUIPPED WITH:

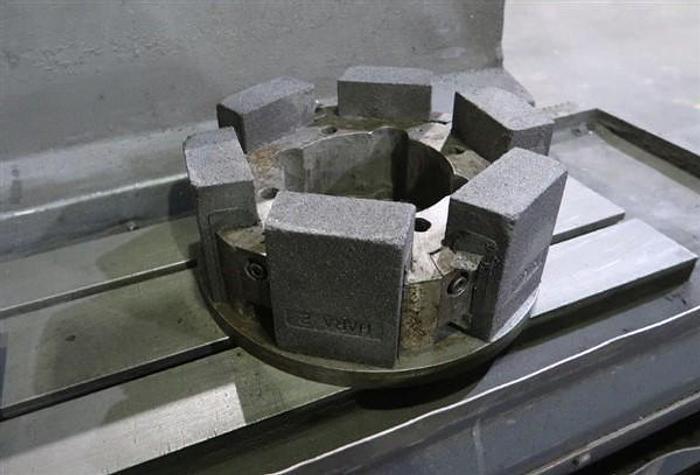

14" DIAMETER QUICK-CHANGE SEGMENTED GRINDING WHEEL
INCREMENTAL POWER DOWN FEED

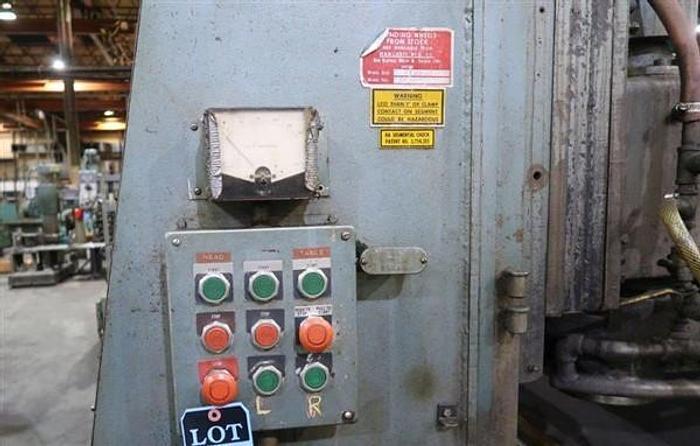

AMMETER CHECK FOR MOTORIZED SPINDLE LOADS
REAR OPERATORS STATION

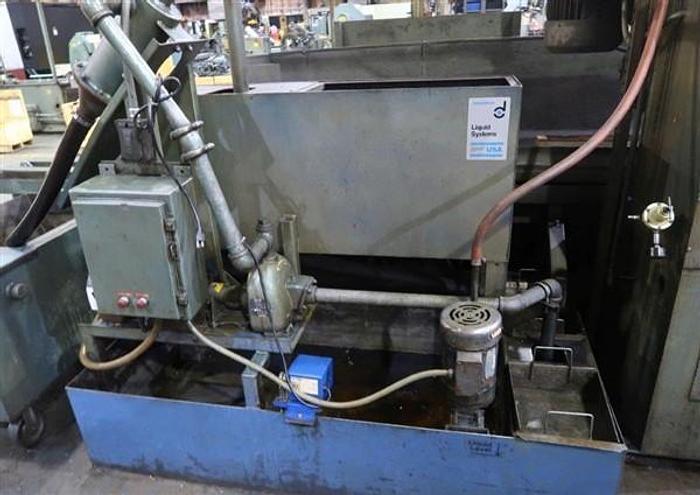

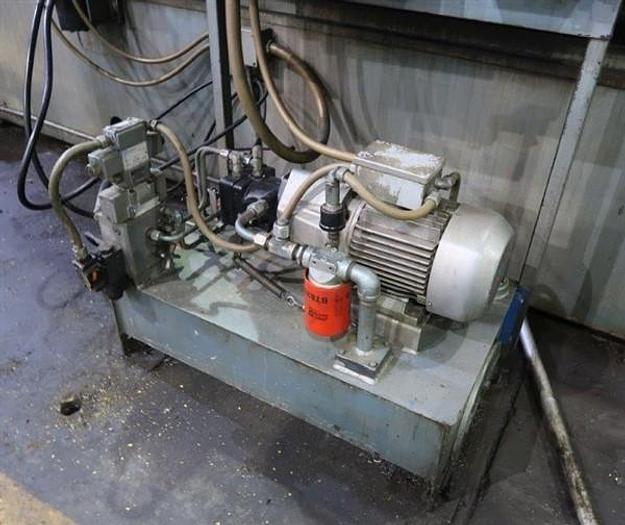

FAUVER HYDROSTATIC HYDRAULIC DRIVE UNIT (18 GALLON)

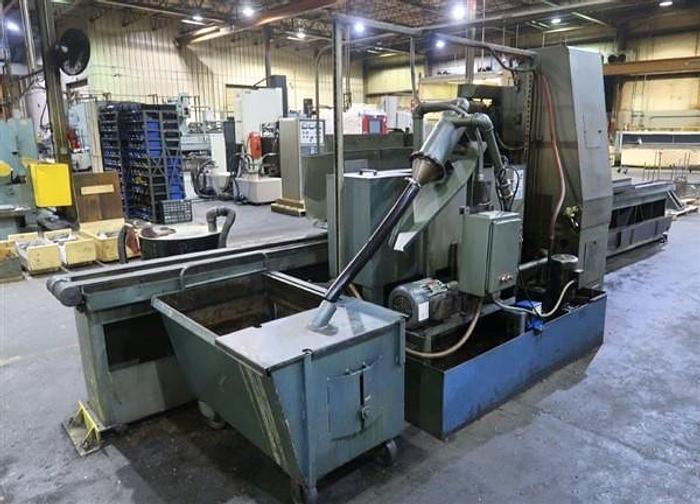

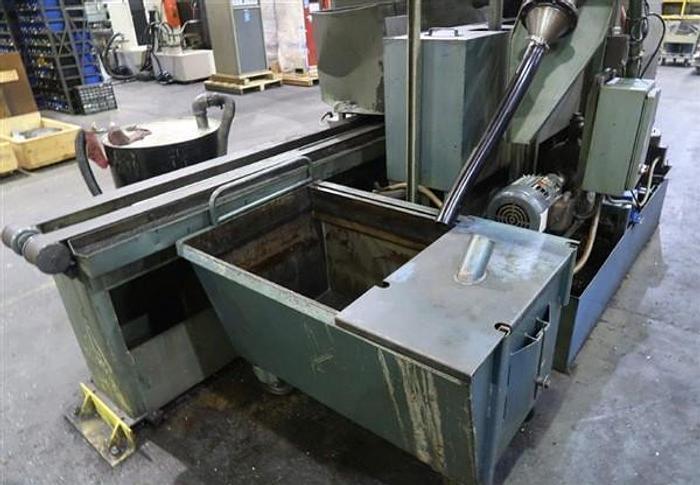

EXTRA RACK & SCRAP BIN ON CASTERS
