Equipped With

12" x 24" OKAMOTO MODEL ACC GRIND-X 12.24 DXNC CNC SURFACE GRINDER
New 2004


Parts and Service Available

  Table working capacity:                 12" X 24"

  Max Dist. Under 12" Wheel to Table:     13.6"

  Table Load Capacity:                    925 Lbs.

  T-Slots:                                .67" X 3"

  X-Axis Longitudinal Feed:               30"

  Max Surface Speed:                      6500 SFPM

  Table Feed Rate:                        3-82 Feet Per Minute

  Z-Axis Crossfeed:                       13.3"

  Intermittent Traverse Feed:             .02-.80

  Y-Axis Vertical Feed:                   .001-40 IPM

  Grinding Wheel:                         14" X 2" X 5"

  Grinding Wheel Speed:                   500-1800 RPM

  Grinding Wheel Motor:                   7.5 HP

  Power Supply:                           230/460, 3ph, 60 Hz

  Equipped with:

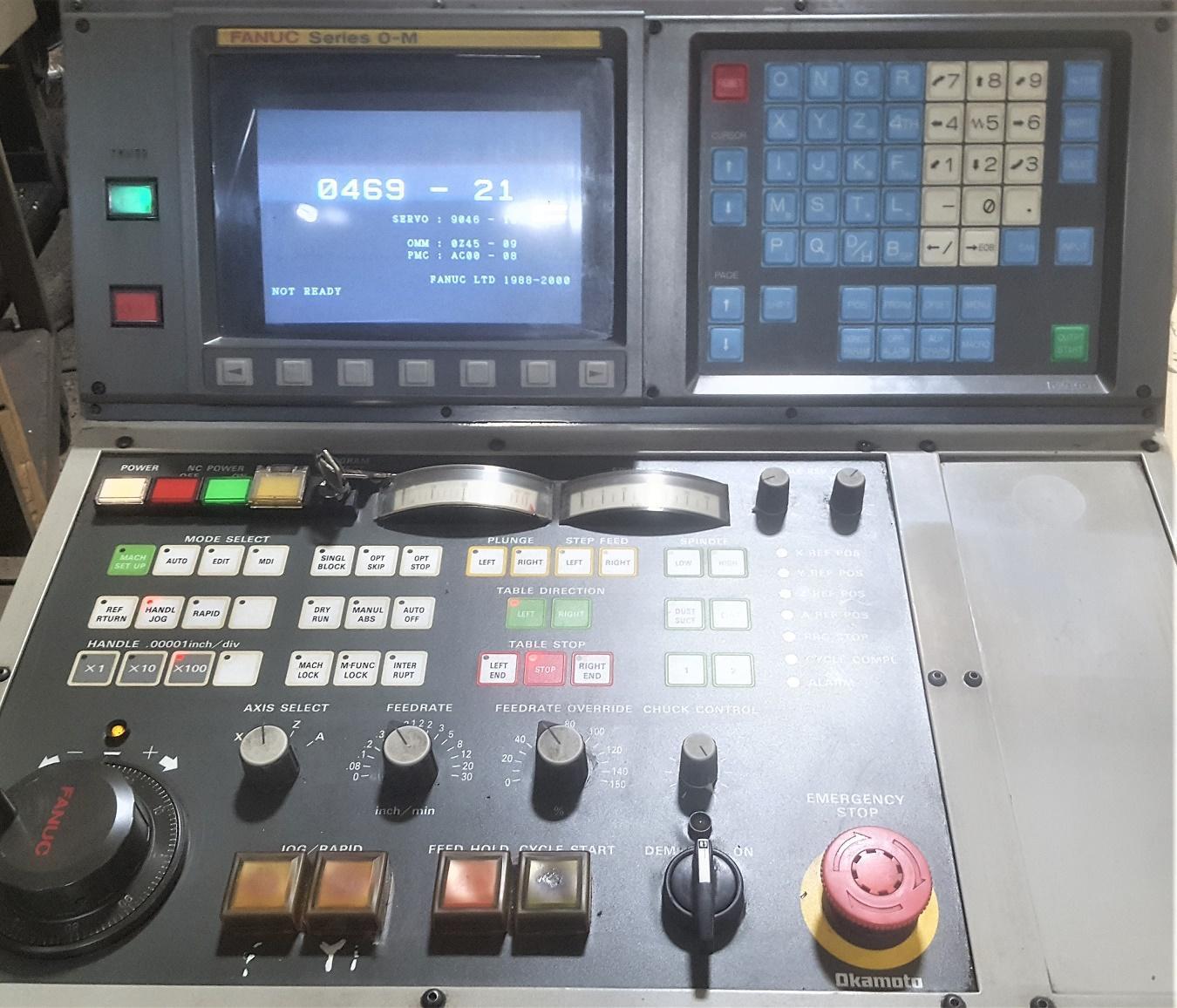

  Fanuc Series 0-M CNC Control

  Rotary Dresser

  Wheel Balancer with 6 new and 12 used wheels (with mounting flanges)

  Angles for grinding at 45 Degrees
