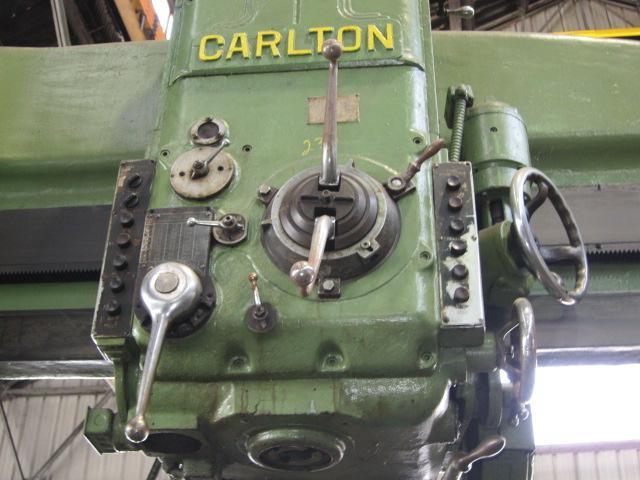

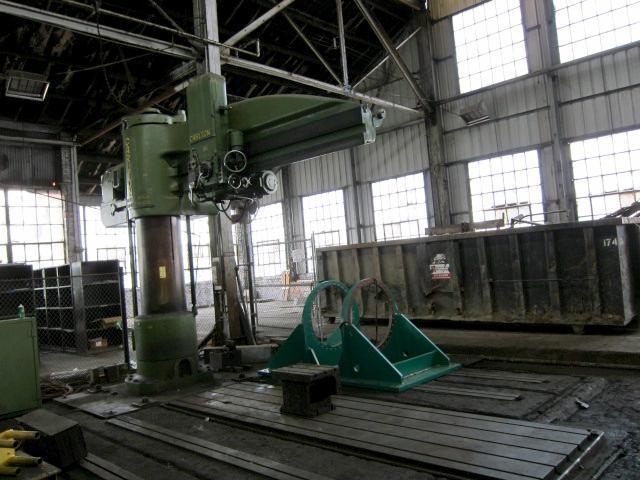

12' X 26" CARLTON MODEL 5A RADIAL ARM DRILL


MODEL ............................. 5A

AREA OF BASE....................... 130" X 57"

SPINDLE SPEEDS..................... (12) 10 TO 1000 RPM

FEEDS.............................. (18) .004 TO .250

THREADS............................ (5) 6, 7, 8, 11-1/2, 18

DISTANCE SPINDLE TO BASE........... 18-1/2" MINIMUM, 96" MAXIMUM

DISTANCE SPINDLE TO COLUMN......... 15" MINIMUM, 120" MAXIMUM

SPINDLE TRAVEL..................... 24"

TAPER IN SPINDLE................... #6MT

DIAMETER OF SPINDLE................ 4"

TRAVEL OF ARM ON COLUMN............ 54"

TRAVEL OF HEAD ON ARM.............. 105"

POWER ELEVATION ................... YES

POWER HEAD TRAVERSE ............... YES

POWER CLAMPING .................... YES

MOTOR ............................. 30 HORSEPOWER
