Equipped With

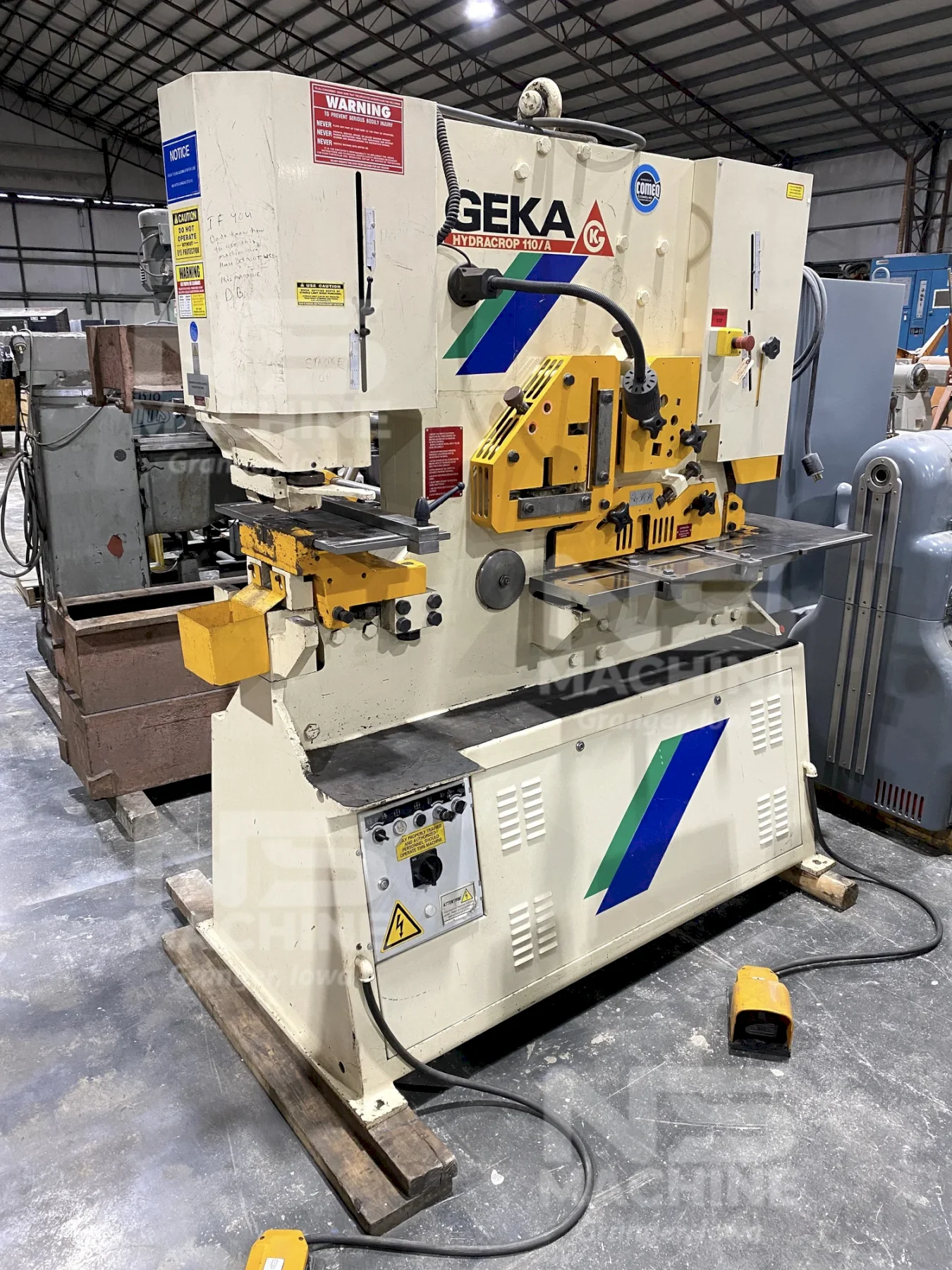

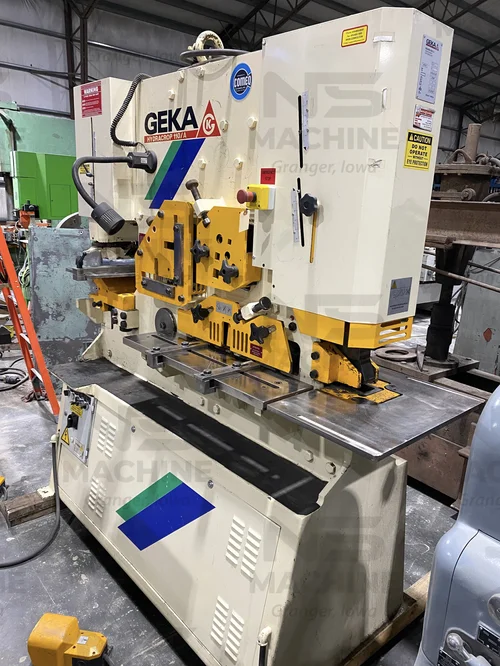

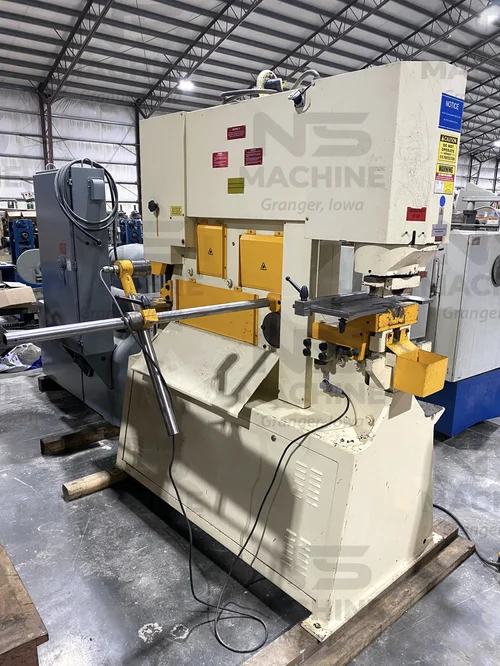

121 TON GEKA HYDRACROP 110/A IRONWORKER

New 2007

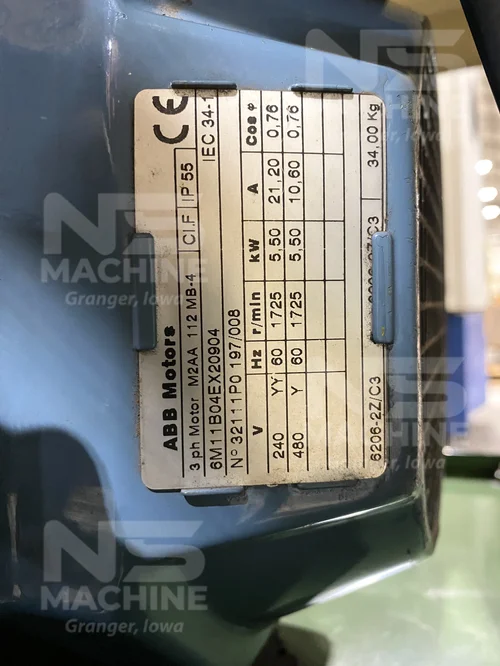

Motor Driven with 7.4 HP, 3-Phase, 60 Cycle, AC Motor & Controls

SPECIFICATIONS:

Tonnage: 121 tons (110 metric)

Punch capacity: 1-1/2" through 3/4"

Punch throat depth: 12"

Punch stroke : 3"

Punch work table height: 45.5"

Angle shear capacity, 90 degrees: 6.5" x 6.5" x 1/2"

Angle shear capacity, 45 degrees: 3" x 3" x 5/16"

Flat bar shear capacity: 24" x 5/8"

Flat bar shear work table height: 38-1/2"

Round bar shear capacity: 2"

Square bar shear capacity: 2"

4" C-channel capacity: 4" x 5.4 lb/f

3" C-channel capacity: 3" x 4.1 lb/f

Coper capacity: 4" x 2" x 1/2"

Coper & flat shear stroke: 4.5"

Coper table work height: 38-1/4"

Approximate dimensions: 78" X 35" X 77" high

Approximate weight: 5,500 lbs.

EQUIPPED WITH:

40" Electric "flip stop" for shearing stations

C-channel knives for section shear station (3", 4")

Pipe notching attachment (1-1/4")
