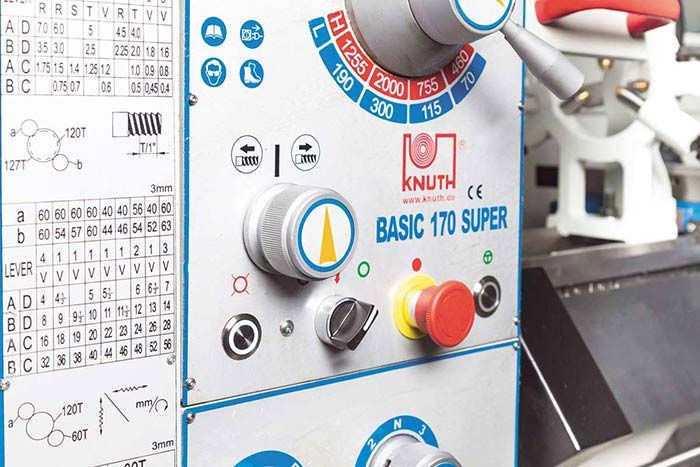

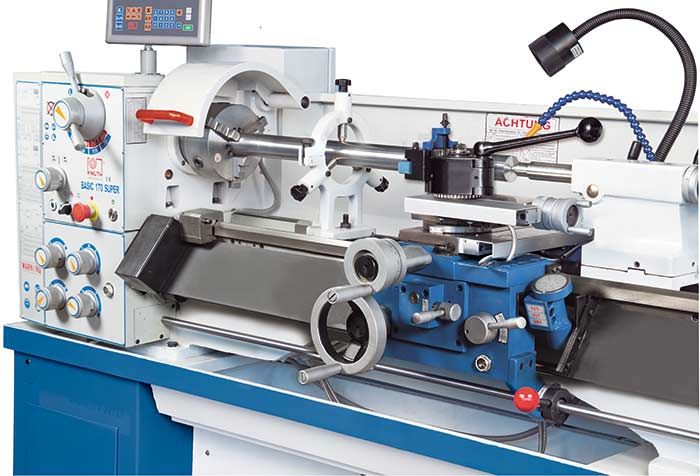

13" x 40" KNUTH BASIC 170 ENGINE LATHE
Year
Not provided
Stock #
16234
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Center width | 39.37 in |
| Turning diameter over bed | 13 in |
| Turning-¯ over support | 8 in |
| Turning diameter over gap bridge | 19 in |
| Gap bridge length | 8 in |
| Bed width | 7 in |
| Travel X-axis | 6.7 in |
| Travel Z1-axis | 4 in |
| Swing range of top slide | ± 360¡ |
| Spindle speed | (8) 70 - 2,000 rpm |
| Spindle bore | 1 in |
| Spindle mount | Camlock D1-4 |
| Spindle taper | MT 5 |
| Feed X-axis | 0.00055 - 0.01496 in/R |
| Feed Z-axis | 0.00205 - 0.0548 in/R |
| Tapping, metric | (26) 0.02-0.3 mm |
| Tapping, withworth | (34) 4-56 TPI |
| Tailstock quill diameter | 1 in |
| Tailstock taper | MT 3 |
| Tailstock quill stroke | 4 in |
| Tailstock traverse adjustment | ± 0.5 in |
| Motor rating main drive | 2 Hp |
| Overall dimensions (length x width x height) | 73x27x52 in |
| Weight | 1,144 lbs |
| Part No. | 300815 |
- Hardened and ground headstocks gears
- Gap bridge
- Max. spindle speed 2000 rpm
- Adjustable headstock bearing
- Cast-iron bed, double v-guide, hardened and ground
- Interlocking feature prevents simultaneous advance of lead screw and feed shaft
- Oil-bath lubricated main drive and feed gear
- Double-walled apron box with oil-bath lubrication
- All guide ways are adjustable
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
- 3-axis position indicator
- 3-jaw chuck ¯ 6"
- 4-jaw face plate chuck ¯ 8" (not for Basic 180 V)
- face plate ¯ 11"
- quick change tool holder head WE
- quick change tool holder WED 20100
- steady and follow rests
- fixed splash guard (wall)
- chuck guard
- foot brake pedal
- base
- work lamp
- dead center
- operating tools
- operator instructions
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
