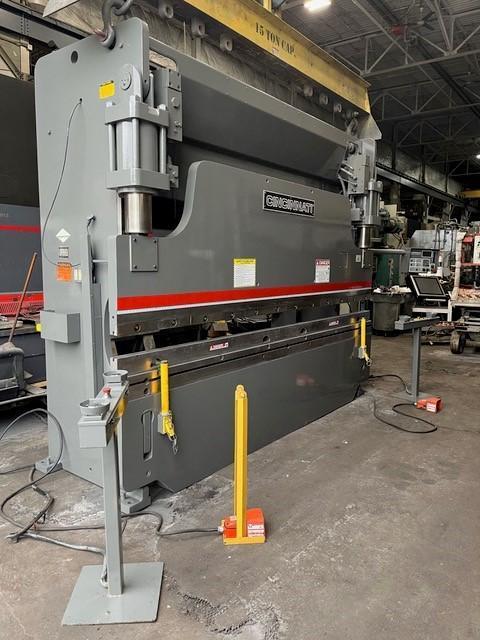

135 TON X 12' CINCINNATI 135CBII CNC PRESS BRAKE
Year
2000
Stock #
19346
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
135 TON X 12' CINCINNATI 135CBII CNC PRESS BRAKE
EQUIPPED WITH
CINCINNATI CBII CONTROLS
AUTOMEC CNC 600 BACK GAUGE
TRANSDUCER POSITIONED FEEDBACK
NARROW FILLER BLOCK
ELECTRIC FOOT SWITCH
PEDESTAL PALM BUTTON STATIONS
MANUALS
INTERLOCKED CONSTRUCTION
CLEVIS MOUNTED SELF ALIGNING CYLINDERS
CAPACITY 135 TONS
OVERALL LENGTH OF BED & RAM 12’
DISTANCE BETWEEN HOUSINGS ` 10’6 3/4”
STROKE 8”
OPEN HEIGHT 15”
CLOSED HEIGHT 7”
THROAT CLEARANCE 7”
SPEEDS
APPROACH 180 INCH PER MINUTE
FORM 10-20-55 INCH PER MINUTE
RETURN 185 INCH PER MINUTE
WIDTH AT TOP OF BED 4 ½”
MAIN MOTOR HORSEPOWER 15
APPROXIMATE OVERALL WEIGHT 20800 LBS
APPROXIMATE OVERALL DIMENSIONS 12’6.5” L X 50”FB X 110” H
