Equipped With

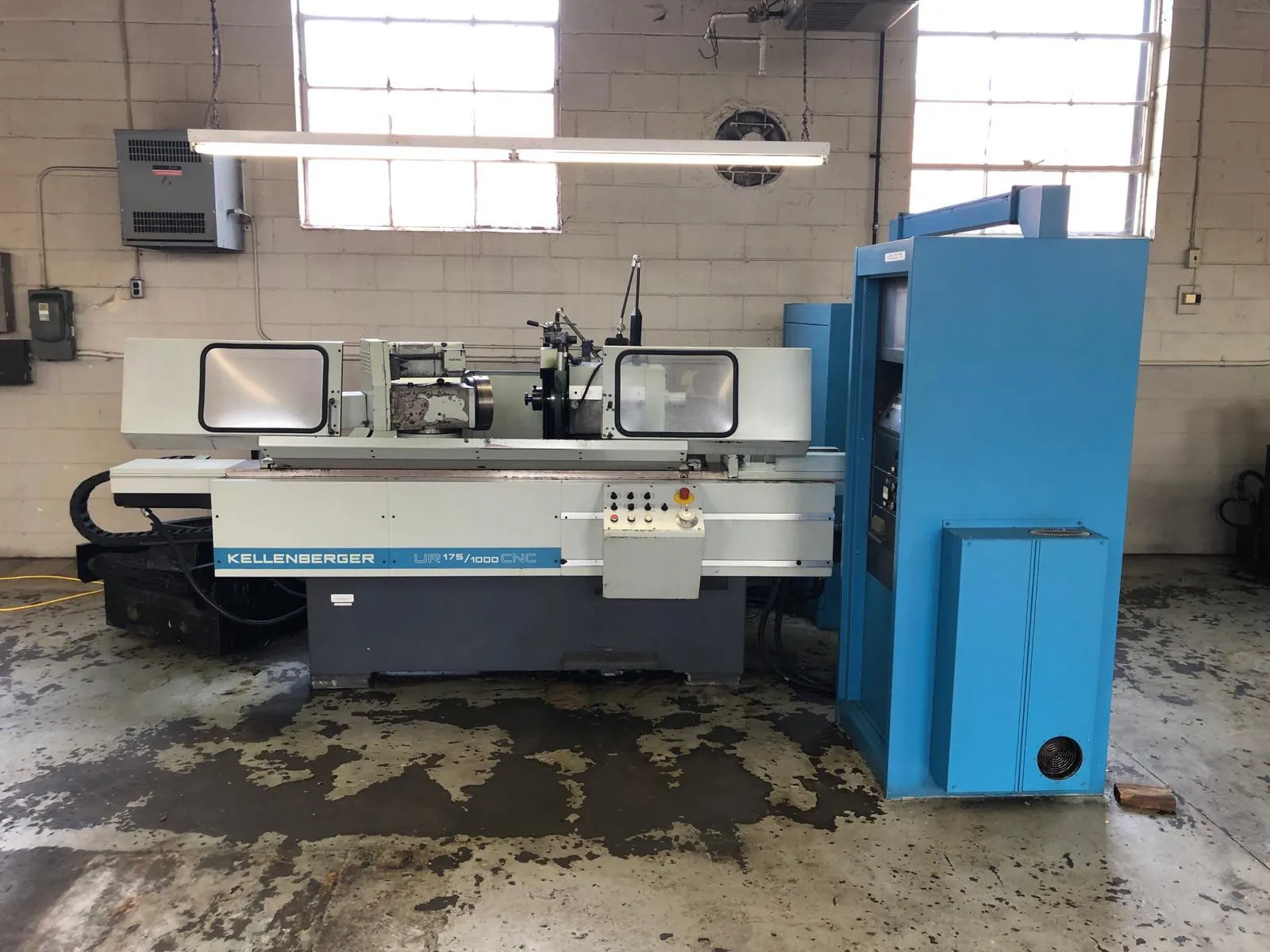

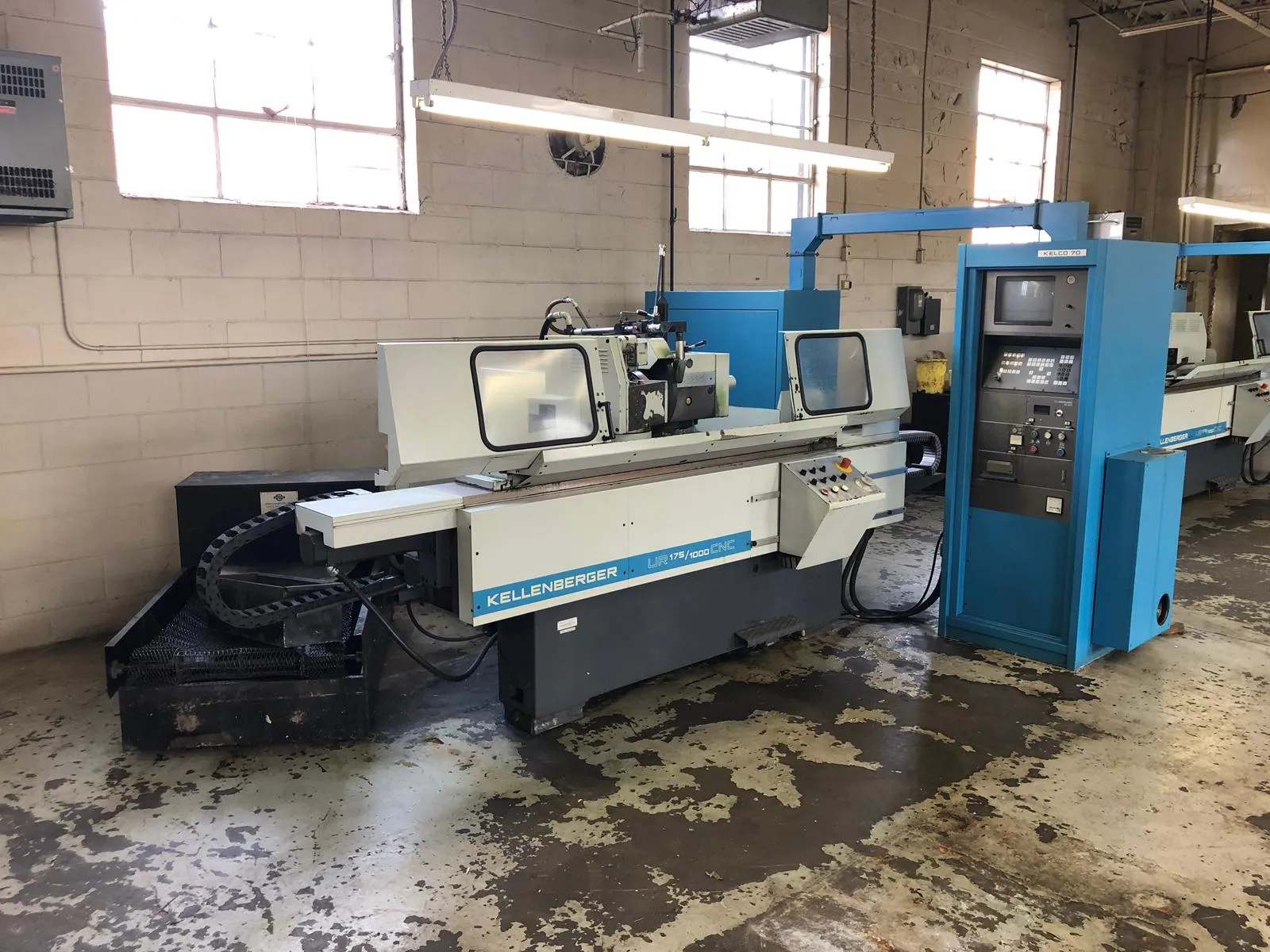

14" x 40" KELLENBERGER UR175/1000 UNIVERSAL CYLINDRICAL GRINDER

SPECIFICATIONS:
Swing Over Table .................................... 14"
Distance Between Centers ............................ 40"
Grinding Capacity ...................................... 13.74"
Height of Centers ....................................... 6.89"
Table Swivel ................................................ ±9°
Z-Axis Travel ............................................... 43.9"
X-Axis Travel ............................................... 10.24"
Wheelhead Swivel ....................................... 200°
Internal Spindle Carrier ............................... 3.15"

WHEEL SPECIFICATIONS:
Left Wheel ................................................. 15.75" × 2.48" × 5.00"
Right Wheel ................................................ 8.86" × 0.79" × 3.00"

MOTOR & POWER:
Wheelhead Motor Output ............................ 5.9 HP
Workhead Motor ......................................... 5.9 HP
Total Power Requirement ............................. 13.4 HP
Electrical ...................................................... 3-Phase Power

CONTROL:

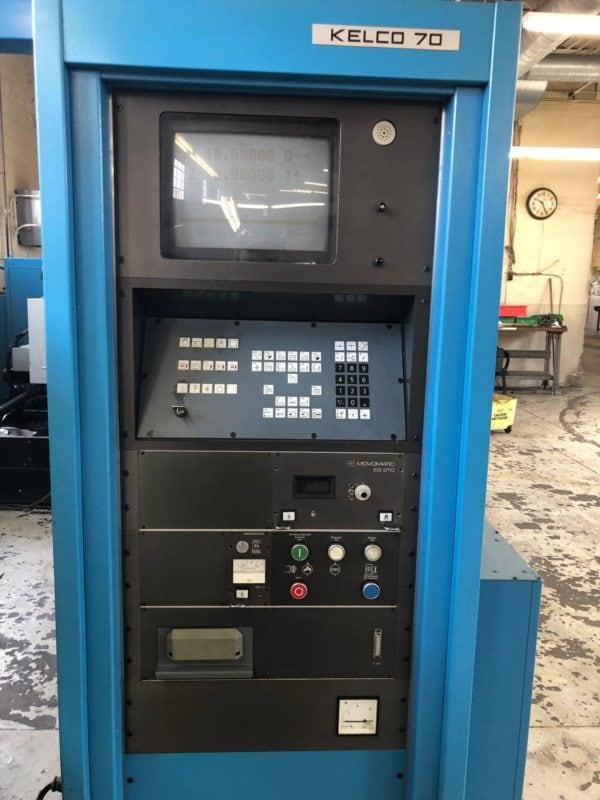

Kelco 70 CNC Control
Full CNC capability for precision OD/ID and face grinding applications
