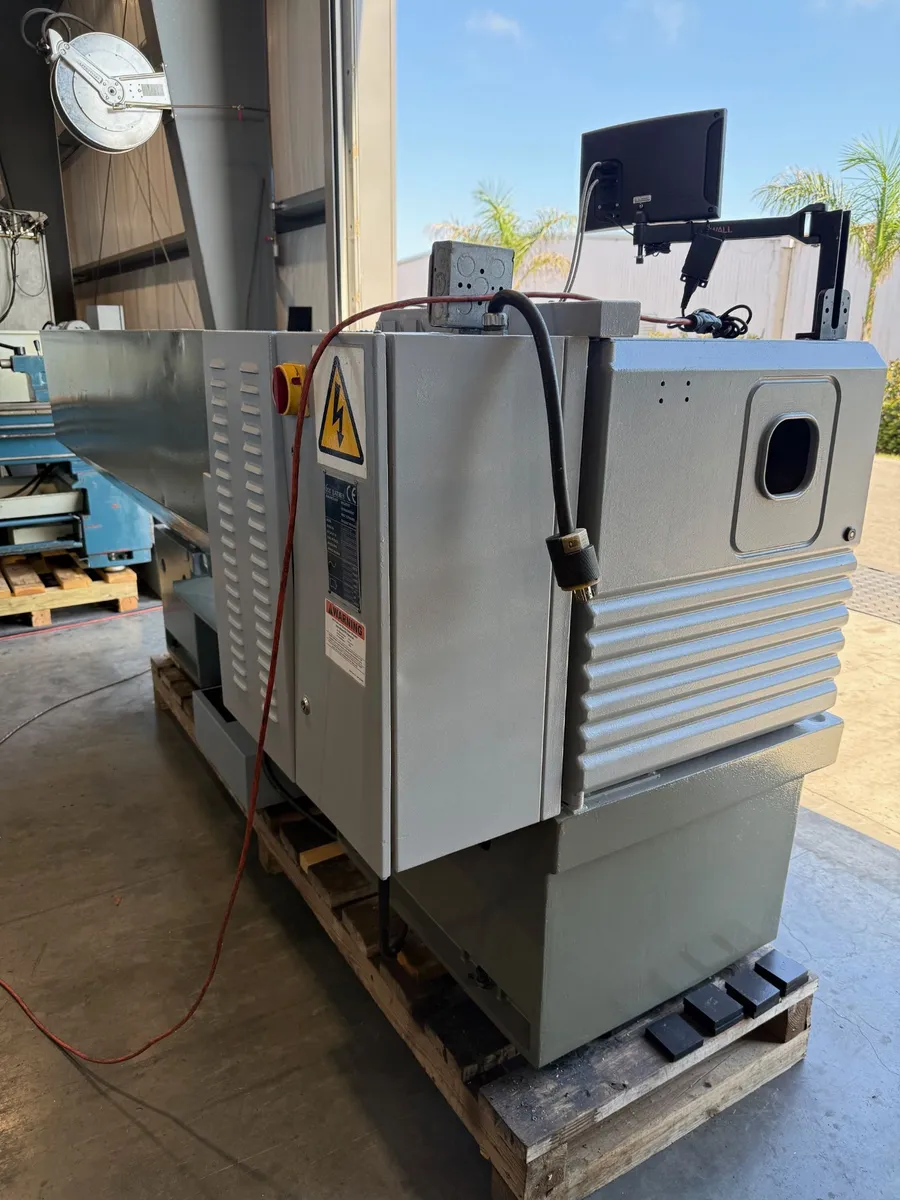

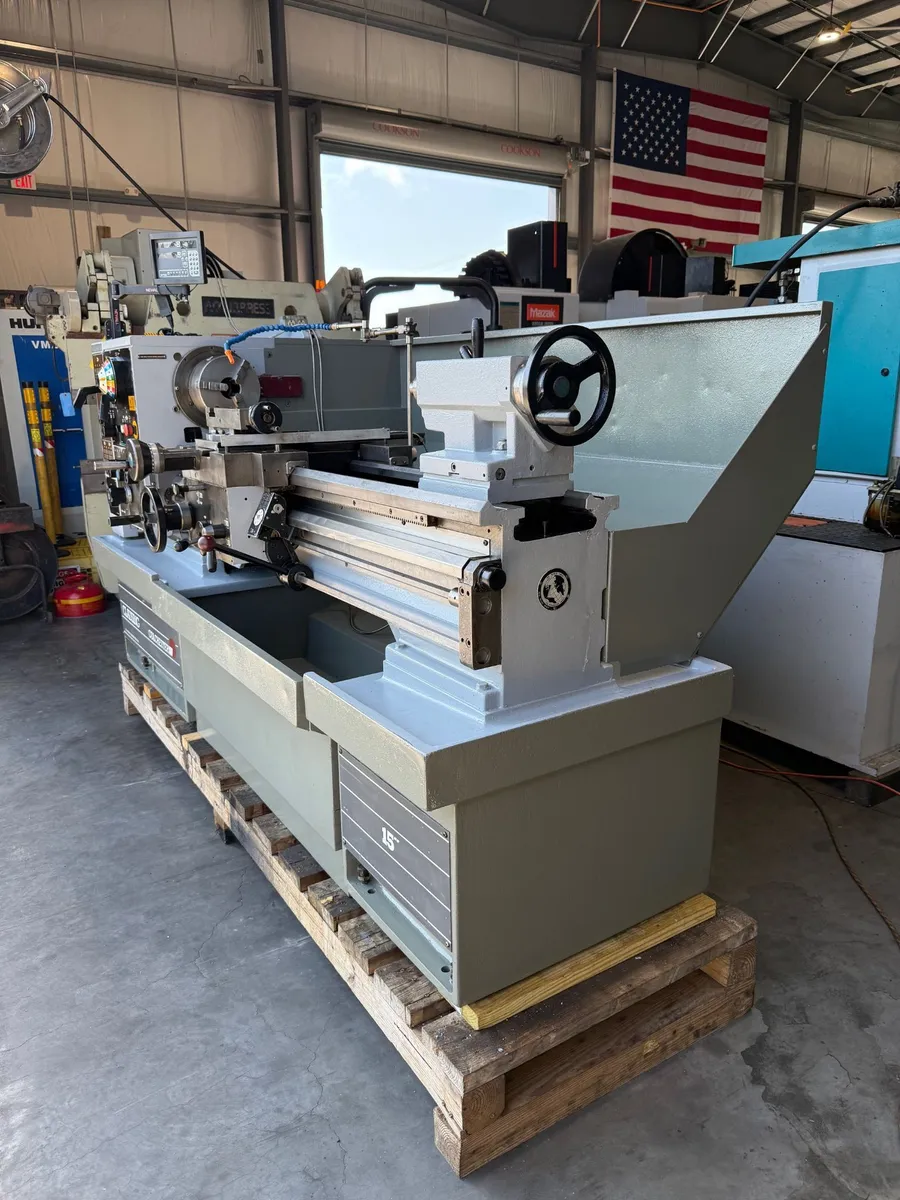

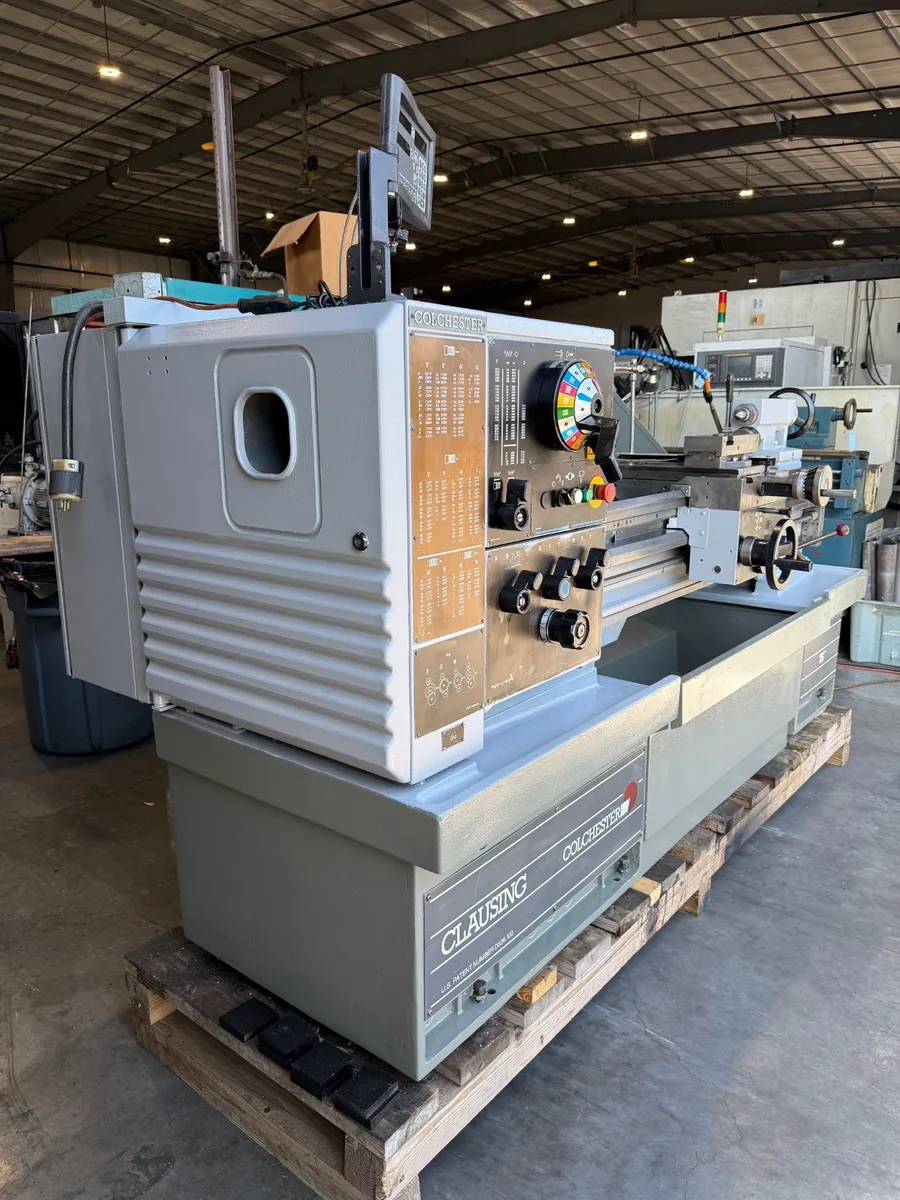

15"/23" X 50" CLAUSING COLCHESTER REMOVABLE GAP BED LATHE
Year
1997
Stock #
30284
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
15"/23" X 50" CLAUSING COLCHESTER REMOVABLE GAP BED LATHE
New 1997
Equipped With:
|
|
Inch/Metric threading capability

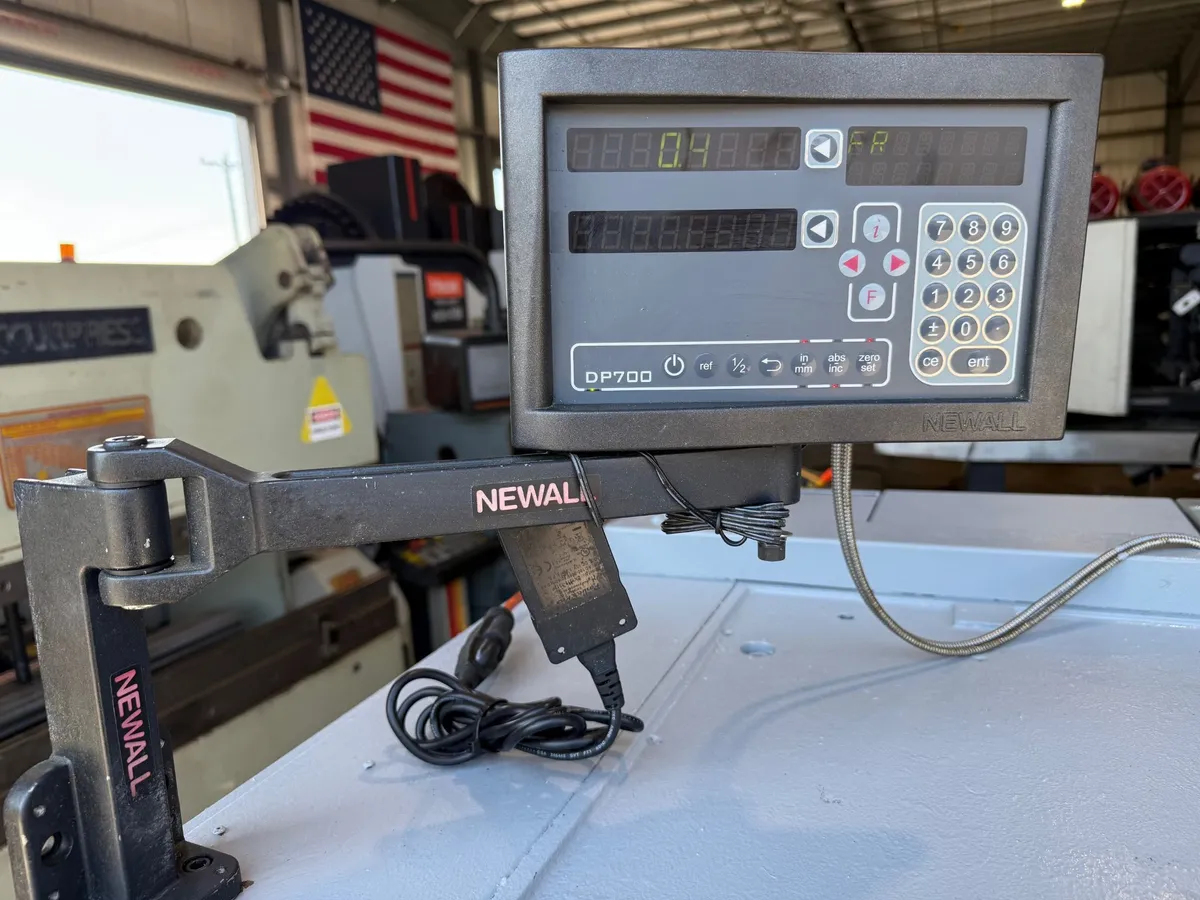

NEWALL 2 Axis Digital Read Out

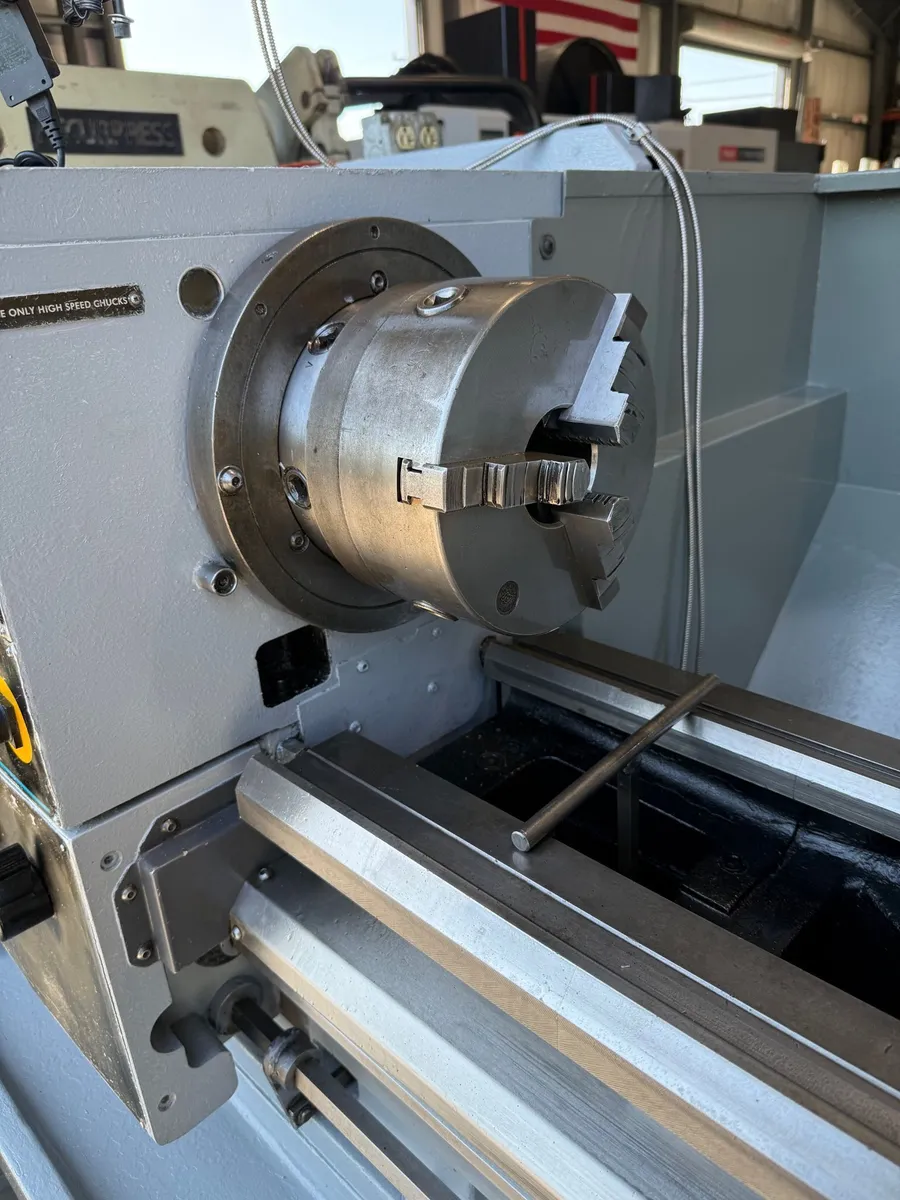

8" three-jaw chuck with reversible jaws
Threading dial
Removable chip pan & Coolant pump
Chuck wrench

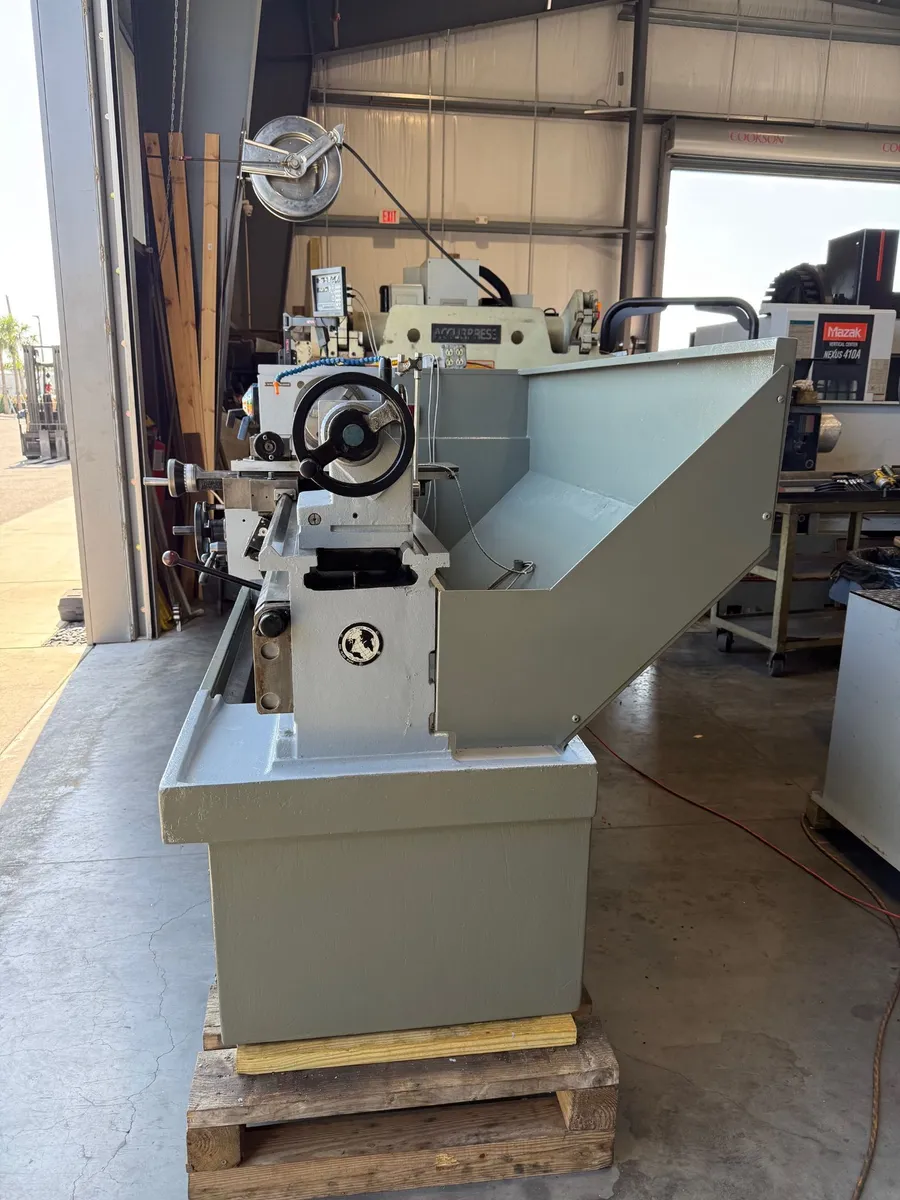

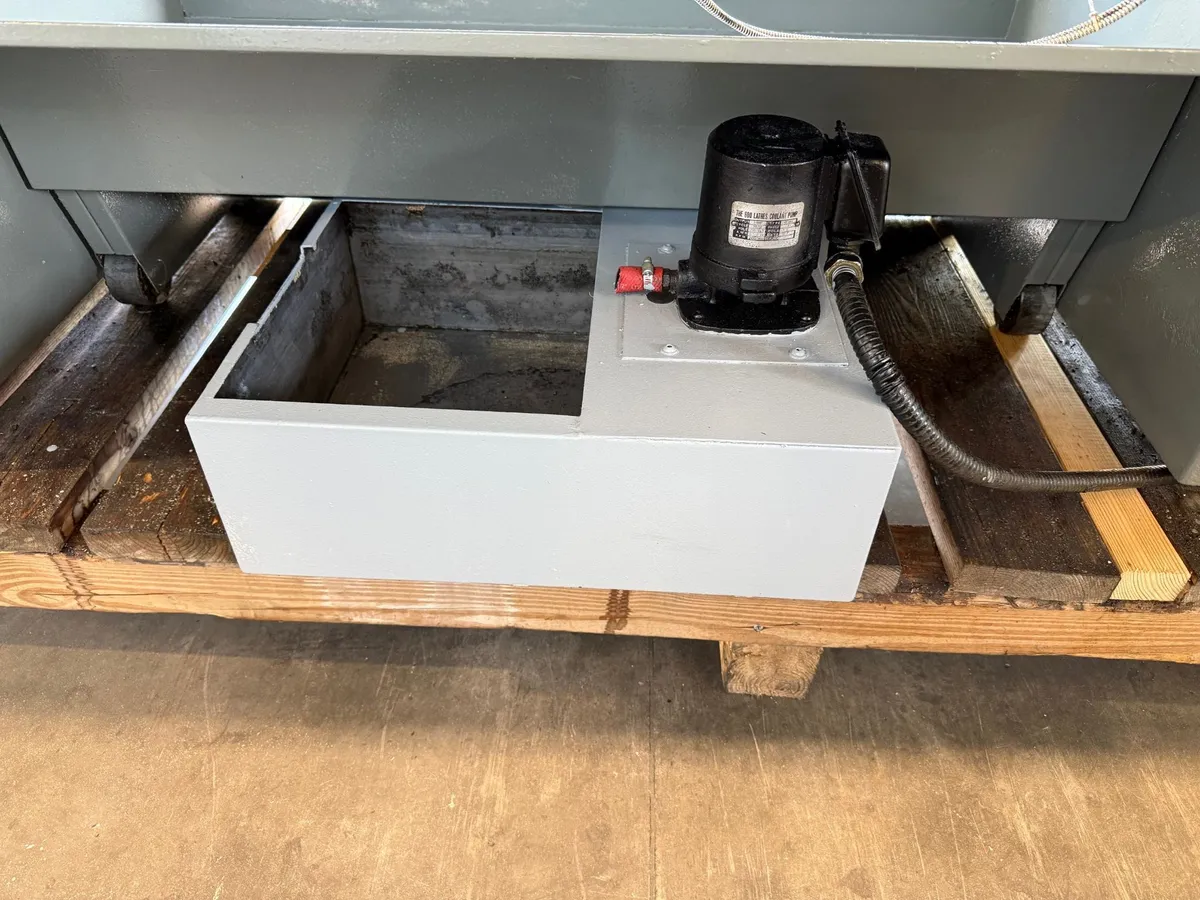

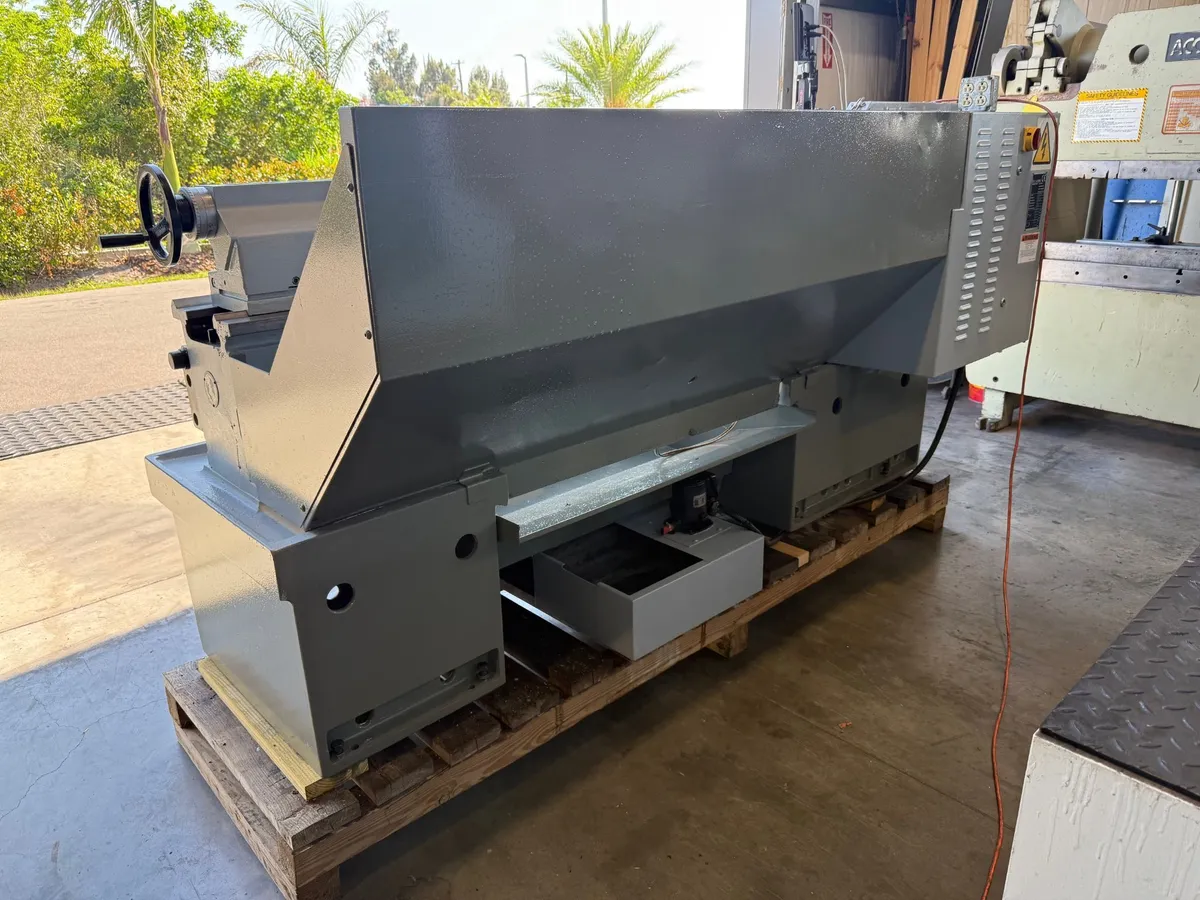

Internal coolant pump with tank and full length rear splash guard
7-1/2 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 3,500 Lbs.
Machine dimensions- 104’’ L x 53’’ W x 66’’ H
Swing over bed- 15-1/4”
Swing in gap- 23”
Swing over cross slide- 9-1/2”
Distance between centers- 50”
Hole through spindle- 2-3/16”
Bar capacity- 2-1/8”
Spindle nose, Camlock, size- D-16
(16) Spindle speeds- 25 – 2,000 R.P.M.

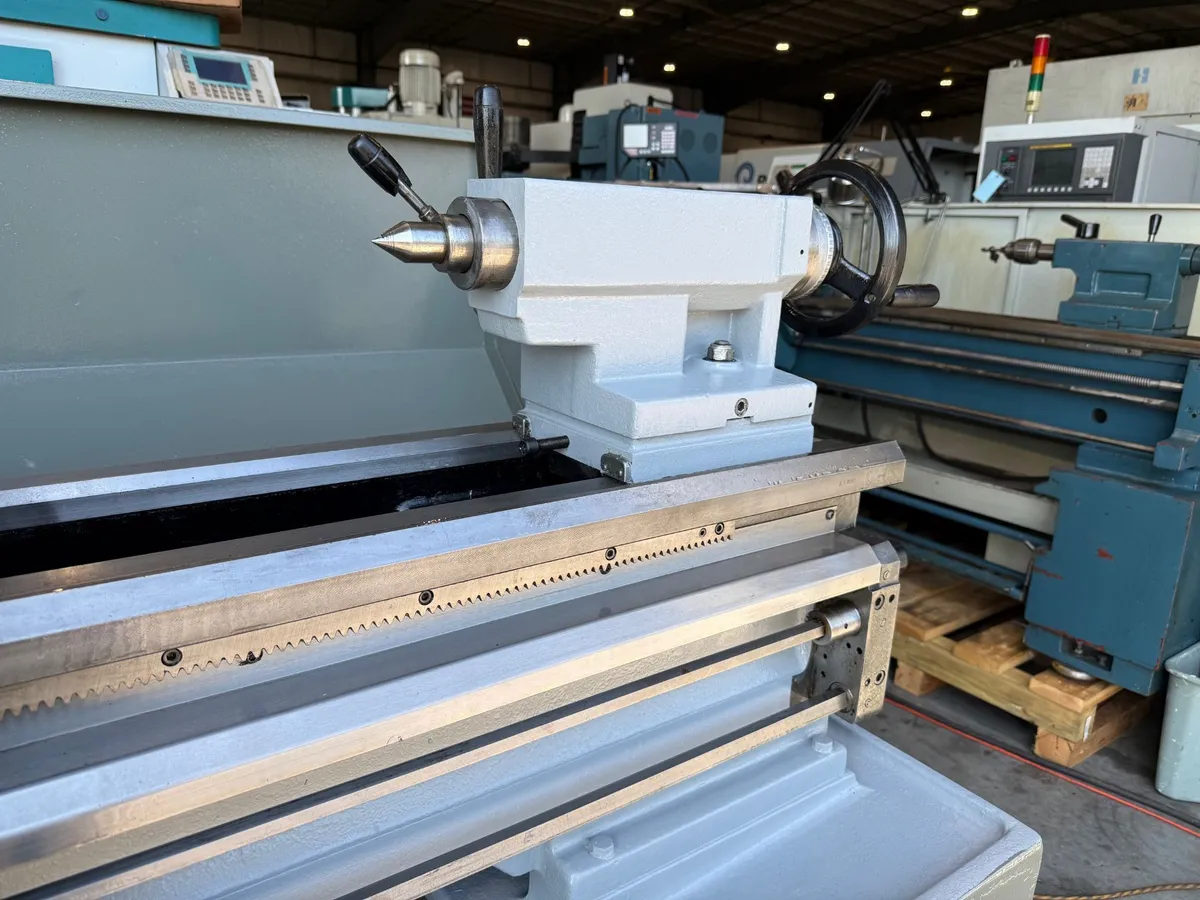

Headstock and tailstock spindle center tapers- #4 Morse
Tailstock spindle travel- 6-1/8”
Tailstock spindle diameter- 2-5/16”
Width of bed- 11”
Longitudinal feed-.0015 - .040 I.P.M.
Cross feed- .00075 - .020 I.P.R.
Threads inch (45)- 2 – 56 T.P.I.
Threads metric (39) .2 – 14mm
