Equipped With

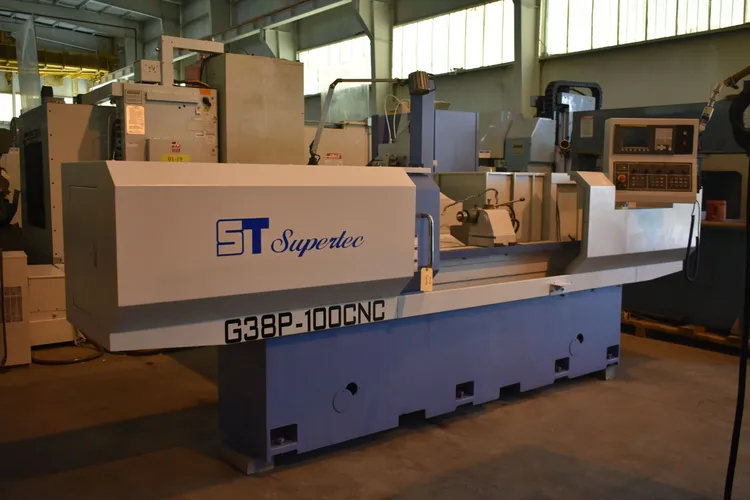

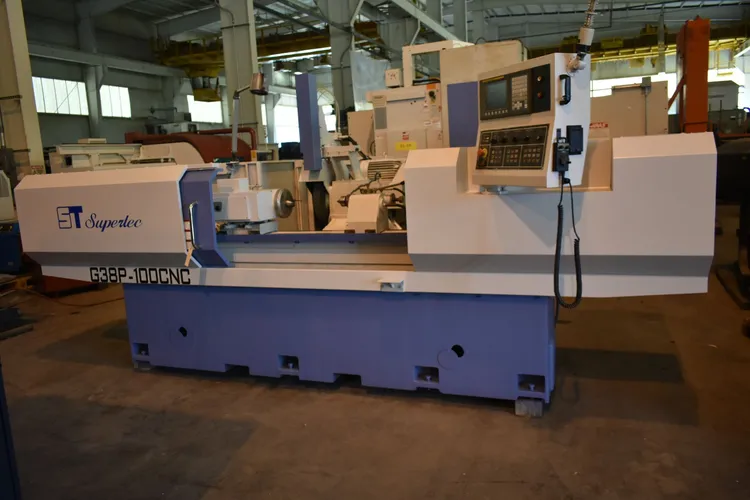

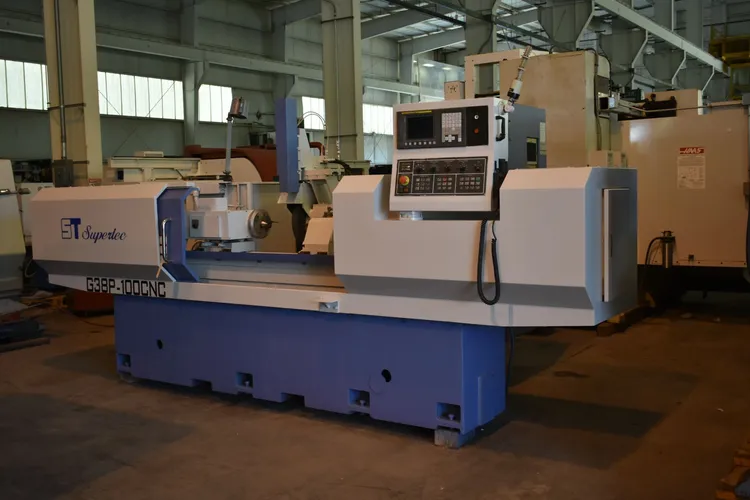

15" X 40" SUPERTEC CNC CYLINDRICAL GRINDER

New 2006

SPECIFICATIONS:

Swing: 15"
Centers: 40"
Plain or Angle Head: Plain
Grinding Wheel Diameter: 20"
Wheel Power: 10 HP
Wheel Speed: 1,250 RPM
Dimensions: 169" x 109" x 71"
Weight: 13,230 LBS

EQUIPPED WITH:

FANUC Series Oi-Mate TC CNC Control
Automatic Incremental Wheelhead Infeed

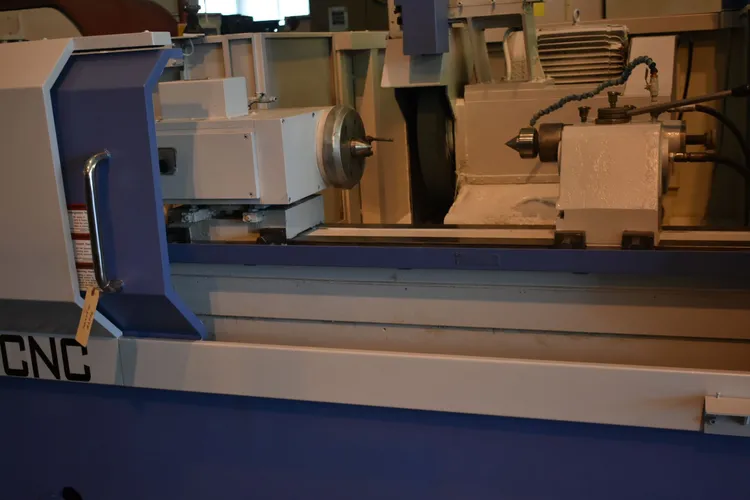

Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Cast Base
Automatic Lubrication System

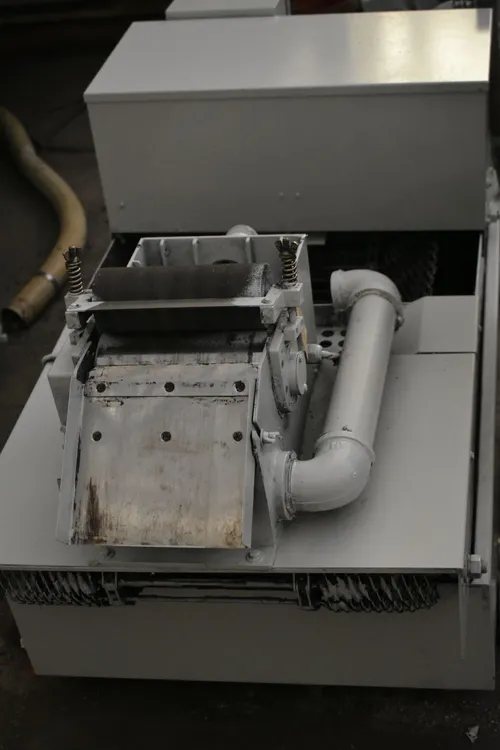

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:

Swing Over Table, Maximum: 15"
Grinding Diameter, Maximum: 14"
Distance Between Centers: 40"
Weight Capacity Between Centers: 330 LBS
Wheelhead X-Axis, Travel: 11”
Table Z-Axis, Travel: 51”
Grinding Wheel Diameter: 20"
Grinding Wheel Width: 2" – 4”
Grinding Wheel Hole Diameter: 6"
Grinding Wheel Speed: 1,250 RPM
Workhead Spindle Speeds: 10 – 600 RPM
Longitudinal Table Feed (Infinite): to 236 IPM
Longitudinal Rapid Feedrate: 394 IPM
Table Swivel Angle Range: ±7°
Workhead Swivel Angle Range: 90°
Workhead & Tailstock Spindle Taper: 4 MT
Wheelhead Motor: 10 HP
Workhead Motor: 2 HP

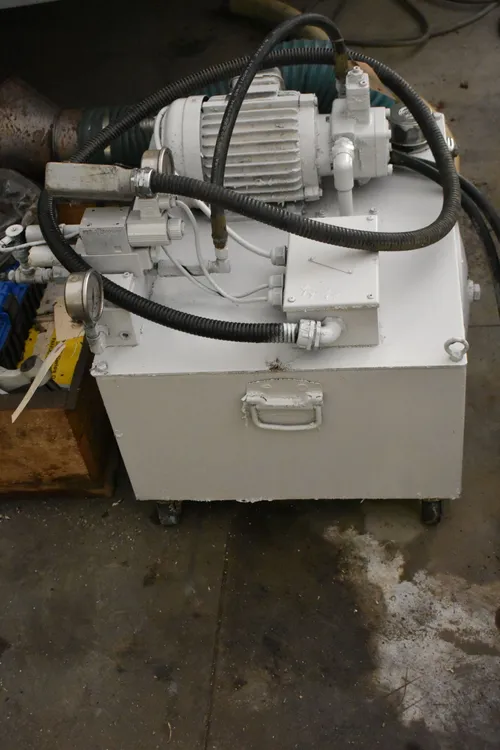

Hydraulic Motor: 0.38 HP
Electrical System: 230/3/60
Overall Dimensions (L x W): 169" x 109"
Overall Height: 71"
Approximate Weight: 13,230 LBS
F.O.B.: Ohio
