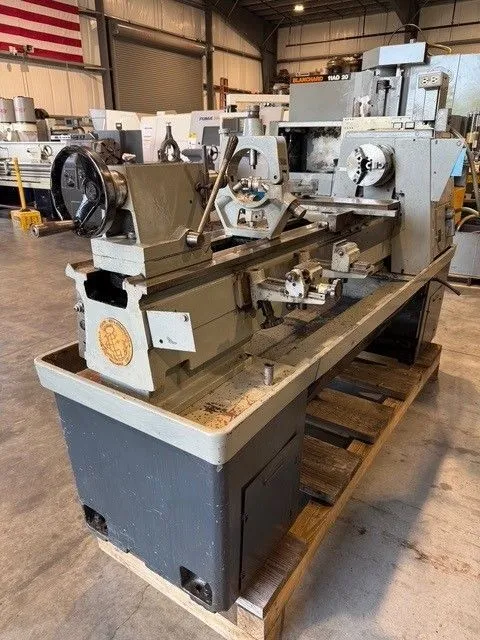

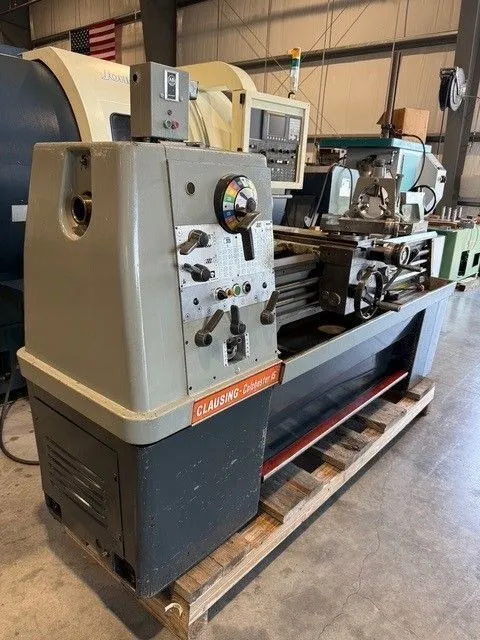

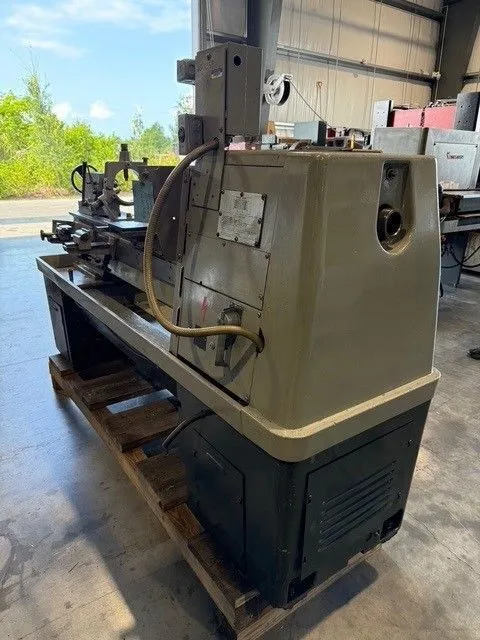

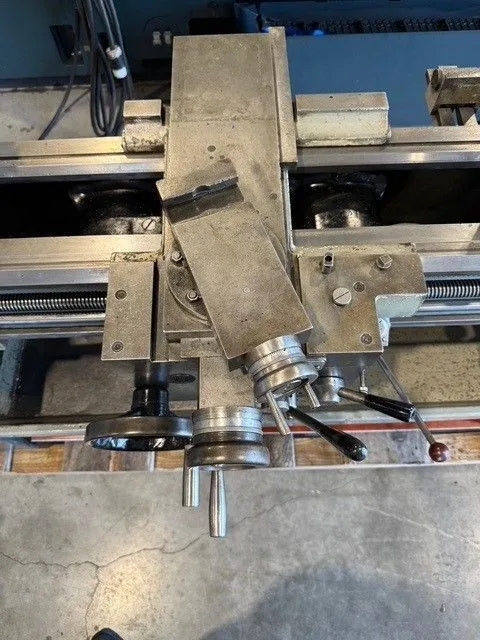

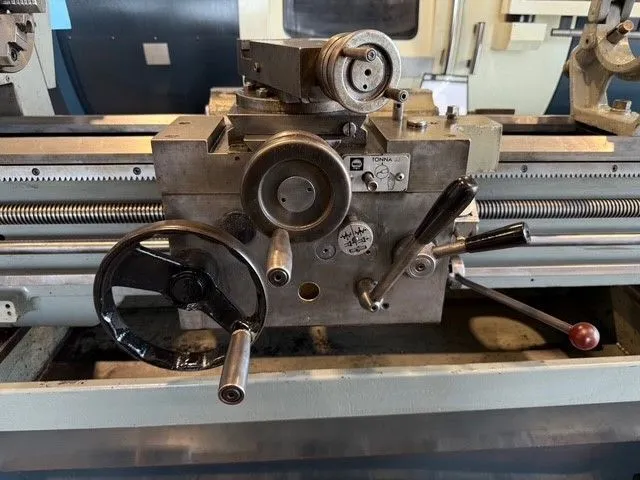

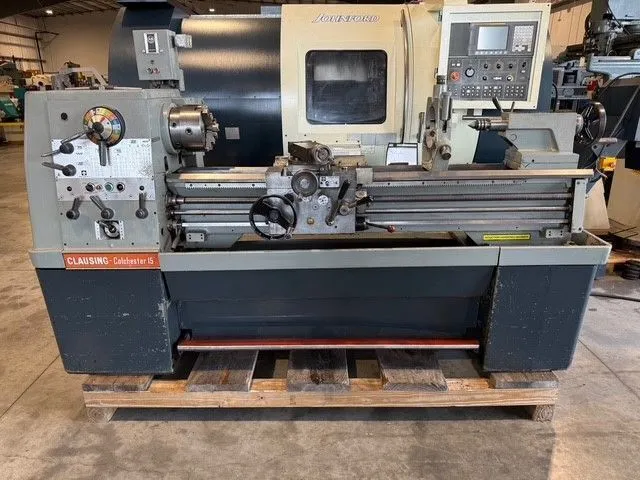

15" X 50" cc CLAUSING COLCHESTER ENGINE LATHE

SPECIFICATIONS:
Swing over bed- 15-1/4”
Swing over cross slide- 9-1/2”
Distance between centers- 50”
Hole through spindle- 2-3/16”
Bar capacity- 2-1/8”
Spindle nose, Camlock, size- D1-6
(16) Spindle speeds- 25 – 2,000 R.P.M.
Headstock and tailstock spindle center tapers- #4 Morse
Tailstock spindle travel- 6-1/8”
Tailstock spindle diameter- 2-5/16”
Width of bed- 11”
Longitudinal feeds- .0015 - .040 I.P.R.
Cross feeds- .00075 - .020 I.P.R.
Inch threads- (45) 2 – 72 T.P.I.
Metric threads- (39) .2 – 14mm

EQUIPPED WITH:

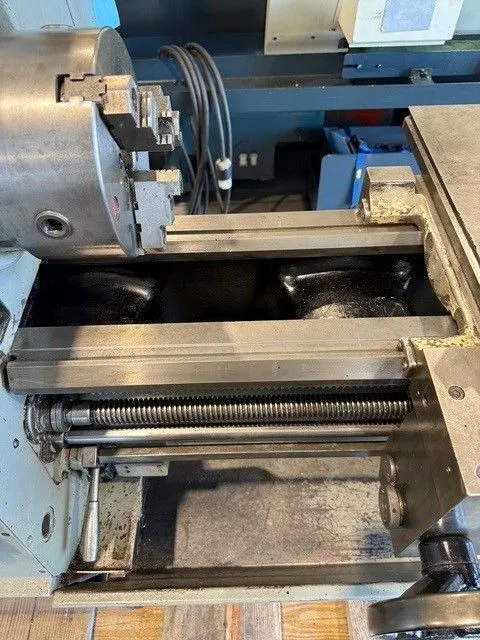

Induction hardened bedways
Inch/Metric threading capability

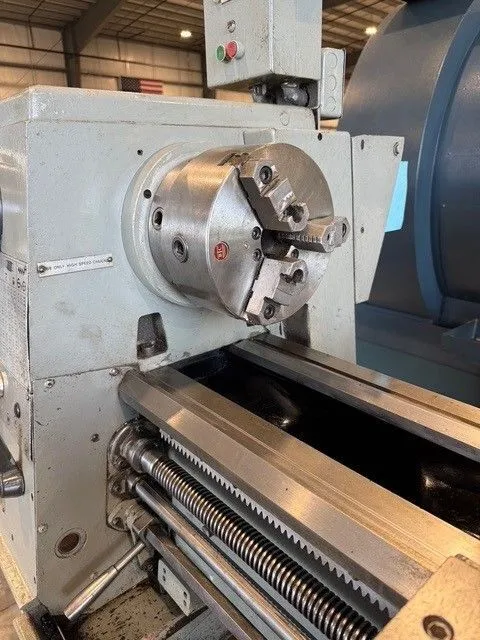

8" BTC three-jaw chuck

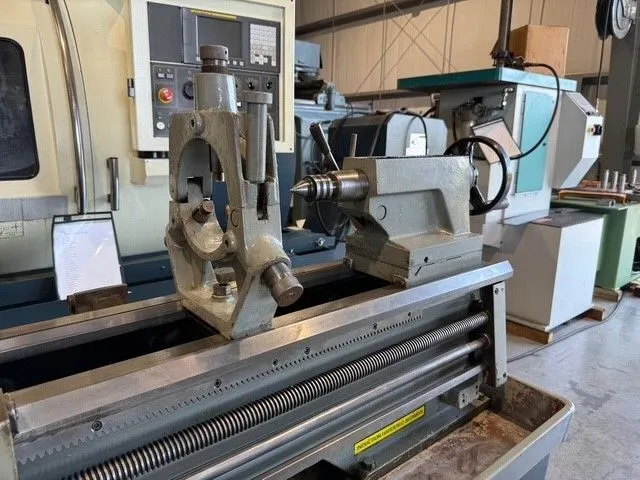

Roller type steady rest / 6-1/2” capacity
7-1/2 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 3,500 Lbs.
Machine dimensions- 95” L x 38” W x 64’’ H
