Equipped With

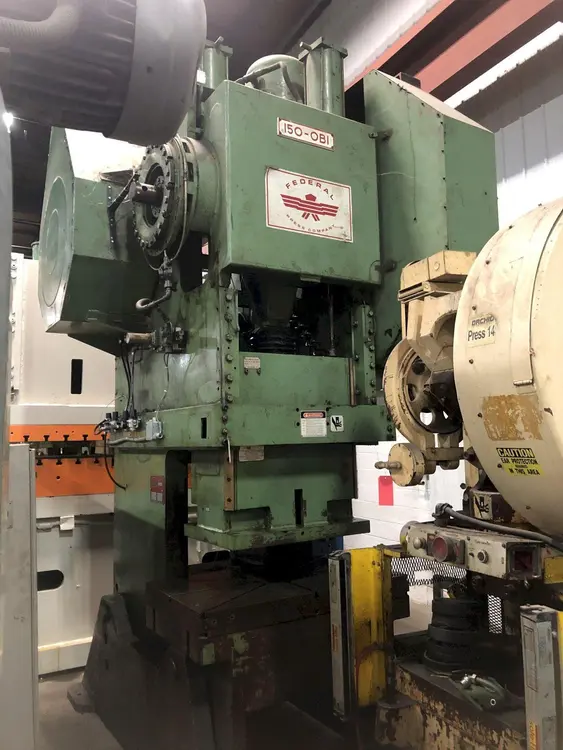

150 TON FEDERAL MODEL 150 BACK GEARED OBI PRESS

REMANUFACTURED IN 1995

SPECIFICATIONS:
CAPACITY: 150 TON
STROKE: 6"
SHUT HEIGHT TO BED: 22" SDAU
BED AREA: 50" RL X 30" FB
RAM ADJUSTMENT: 8" (MOTORIZED)
SPEED: 35 SPM
RAM AREA: 34" RL X 24" FB
DIST BETWEEN UPRIGHTS  27.5"
FLOOR TO BED  38"
PRESS CONTROLS
APPROX WEIGHT: 40,000 LBS.

EQUIPPED WITH:

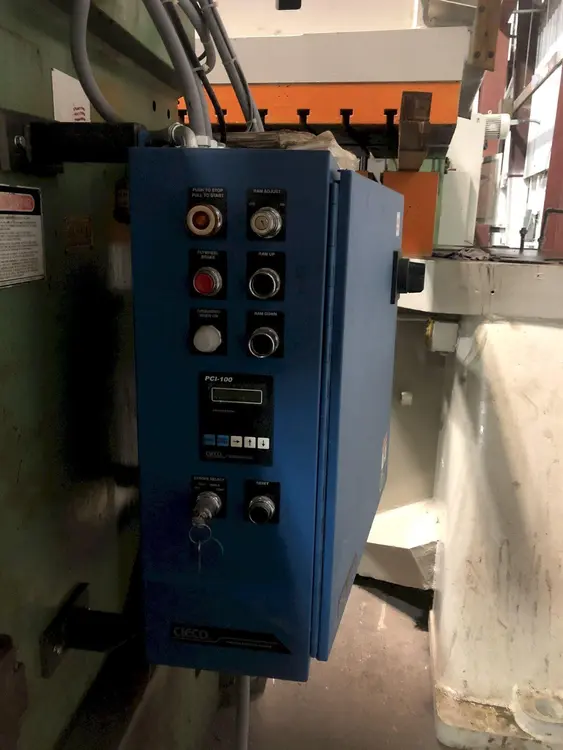

NEW CIECO PPC1100R  CONTROL
BACK GEARED DESIGN
KNOCK OUT SLOTS
STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCED RAM
OIL LUBRICATION SYSTEM
FLOOR STANDING BASE
PALM BUTTONS
