Equipped With

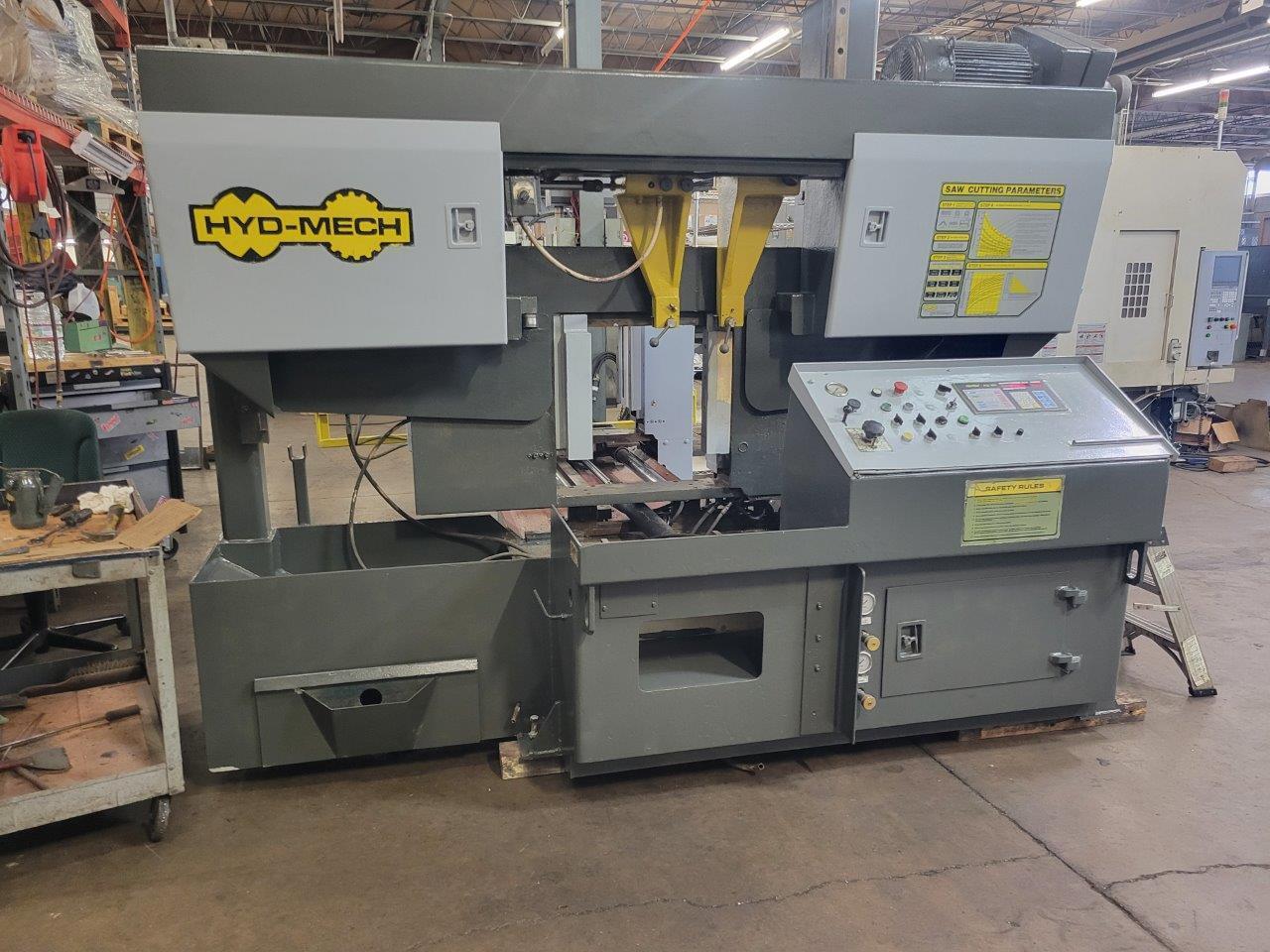

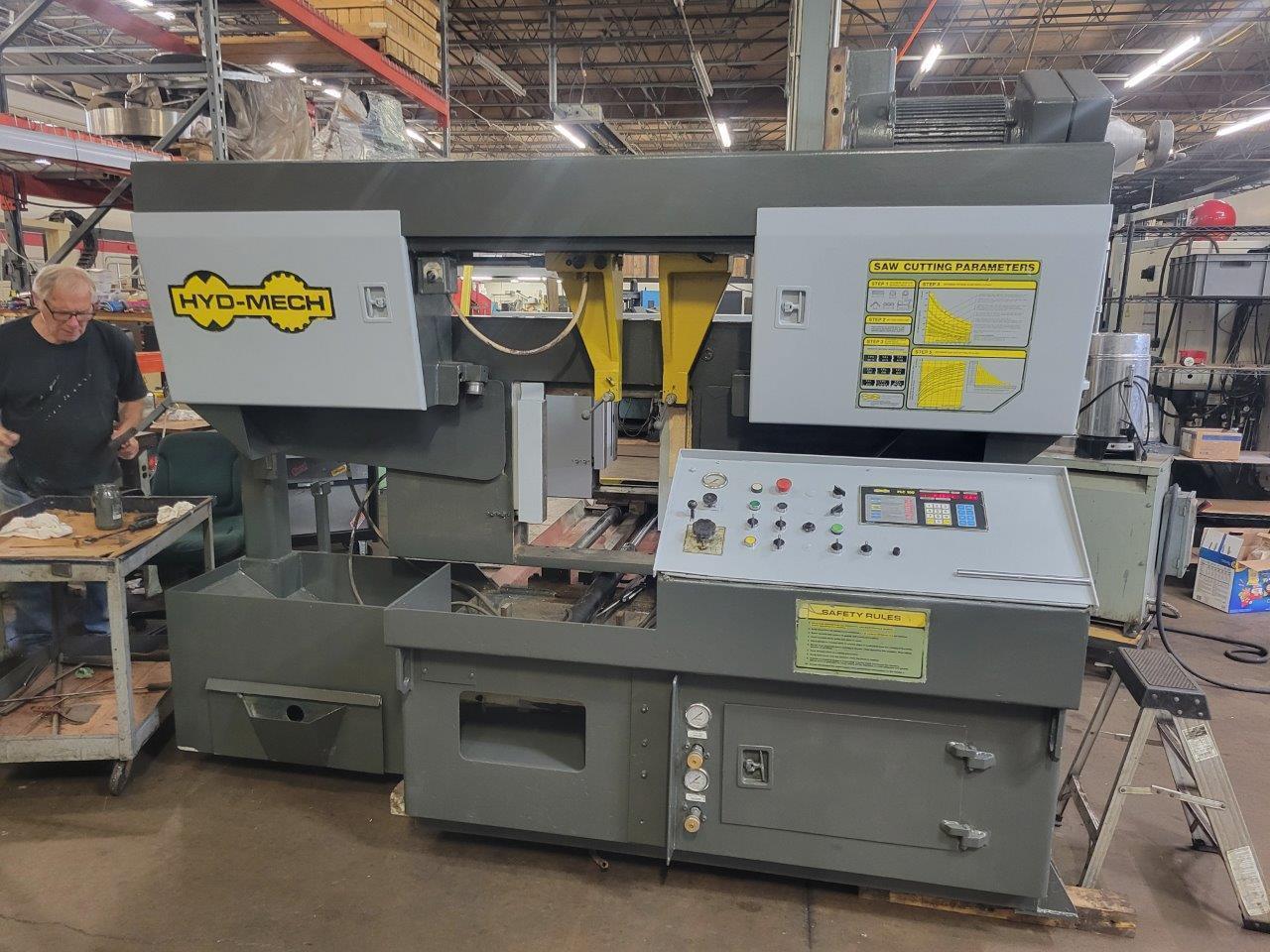

16" HYDMECH MODEL M-16A FULLY AUTOMATIC HORIZONTAL BAND SAW

RECT-CAP (H) ------------------------------ 16"

   RECT-CAP (W) ------------------------------ 16"

   ROUNDS-CAP -------------------------------- 16"

   SQUARE-CAP -------------------------------- 16"

   POWER ------------------------------------- 10 HP

   TYPE (AUTO, MANUAL, SEMI) ----------------- AUTO

   BLADE WIDTH ------------------------------- 1.5"

   BLADE THICKNESS --------------------------- 0.05"

   BLADE LENGTH ------------------------------ 225"

   CONTROL ----------------------------------- CNC (PLC 100)

   APPROXIMATE MACHINE WEIGHT ---------------- 8,500 LBS

   APPROXIMATE MACHINE DIMENSIONS ------------ 118"(LR) X 96"(FB) X 90"(H)

   EQUIPPED WITH ---

       BUNDLING ATTACHMENT

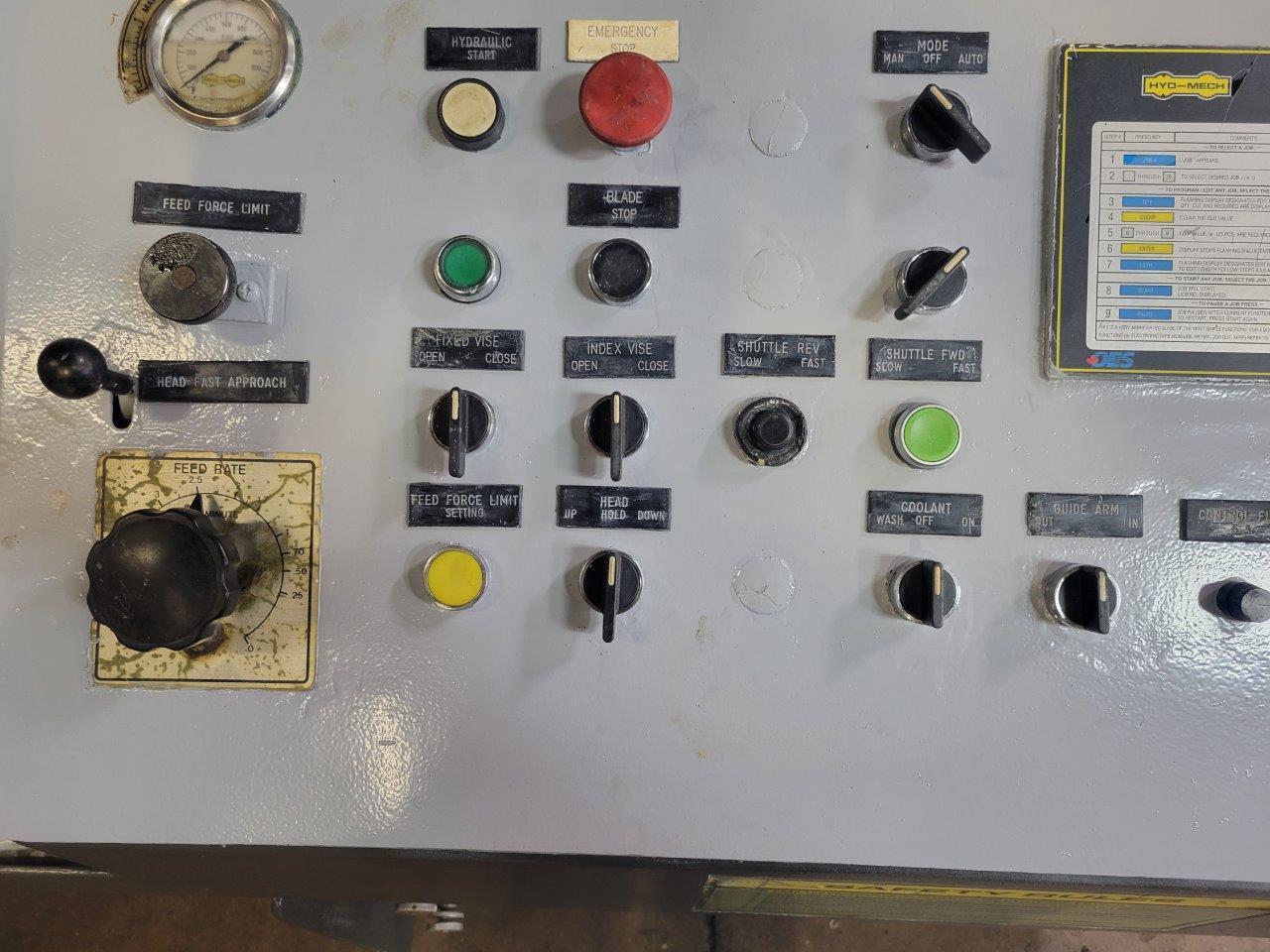

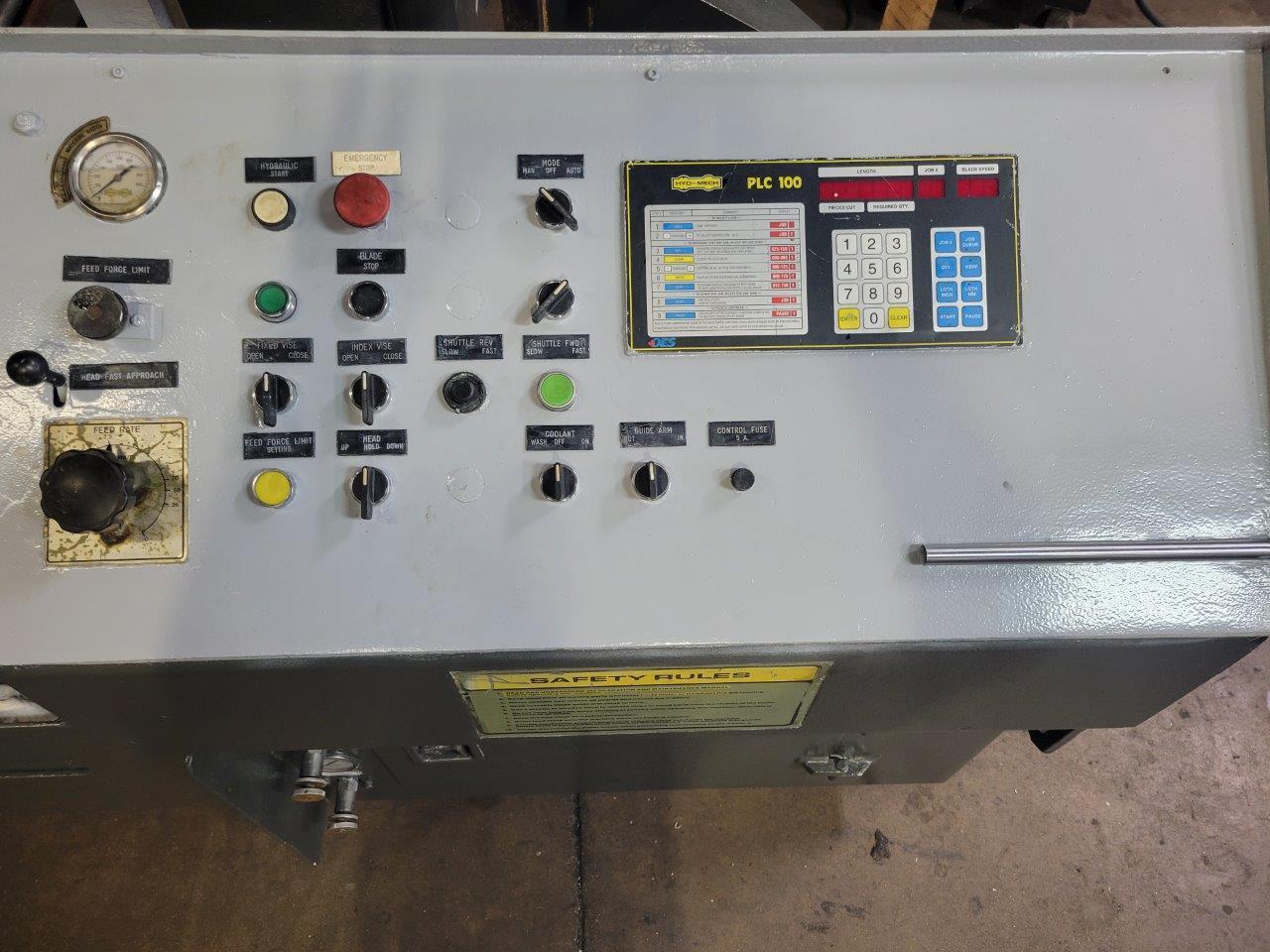

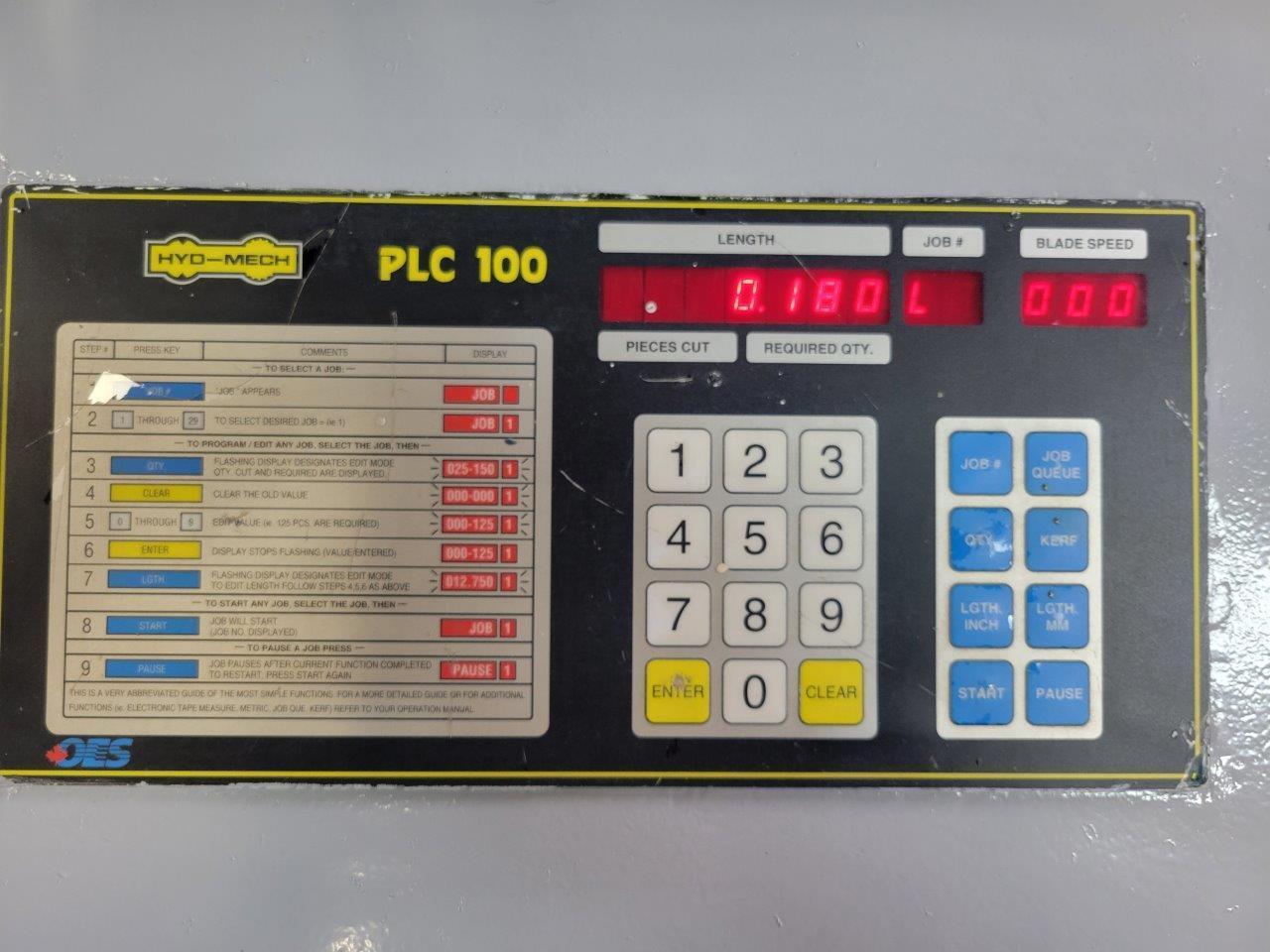

       HYD-MECH PROGRAMMABLE PLC 100 CONTROL

       FULL STROKE HYDRAULIC VISES

       10 HP VARIABLE SPEED DRIVE

       COOLANT SYSTEM WITH WASH DOWN HOSE

       40" SHUTTLE STROKE

       CARBIDE BLADE GUIDES

       SOLID ONE PIECE WELDMENT

       VARIABLE VISE PRESSURE
