16" x 36" SHIGIYA SEIKI MODEL GUA-41-100 UNIVERSAL OD/ID CYLINDRICAL GRINDER

Manufacturer

SHIGIYA-SEIKI

Model

GUA-41-100

Year

1983

Stock #

1705

Condition

Used

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

16" x 36" SHIGIYA SEIKI MODEL GUA-41-100 UNIVERSAL OD/ID CYLINDRICAL GRINDER

Serial No. 30238 New 1983


Motor Driven With 5 HP, 3-Phase, 60 Cycle, AC Motor and Controls. 1/2HP Work Drive. 1HP Hydraulic System. MD Lubrication MD Coolant & Tank with Magnetic Chip Separator.

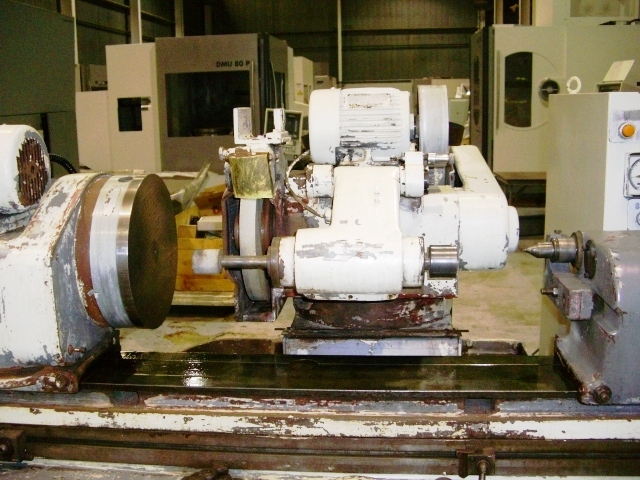

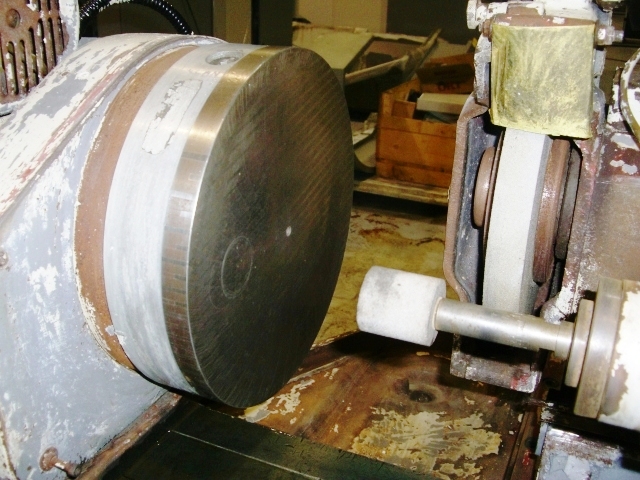

EQUIPPED WITH: Drop Down Internal Spindle. Plunge Feed and Sparkout. Fine Feed. Live & Dead Workhead. Tailstock. 6" Permanent Magnetic Chuck. Dust Collector.



SPECIFICATIONS:
Swing over Table 16.5"
Center Distance 38"
Max. Grinding Diameter 14"
Max. ID Grinding Diameter 3.25"
Wheelslide Swivel 30 Degrees
Standard Grinding wheel Dia. 14"x1.25"x5"
Wheel Speed 1700/1900 RPM
Manual Feed Travel 8.5"
Rapid Advance 1.5 IPM
Handle Feed One Revolution 0.04"
Fine Feed .0001"

AUTOMATIC INFEED
Max. Automatic Infeed Stroke ~0.03"
Automatic Continuous Infeed Speed Up To .1 IPM
Max. Spark-Out Stroke 30
Max. Spark-Out Time 30 Sec

WORKHEAD
Spindle Rotation, Swivel 120 Degrees
Spindle Speeds (9 By Belt Change) 13-252 RPM
Center Taper 4 MT

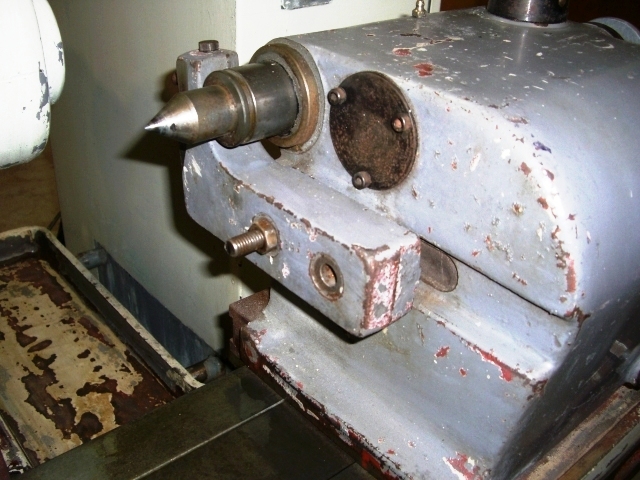

TAILSTOCK
Center Taper 4 MT
Quill Stroke ~1.1"

TANK CAPACITY
Wheel Spindle Lubricate 3 Gal
Hydraulic and Lubricating Oil 14 Gal
Coolant System 20 Gal

Approximate Weight 9,500 Lbs.
