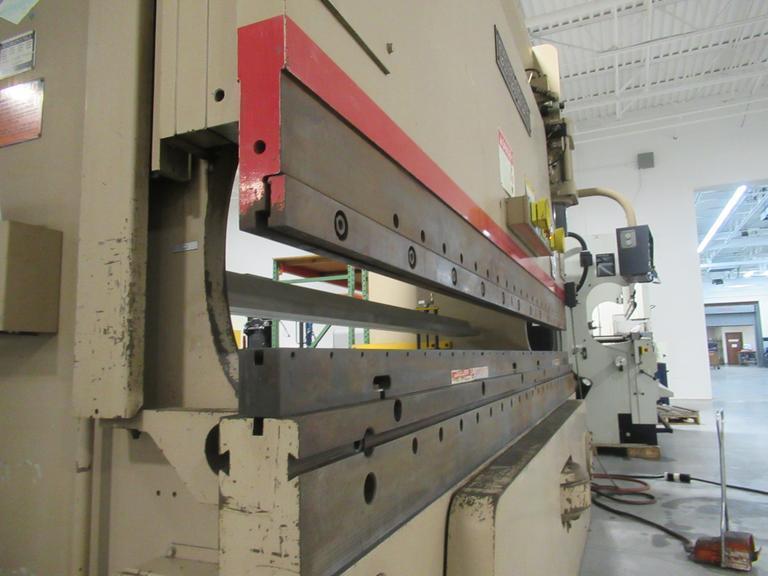

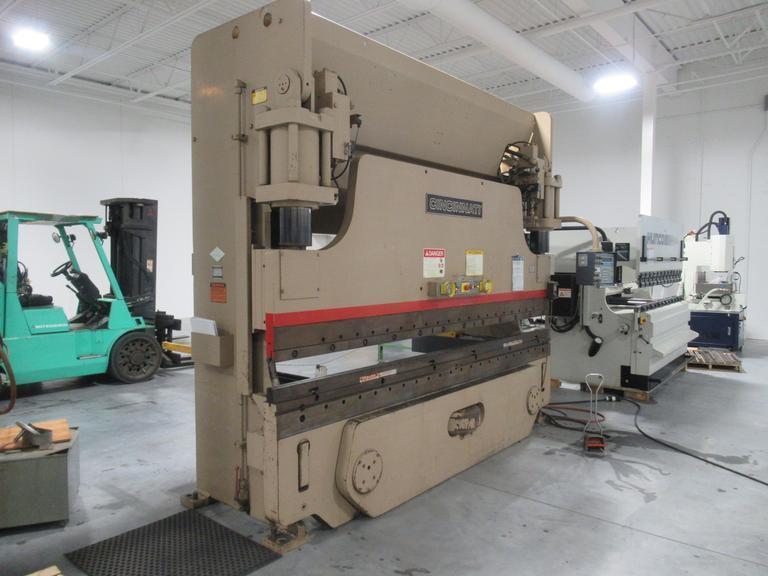

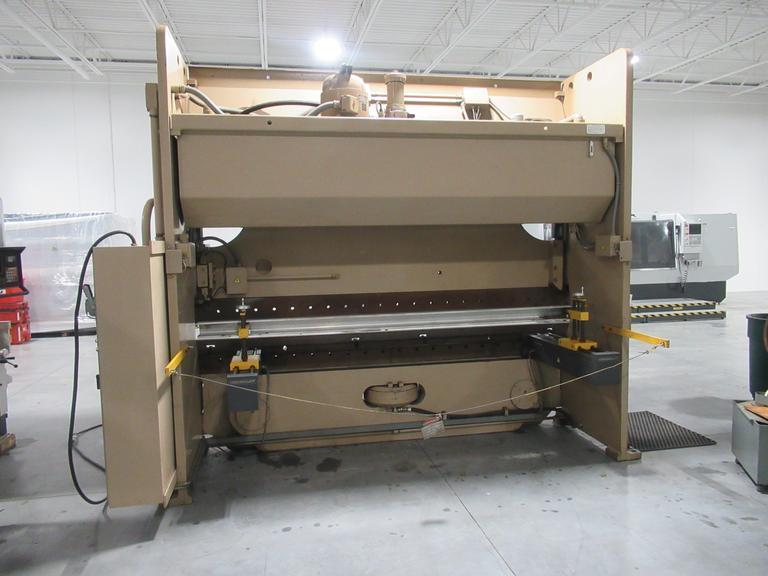

175 TON X 12' CINCINNATI FORM MASTER II CNC HYDRAULIC PRESS BRAKE WITH CROWNING

New 1998

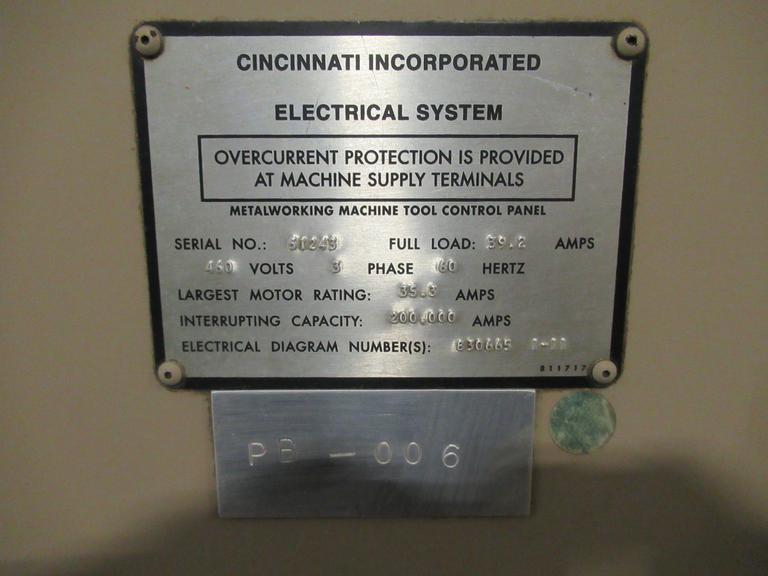

Motor Driven with 25 HP, 3-Phanse, 60 Cycle, AC Motor and Controls

EQUIPPED WITH:

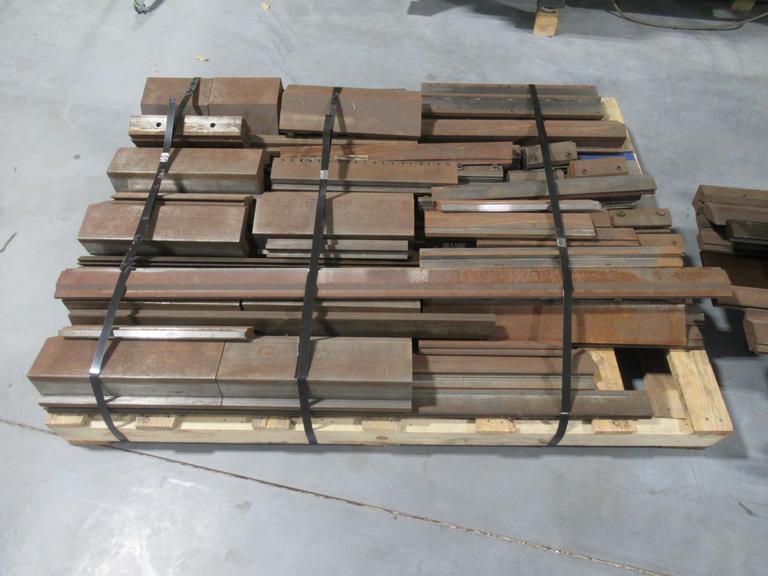

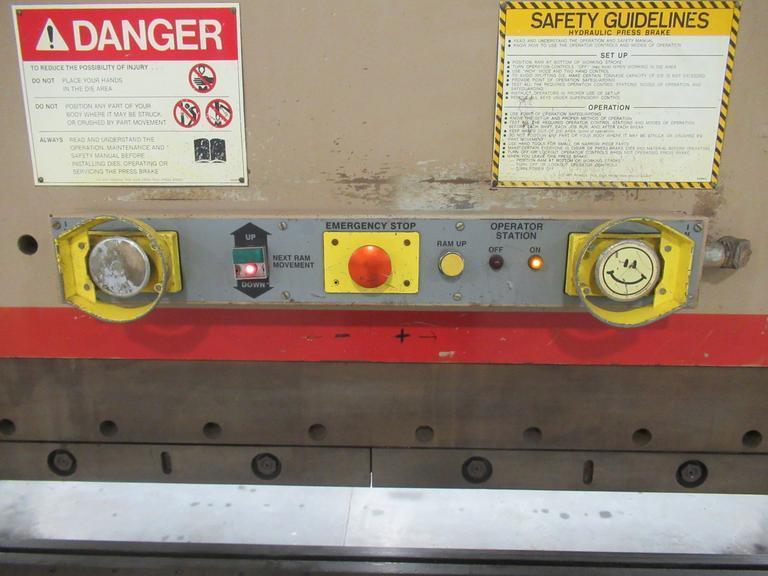

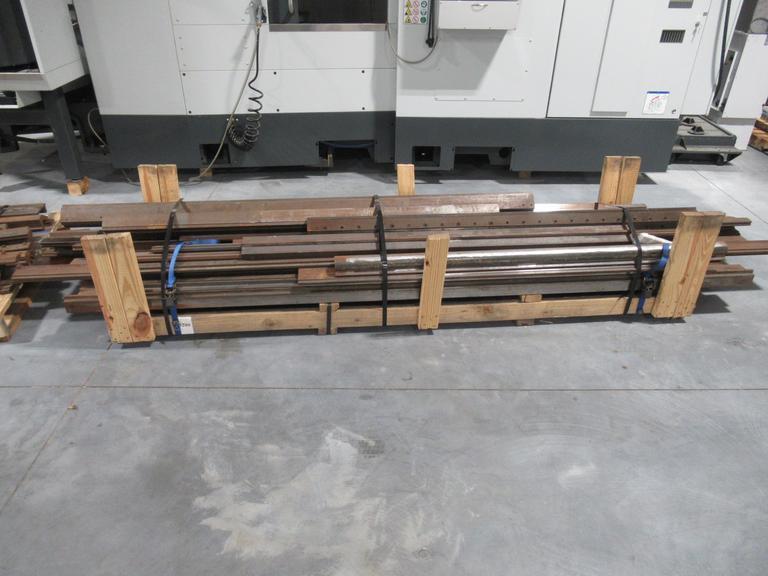

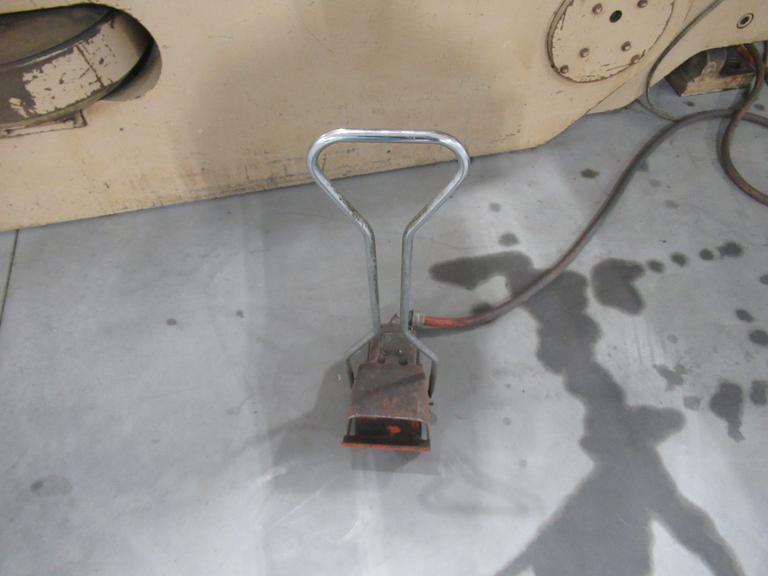

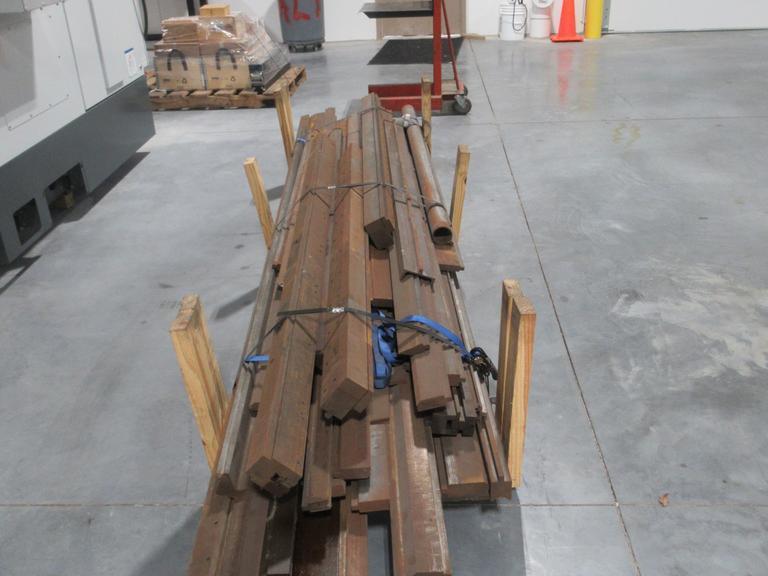

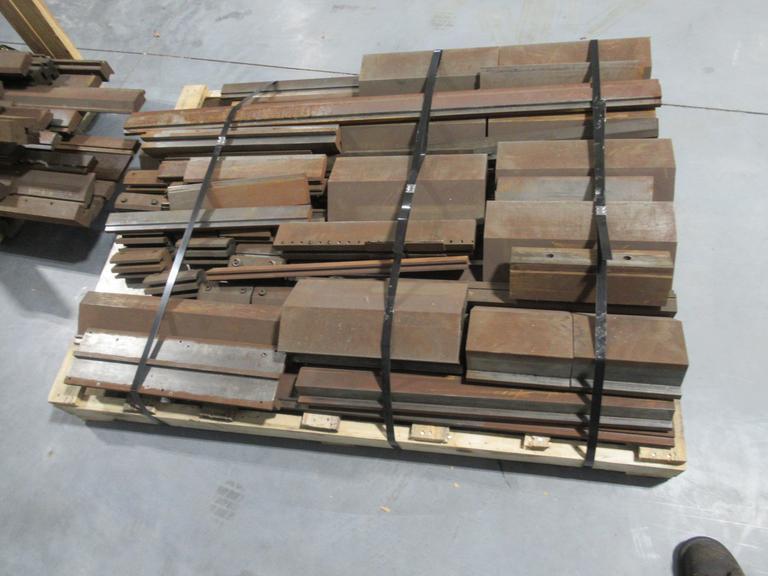

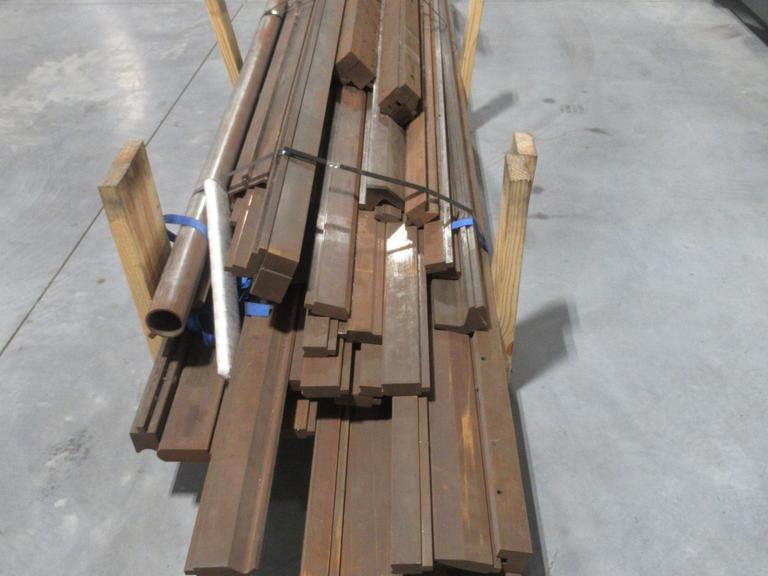

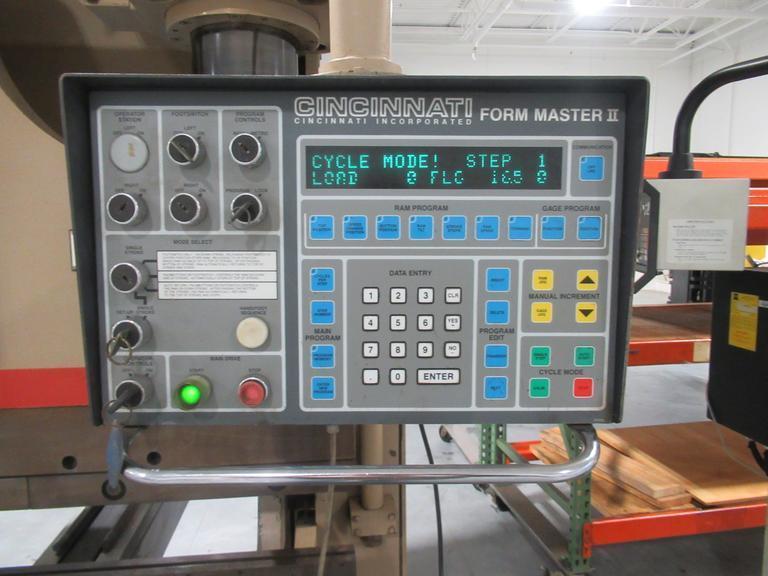

Cincinnati FormMaster II Controls, 175 Ton, 144" Bed and Ram, 126" Between Housings, 10" Stroke,Y1, Y2, X1, X2, Manual R, Ram Clamps, Lower Die Holder, Hydraulic Crowning, Dual Palms, Remote Foot Trip, Assorted Tooling & Manuals


SPECIFICATIONS:
Tonnage Capacity                                      175 Tons
Bed and Ram Length                                 12'
Distance Between Housings                      10'6"
ram Approach Speed                                 260 IPM
Bending Speed(s)                                       Variable 1-65 IPM
Ram Return Speed                                     Variable  1-290 IPM
Programmable Controlled Axes                 Y1, Y2, X1, X2, Crowning, Manual R

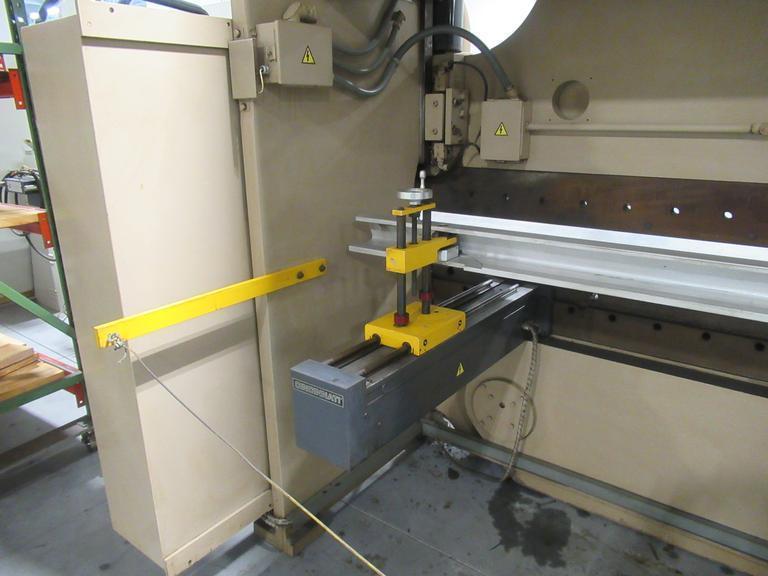

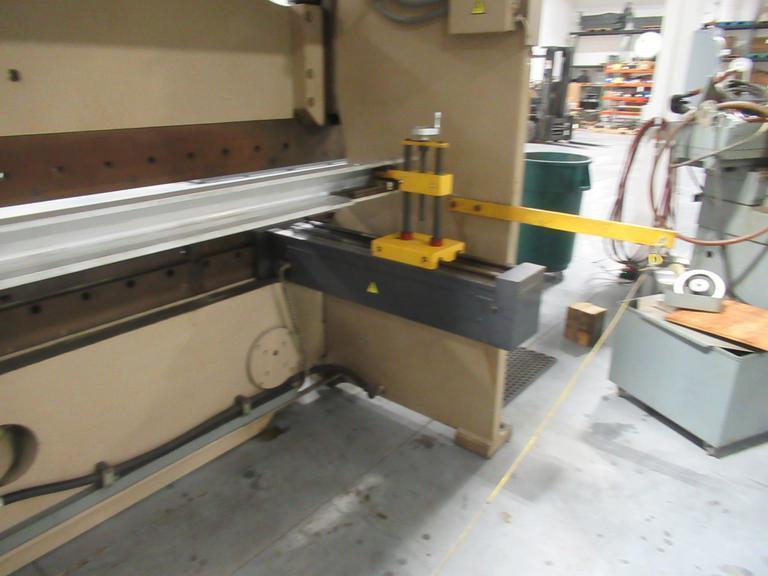

Programmable Backgauge Distance          24"
Throat Depth                                              10"
Maximum Ram Stroke                                8"
Max. Open Height                                      17"
Closed Height                                             7"
Approximate Dimensions                           160" L x 60" W x 125" H
Approximate Weight                                  31,050 Lbs.
