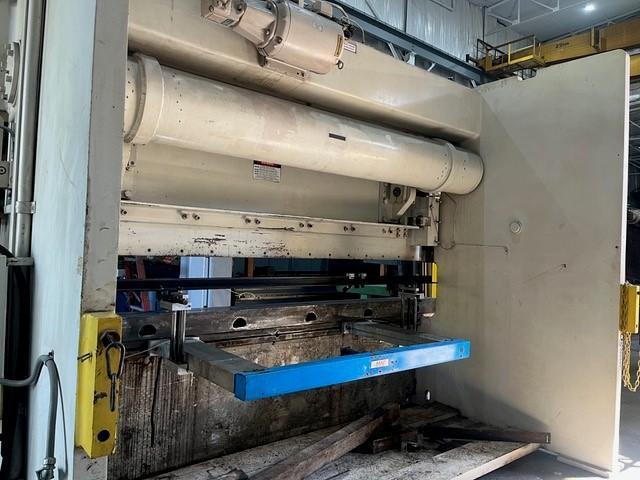

175 TON x 12' WYSONG MTH 350-144 HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
30252
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
175 TON x 12' WYSONG MTH 350-144 HYDRAULIC PRESS BRAKE
GENERAL SPECIFICATIONS
CAPACITY 175 TON
OVERALL LENGTH OF BED & RAM 12’
DISTANCE BETWEEN HOUSINGS 10’6”
OPEN HEIGHT 19”
STROKE 10”
SHUT HEIGHT (SDAU) 9”
THROAT 10”
OIL CAPACITY 99 US GALLONS
SPEEDS
RAPID APPROACH 250 IPM
PRESS 15 IPM
RETURN 170 IPM
MAIN MOTOR HORSEPOWER 20 208/230/460
EQUIPPED WITH
TEC LINE ASAP 24” BACK GAUGE WITH MANUAL R AXIS
PEDESTAL PALM BUTTON STATION / ELECTRIC FOOT SWITCH
VARIABLE TONNAGE
1-SHOT LUBE SYSTEM
APPROXIMATE OVERALL DIMENSIONS 155” X 84” X 105”T
APPROXIMATE OVERALL WEIGHT 48800 LBS
