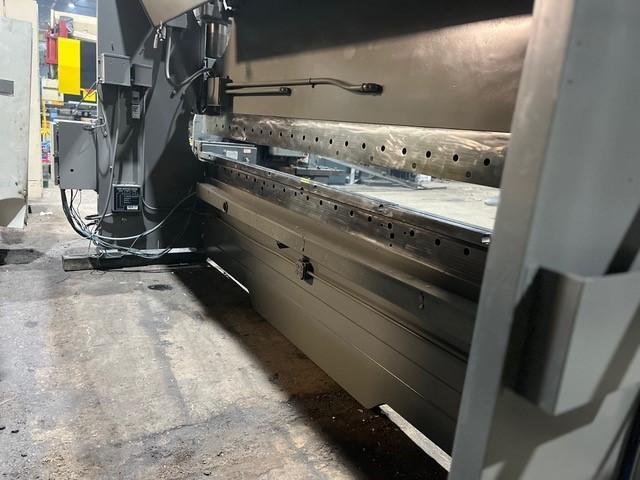

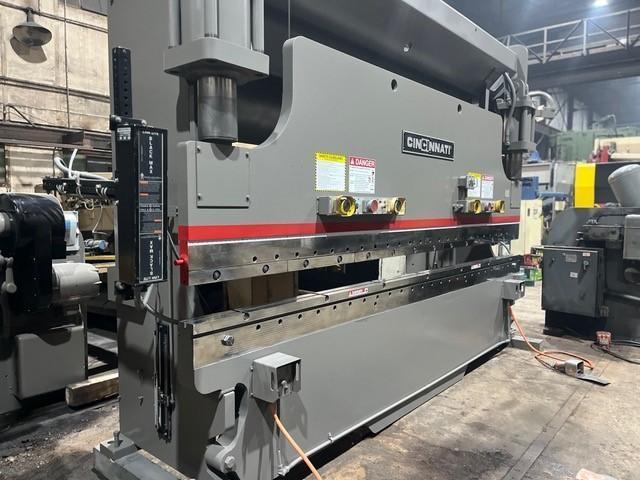

175 TON X 14' CINCINNATI MODEL 175CB CNC PRESS BRAKE

GENERAL SPECIFICATIONS

Capacity                                                                      175 TONS

Overall Length of Bed & Ram                                      14’

Distance Between Housings     `                                   12’6 3/4”

Stroke                                                                         10”

Open Height                                                                 17”

Closed Height                                                              7”

Throat Clearance                                                       8”

Speeds

Approach                                                         180 Inch Per Minute

Form                                                                8-16-40 Inch Per Minute

Return                                                             200 Inch Per Minute

Width at Top of Bed                                                     4 ½”

Main Motor Horsepower                                             15

EQUIPPED WITH

Electric Foot Switch

Palm Button Station

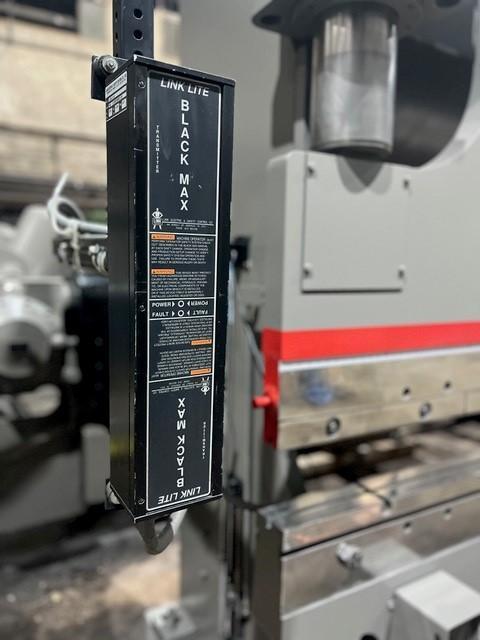

Link Black Max Safety Curtains

Manuals

Interlocked Construction

Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight                                       29500 Lbs

Approximate Overall Dimensions                                14’6.5” L X 60”FB X 123” H
