Equipped With

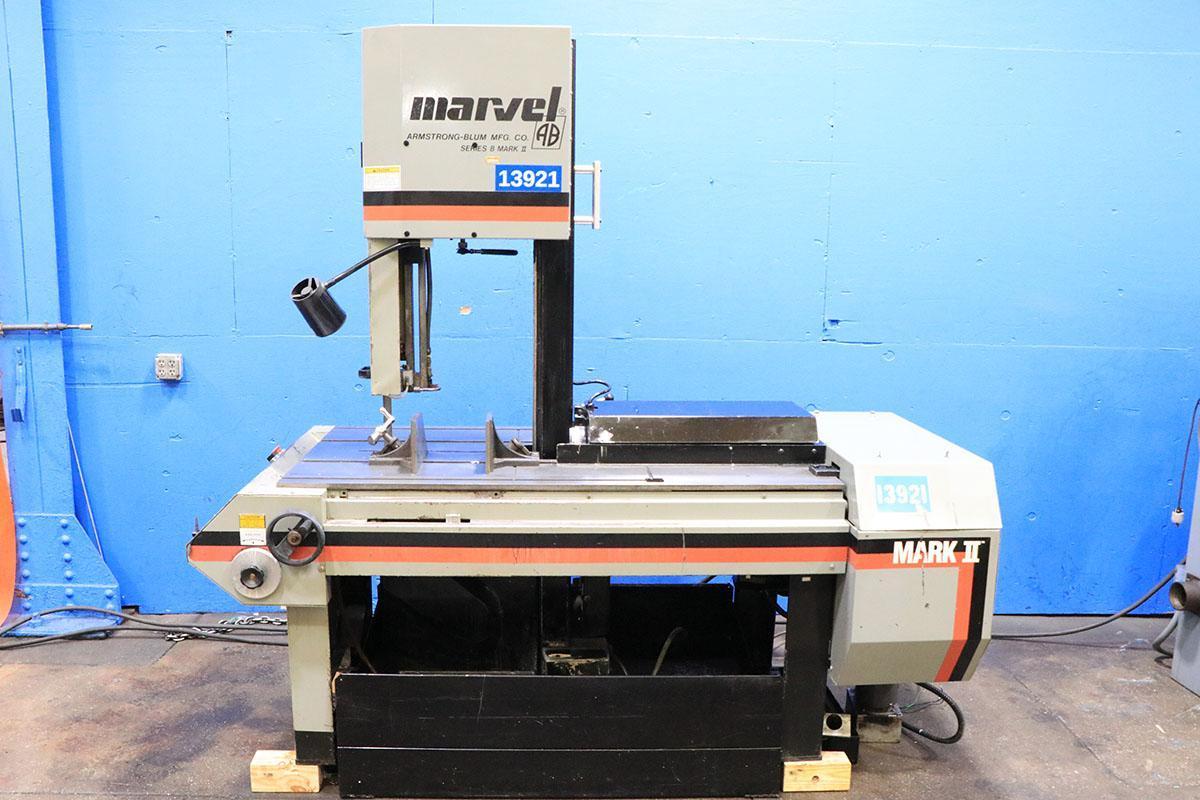

18" X 22" MARVEL MODEL SERIES 8 MARK II TILT FRAME VERTICAL BANDSAW

NEW 2000

SPECIFICATIONS:

CAPACITY:

    NOMINAL .................... 18" x 22"

    HORIZONTAL ................. 18"

    VERTICAL ................... 22"

    BLADE @ 45 deg  ............ 18" x 12-3/4"

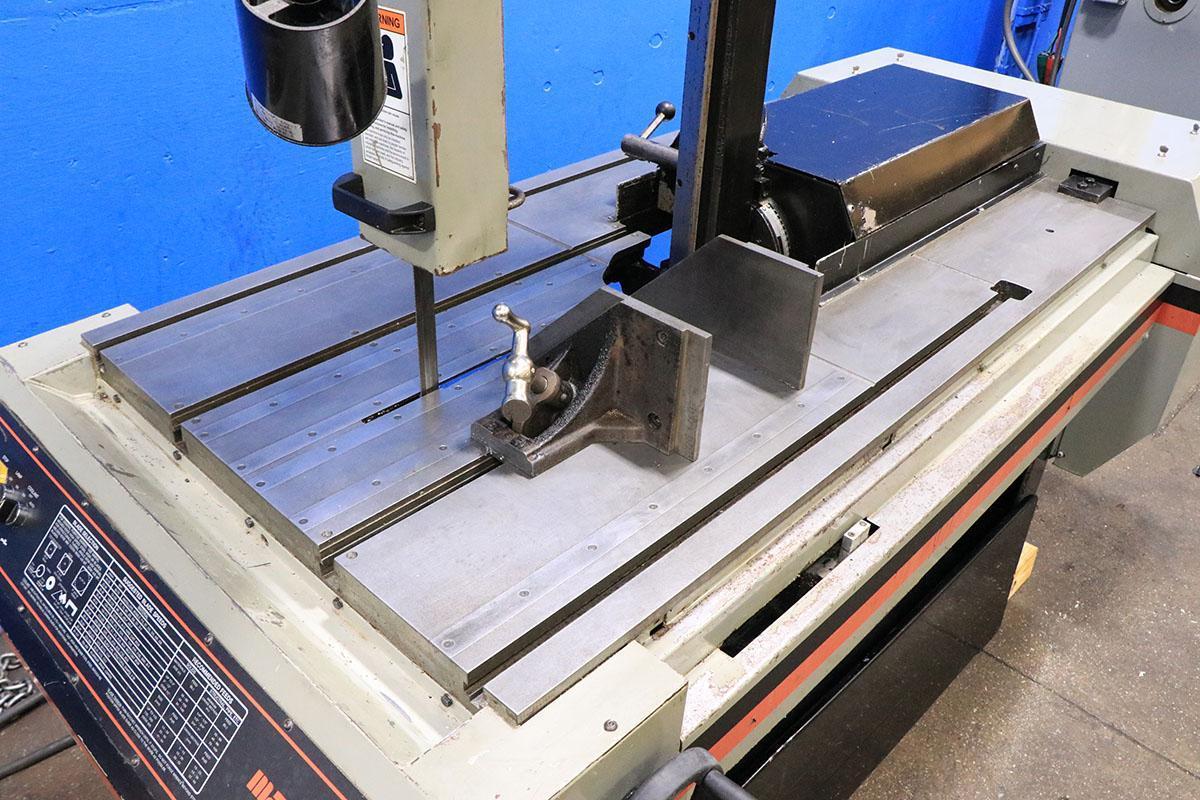

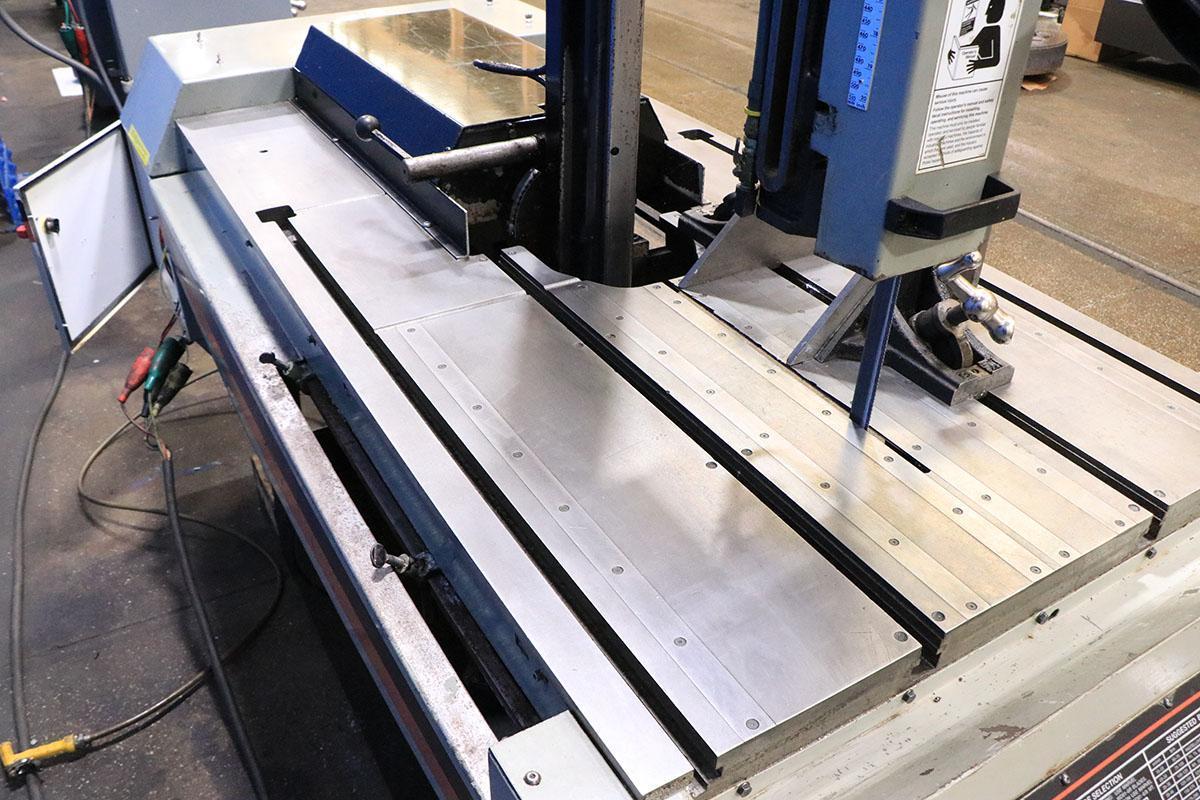

TABLE WORKING SURFACE .......... 24-1/4" X 33"

TABLE HEIGHT ................... 34-1/2"

TEE SLOTS NUMBER ............... 4

MAX VISE OPENING ............... 21"

HEIGHT OF VISE JAWS ............ 6"

FEED RANGE ..................... 0 - 140 LBS

VARIABLE SPEED RANGE ........... 50 - 450 FPM

BLADE SIZE ..................... 14'6" x 1" x .035" THICK

BLADE WHEEL DIAMETERS .......... 18"

APPROX. MACHINE DIMENSIONS ..... 54-1/2"W x 90"D x 84-1/2"H

APPROX WEIGHT .................. 2,870 LBS

EQUIPPED WITH:

- WORK VISE

- COOLANT PUMP & CHIP PAN

- VARIABLE BLADE SPEED

- 2 HORSE POWER 3/60/208,230,460 VOLT MOTOR AND CONTROLS

   (SET FOR 460V)
