Equipped With

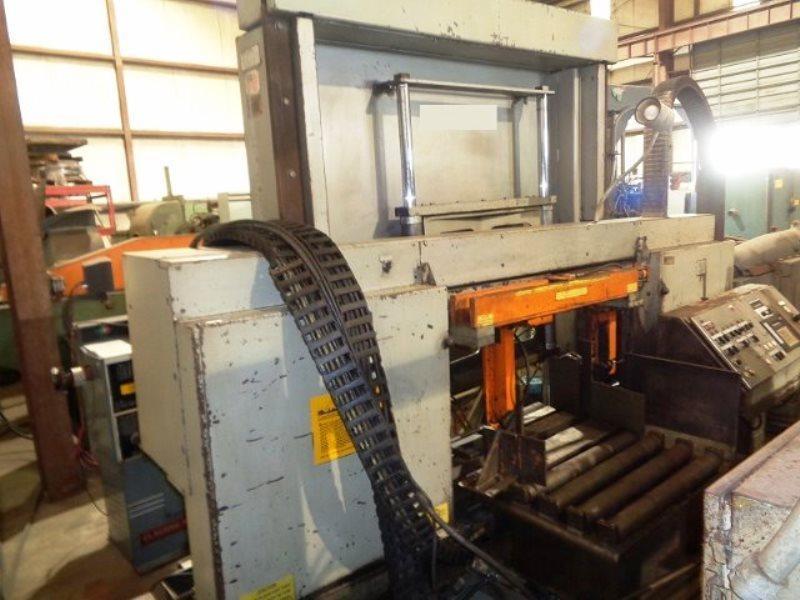

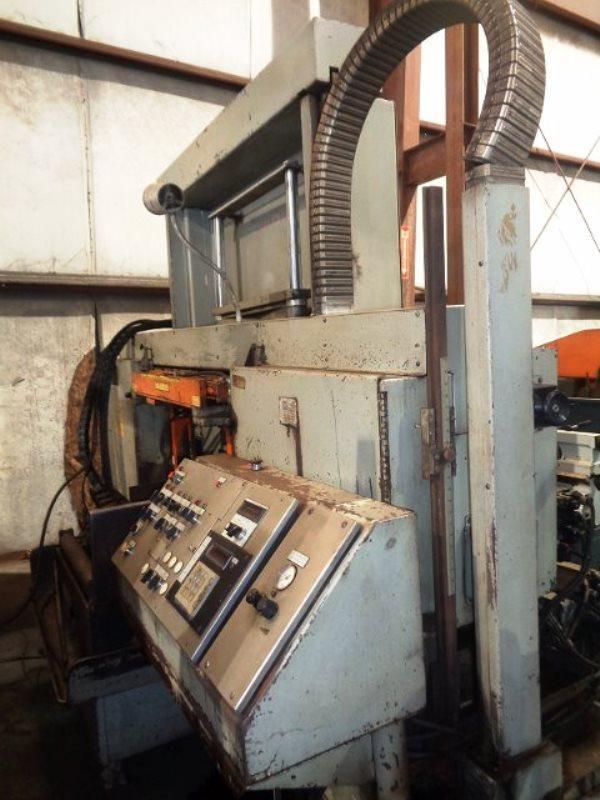

18" x 27" HEM #F130HA-DC DOUBLE COLUMN PROGRAMMABLE AUTOMATIC HORIZONTAL BAND SAW

NEW 1996

SPECIFICATIONS:

CAPACITY --- ( ROUND ) -------------------- 18" DIAMETER
CAPACITY --- ( RECTANGULAR ) -------------- 18" X 27"
ISE SHUTTLE STROKE ----------------------- 0 TO 72"
BLADE SIZE -------------------------------- 1.5" X .050" THICK X 22'2" LONG
BLADE SPEEDS ------------------------------ 80 TO 400 FPM
MAIN DRIVE MOTOR -------------------------- 10 HP AC
HYDRAULIC MOTOR 2 HP A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 8,500 LBS

EQUIPPED WITH:

2 HYDRAULIC VISES                           POWERED MOVEABLE GUIDE ARM
 OPTIONAL 3RD HYDRAULIC VISE ON FEED TABLE   POWERED LENGTH POSITIONER
COMPUTER CONTROLLED FEED SYSTEM             POWERED BLADE TENSION
DOUBLE COLUMN                               (2) HYDRAULIC BUNDLING VISES
CUT WATCHER BLADE MONITOR SYSTEM            VARIABLE BLADE SPEED
TOP CLAMP FOR BUNDLING                      DISCHARGE TABLE
MULTIPLE INDEX                              COOLANT SYSTEM
OPTIONAL 72" BAR FEED STROKE                FULL STROKE VISES
HYDRAULIC UNIT                              CHIP AUGER
CANTED HEAD, 2 DEGREE TILT
