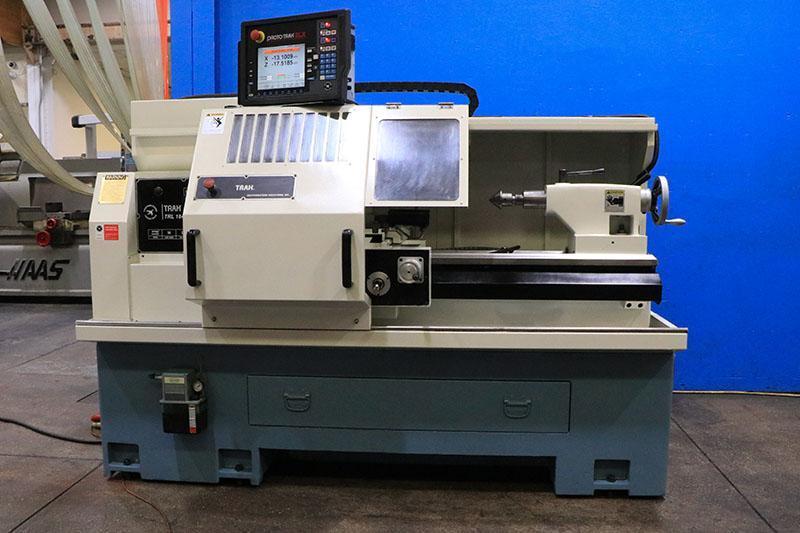

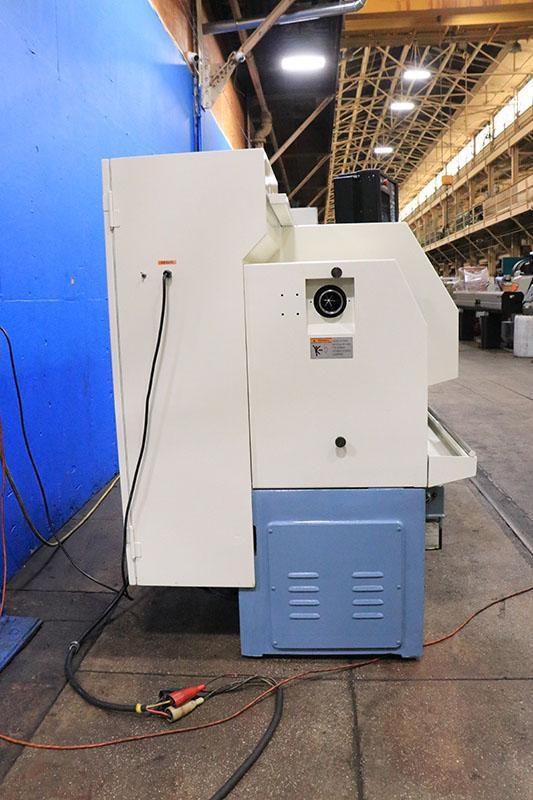

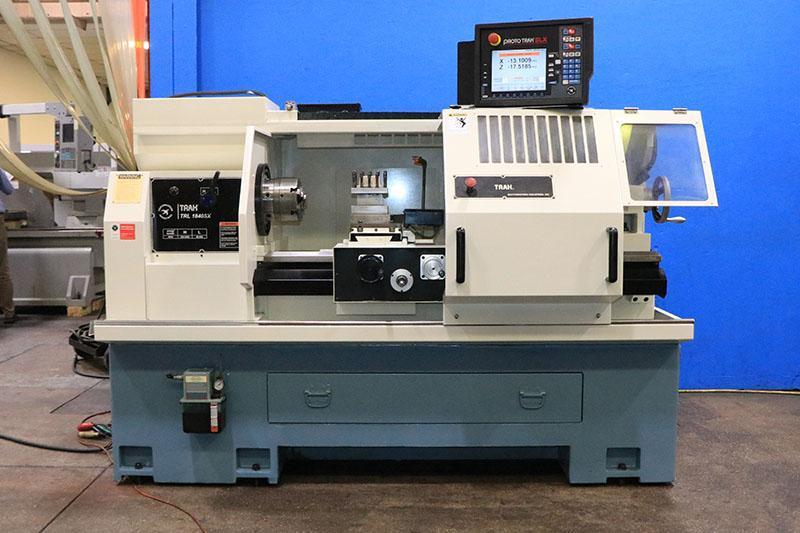

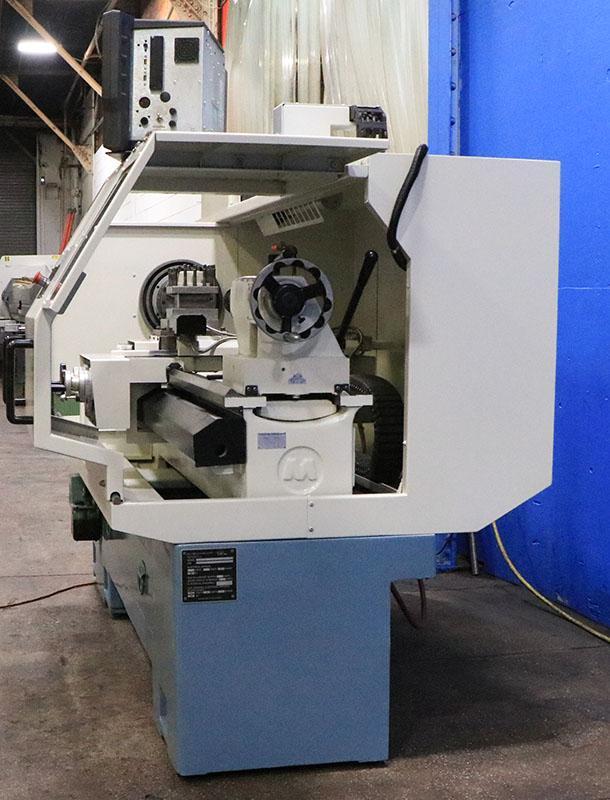

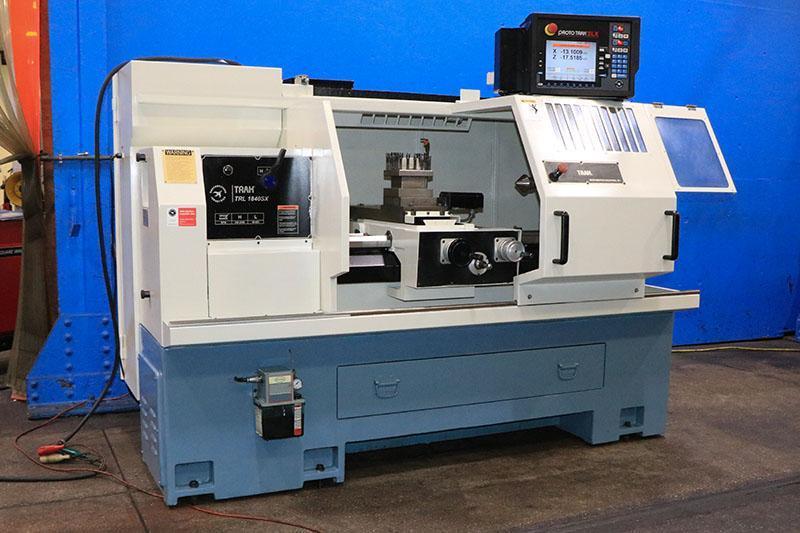

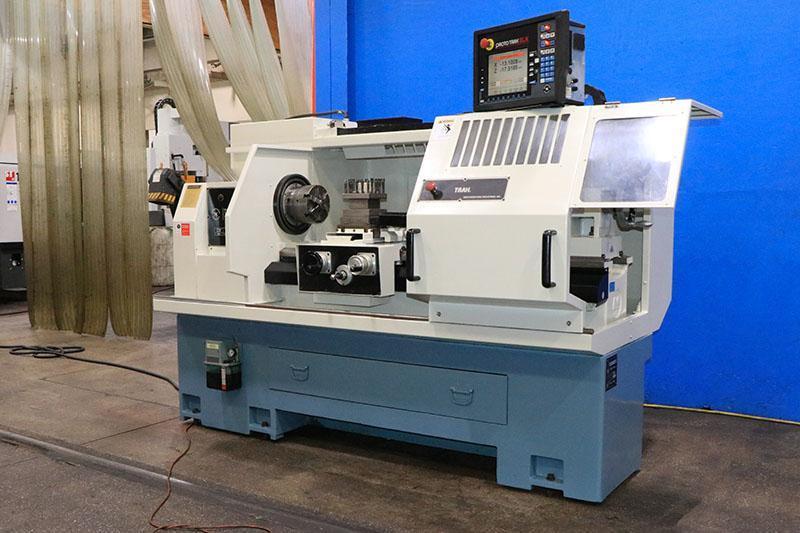

18" X 40" TRAK MODEL TRL 1840SC 2-AXIS CNC/MANUAL FLAT BED LATHE
New 2008

EQUIPPED WITH:

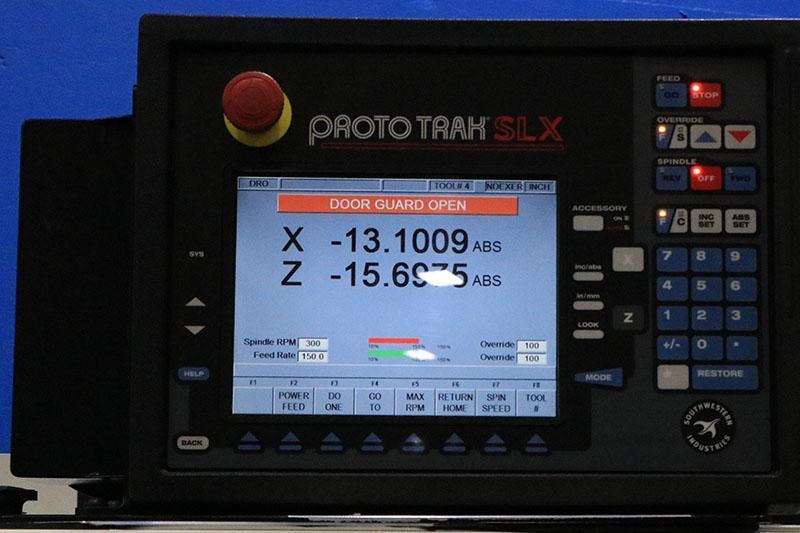

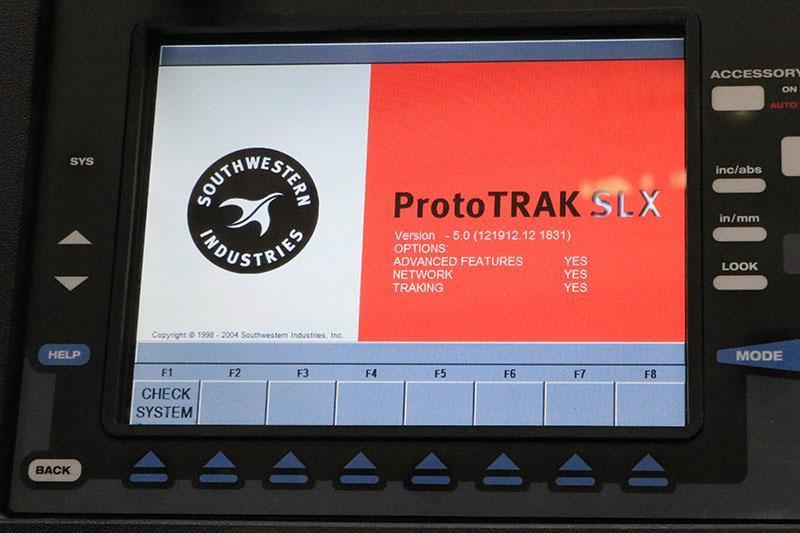

- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: SLX CNC CONTROL

     ADVANCED FEATURES, NETWORK, TRAKING

- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION

- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS

- SERVO MOTORS & GROUND BALLSCREWS

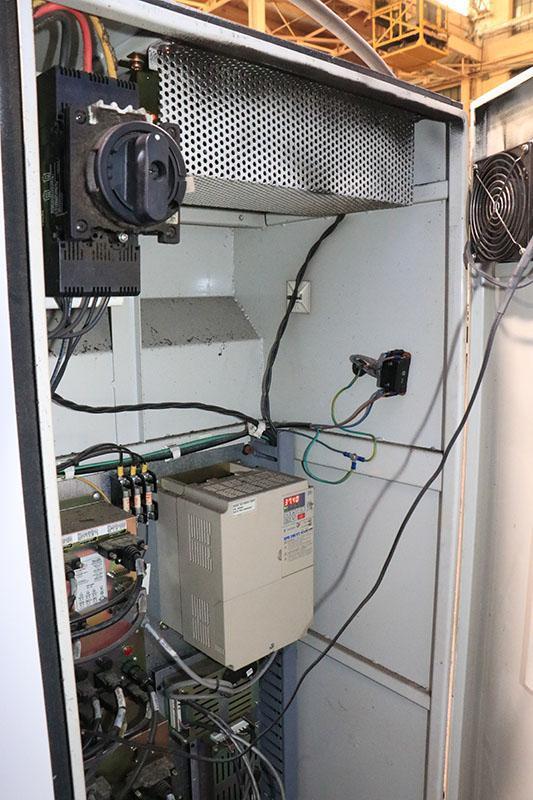

- AC SPINDLE DRIVE

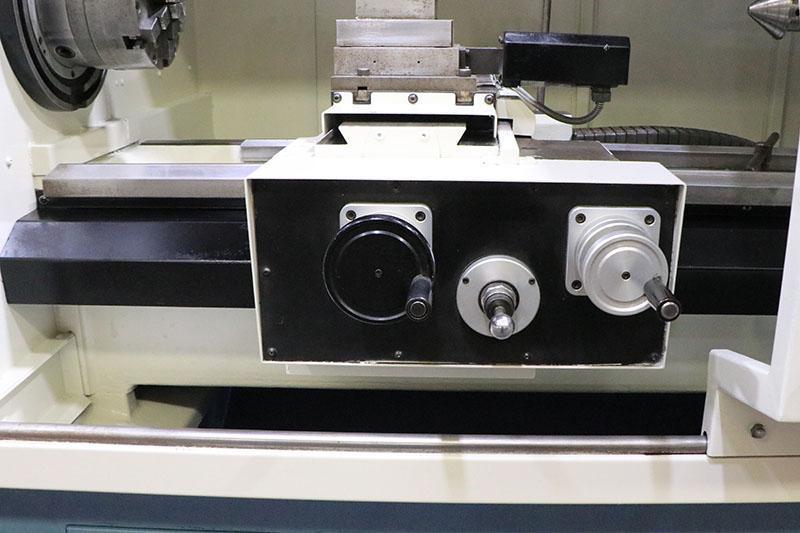

- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE

- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS

- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS

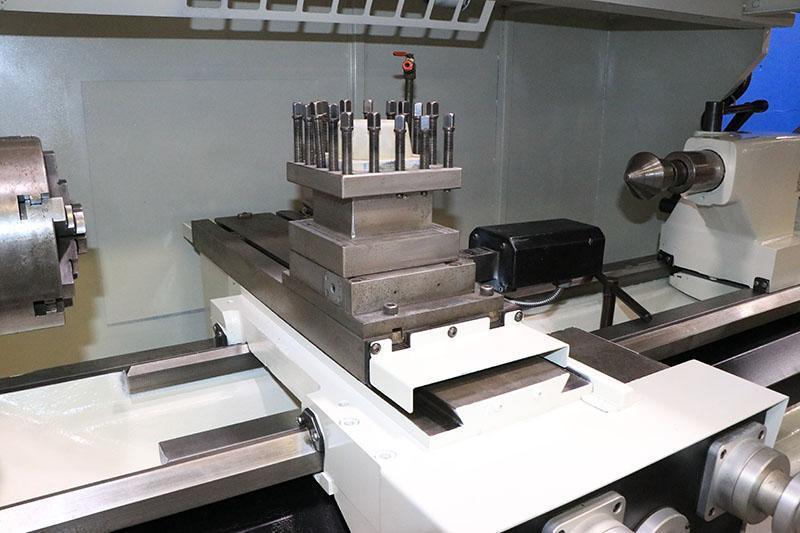

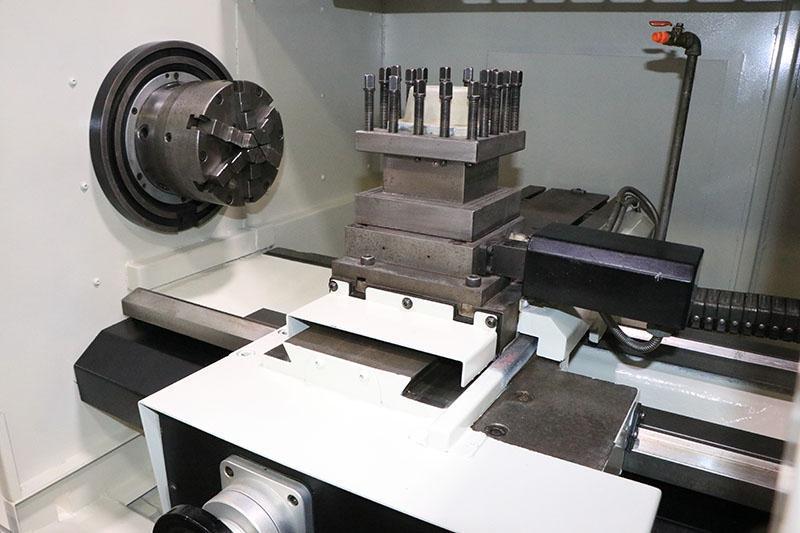

- FOUR STATION PROGRAMMABLE STAR INDEXABLE TOOLPOST

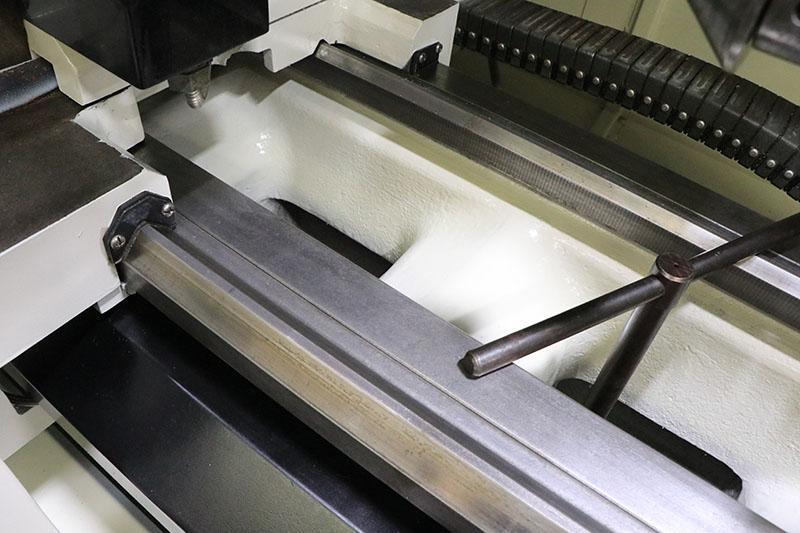

- HARDENED & GROUND BED WAYS

- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS

- COOLANT SYSTEM

- 10 HORSE POWER 3/60/230 VOLT SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS

SPECIFICATIONS:

HEIGHT OF CENTERS .......................... 9"

SWING OVER BED ............................. 18-1/2"

SWING OVER CROSS SLIDE ..................... 9"

SWING OVER SADDLE WINGS .................... 17"

MAX DISTANCE BETWEEN CENTERS ............... 40.2"

CROSS SLIDE TRAVEL (X) ..................... 13"

LONGITUDINAL TRAVEL (Z) .................... 40"

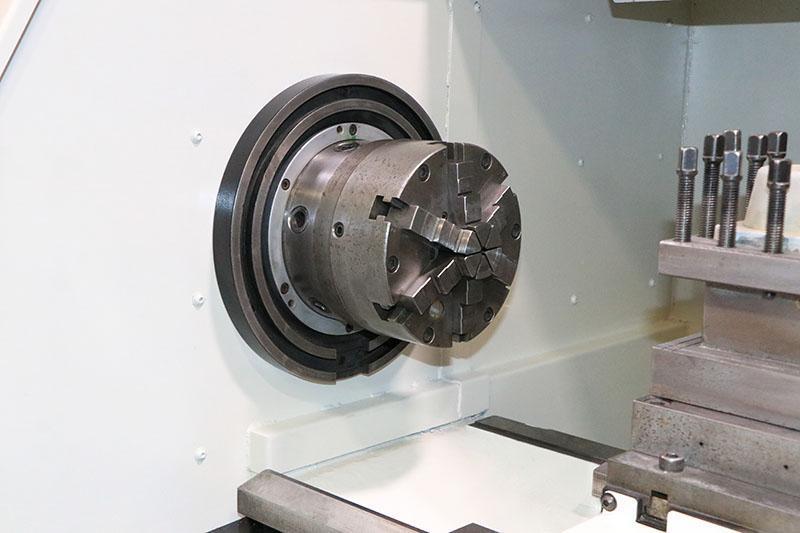

SPINDLE TAPER, CAMLOCK, SIZE ............... D1-6

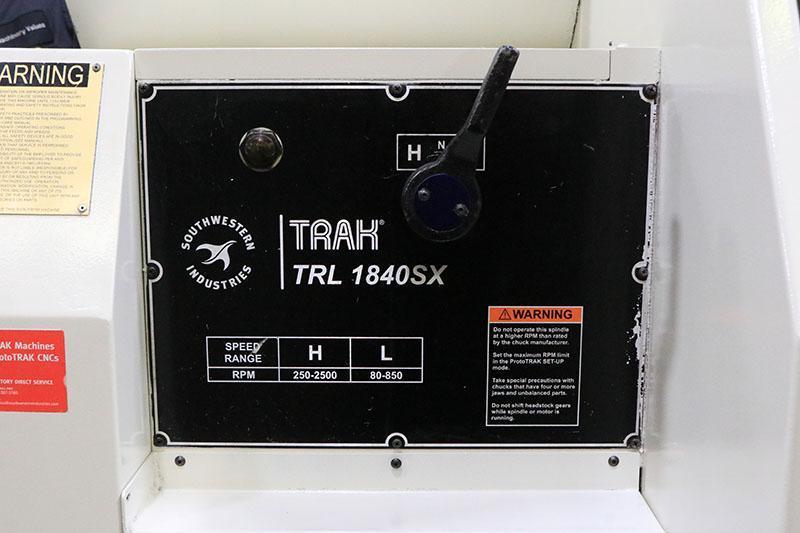

SPINDLE SPEED RANGE (3), INF VAR ........... 50 - 2500 RPM

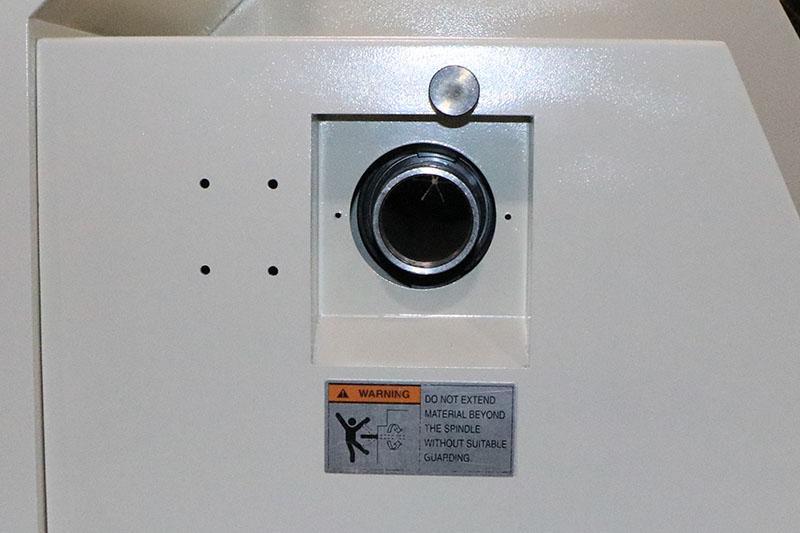

SPINDLE BORE ............................... 2.36"

TAPER IN HEADSTOCK SPINDLE ................. #6 MT

TAPER IN HEADSTOCK SPINDLE REDUCTION SLEEVE. #4 MT

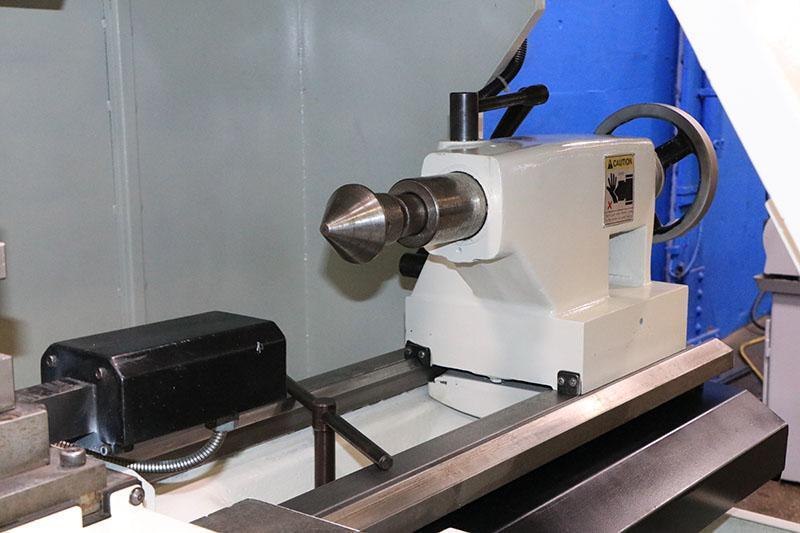

TAILSTOCK QUILL TRAVEL ..................... 6.3"

TAILSTOCK QUILL DIAMETER ................... 2.95"

TAILSTOCK QUILL TAPER HOLE ................. #5 MT

APPROX WEIGHT .............................. 4,500 LBS

APPROX DIMENSIONS .......................... 94" X 53" X 70"
