Equipped With

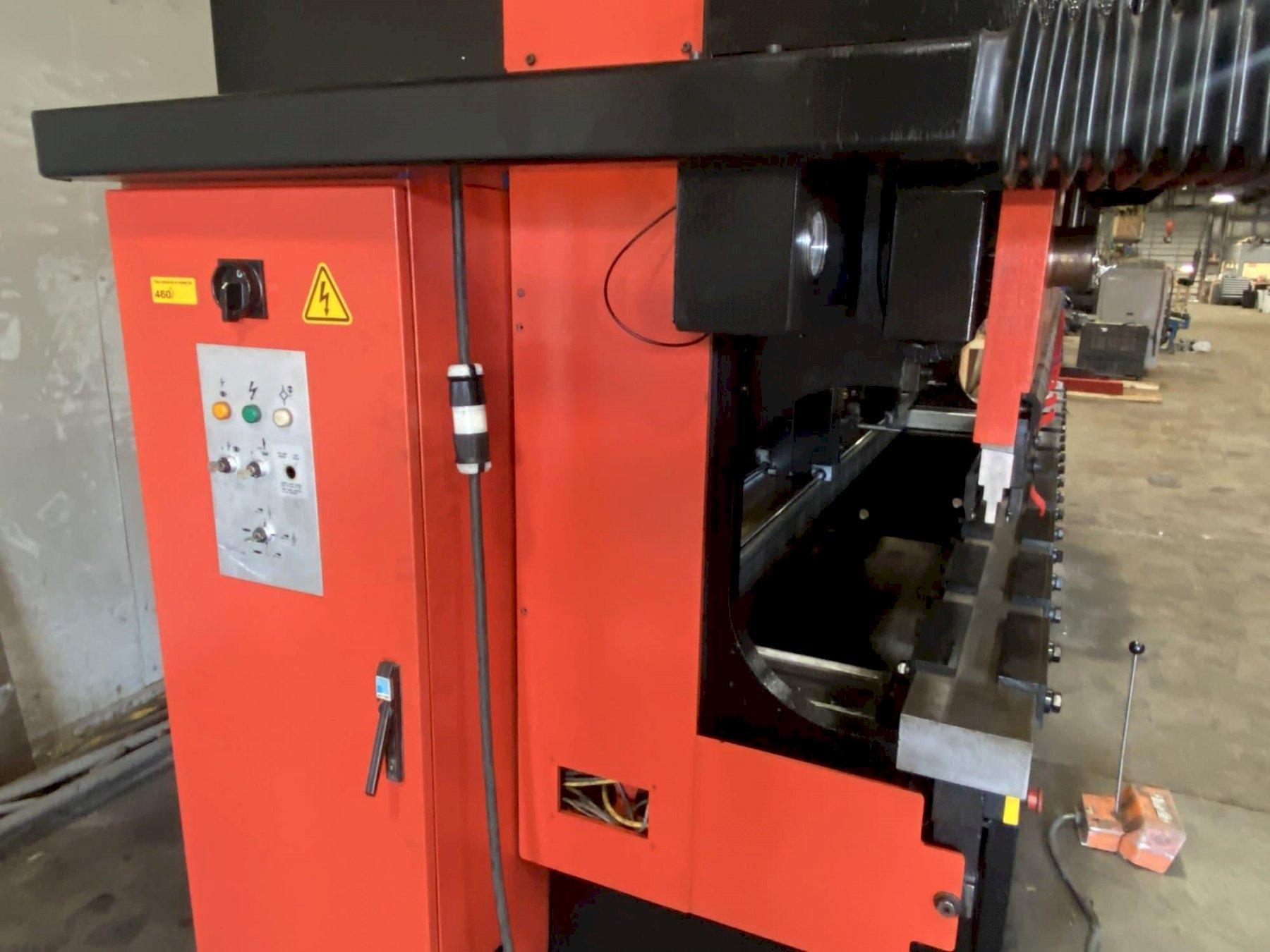

187 Ton x 13′ Amada HFB 1704 CNC Press Brake

New 1998
Reconditioned

SPECIFICATIONS:

Tonnage: 187
Overall Length Bed/ Ram: 168”
Distance Between Housings: 148”
Table Width: 3.5″
Motor Power: 15 HP
Open Height: 17.70″
Stroke Length: 7″
Throat Depth: 16.1″
Approach Speed: 3.94 inch/sec
Bending Speed: 0.04 to 0.32 inch/sec
Return Speed: 0.04 to 3.15 inch/sec

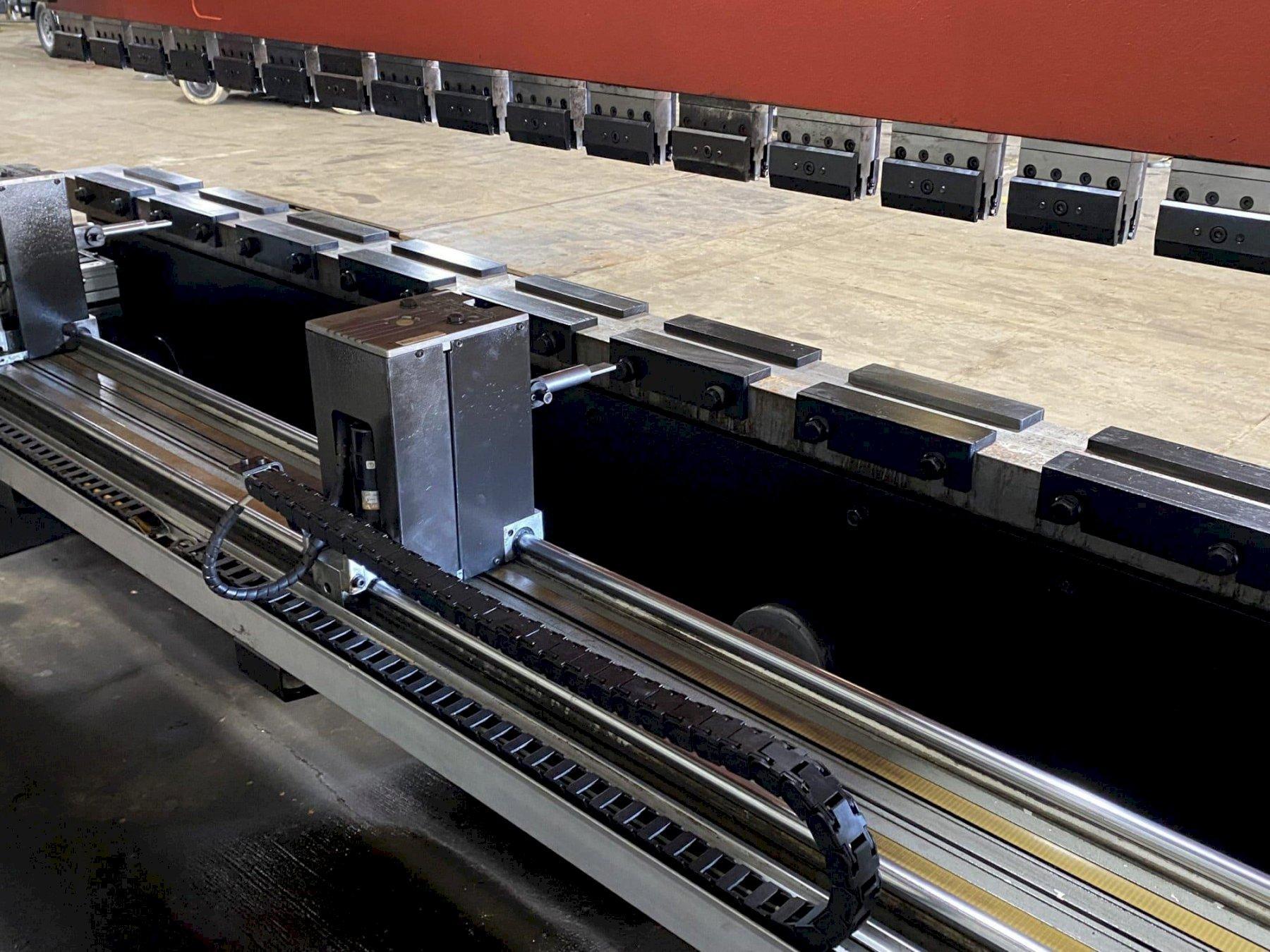

Back Gauge Travel   27.6"
Machine Length: 179.5″
Machine Width: 85.8″
Table Length: 167.3″
Table Height: 37.8″
Machine Height: 115.7″
Machine Weight: 28,600 lbs

Equipped With:

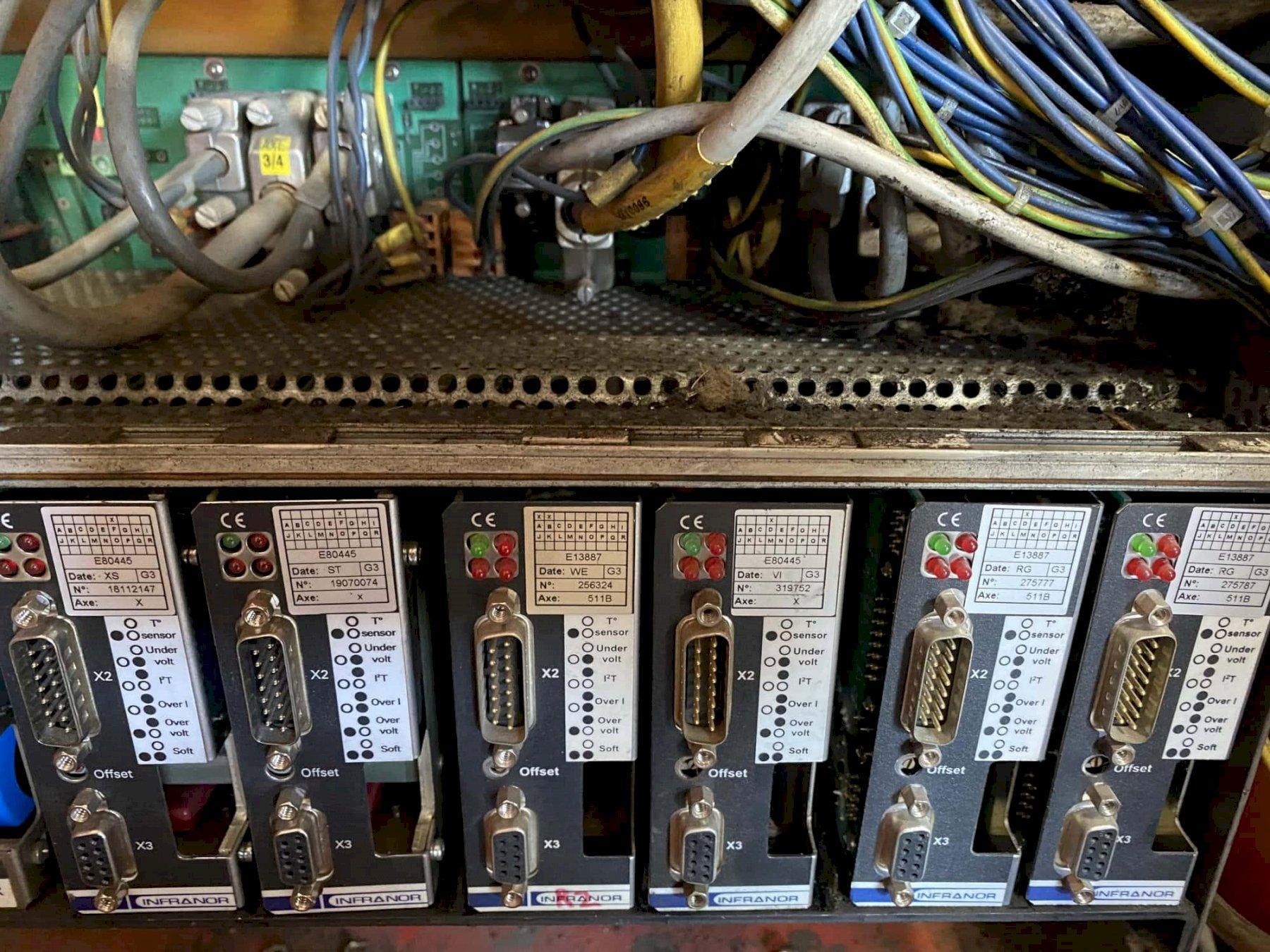

8-Axis Operateur Control (X1, X2, R1, R2, Z1, Z2)
