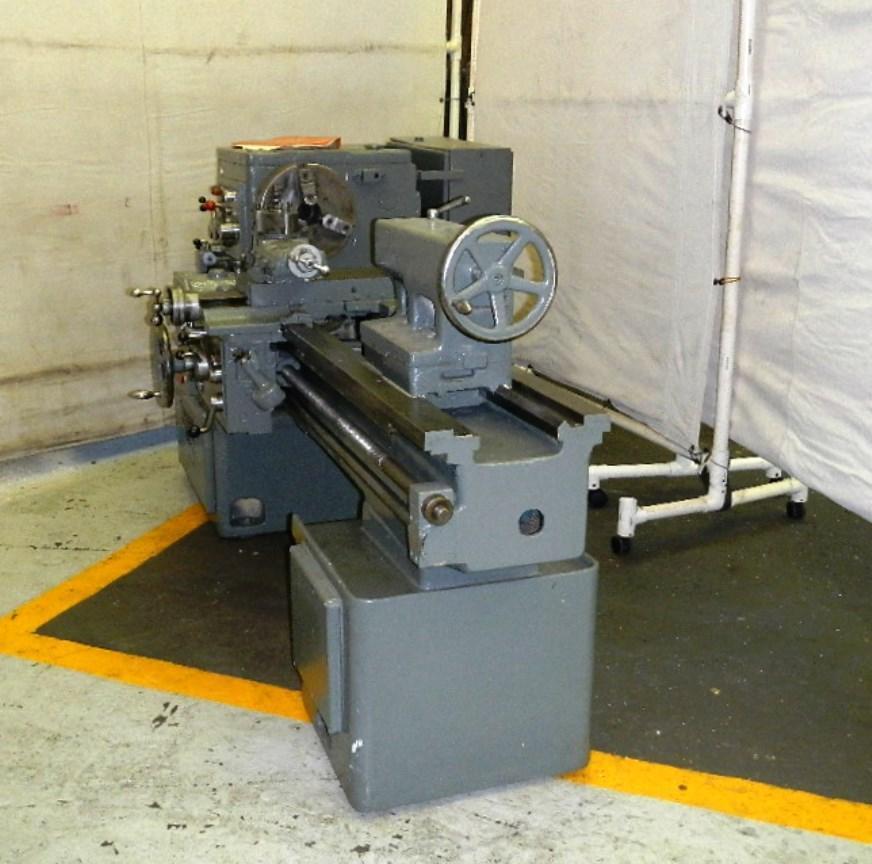

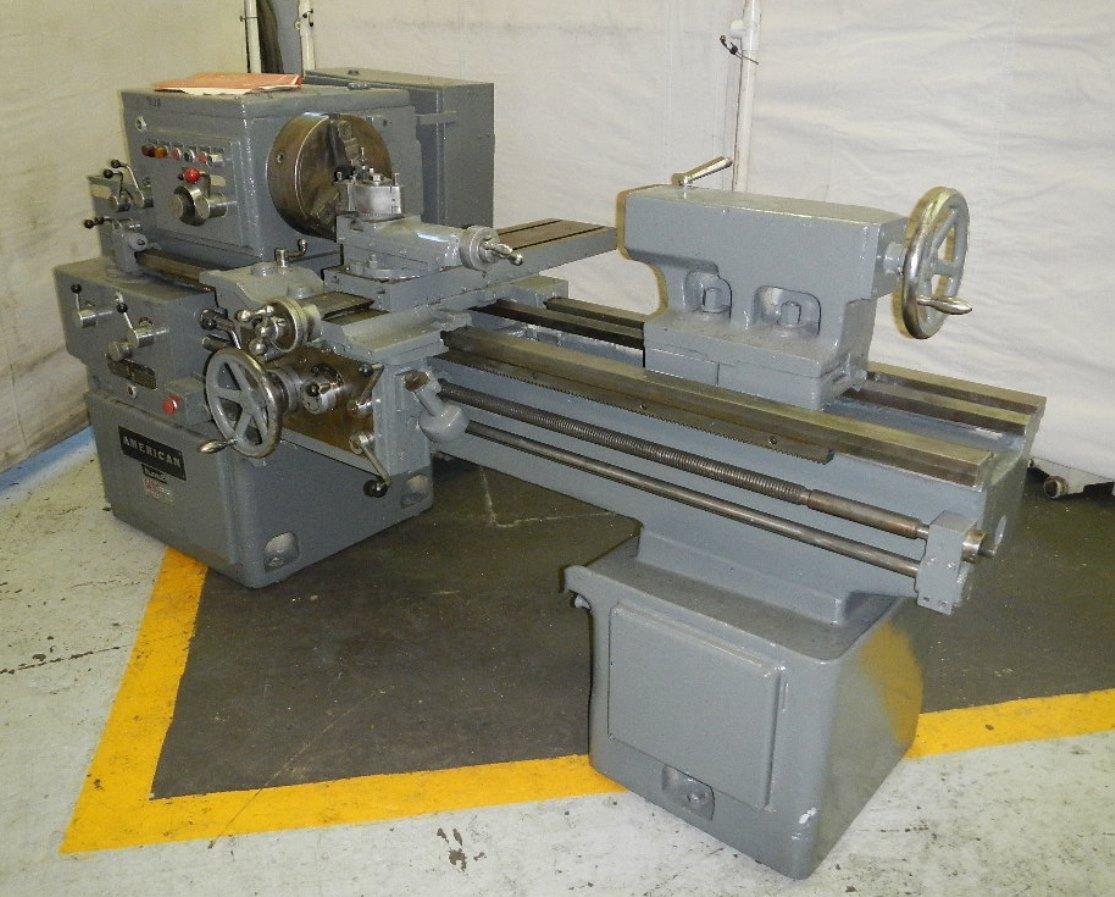

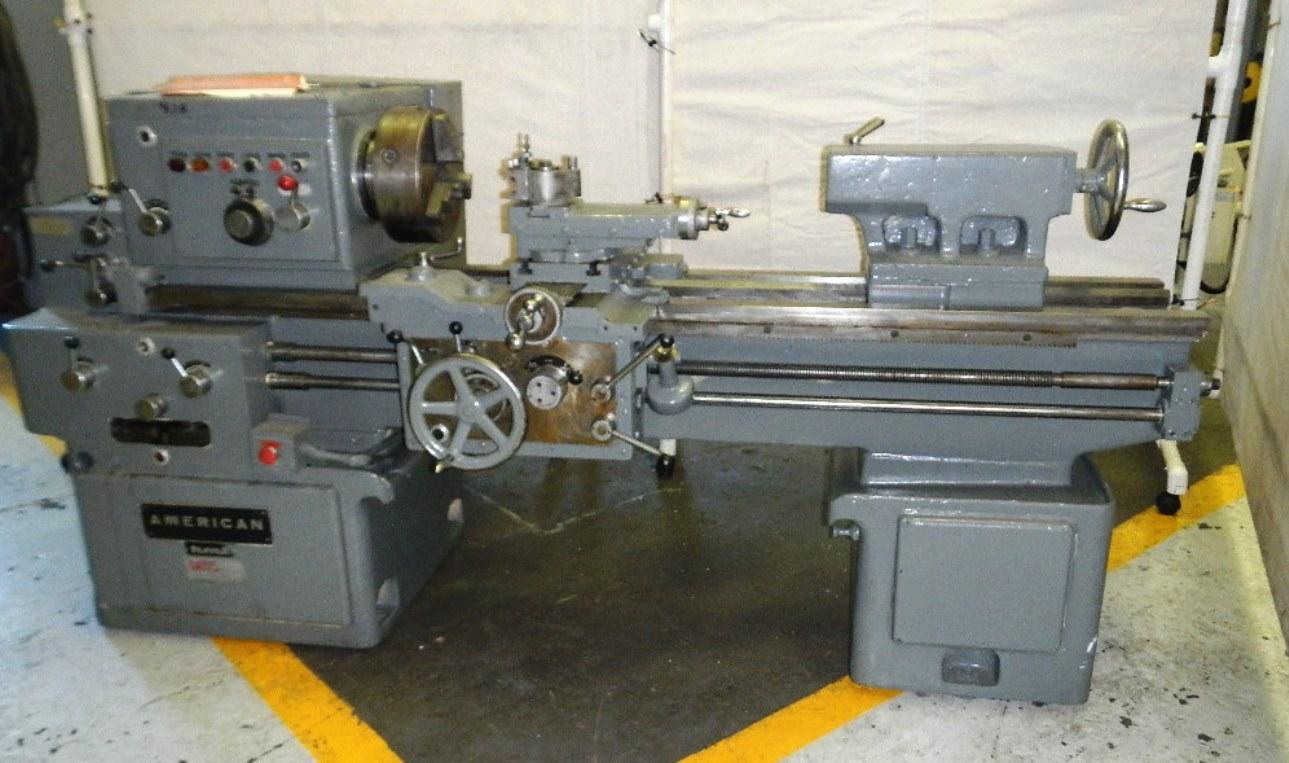

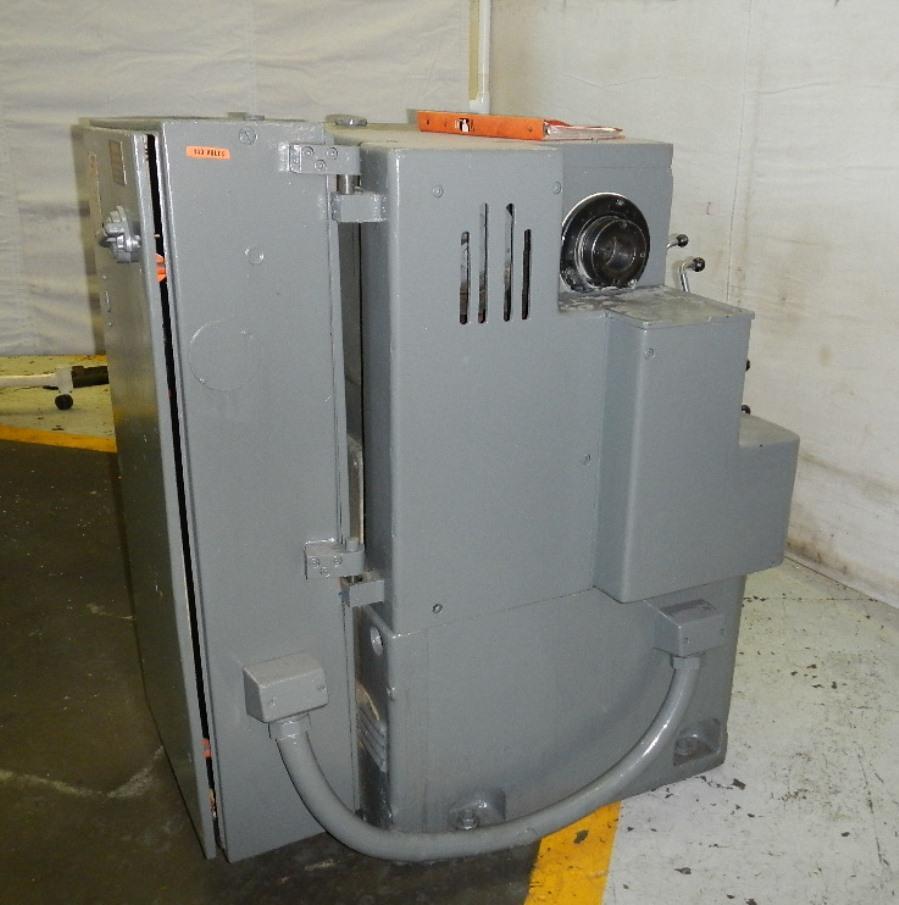

19" x 60" AMERICAN ENGINE LATHE
Year
1977
Stock #
17349
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
19" x 60" AMERICAN ENGINE LATHE
New 1977
Swing over bed 19 11/16"
Swing over cross slide 12 1/2"
Distance between centers 60"
Spindle bore 2 1/8"
Spindle speeds (12) 32 - 1,400 RPM

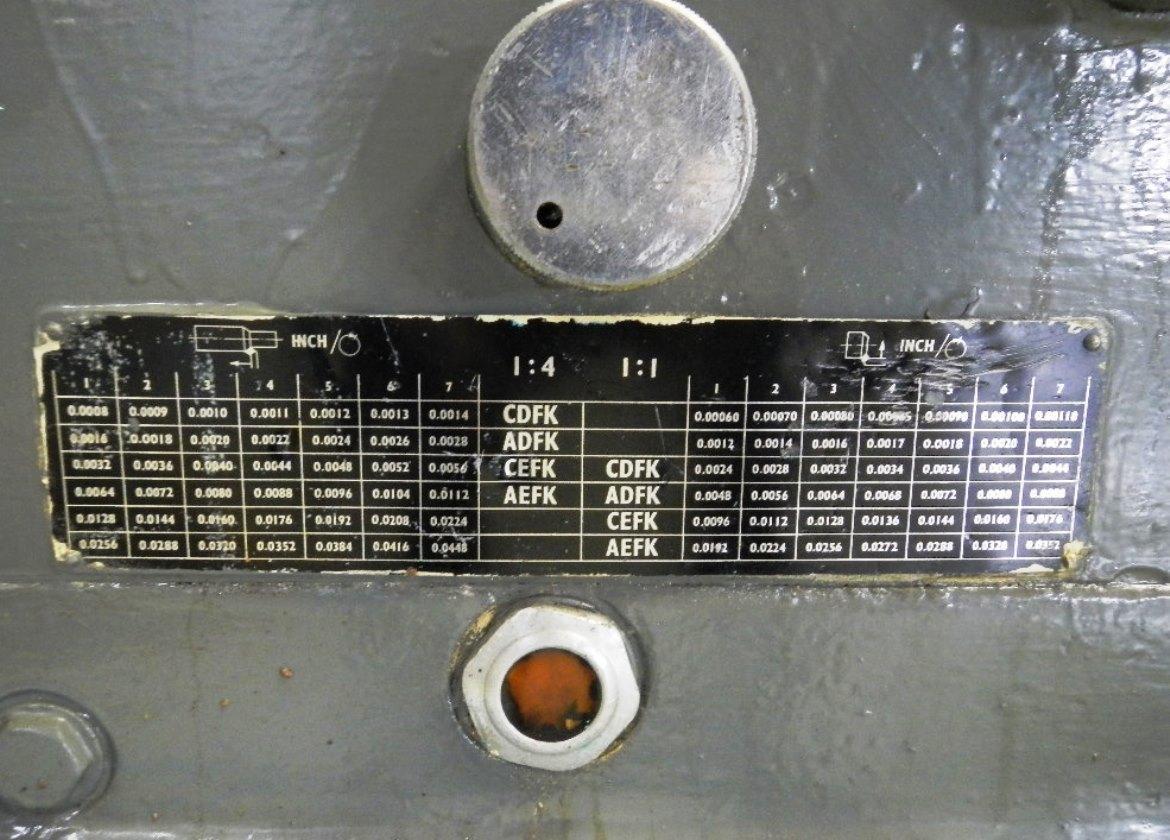

Feed range (42) longitudinal 0.0008 - 0.0448 inch/rev.
cross 0.0006 - 0.0352 inch/rev
Thread cutting range (49), inch 56-1/2 tpi verify
Spindle nose D1-6
Spindle thru hole 1 13/16"
Tailstock taper MT #4
Tailstock sleeve travel 8"
Tool shank size 1" x 1"
Drive motor 15 hp
Approximate dimensions 102" LR x 60" FB x 50" H
Approximate weight 6,200 lbs.

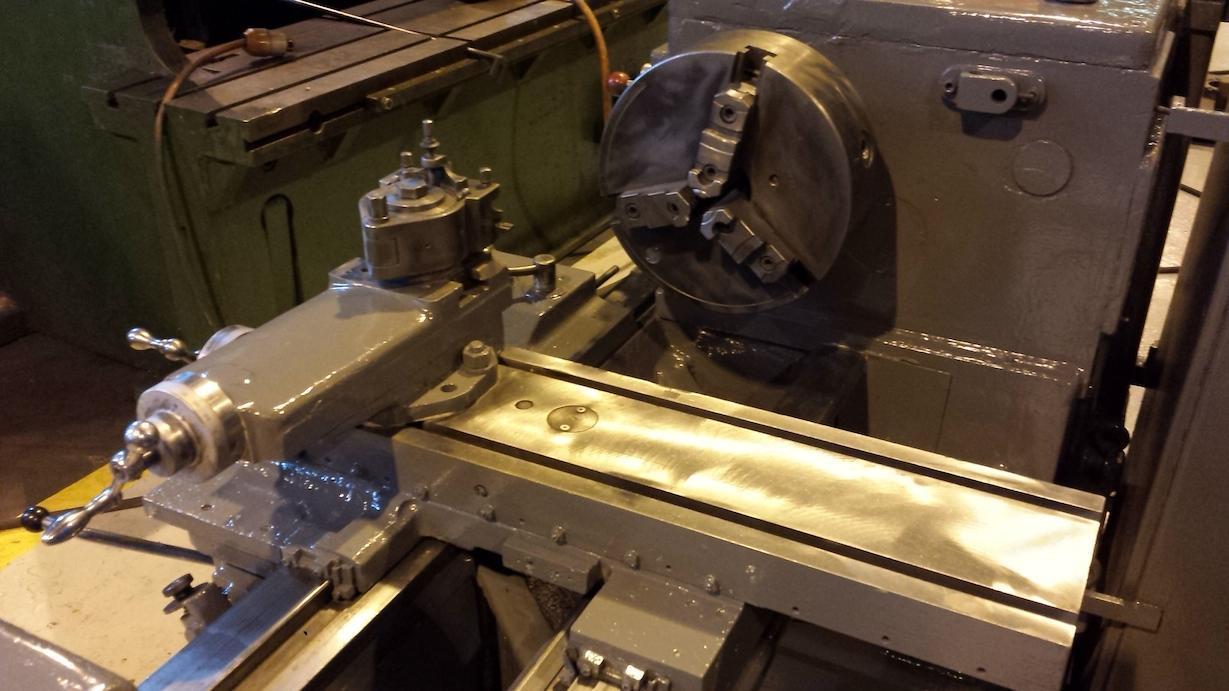

Machine is equipped with 12" 3 and 4 jaw chucks, toolpost and tailstock
