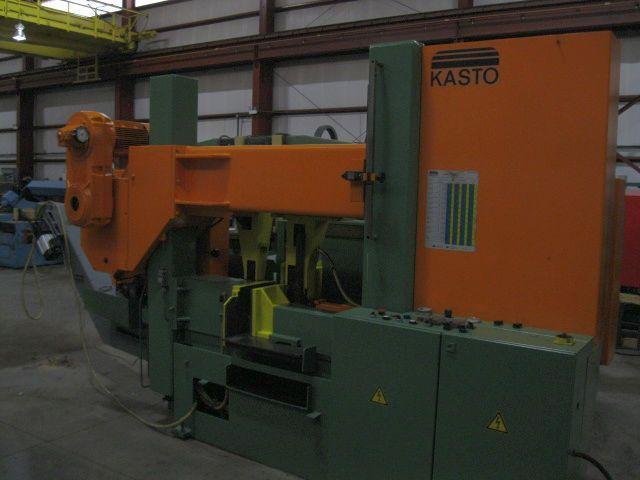

20" x 20" KASTO MODEL HBA-520AU HORIZONTAL BAND SAW
Year
1990
Stock #
17548
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
20" x 20" KASTO MODEL HBA-520AU HORIZONTAL BAND SAW
New 1990
Variable Cutting Speeds
Variable Feed Speeds
Hydraulic Blade Tensioning
Powered Chip Removal Brush

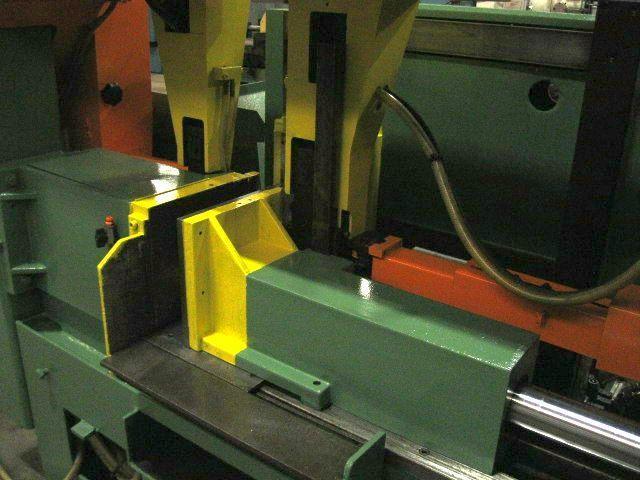

Double-Vises w/ Hydraulic Clamping
Coolant Pump and Tank

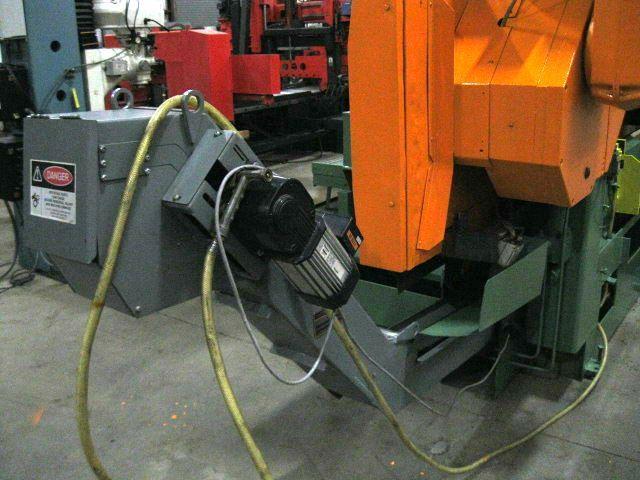

Hennig Chip Conveyor
Cutting Capacity – Rounds: 20.5" (520mm)
Rectangles: 20.5" x 20.5" (520mm x 520mm)
Saw Blade Size: 285" x 2" x .05" (7240mm x 51mm x 1.3mm)
Saw Blade Speeds 55' – 410' / Min. (17M – 125M / Min.)
Material Indexing Length –Single Stroke: 19.7" (500mm)
- Multiple Strokes: 787.4" (19,999mm)
Work Height: 27.6" (700mm)
Motor – Saw Drive: 7.5 HP 3/60
Overall Dimensions (Approx.): 188" x 84" x 88" H
Weight (Est.): 9240 Lbs
