Description:

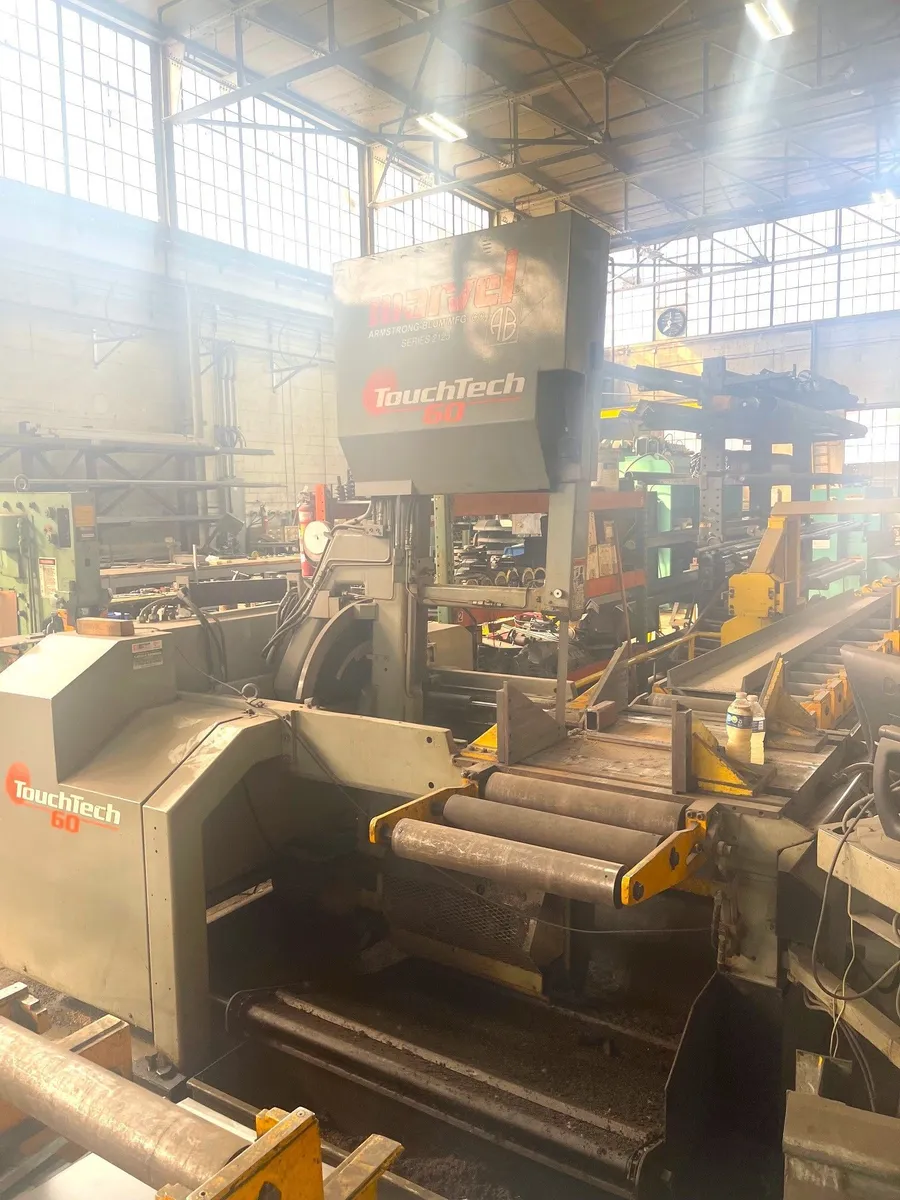

This Well Maintained 20" x 25" Capacity Marvel Armstrong Blum Series 2125 E2125TS TouchTech 60 is a high-production, automatic vertical tilt-frame band saw designed for versatile miter cutting and structural material handling. It features a large 20" x 25" throat capacity and the ability to hydraulically tilt the column up to 60° left and right

Specifications:

Marvel Armstrong Blum Series 2125 E2125TS TouchTech 60 Vertical Band Saw (2002)

Cutting Capacity (0°): 20" Rounds; 20" x 25" Rectangles.
Miter Capacities:
At 45°: 20" x 17".
At 60°: 20" x 11.25".
Blade Details: 17' 6" long x 1.25" wide x .042" thick.
Blade Speed: Infinitely variable from 30 to 650 FPM (depending on specific drive configuration).
Main Motor: Typically 7.5 HP.
Table Load Capacity: 8,000 lbs on the main table; up to 14,000 lbs on integrated feed tables
Feed System: Direct Force Sensing Electric Ball Screw Feed (0–350 lbs).
Canted Column: The 3-degree forward-canted column increases cutting efficiency and blade life when cutting structural materials.
Versatility: Ideal for industries such as automotive, aerospace, and general metal fabrication.
Blade Guidance: Self-clamping, carbide roller guides with rotating Easy Load functionality.
Efficiency: Features variable vise pressure, automatic bar feed (up to 48 inches on some models), and hydraulic blade tensioning (45,000 PSI).
