Equipped With

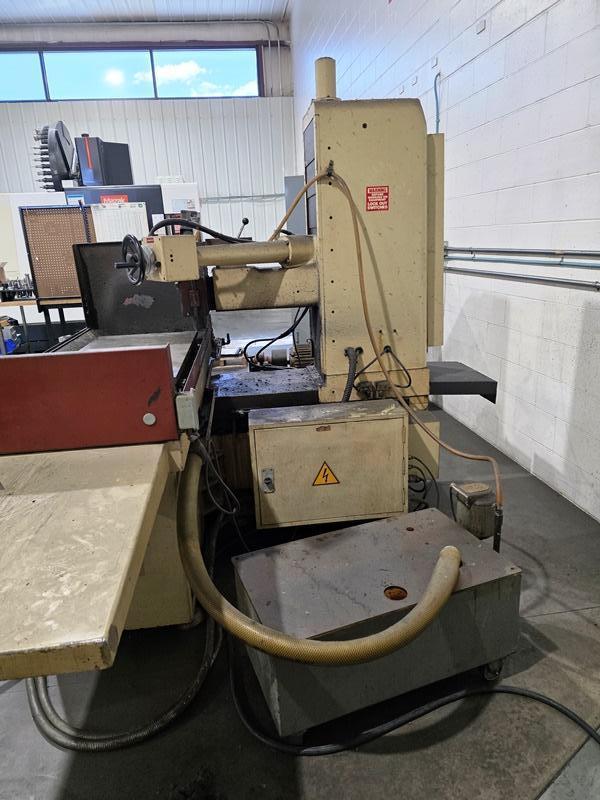

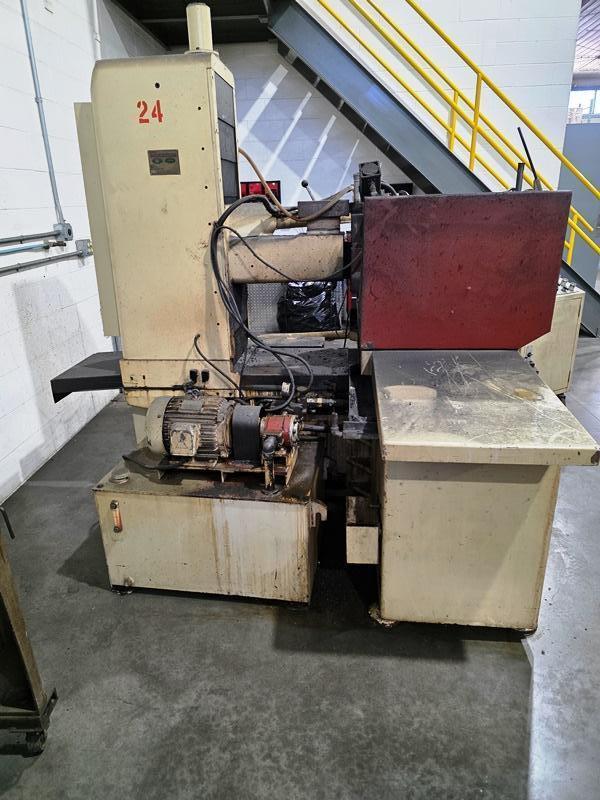

20" X 40" KENT KGS-510AHD HORIZONTAL SPINDLE HYDRAULIC SURFACE GRINDER

New 1987

Motor Driven with 5 HP, 3-Phase, 60 Cycle, AC Spindle Drive and Contrtols

EQUIPPED WITH:

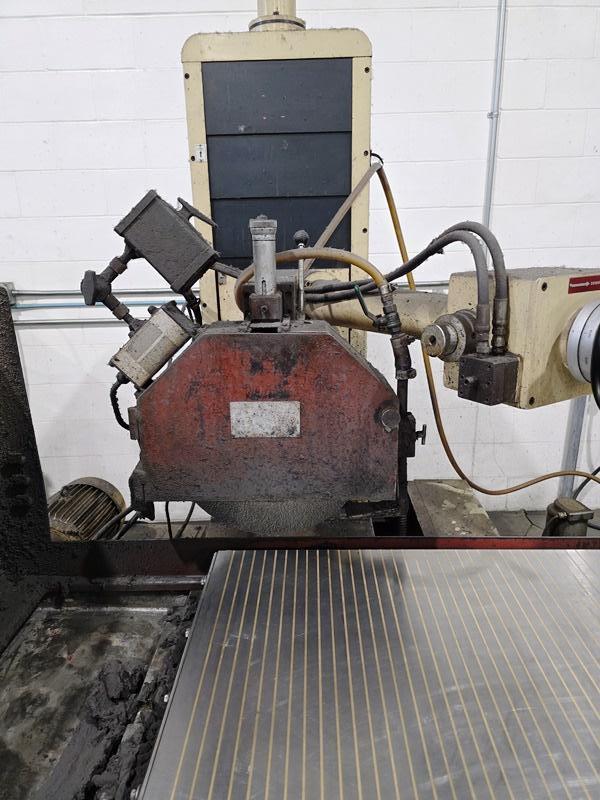

Overhead Wheel Dresser
Electro-Magnetic Chuck
Incremental Automatic Down Feed
Coolant System
Auto Lube System
Stand Alone Control Console

SPCIFICATIONS:
Table Working Surface, W x L                           19.75" x 39.5"
Grinding Width Capacity, Maximum                       20.125"
Grinding Length Capacity, Maximum                      40.125"
Spindle Center to Table, Maximum                       23"
Grinding Wheel Diameter, Standard                      12"
Grinding Wheel Width, Standard                         1.5"
Grinding Wheel Hole Diameter                           5"
Grinding Wheel Speed                                   1740 RPM
Table Longitudinal Feeds, Range                        13 to 73 FPM
Incremental Power Down Feeds, Range                   .0002 to .0016 IPR
Power Column Cross Feed                                60 IPM
Hydraulic System Motor                                 3 HP
Overall Dimensions,                                    L x W 130" x 83"
Overall Height                                         83"
Weight, Approximately                                  11000 LBS
