2010 MAZAK 3D FABRI GEAR 150 CNC TUBE CO2 LASER

New: 2010

Specifications:

X-Travel: 352.50"
Y-Travel: 38.78"
Z-Travel: 14.57"
Watts: 2,500 watts

Additional Machine Specifications:

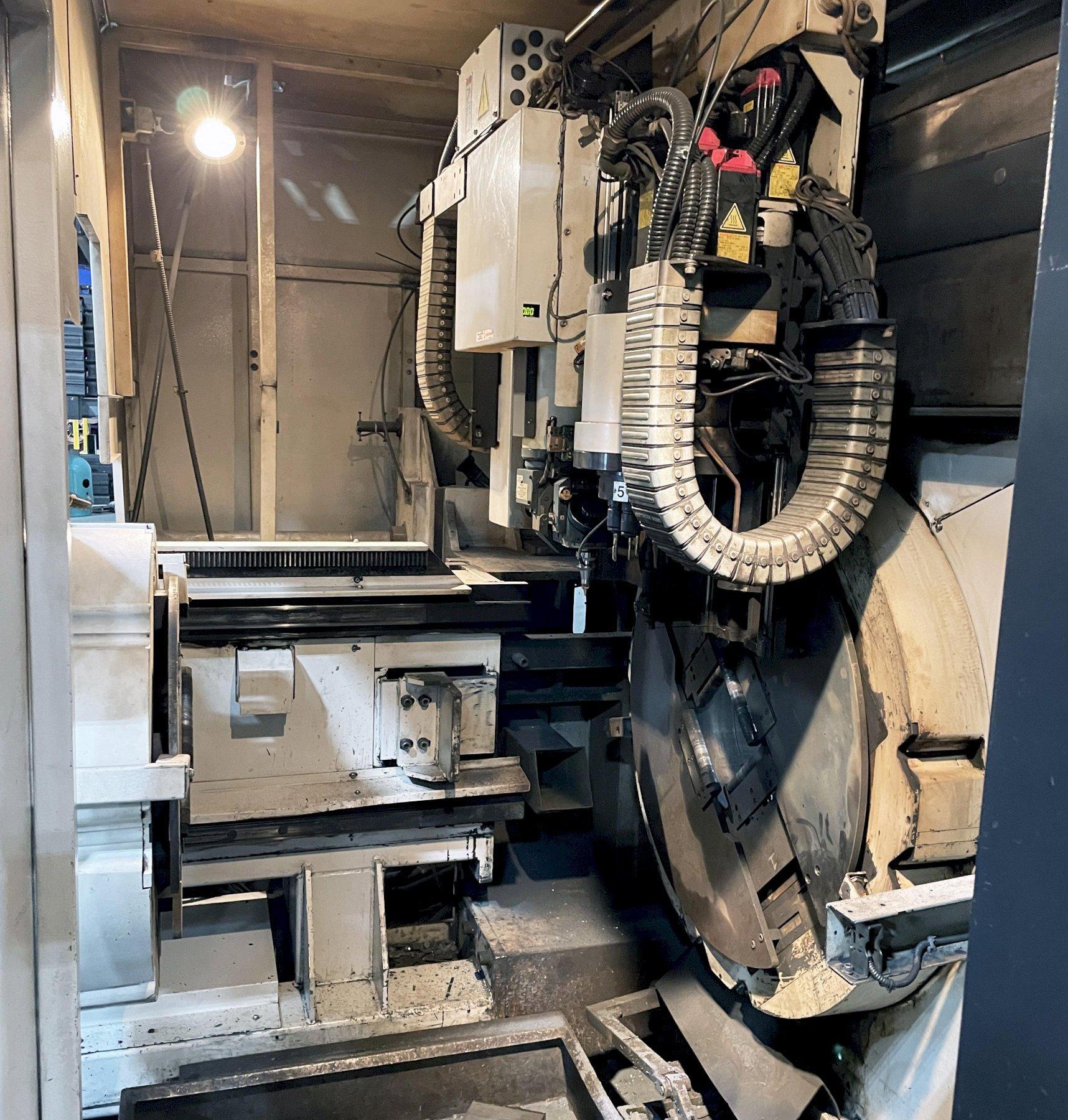

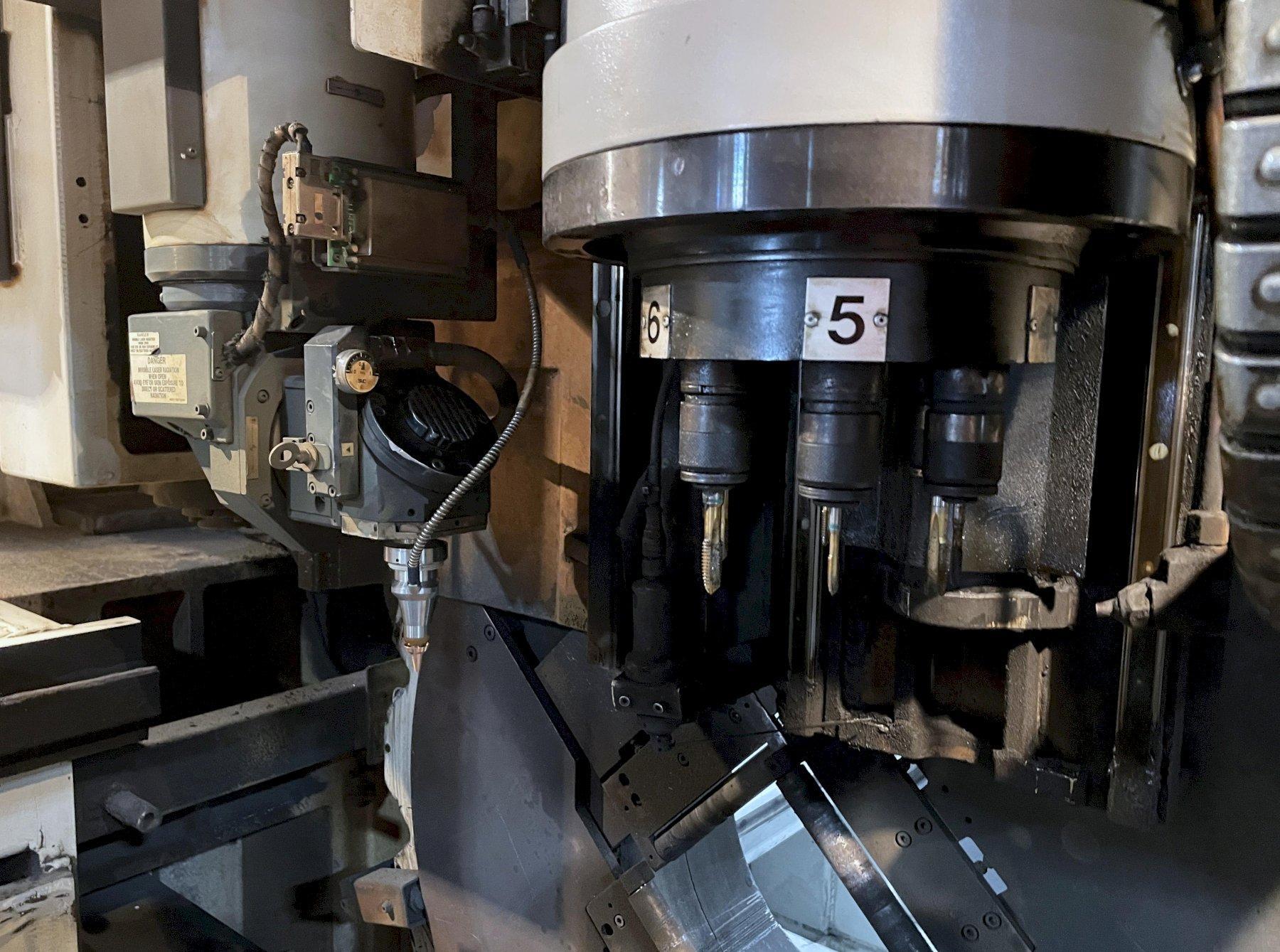

Cutting Head: 3D

Laser Type: CO2

Other Profile Capabilities: I/H, Beam, Angle, C

Max Square Tube Size: 6"

Max Round Pipe Diameter: 6"

Maximum Material Length: 26'

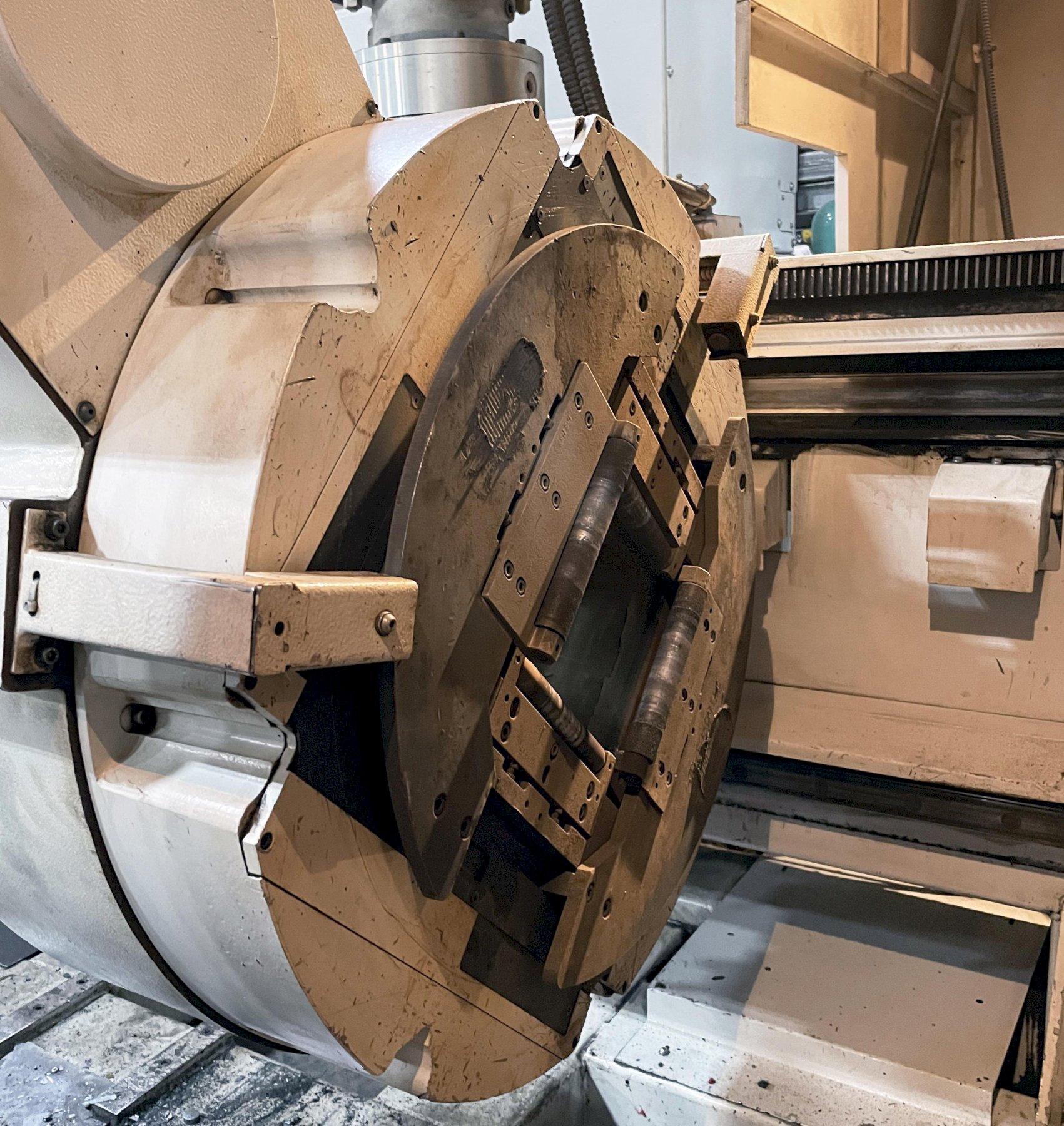

X chuck left/right: 352.6"

U chuck left/right: 345.6"

V chuck left/right: 91.14"

Y head back/forth: 38.78"

Z head up/down: 14.57"

A head rotation: ± 360 degrees

B head swing: ±135 degrees

Transportation Arm Stroke: X,Y,Z,A: 26.97"

U,V,W,B: 9.84"

Voltage: 220/440V 3Phase

Equipped With:

4kw Panasonic resonator

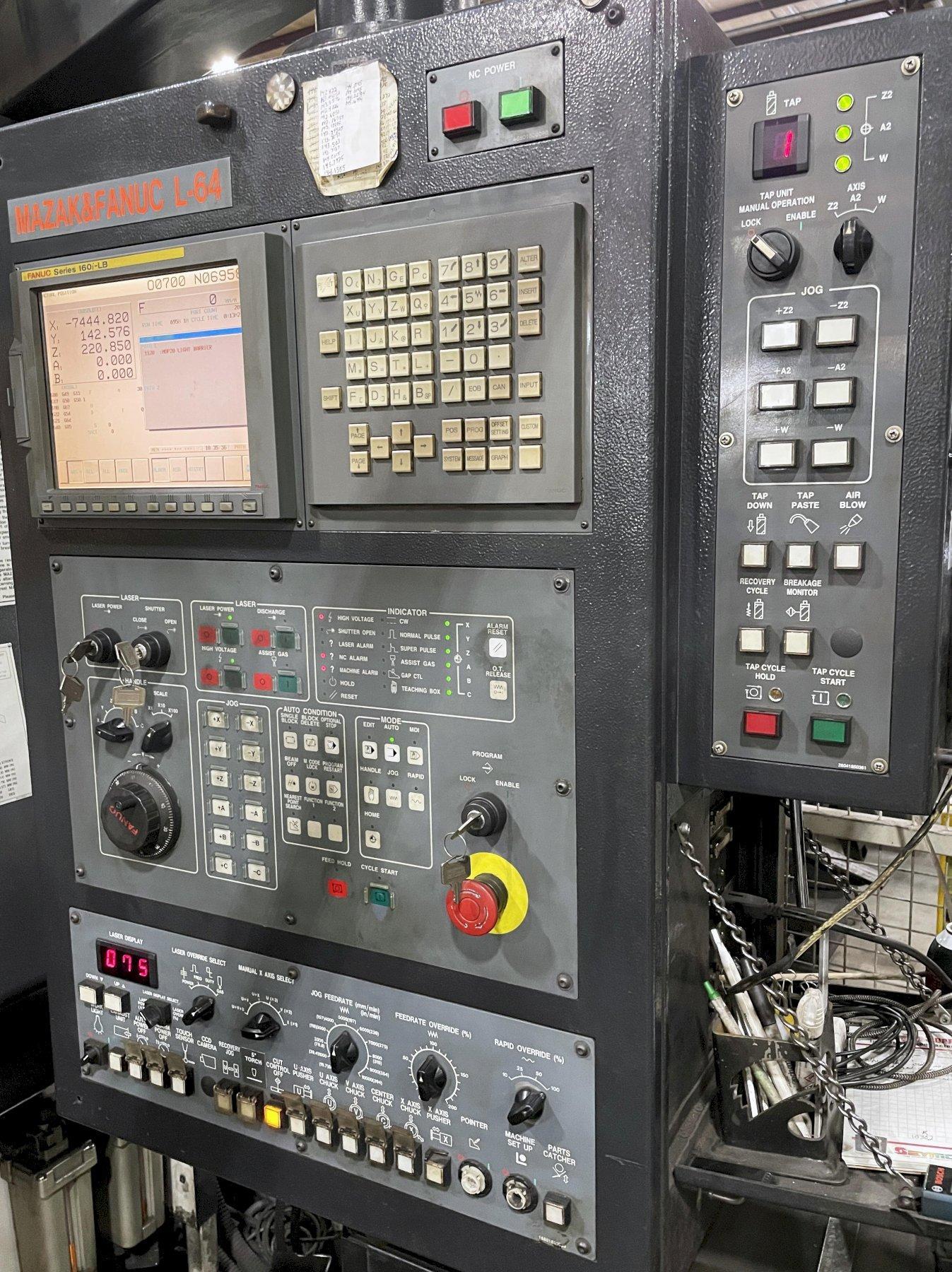

Fanuc L-64 CNC Control
