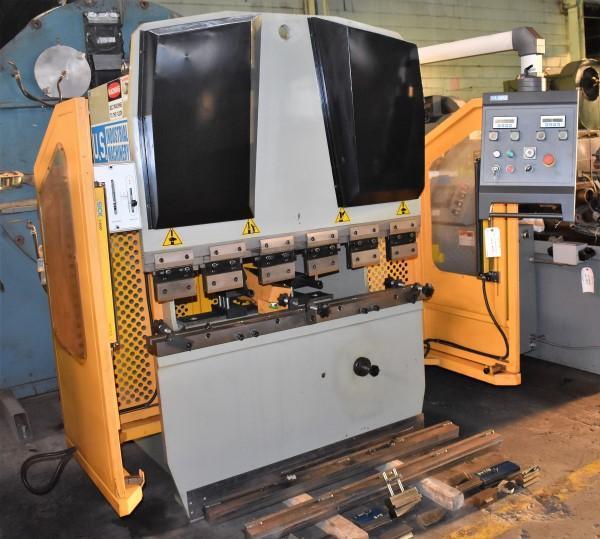

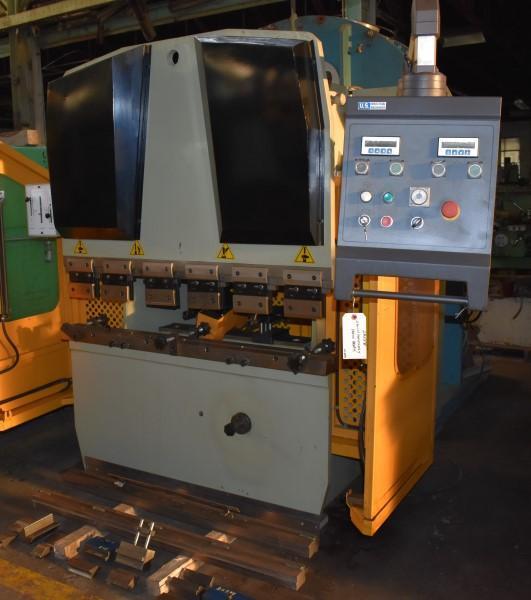

22 TON X 4' U.S. INDUSTRIAL MODEL US224M CNC HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
16424
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
22 TON X 4' U.S. INDUSTRIAL MODEL US224M CNC HYDRAULIC PRESS BRAKE
|
EQUIPPED WITH: |
|
|
24" 2-Axis Simple CNC Back Gauge And Ram Control |
|
|
Power Ram Depth Control |
|
|
Sick "C2000" Light Curtain |
|
|
Space Between Ram Tool Clamps Allows For Deep Box Bending |
|
|
Some Dies & Clamps |
|
|
|
|
|
CATALOG SPECIFICATIONS: |
|
|
Tonnage Capacity |
22 TONS |
|
Overall Length Of Table |
51.9" |
|
Distance Between Housings |
40.1" |
|
Ram Travel |
3.14" |
|
Stroke Adjustment Of Ram |
2.75" |
|
Open Height |
9.64" |
|
Throat Depth |
7.8" |
|
Rapid Ram Travel |
2.4 IPS |
|
Rapid Ram Return |
2 IPS |
|
Overall Dimensions, L x W |
73" x 56" |
|
Overall Height |
77" |
|
Motor Horsepower |
7.5 HP |
|
Weight Approximately |
4400 LBS |
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
