22" X 120" ACRA 22120ACH PRECISION GAP BED ENGINE LATHE

Manufacturer

ACRA

Model

22120

Year

Not provided

Stock #

15380

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

22" X 120" ACRA 22120ACH PRECISION GAP BED ENGINE LATHE

• MEEHANTIE CAST IRON, VIBRATION STRESSES RELIEVED.
• INDUCTION HARDENED (HS70 DEGREE) AND PRECISION GROUND.
• PRECISION HAND SCRAPED REMOVABLE GAP.
• FOOT BRAKE.
Universal Gear Box:
• OIL BATH LUBRICATION.
• HEAT-TREATED GEARS.

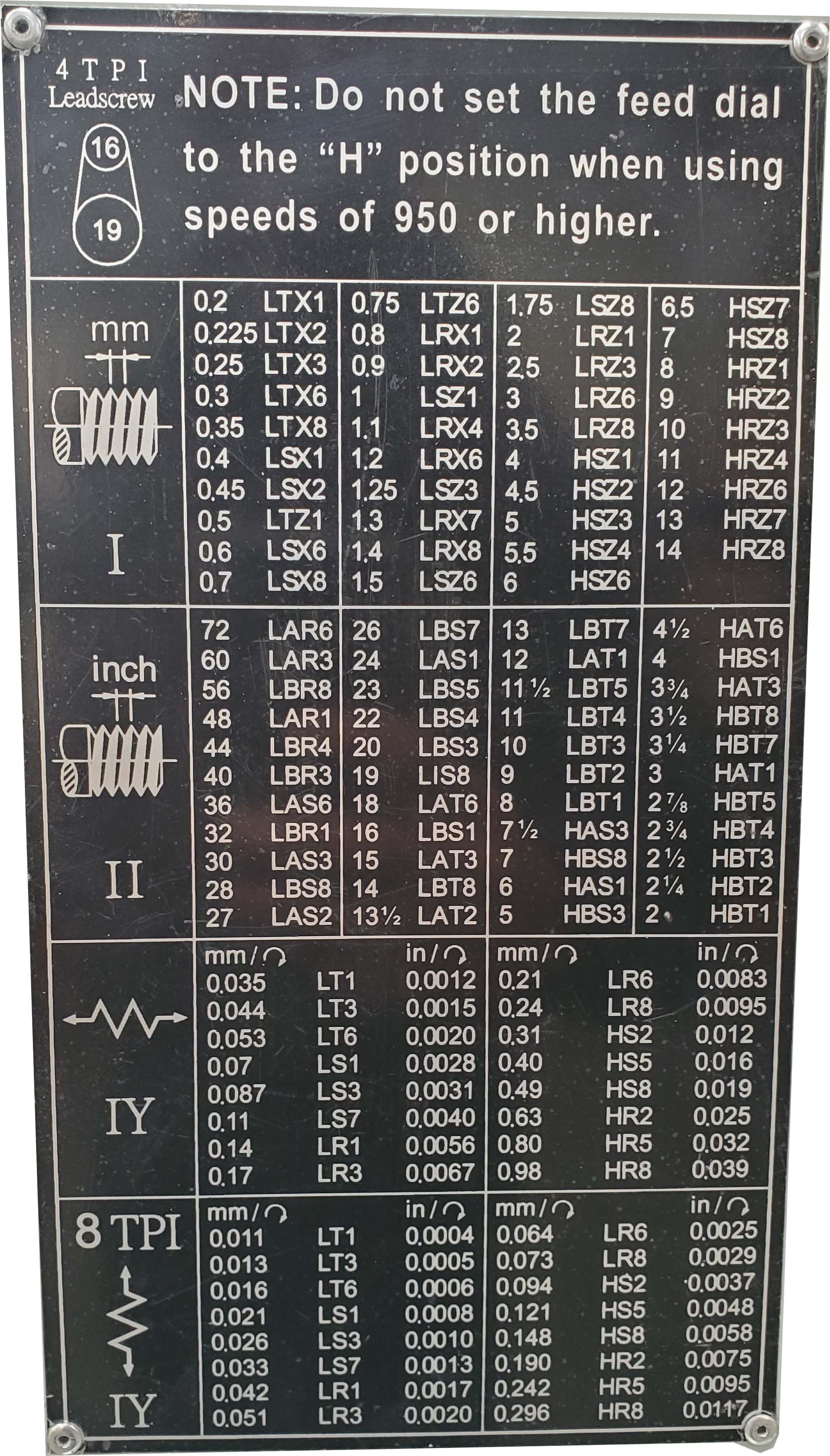

• INCH/METRIC/MODULE/DIAMETRICAL THREADS.
• OUTPUT SHAFT IS DESIGNED WITH SAFETY PIN
Apron and Saddle:
• MANUAL AND AUTOMATIC LUBRICATION SYSTEM-OIL DISTRIBUTOR ADJUSTED TO LUBRICATING BED WAYS AND CROSS SIDE OR BOTH.
• OVERLOAD PROTECTION DEVICE.
• CROSS SLIDE IS HARDENED AND PRECISION GROUND.
• CROSS SLIDE SCREWS ARE HARDENED AND OIL BATHED.
• FORWARD-OFF-REVERSE LEVER.
• TOP AND SADDLE SLIDE LOCKING SYSTEM.
• T-SLOT COMPOUND FOR AMERICA AREA.
Spindle:
• SUPPORTED BY 3 PRECISION P-GRADE TAPER ROLLER BEARINGS.
• DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND.
• ACH-2200 SERIES-D1-11 SPINDLE NOSE, SPINDLE HOLE 4.09″
Headstock:
• ALL GEARS MADE BY CHROMIUM MOLYBDENUM STEEL AND SEGMENTATION TREATED AND PRECISION GROUND.
• FORCED LUBRICATION SYSTEM
Tailstock:
• QUILL MADE BY CHROMIUM MOLYBDENUM STEEL WITH SEGMENTATION AND PRECISION GROUND.
• ACH-2200 SERIES-DIAMETER TAIL STOCK SPINDLE 2.935″ AND SPINDLE TRAVEL 7″.
• TWO SPEED WITH 1:1 AND 1/4:1 CHANGE FEEDS.


Specifications:
Capacity:                                            22″/31″ x 120″
Swing Over Bed:                                22″
Swing Over Cross Slide:                    13-3/8″
Swing In Gap:                                    31-3/8″
Distance Between Centers:               120″
Bed Width:                                        15-3/4″
Center Height:                                   11″
Spindle Nose:                                    D1-11
Spindle Bore:                                     4-1/16″
Taper of Spindle:                               MT NO.7 x MT NO.5
Spindle Speeds – Steps:                    12
Spindle Speeds – Range:                   13 ~ 1,200 RPM
Cross Slide Travel:                             15-3/4″
Compound Slide Travel:                     9-1/2″
Inch Threads:                                      2 ~ 72 TPI
Metric Threads:                                  0.2 ~ 14 mm
Longitudinal Feeds:                            0.0012 ~ 0.039 in/rev
Cross Feeds:                                       0.0004 ~ 0.0117 in/rev
Quill Diameter:                                   2.935″
Quill Travel:                                         7″
Quill Taper:                                         MT NO.5
Spindle Drive Motor:                          15 HP/4P
Voltage:                                               230/460V AC/3 PH
Weight                                                 7500 lbs
Dimensions                                         178 × 48 × 60 in


Standard Equipment:
MAIN MOTOR 15HP
CENTER SLEEVE MT No. 5
DEAD CENTER MT NO. 5 X 2 PCs
LEVELING SCREW AND BLOCK
SERVICE KITS AND TOOL BOX
STEADY REST- 1-5/8″ -1 0″
DRIVE PLATE- 12″ FOR D1-11 ONLY
COOLANT SYSTEM
MULTI – POSITION LENGTH STOP
FOLLOW REST
STEADY REST 7- 16″
FACE PLATE- 20″
3 JAW SCROLL CHUCK- 15″
4 JAW INDEPENDENT CHUCK- 20″
FULL LENGTH SPLASH GUARD
RAPID TRAVEL
