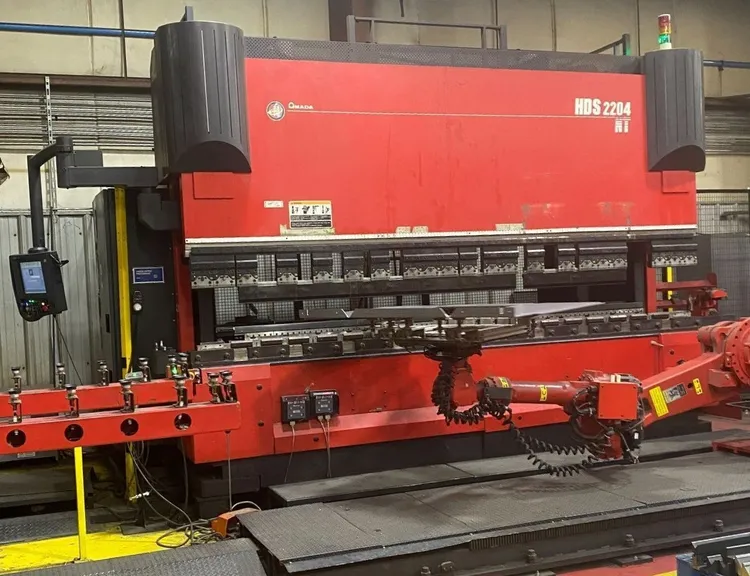

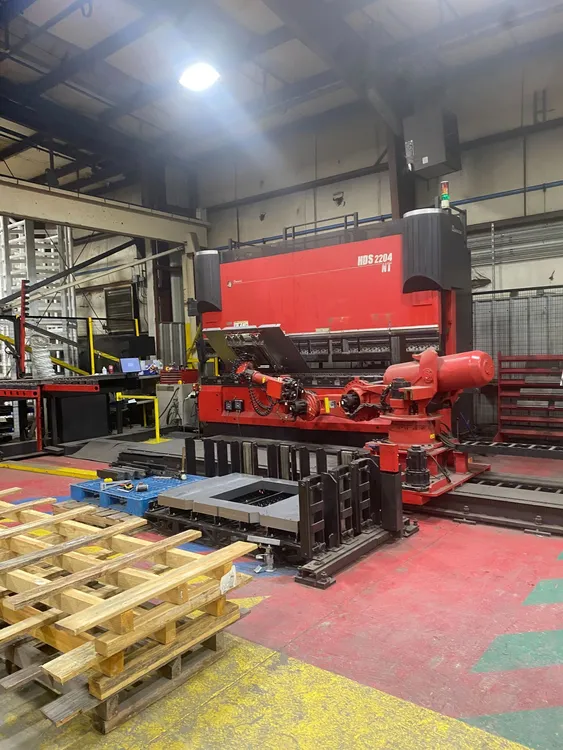

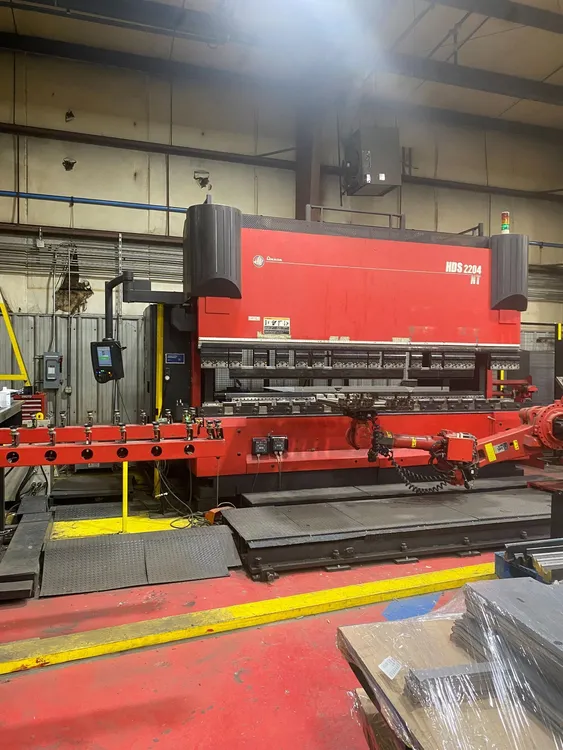

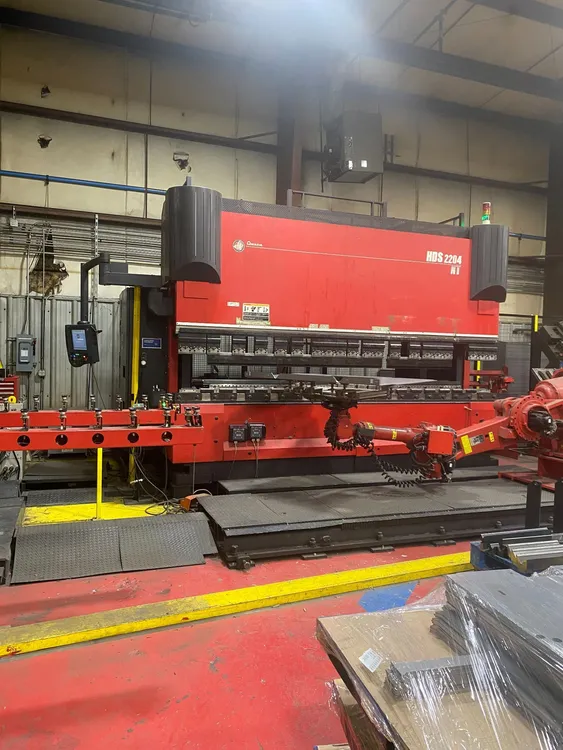

243 TON x 14' AMADA MODEL HDS2204NTW CNC PRESS BRAKE
Year
2012
Stock #
30115
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
243 TON x 14' AMADA MODEL HDS2204NTW CNC PRESS BRAKE
New 2012
Equipped With:
|
|

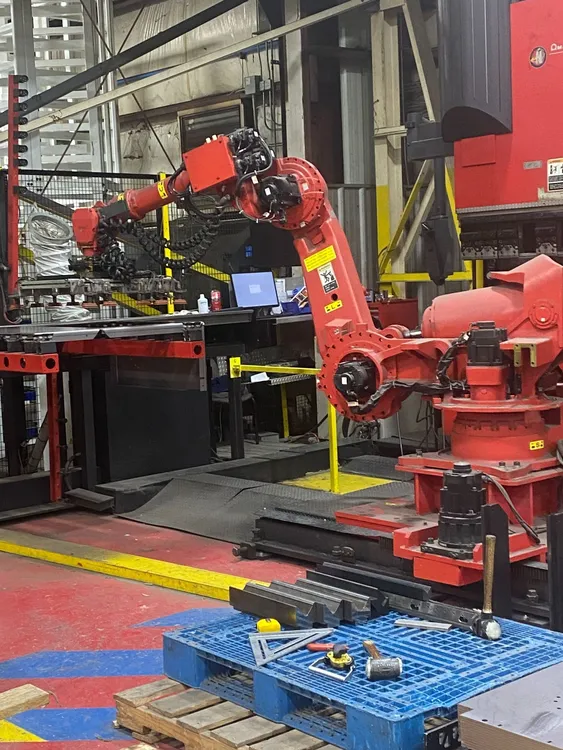

Astro 165W NT Robotic Bending System at Additional Cost of $39500
Astro 165W NT Structure (A=Travel Axis) Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity 364 Lbs (Includes Hands)
Max. Parts Size (Astro) 59˝ x 118˝ (157˝ on HDS 2204 NT)
Min. Parts Size (Astro) 5.9˝ x 5.9˝
Thickness (Astro) 0.024˝– (0.236˝ with Special Hands)
Power Requirement (Astro) 6 KVA
Positioning Accuracy (Astro) ±0.0027˝ (Robot), ±0.0078˝ (Axis)
Robot Weight(Astro) 3,400 Lbs
Capacity 243 Ton
Overall Length of Bed 14'
Distance Between Housings 148"
Stroke 9.84"
Open Height 26"
Machine Length (C) 224.8"
Machine Length (D) 126.57"
Approach Speed 7.87 IPS
Bending Speed 0.78 IPS
Power Requirement 99 Amps @ 200 Volts
Hydraulic Oil Capacity 33.4 Gallons
Astro 165W Structure (A=Travel Axis) Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity 364 Lbs (Includes Hands)
Max. Parts Size (Astro) 59˝ x 118˝ (157˝ on HDS 2204 NT)
Min. Parts Size (Astro) 5.9˝ x 5.9˝
Thickness (Astro) 0.024˝– (0.236˝ with Special Hands)
Power Requirement (Astro) 6 KVA
Positioning Accuracy (Astro) ±0.0027˝ (Robot), ±0.0078˝ (Axis)
Robot Weight(Astro) 3,400 Lbs
