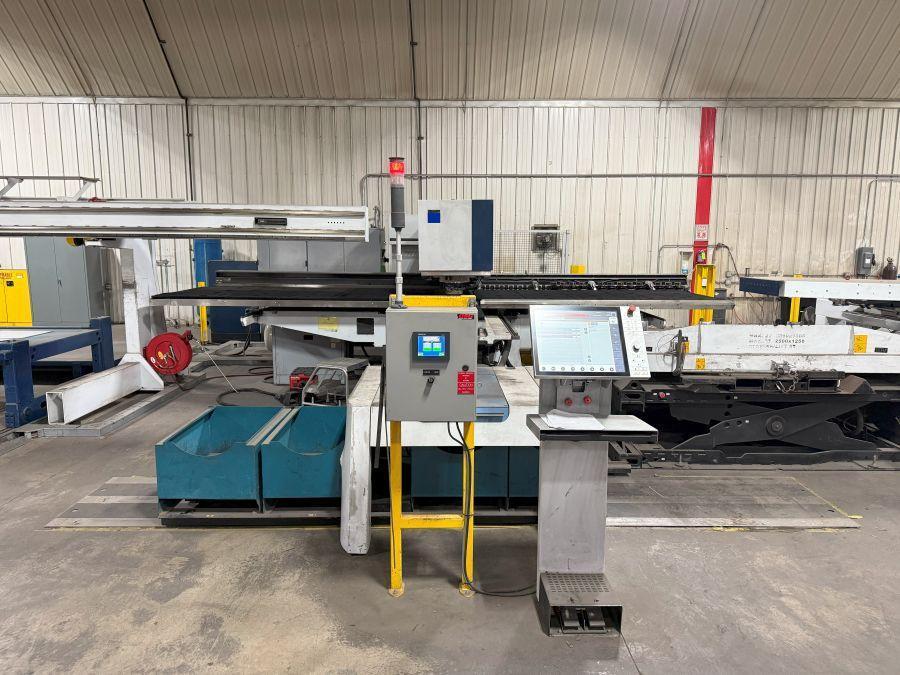

25 TON TRUMPF TRUPUNCH 5000 LARGE FORMAT PUNCH PRESS WITH SHEETMASTER LOAD/UNLOAD SYSTEM

New 2016

SPECIFICATIONS:

Frame Design: J-Frame

Press Capacity: 25 Tons

Punching Mode, X Axis: 3050 mm

Punching Mode, Y Axis: 1550 mm

Maximum Material Thickness: 8 mm

Maximum Workpiece Weight: 280 kg

MAXIUM STROKE RATE:

Punching: 1350 HPM

Marking: 3000

ADDITIONAL INFORMATION:

Maximum number of Tools/Clamps: 21 pieces / 4 pieces

Tool Change Time: 0.3 sec

Type of Tooling; Trumpf

Automatic Sheet Repositioning: Yes

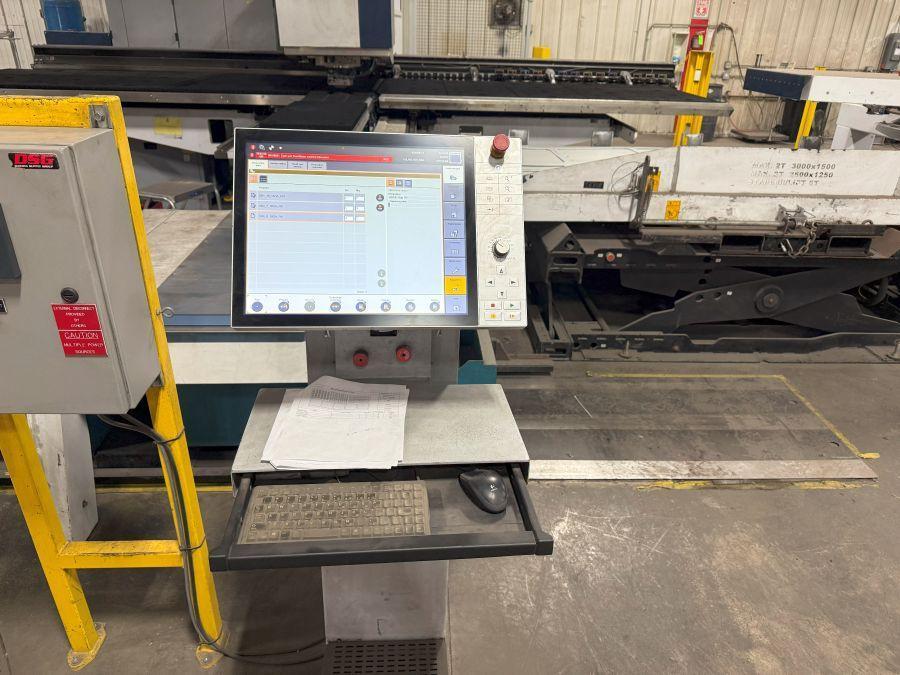

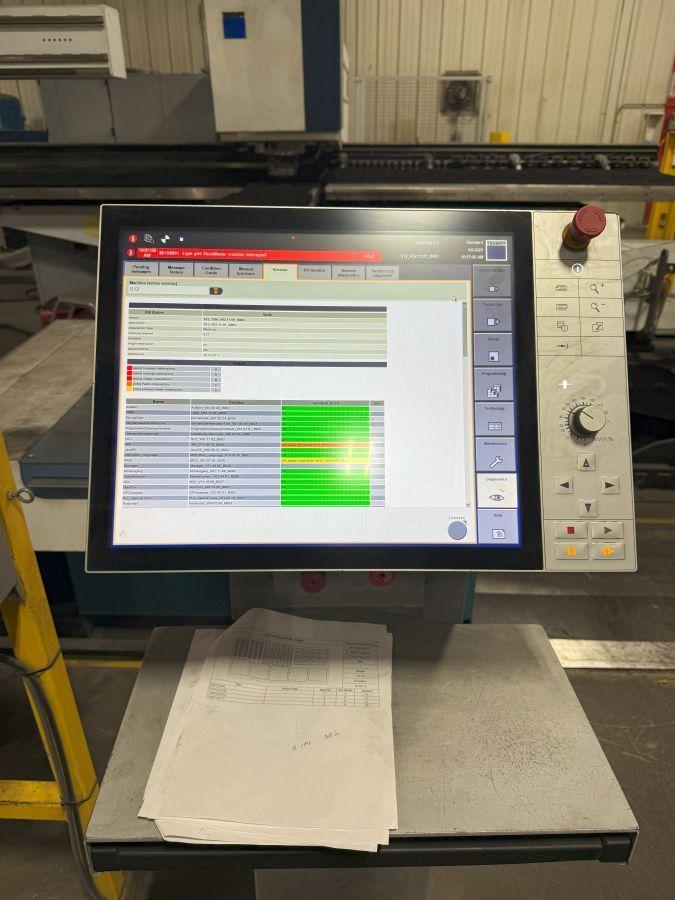

Type of CNC Control: Siemens

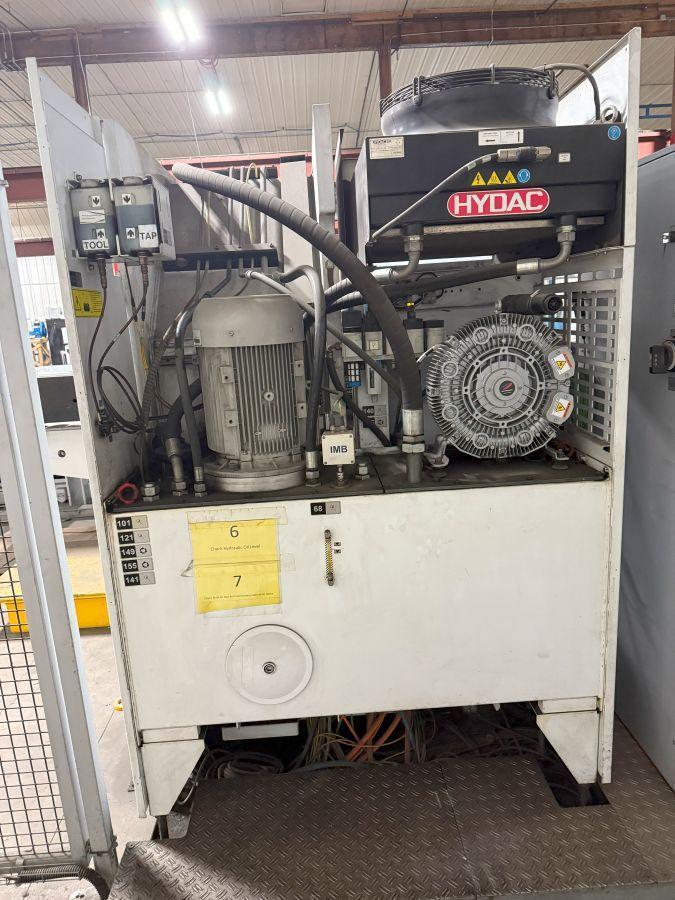

Type of clutch and brake: Fully Hydraulic

Main Supply: 460 V 60 Hz

Connected Load: 38 kVA

Full Load Current: 55 A

EQUIPPED WITH:

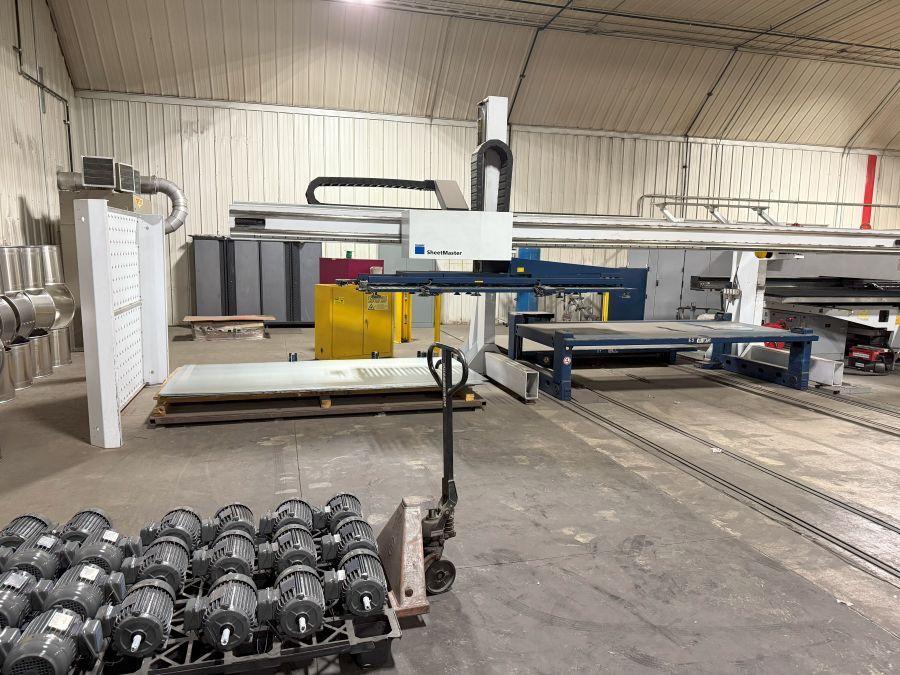

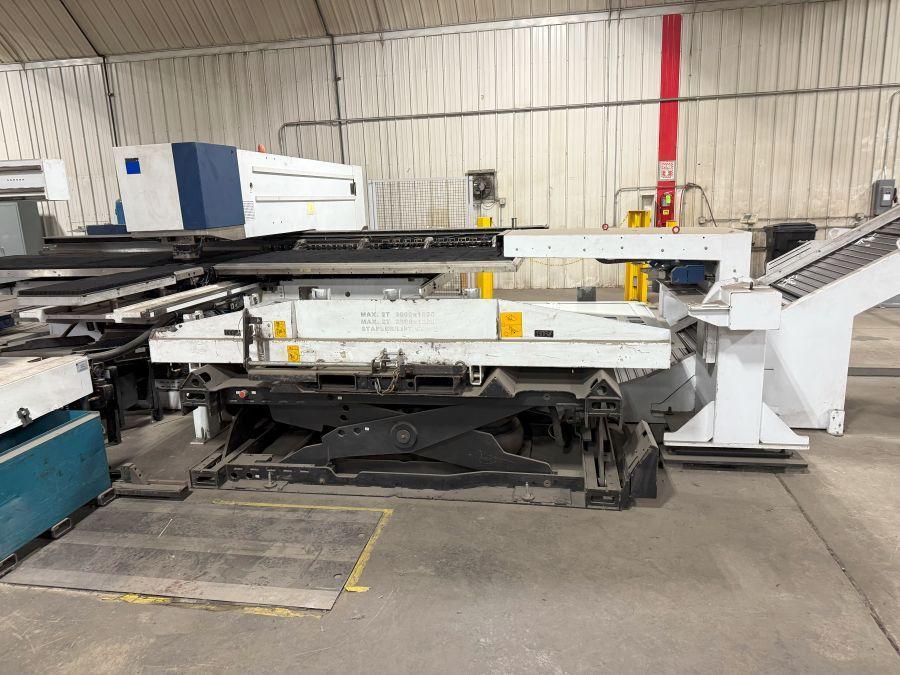

Trumpf SheetMaster Load/Unload System

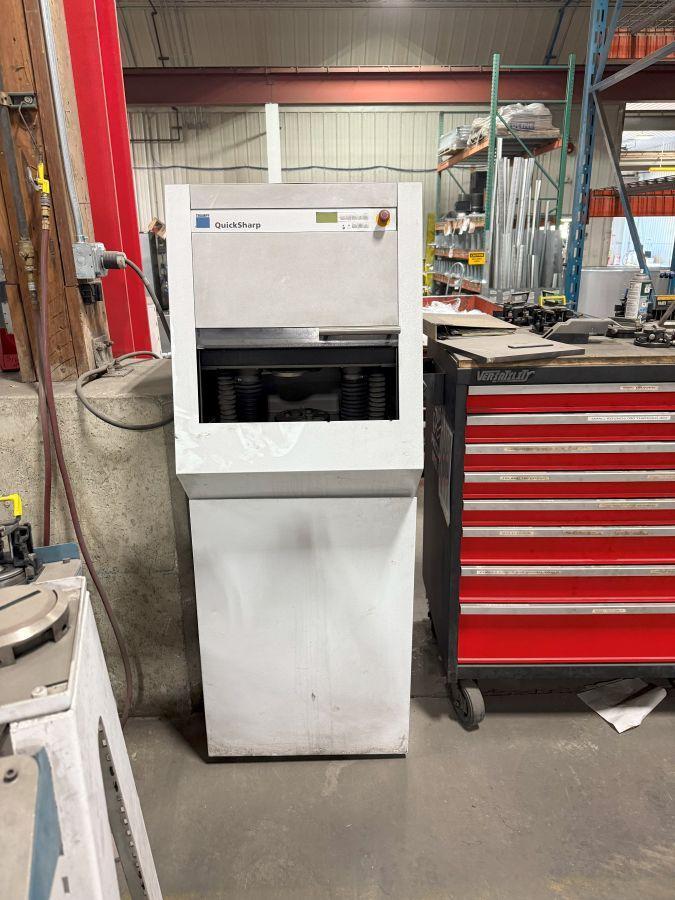

QuickSharp

QuickSet

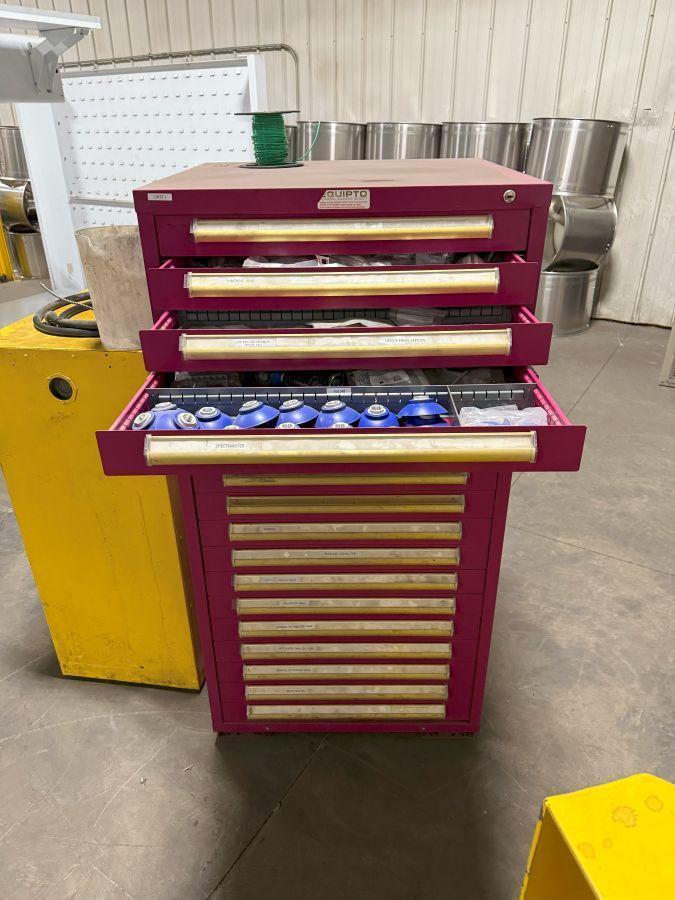

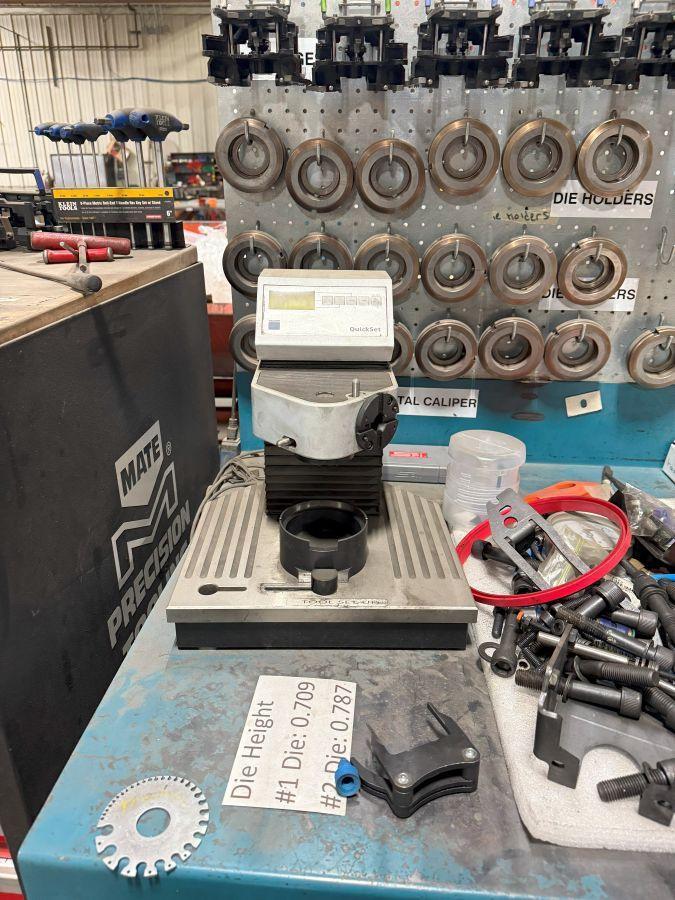

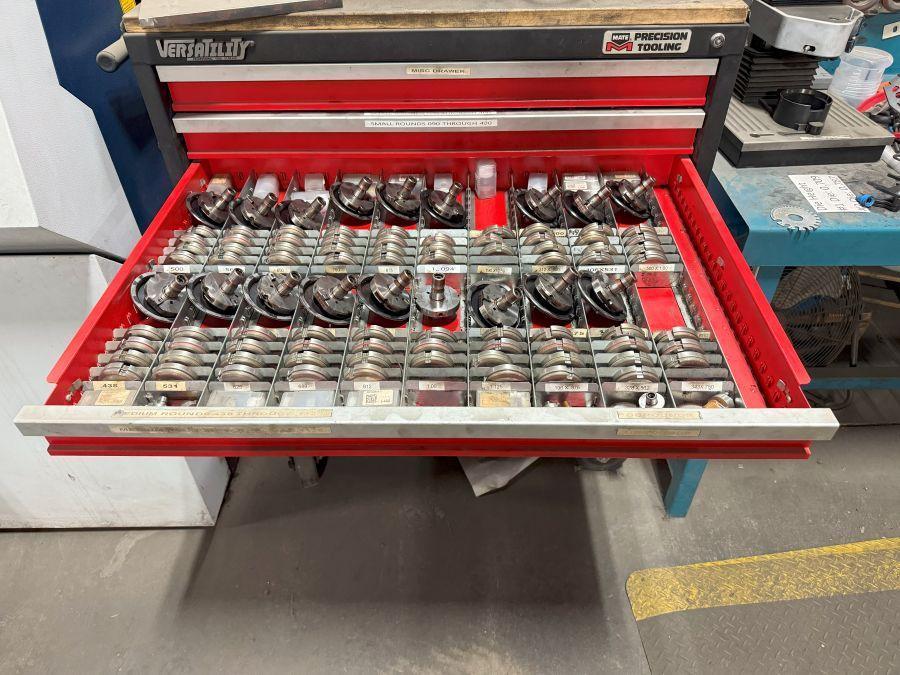

Misc Tooling

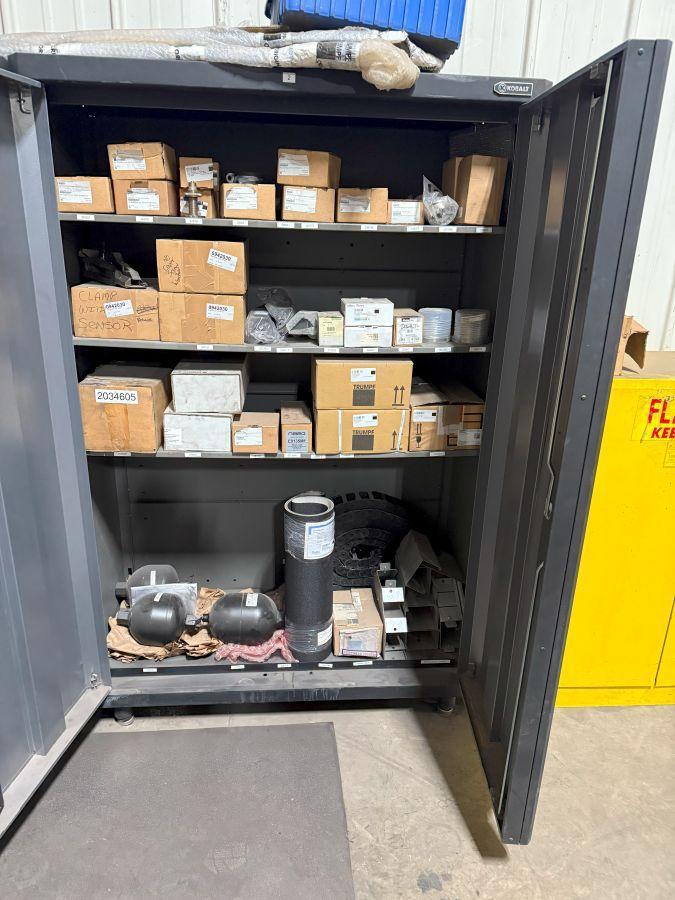

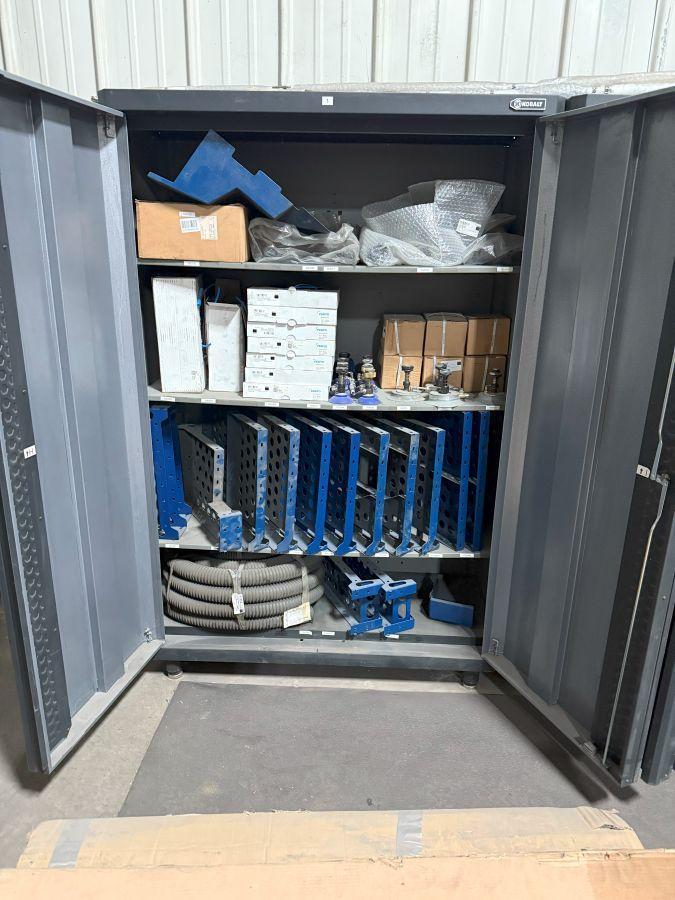

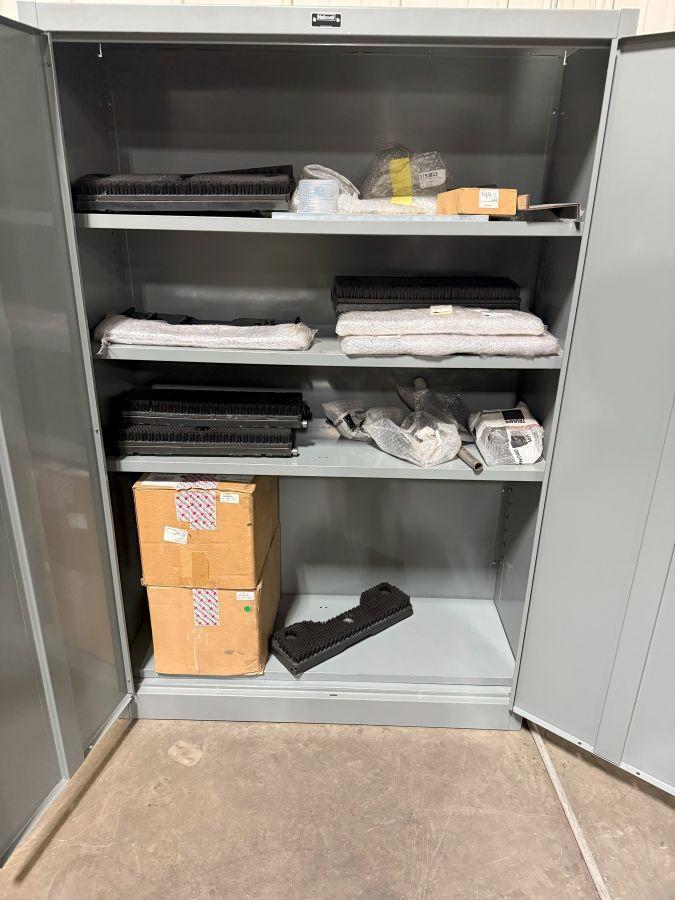

Misc Spare Parts
