Equipped With

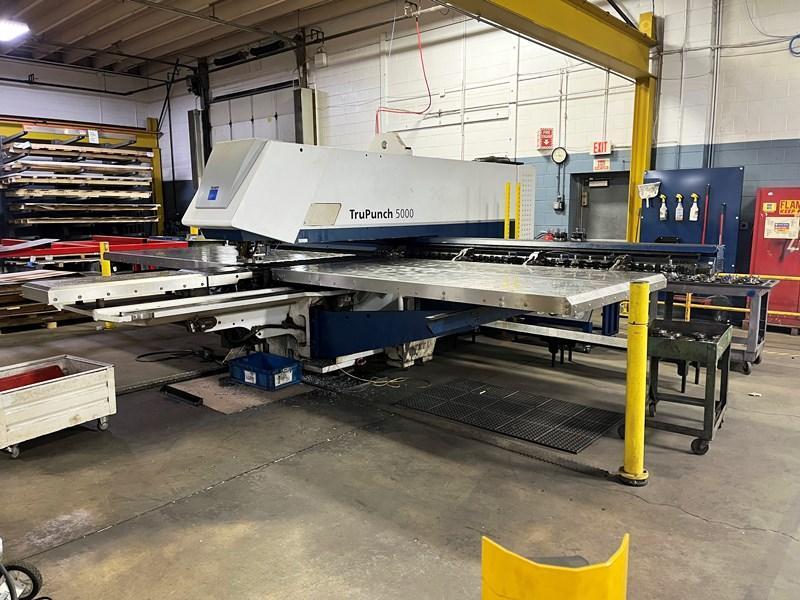

27-1/2 TON TRUMPF TRUPUNCH 5000 CNC PUNCH PRESS

New 2008

SPECIFICATIONS:

Frame Design: J-Frame

Press Capacity: 27-1/2 Tons

Punching Mode, X Axis: 3050 mm

Punching Mode, Y Axis: 1550 mm

Maximum Material Thickness: 8 mm

Maximum Workpiece Weight: 280 kg

MAXIUM STROKE RATE:

Punching: 1350 HPM

 Marking: 3000

ADDITIONAL INFORMATION:

Maximum number of Tools/Clamps: 21 pieces / 4 pieces

Tool Change Time: 0.3 sec

Type of Tooling; Trumpf

Automatic Sheet Repositioning: Yes

Type of CNC Control: Siemens

Type of clutch and brake: Fully Hydraulic

Main Supply: 460 V 60 Hz

Connected Load: 38 kVA

 Full Load Current: 55 A
