Equipped With

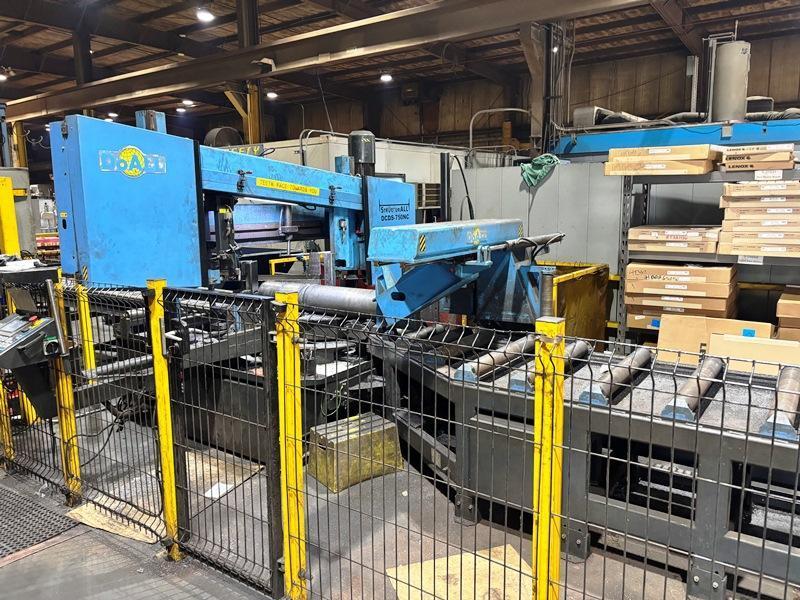

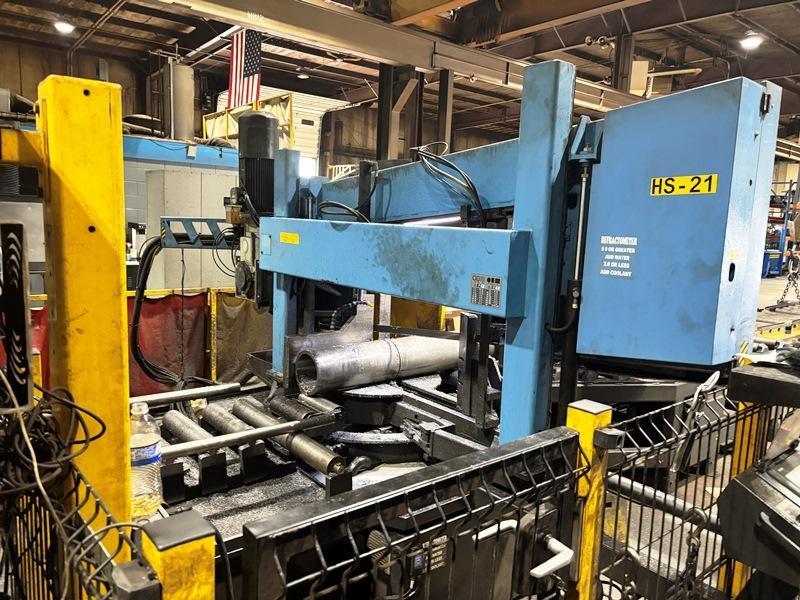

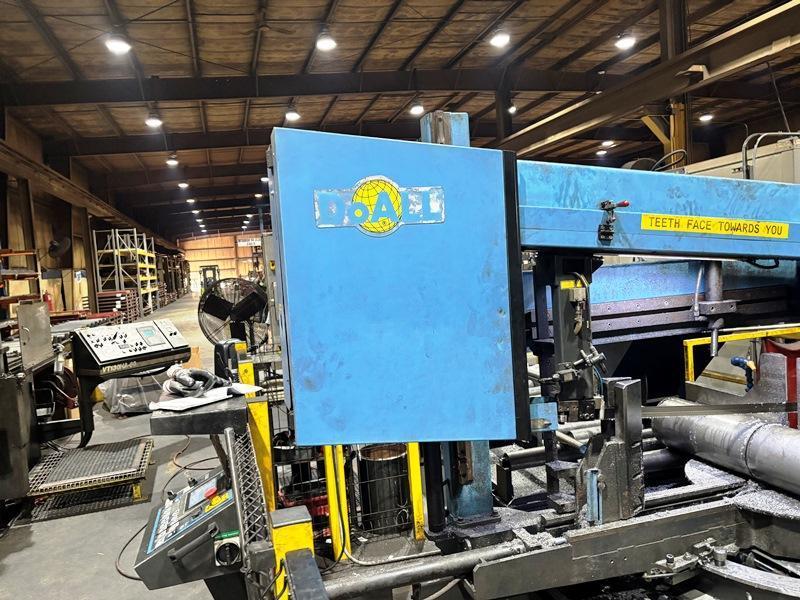

28" X 30" DOALL DCDS-750CNC STRUCTURALL DUAL COLUMN MITERING SAW

New 2021

28” x 30" Band Saw with Siemens Saw Control with Touch Screen Display Work Light Hydraulic Band Tension Automatic Guide Arm Setting Automatic Feed Control with Programmable Feed Rates Variable Vise Pressure Control - Set of 2 Power-Driven Band Brush Chain Chip Conveyor with Large Pan Automatic Retraction of Material in Cycle for Protection of Carbide Blades Dual Acting Index Vice Jaws for Crooked Stock Retractable Stationary Machine Vice Jaw Flood Coolant Tool Kit Complimentary DoALL Cutting Fluids Package One (1) DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

SPECIFICATIONS

• Cutting Capacity Round (Tu                                       be or Solid): 27.6″
• Cutting Capacity Rectangle:                                        27.6x29.5″
• Maximum Bundle Capacity:                                         29.5x17.7″
• Auto Index Stroke Length:                                           0.12-27.5"
• Band Saw Blade Width:                                               2-5/8x0.063″
• Maximum Blade Length:                                              302-3/8″
• Band Speed:                                                                 50-262 fpm
• Band Drive:                                                                   15 hp
• Hydraulic Pump:                                                             5.4 hp
• Coolant Pump:                                                                0.2 hp
• Material Pass Line Height:                                             24.4"
• Machine Weight:                                                             27558 lbs
• Dimensions                                                                     W x L x H: 229” x 109” x 95"
