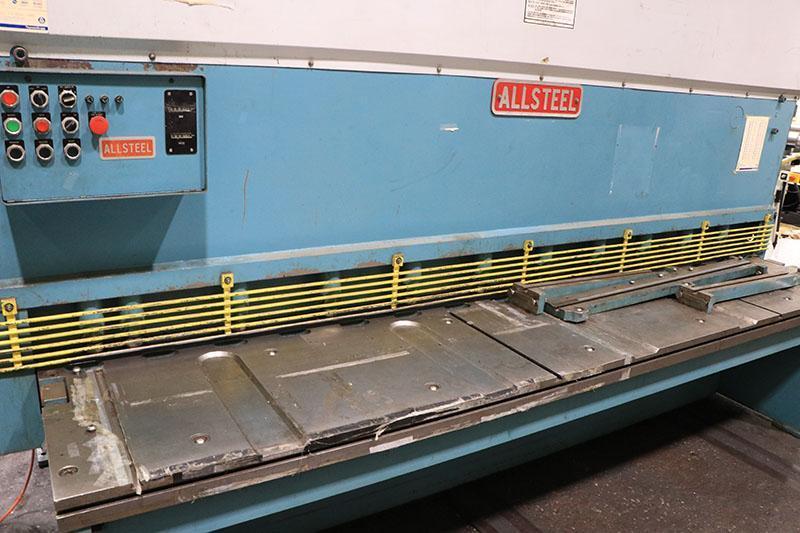

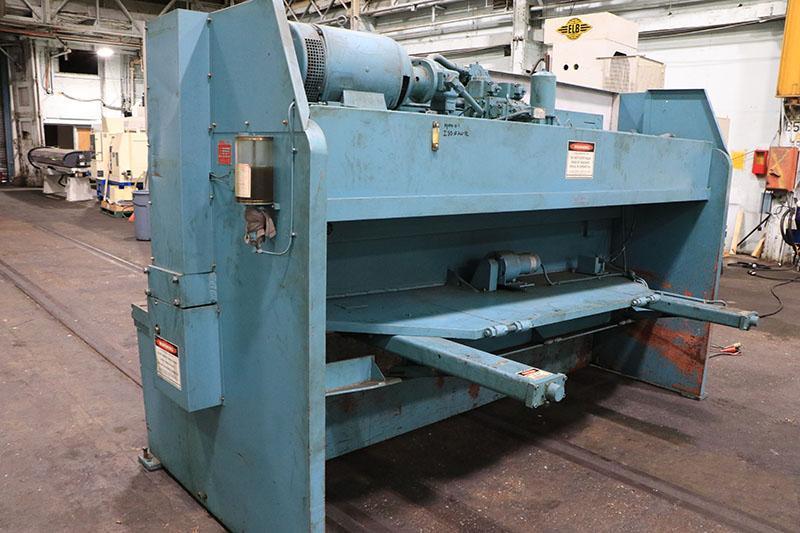

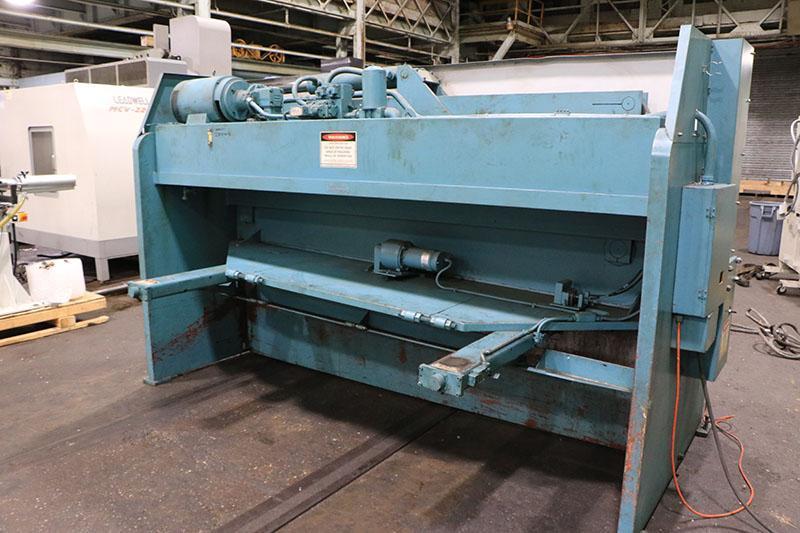

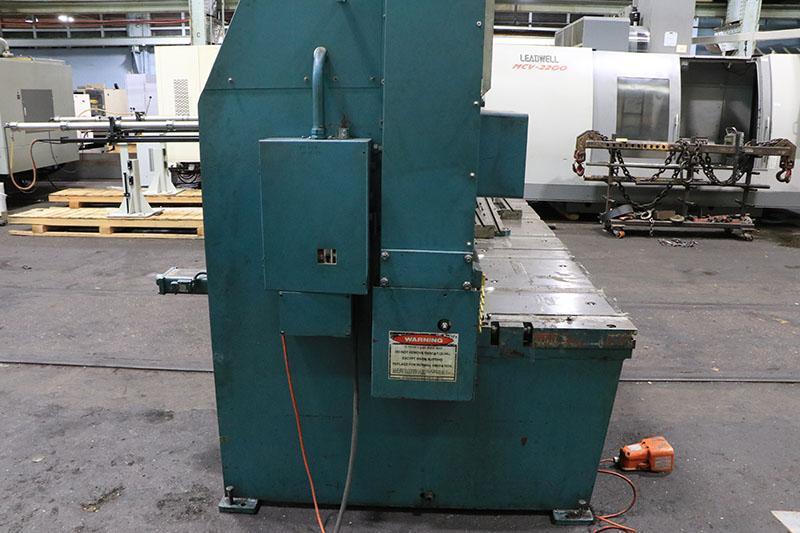

3/8" x 10' ALLSTEEL MODEL 3/8-10 MAXI HYDRAULIC SHEAR
New 1990

EQUIPPED WITH:

- Front operated motorized back gauge, with in/mm readout.

- Shadow cutting line.

- Rake angle adjustment.

- Cut length adjustment.

- Blade clearance adjustment.

- Individual hydraulic hold down pistons with replaceable polyurethane shoes.

- Hold down force adjusts automatically with thickness being cut.

- Squaring arm with recessed in/mm scale with embedded squaring bar.

- Work support arms 22" long.

- Full electrics with motor, overload protected magnetic motor starter, circuit breaker disconnect with 120v controls.

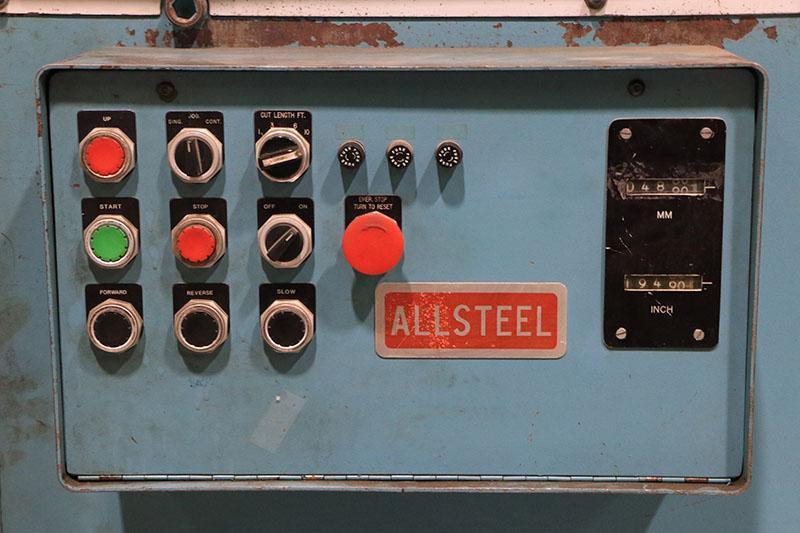

- Mode selector switch.

- Remote foot switch control.

- Ball transfers in table.

CUTTING LENGTH .................... 10'

CUTTING CAP. ..(MILD STEEL)........ 3/8"

CUTTING CAP. ..(STAINLESSS STEEL).. 1/4"

SPEED ............................. 17 - 60 SPM

NUMBER OF HOLDDOWNS ............... 11

HOLDDOWN FORCE .................... 24 TONS

ELECTRICS ......................... 208 V / 3 / 60

HORSEPOWER ........................ 20 HP

DIMENSIONS ........................ 139" x 96" x

APPROX. WEIGHT .................... 22,000 LBS.
