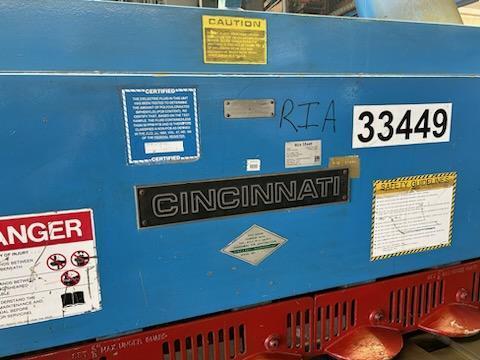

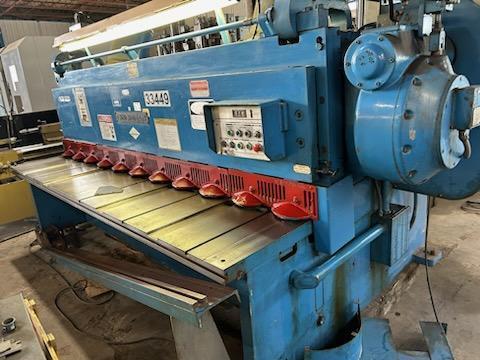

3/8" x 10' CINCINNATI MODEL 2510 POWER SQUARING SHEAR
New 1977 - Refurbished in 1992

MAX. THICKNESS ....(MILD STEEL)............... 3/8"

MAX. THICKNESS     (STAINLESS)                 1/4"

LENGTH ....................................... 10'

APPROX. SHIPPING WEIGHT ...................... 26,400 LBS

MOTOR ........................................ 10 HP

STROKES PER MINUTE ........................... 50

TO BLADE EDGE ................................ 7/8"

STANDARD DIST. UNDER HOLDDOWNS ............... 11/16"

RAKE (SHEAR ANGLE) TAPER PER FOOT ............ 9/32"

RAM ADJUSTMENT ............................... 11/16"

STANDARD GAPS (THROAT CLEARANCE) ............. 18"

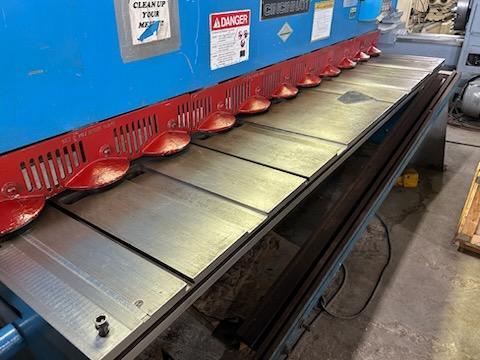

NUMBER OF HOLDDOWNS .......................... 11

EQUIPPED WITH:

- ARMY REFURBISHED IN 1992

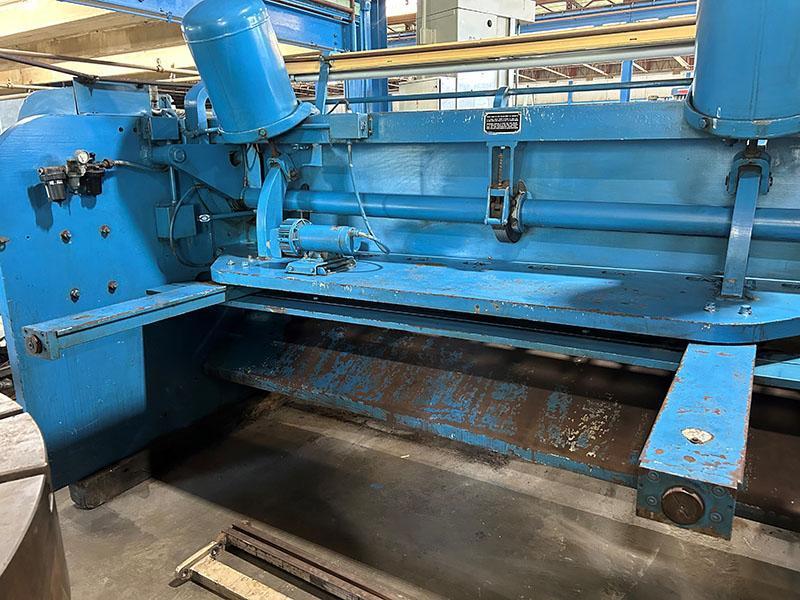

- 36" FRONT OPERATED POWERED BACK GAUGE

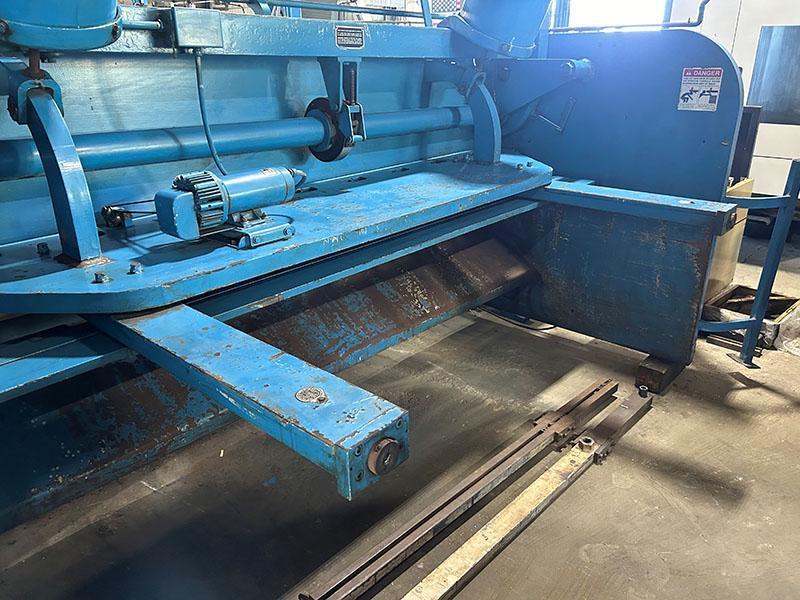

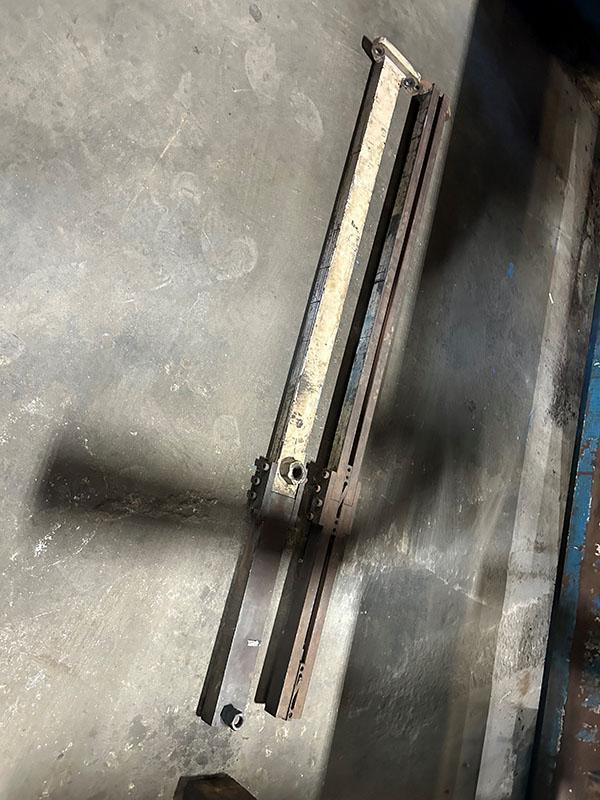

- SQUARING ARM

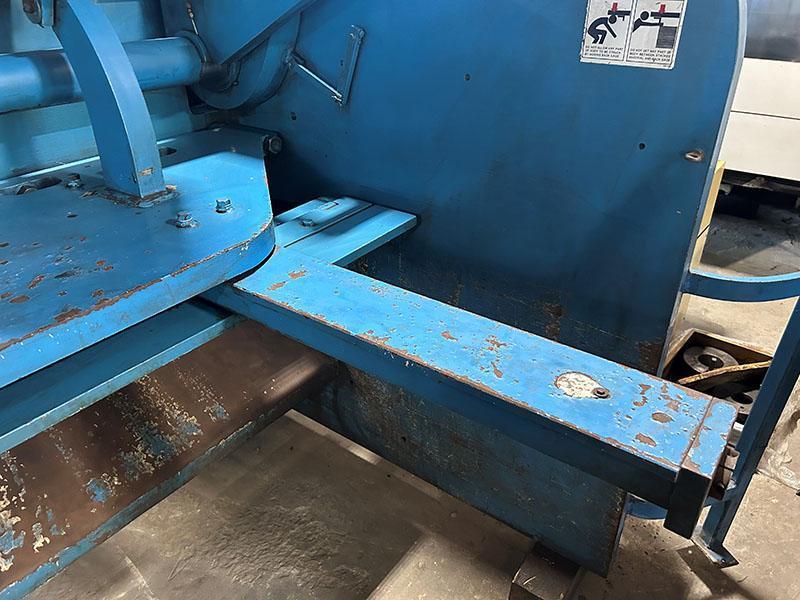

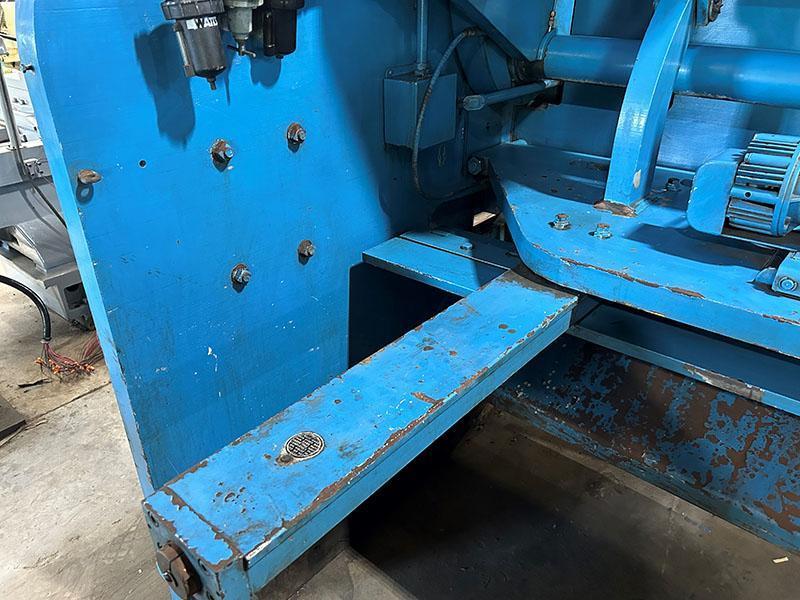

- 2 SUPPORT ARMS

- FOOT SWITCH
