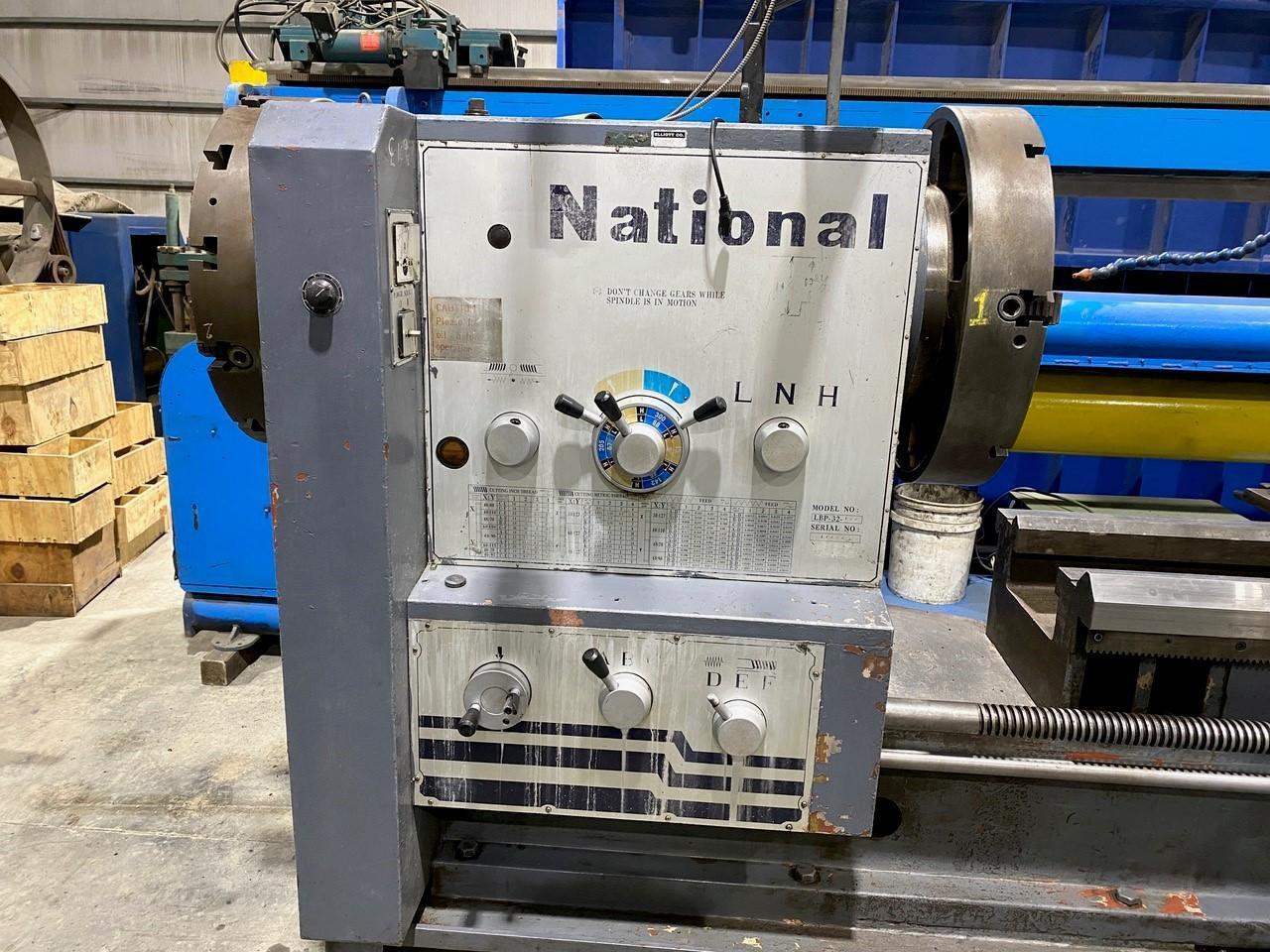

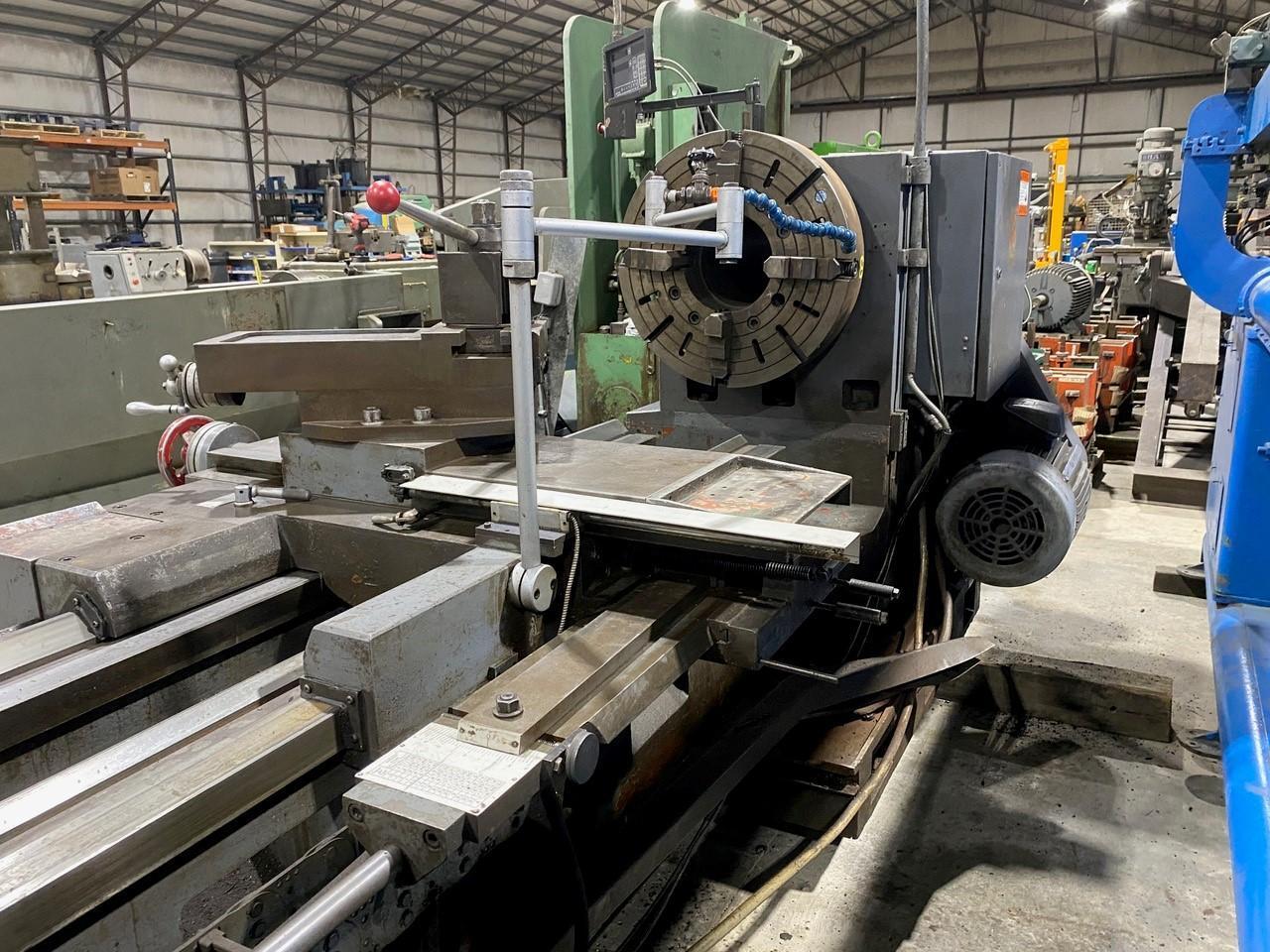

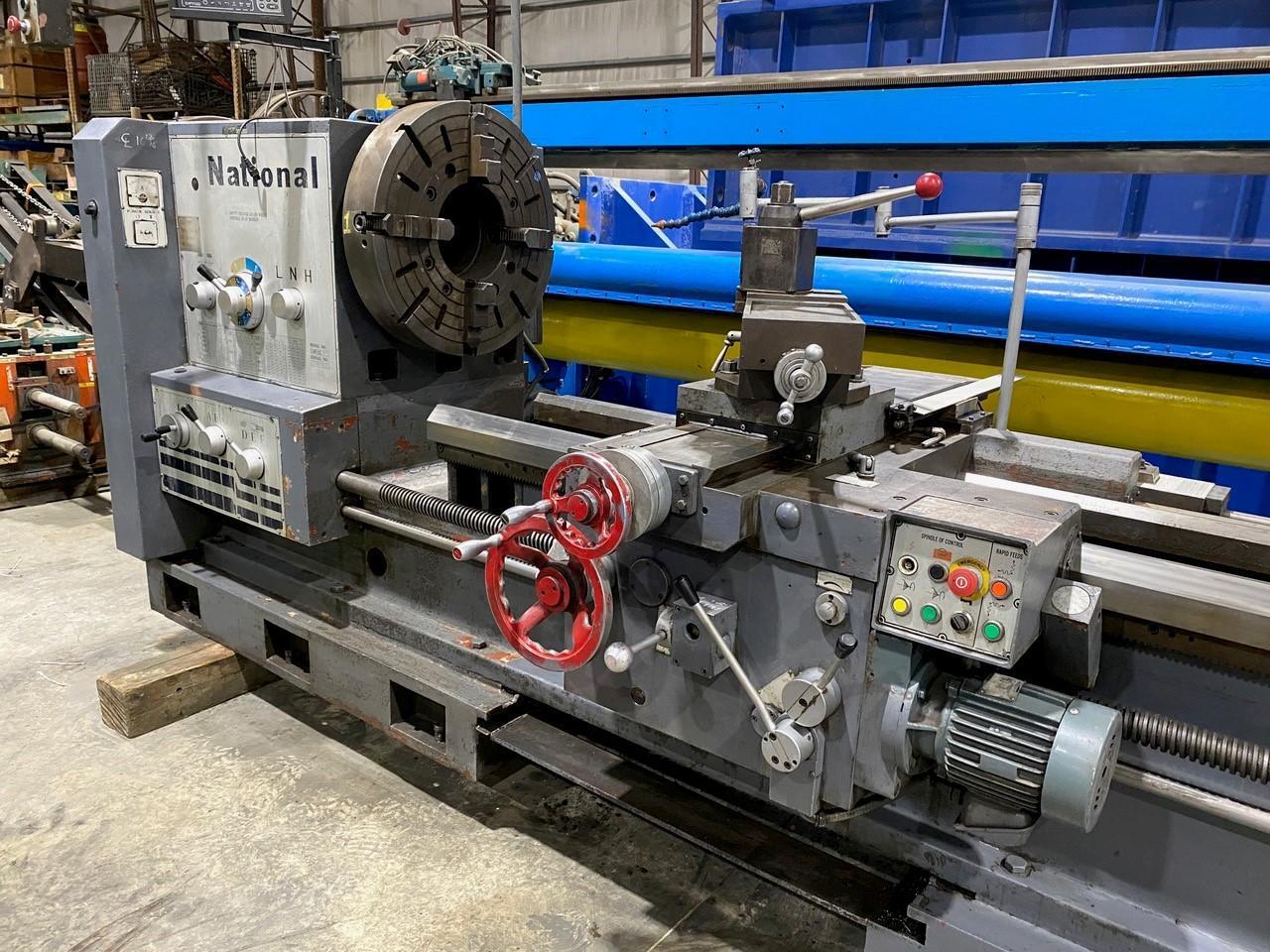

32" x 120" NATIONAL LBP-32-120 ENGINE LATHE

New: 1990

Specifications:
Swing Over Bed:  32 in
Distance Between Centers:  120 in
Swing Over Cross Slide:  22 in
Swing in Gap:  55 in
Length of Removable Gap:  10 in

Spindle Bore:  9 in
Spindle Speeds:  5 – 300 RPM (12)

Inch Threads:  1-1/4 – 27 TPI (48)
Metric Threads:  0.5 – 14 mm (48)

Inch Feeds:  0.0032 – 0.5540 (48)
Metric Feeds:  0.081 – 2.288 (48)

Leadscrew Diameter:  2 in
Leadscrew Pitch:  2 TPI

Tailstock Taper:  #6
Tailstock Quill Diameter:  4-1/4 in
Tailstock Travel:  10-1/2 in

Main Motor:  20 HP

Voltage:  220 / 440 V
Phase:  3
Frequency:  60 Hz
Amps:  52 / 26

Approximate Dimensions:  206" x 66" x 95" H
Shipping Height:  65" (On 4" Blocks w/ DRO & Pendant Removed)

Equipped with:

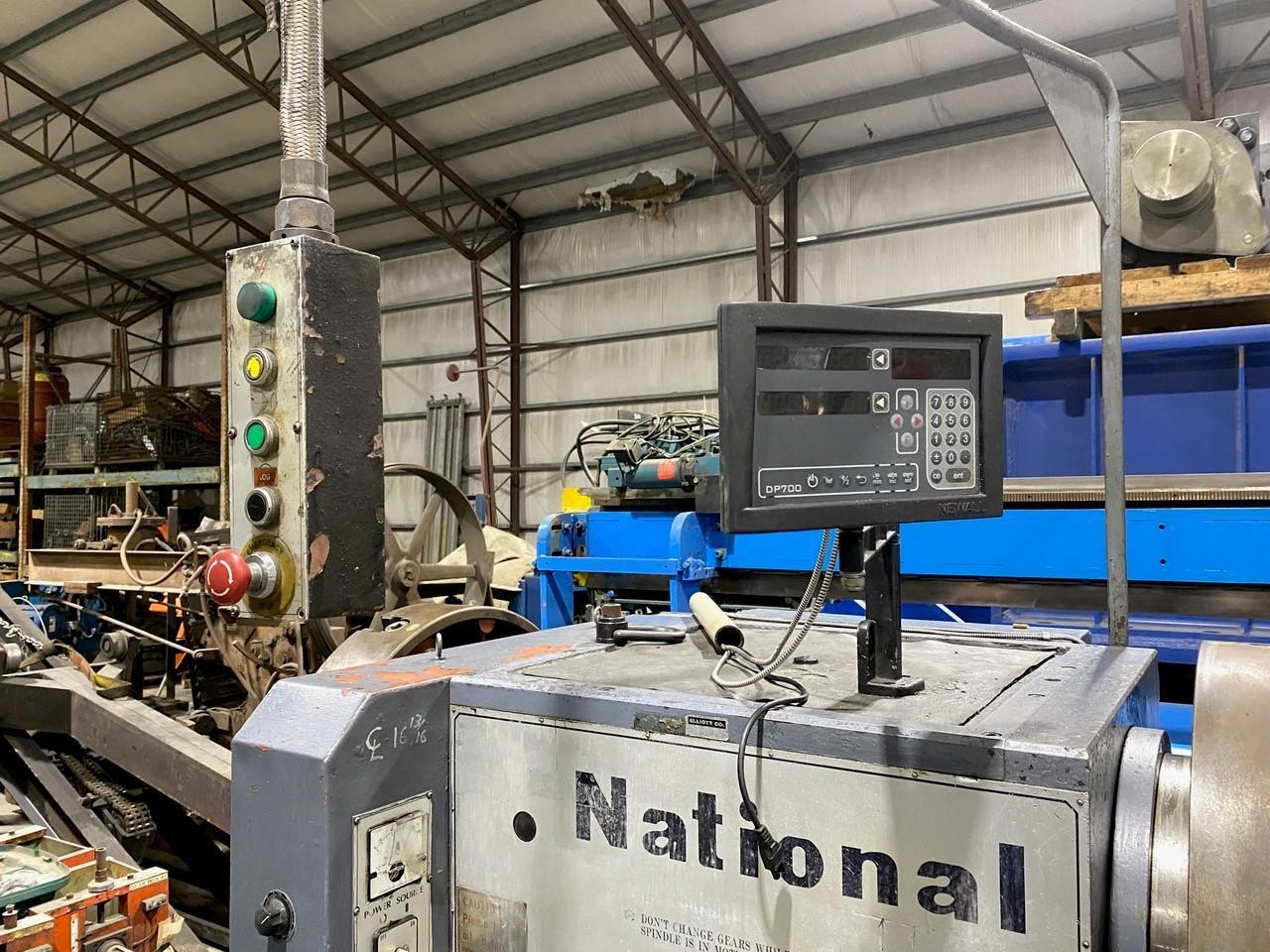

Newall DP700 2-Axis Digital Readout
Pendant Control

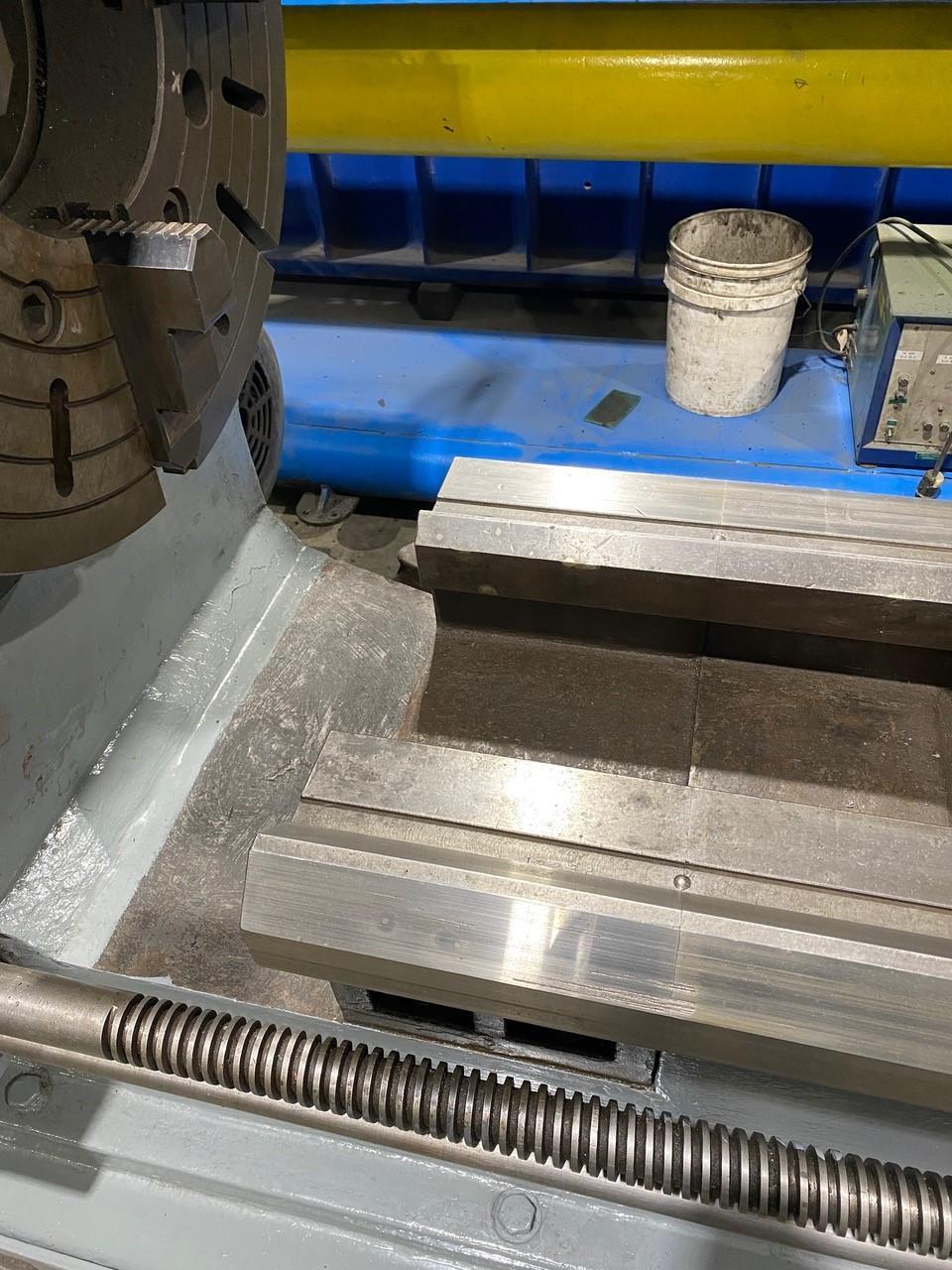

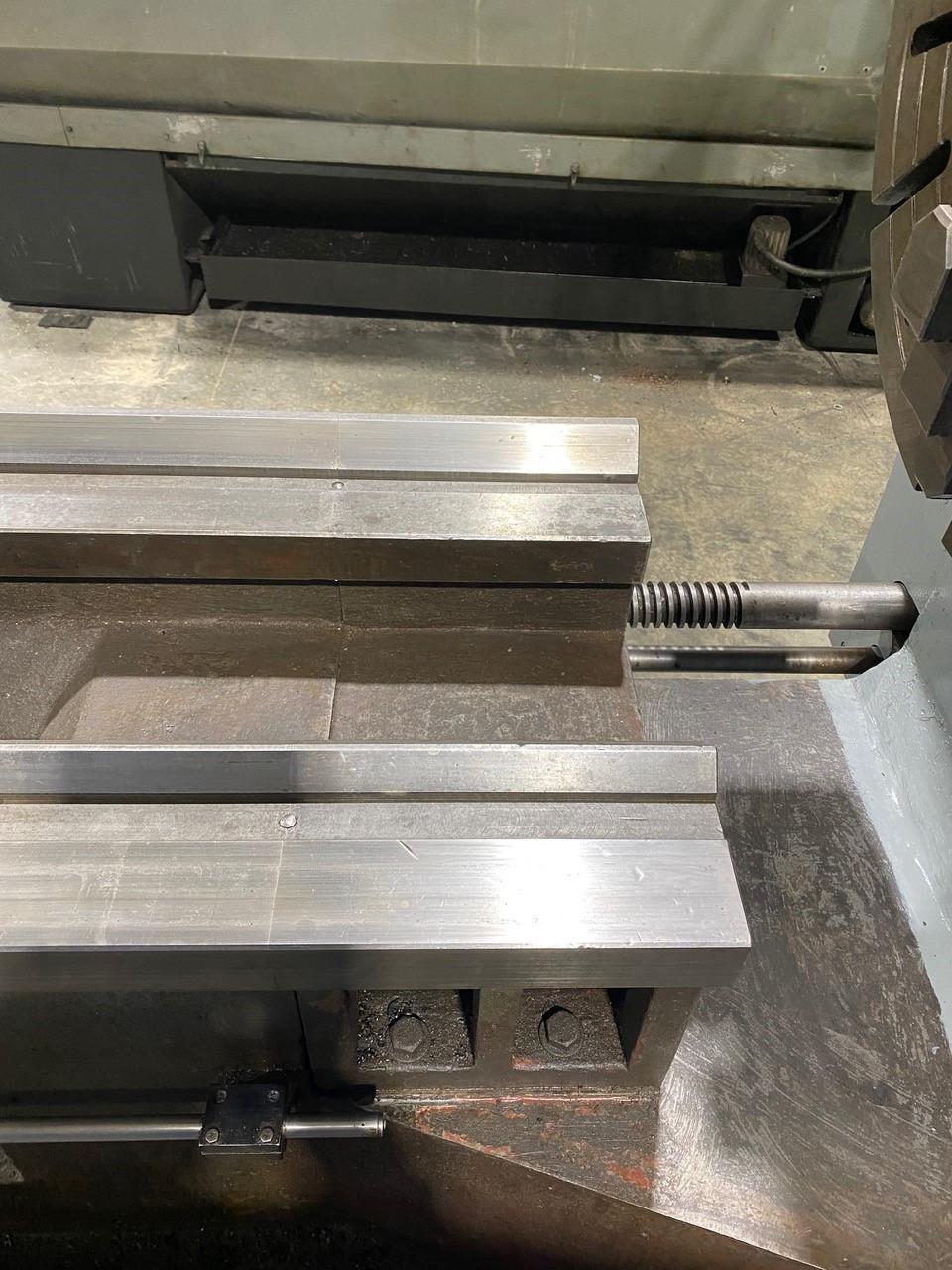

Removable Gap Bed

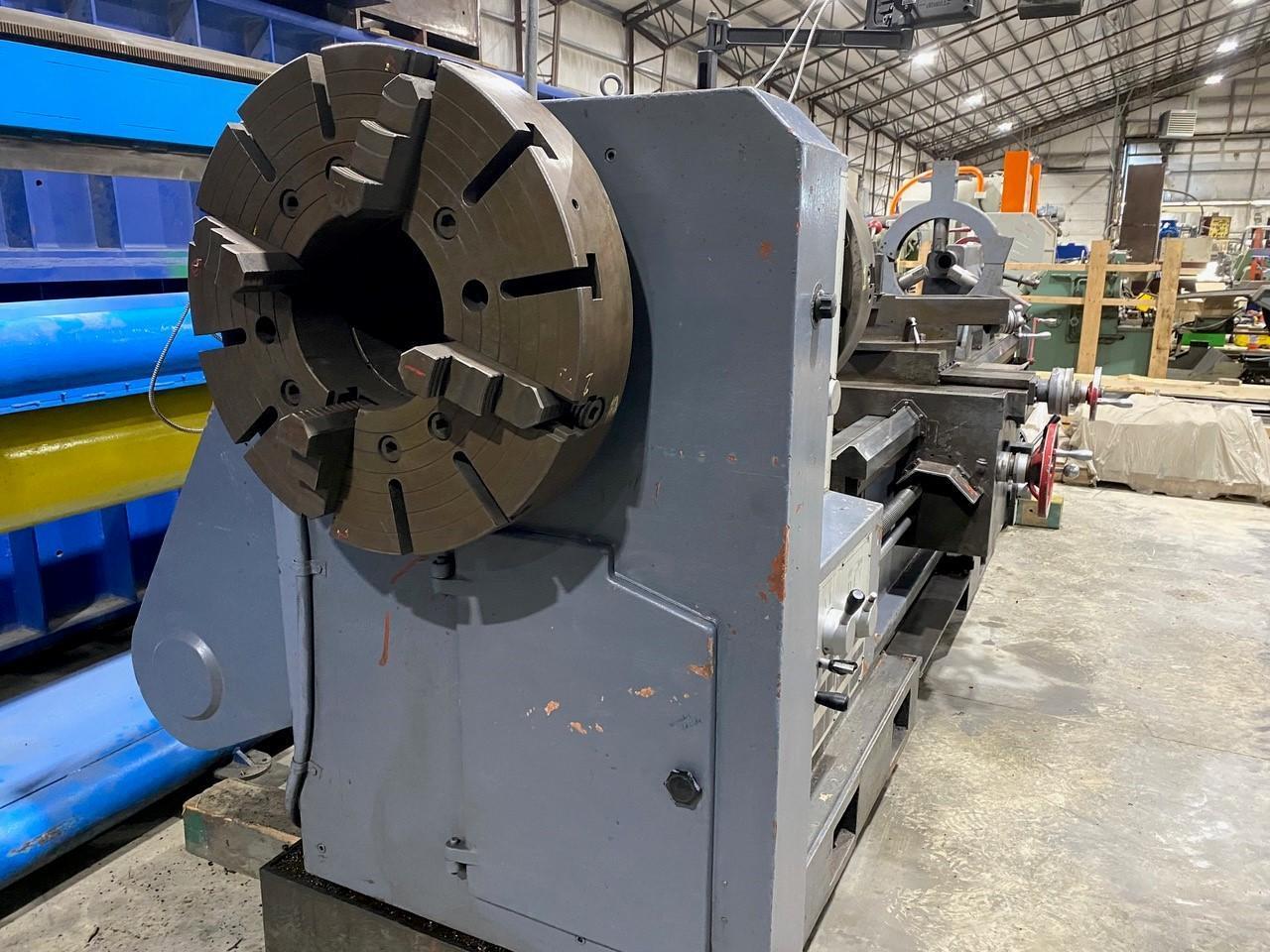

24-3/4" Front 4-Jaw Chuck
23-3/4" Rear 4-Jaw Chuck
Power Rapids (Longitudinal & Cross)
2-Speed Tailstock (1:1 and 1:4)
Aloris Quick Change Toolpost

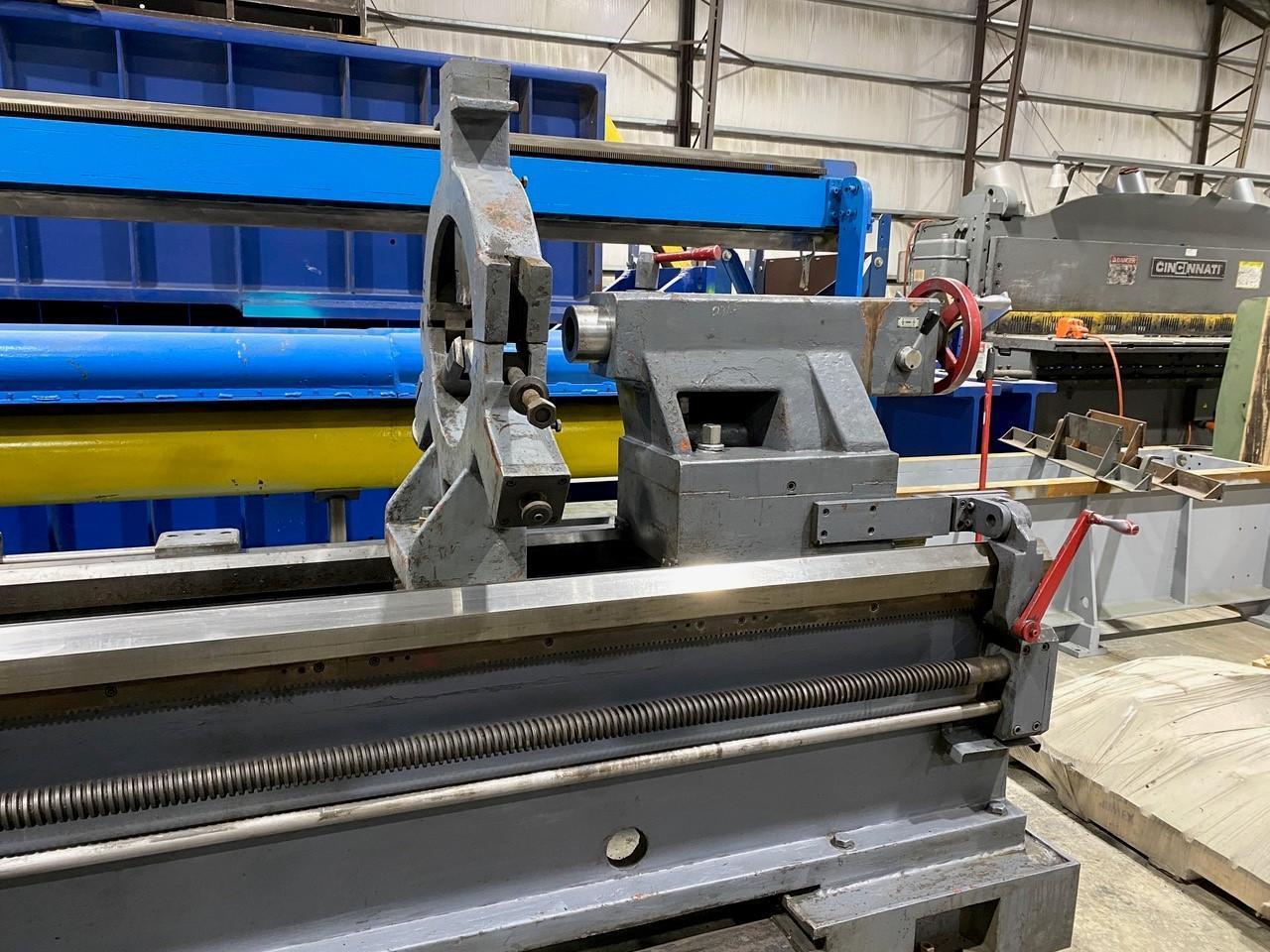

Steady Rest, Roller Type (15" Capacity)
Taper Attachment
Threading Dial
Coolant Pump
