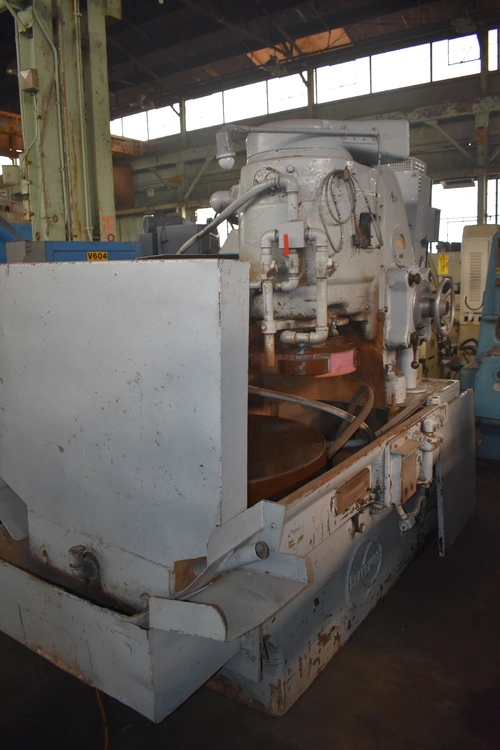

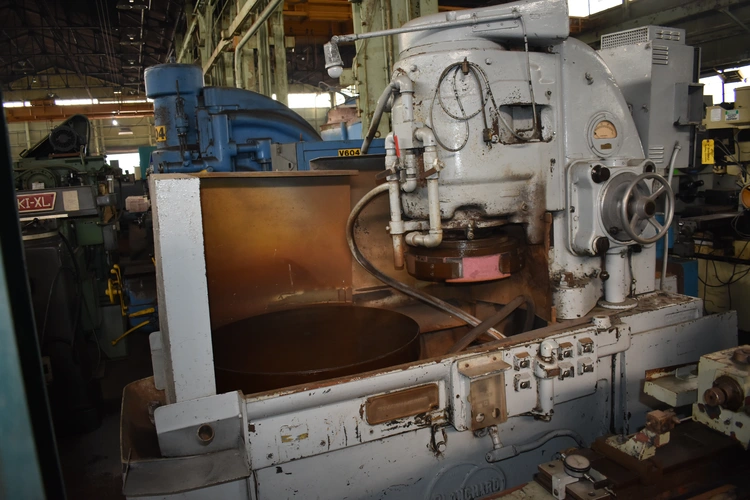

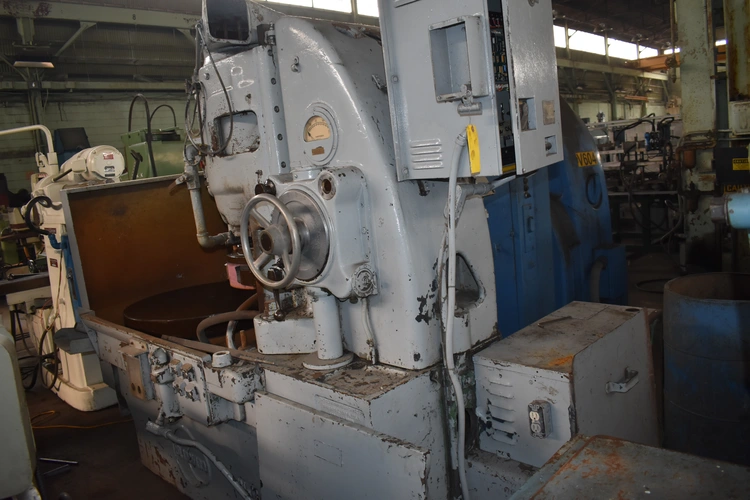

36" BLANCHARD MODEL 18-36 VERTICAL-SPINDLE ROTARY SURFACE GRINDER

SERIAL NO. 8076

EQUIPPED WITH:
Vertical-Spindle Machine Design

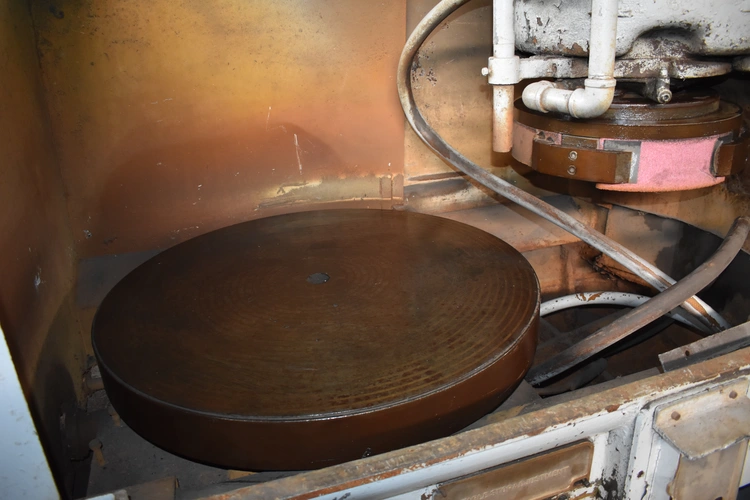

36" Diameter Magnetic Chuck
Segmented Grinding Wheel
Coolant System (Built-In)

SPECIFICATIONS:
Magnetic Chuck, Diameter 36"
Magnetic Chuck, Work Load Capacity 3000 LBS
Height Under Grinding Wheel, Maximum 12"
Grinding Wheel Diameter, Maximum 18"
Grinding Wheel Speed 720 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Power Down Feed, Range .005 to .080 IPM
Electrical System 220-440/3/60
Overall Dimensions, W x D 112" x 65"
Weight Approximately 12900 LBS
Magnetic chuck, diameter: 36"
Magnetic chuck work load capacity: 3000 LBS
Height under grinding wheel, maximum: 12"
Grinding wheel diameter, maximum: 18"
(6) chuck speeds, range: 6 TO 33 RPM
Power down feeds, range: .004 TO .080 IPM
Electrical system: 220-440/3/60
Overall dimensions, w x d: 9'4" X 5'5"
Weight, approximately: 12900 LBS
