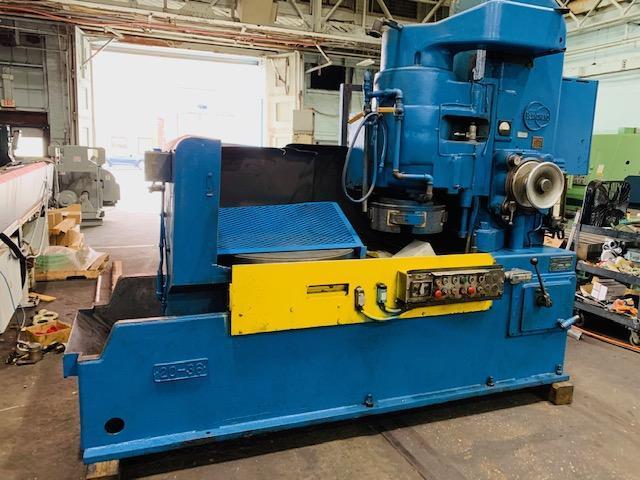

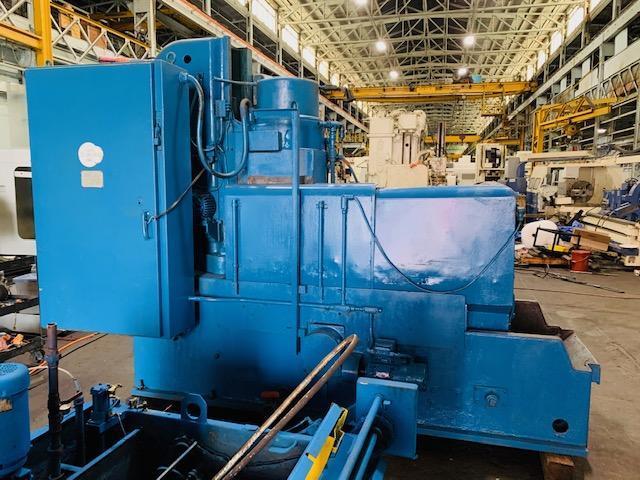

36" BLANCHARD MODEL 20D-36 VERTICAL SPINDLE ROTARY SURFACE GRINDER

NEW 1975

SPECIFICATIONS:

CHUCK DIAMETER ........................ 36"

SWING INSIDE GUARDS ................... 38"

VERTICAL RANGE UNDER NEW WHEEL ........ 24"

MAXIMUM LOAD ON CHUCK ................. 3,000 LBS

GRINDING WHEEL DIAMETER ............... 20"

GRINDING WHEEL SPEED .................. 720 RPM

CHUCK SPEEDS (6) ...................... 6 TO 33 RPM

INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"

ONE REV. OF OF THE DIAL IS ............ 0.100"

APPROXIMATE DIMENSIONS............. 12'L X 8'4"W X 9'7"H

APPROXIMATE WEIGHT .................... 12,750 LBS

EQUIPPED WITH:

30 HP 3/60/220-440 VOLT SPINDLE MOTOR

24" VERTICAL CAPACITY, FACTORY OPTION LARGER VERTICAL RANGE

DRY BASE, EXTERNAL COOLANT SYSTEM

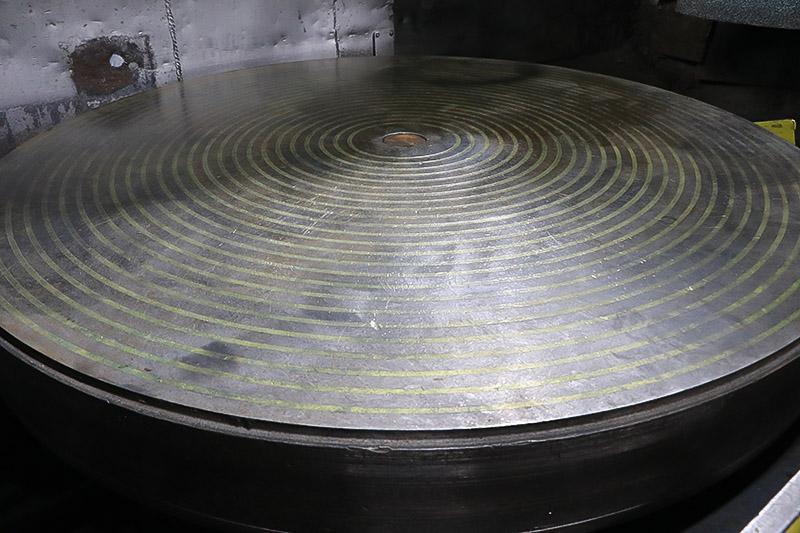

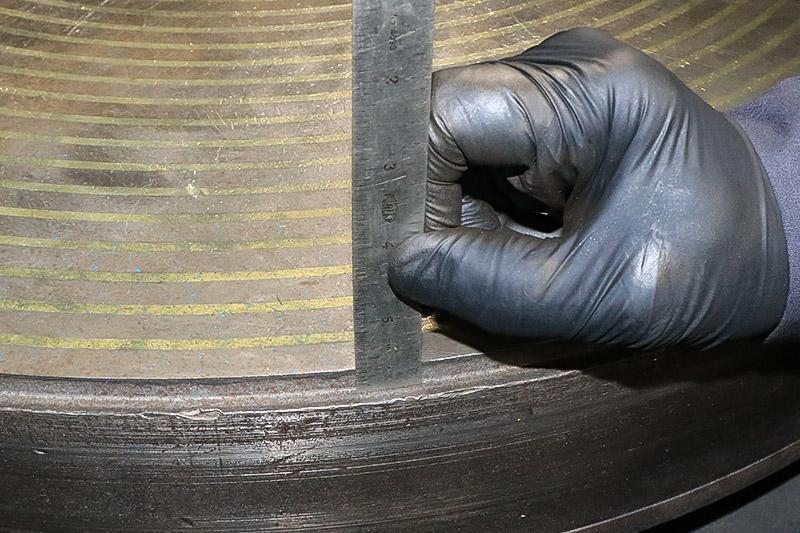

36" ELECTRO-MAGNETIC CHUCK (3/8" CHUCK LIFE)

"ELECTRO-MATIC" NEUTROFIER CONTROL

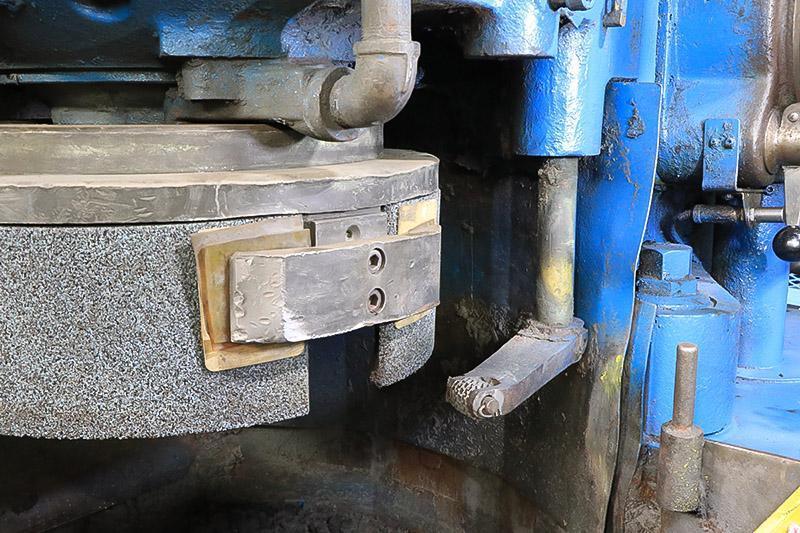

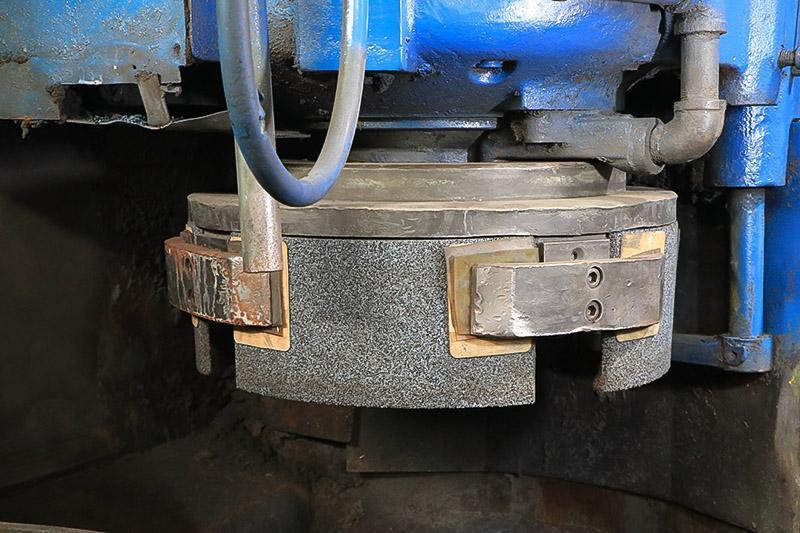

CORTLAND SEGMENTED WHEEL

INFINITELY VARIABLE POWER DOWNFEED

POWER RAPID WHEELHEAD POSITIONING

DRESSER

EXTERNAL COOLANT SYSTEM WITH MOTORIZED CONVEYOR:

Filtration Unit- 67” x 40” x 43”

Filter Control- 42” x 34” x 22”

WHEELHEAD HAS RAPID RAISE & LOWER BY POWER

  INTERLOCKED WITH FEED.

PRESENTLY WIRED FOR 3/60/440 VOLTS, MAXIMUM 58 AMPS
