Equipped With

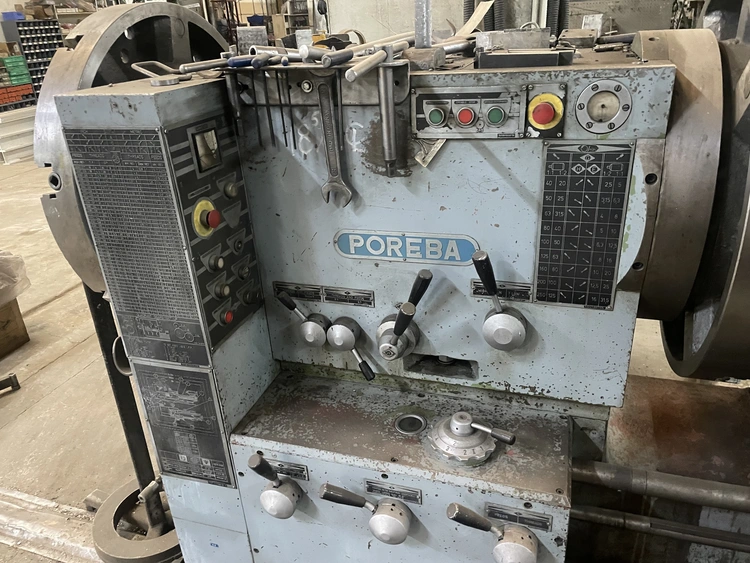

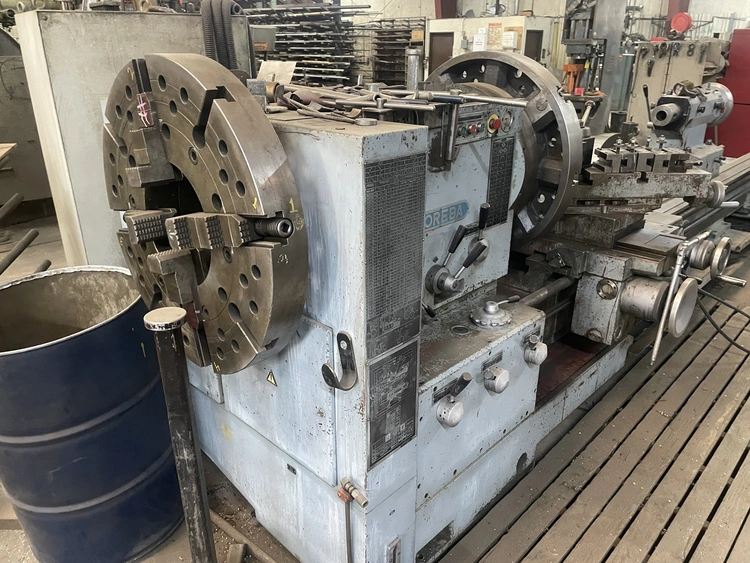

36" x 157" POREBA MODEL TPK-90A1/4M BIG BORE GAP BED ENGINE LATHE


EQUIPPED WITH
12.5" Bore
Front and Rear Chucks

Swing over Bed 36.5"
Maximum Swing In Gap: 47.2″
Swing Over Cross Slide 24.7"
Centers 157"
Spindle Bore 12.5"
Spindle Speeds: 4 – 315 RPM
(80) Longitudinal Feeds, Range .......... .0043 to .0670 IPR
(80) Cross Feeds, Range .......... .0021 to .033 IPR
(61) Thread Range .......... 1/4 to 30 TPI
(72) Metric Thread, Range .......... 1 to 120 MM/M
Power Rapid Traverse, Carriage .......... 13 FPM
Power 22 hp
