Equipped With

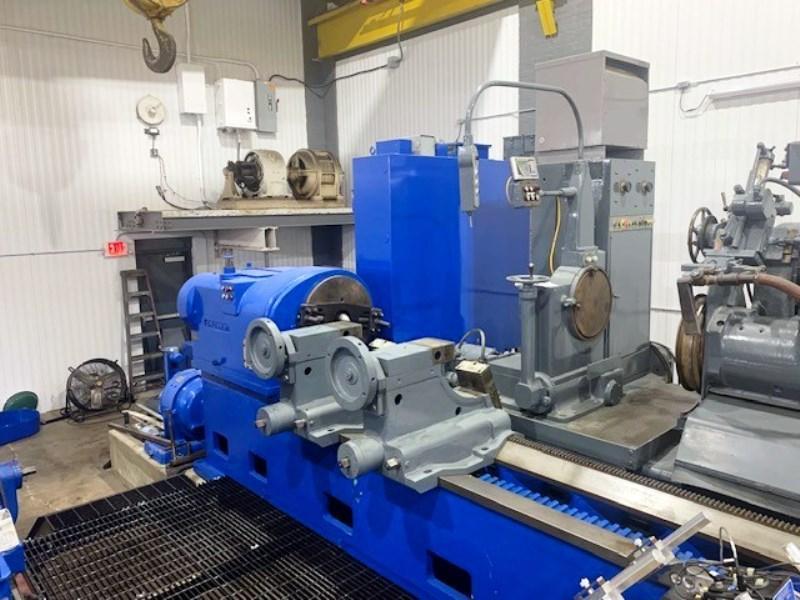

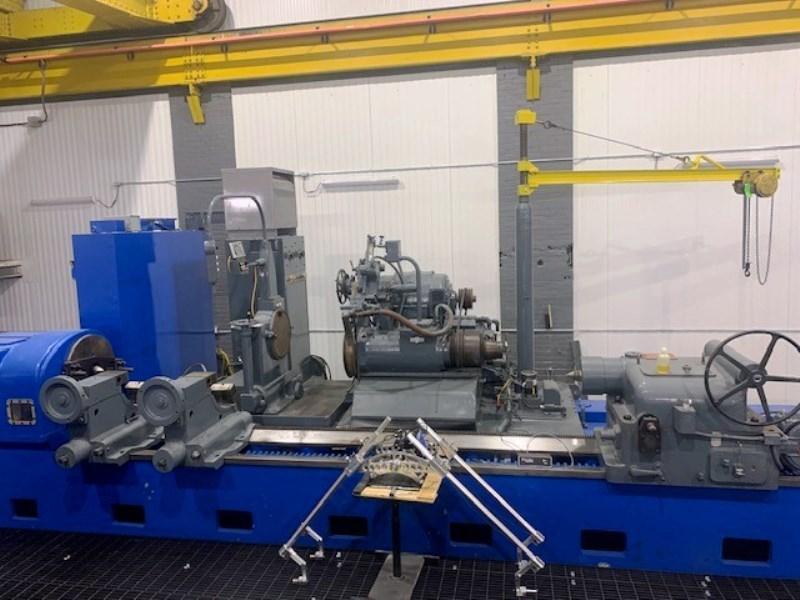

36" X 192" CINCINNATI ROLL GRINDER

Serial No. 58G-403447-1

Specifications:

Maximum swing over bed                    36”

Maximum Roll Length                         192”

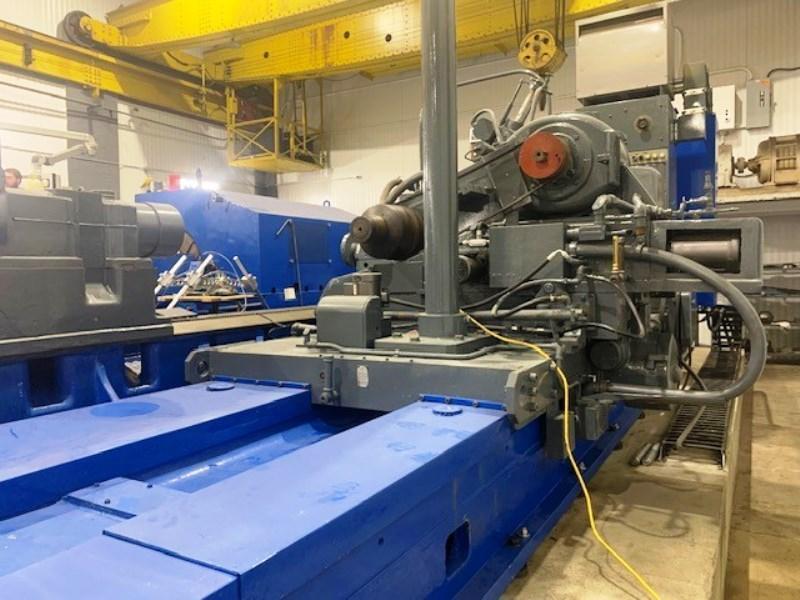

Wheelhead

Size of grinding wheel – std.                 36” X 4” X 20”

Grinding wheel speeds                          600-1800 RPM

Weight of wheelhead without motor      14,500 lbs.

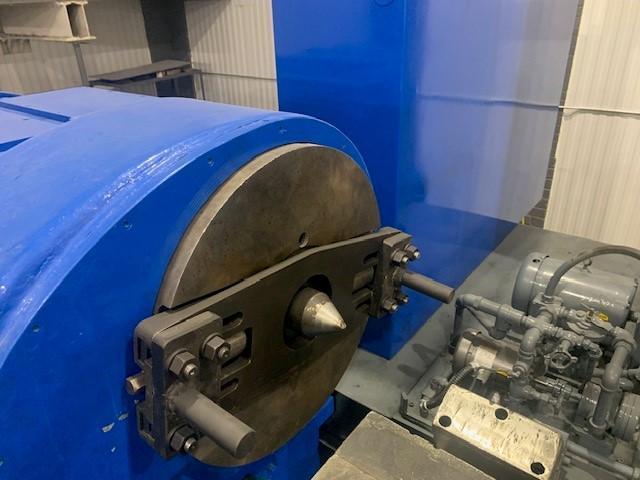

Headstock

Headstock speeds                                 9-32 rpm

Headstock horsepower                          15 hp DC

Weight of Headstock                            14000 lbs

Infeed

Infeed increments, programmable         .0000 10” - .004”

Maximum infeed rate (Rapid)               30 ipm

Grinding Carriage

Weight of carriage assembled, completely with motor 45,000 lbs

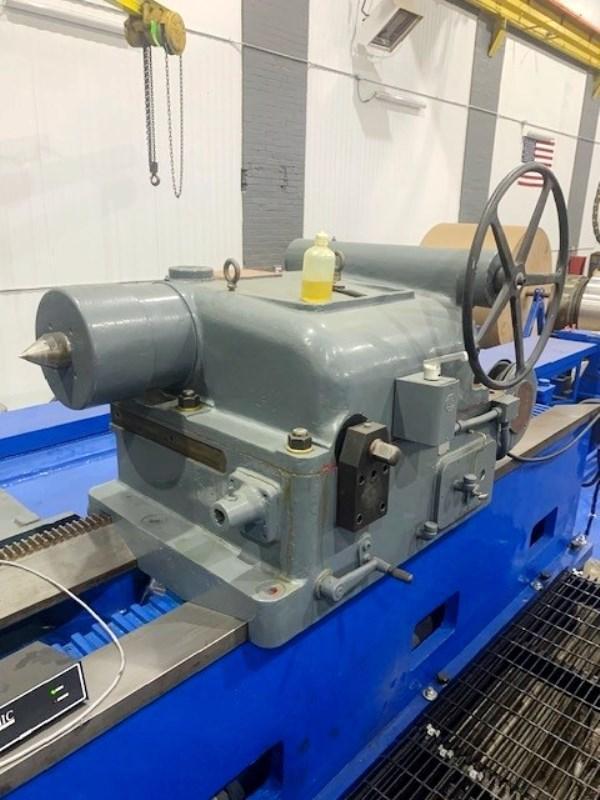

Footstock

Work Center Diameter X Length          6” X 20 1/8”

Maximum Longitudinal Movement       5”

Weight                                                 6,600 Lbs.

Accessories

1 Pair journal Rests

1 Wheel Hub

2 Centers

1 Equalizer Drive

New Fagor Digital readout on the infeed slide

Way Covers
