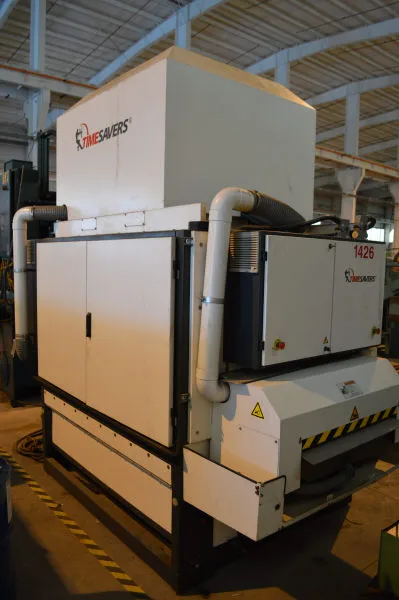

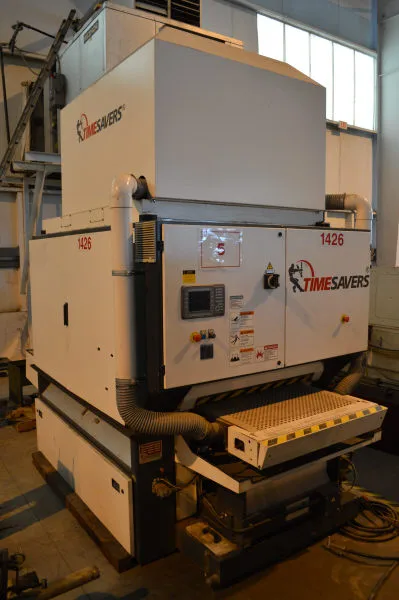

37" TIMESAVERS “4111-03-05” HEAVY-DUTY WET METAL ABRASIVE DISC DEBURRER AND FINISHING GRINDER w/MITSUBISHI CONTROL - 48” OSCILLATING DISC HEAD - MOTORIZED HEIGHT ADJUSTMENT

New 2007


SPECIFICATIONS:
Disc diameter: 48"
Belt width: 37"
Belt length: 75"
Working width, maximum: 35.43"
Work piece size, minimum: 3.15" X 3.15"
Thickness opening, maximum: 0" TO 3"
Conveyor feed speed, variable: 1 TO 10 MPM
Grinding head speed, range: 10 TO 22 MPS
Disc drive motor, horsepower: 6.9 KW
Conveyor motor, horsepower: 1.3 KW
Weight approximately: 7725 LBS

EQUIPPED WITH:

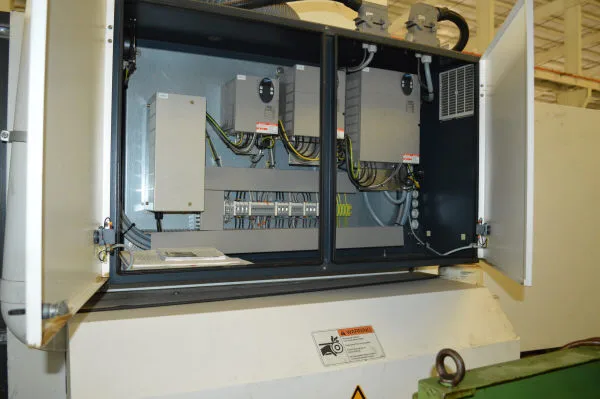

#E1070 MITSUBISHI CONTROL PANEL W/READ OUT

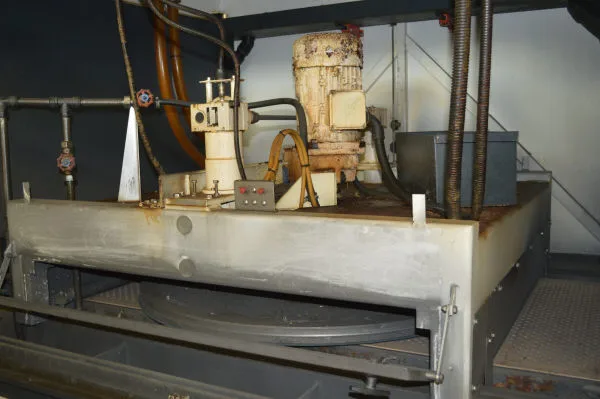

48" OSCILLATING DISK ROTARY TYPE GRINDING HEAD
W/MOTORIZED HEIGHT ADJUSTMENT
STAINLESS STEEL DOORS AND SHEET MATERIAL
VACUUM CONVEYOR TABLE W/FEED KING CONVEYOR BELT
AND BELLY BRAKE AND MOTORIZED HEIGHT ADJUSTMENT
OF CONVEYOR BED
WET TYPE EXECUTION W/INTERGRATED FILTER, PAPER
FILTER CLOTH, COOLANT EMULSION TANK, SPRAY
NOZZLES, REFRACTOMETER (COOLANT EMULSION),
WATER SEPERATOR ON TOP, AND VACUUM PUMP
BOLT ON AIR KNIFE DRYER W/DOUBLE AIR KNIVES AND
SIX SQUEEZE ROLLERS
