Equipped With

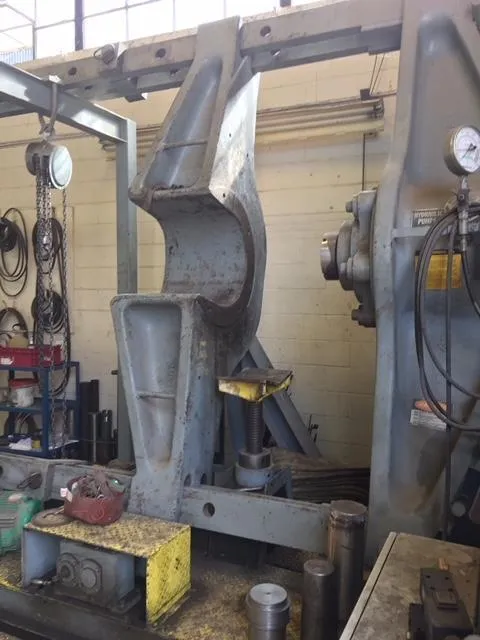

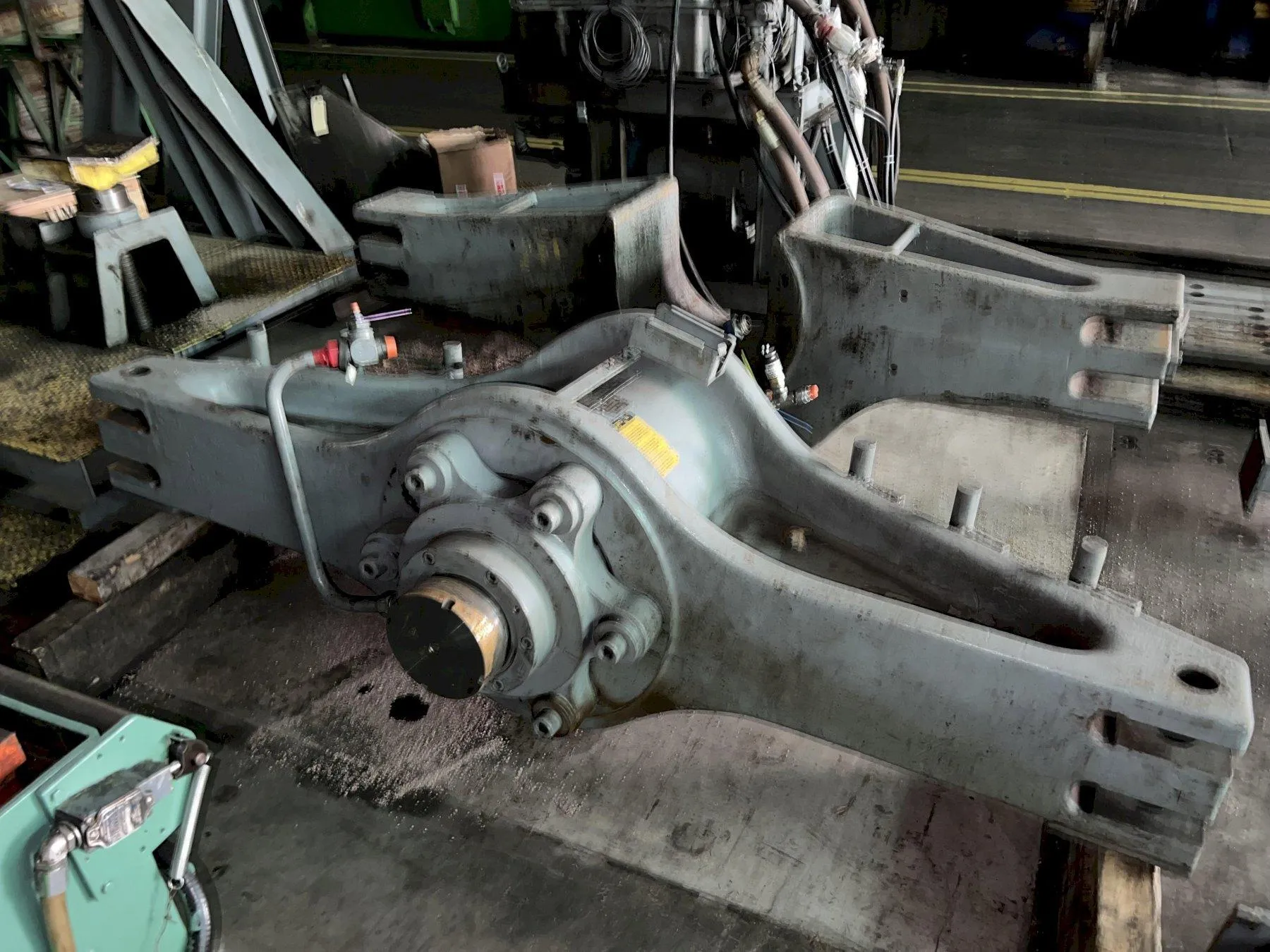

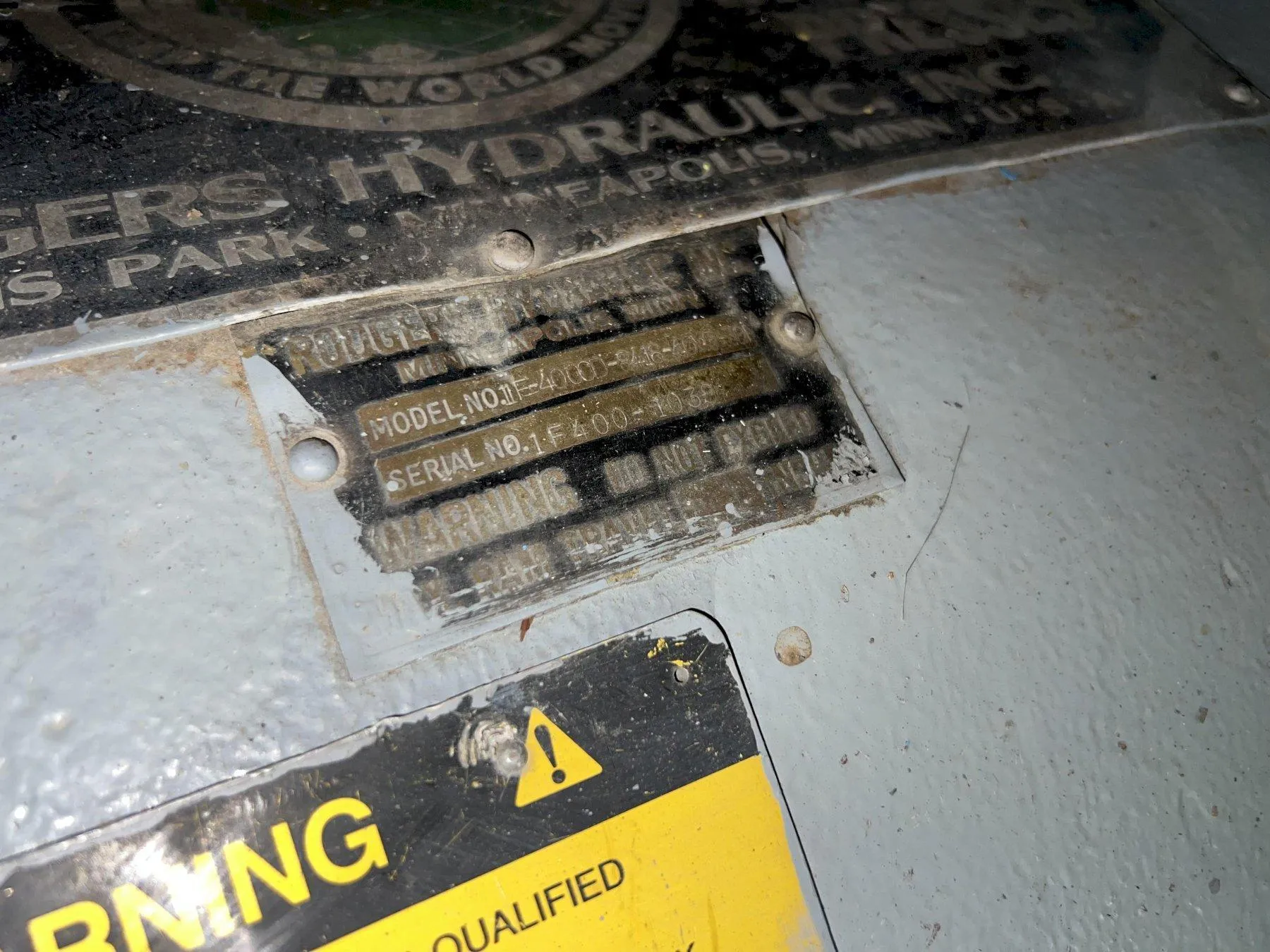

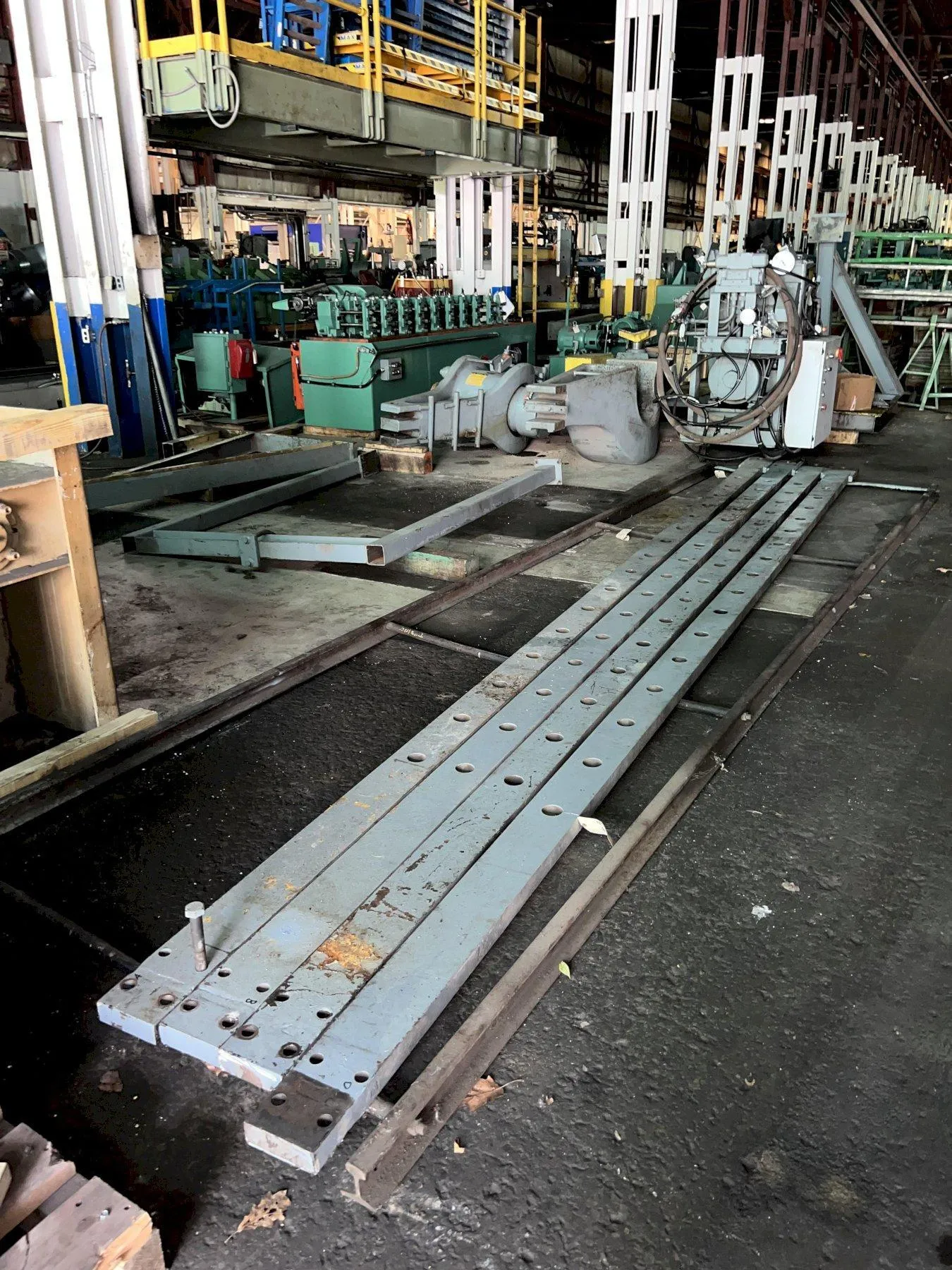

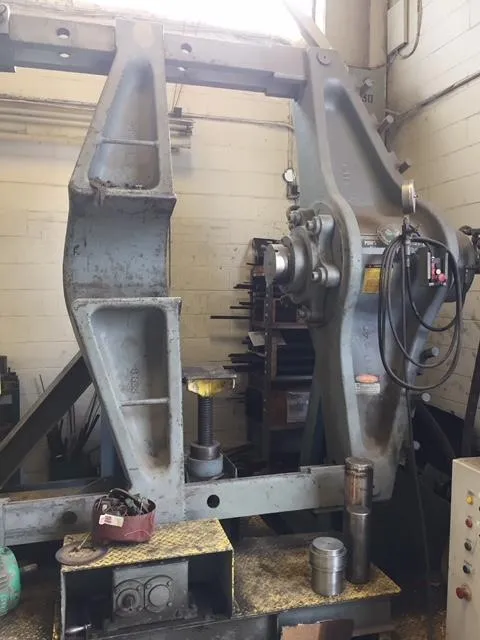

400 TON RODGERS MODEL #1F400 HYDRAULIC INCLINED FRAME HORIZONTAL WHEEL PRESS

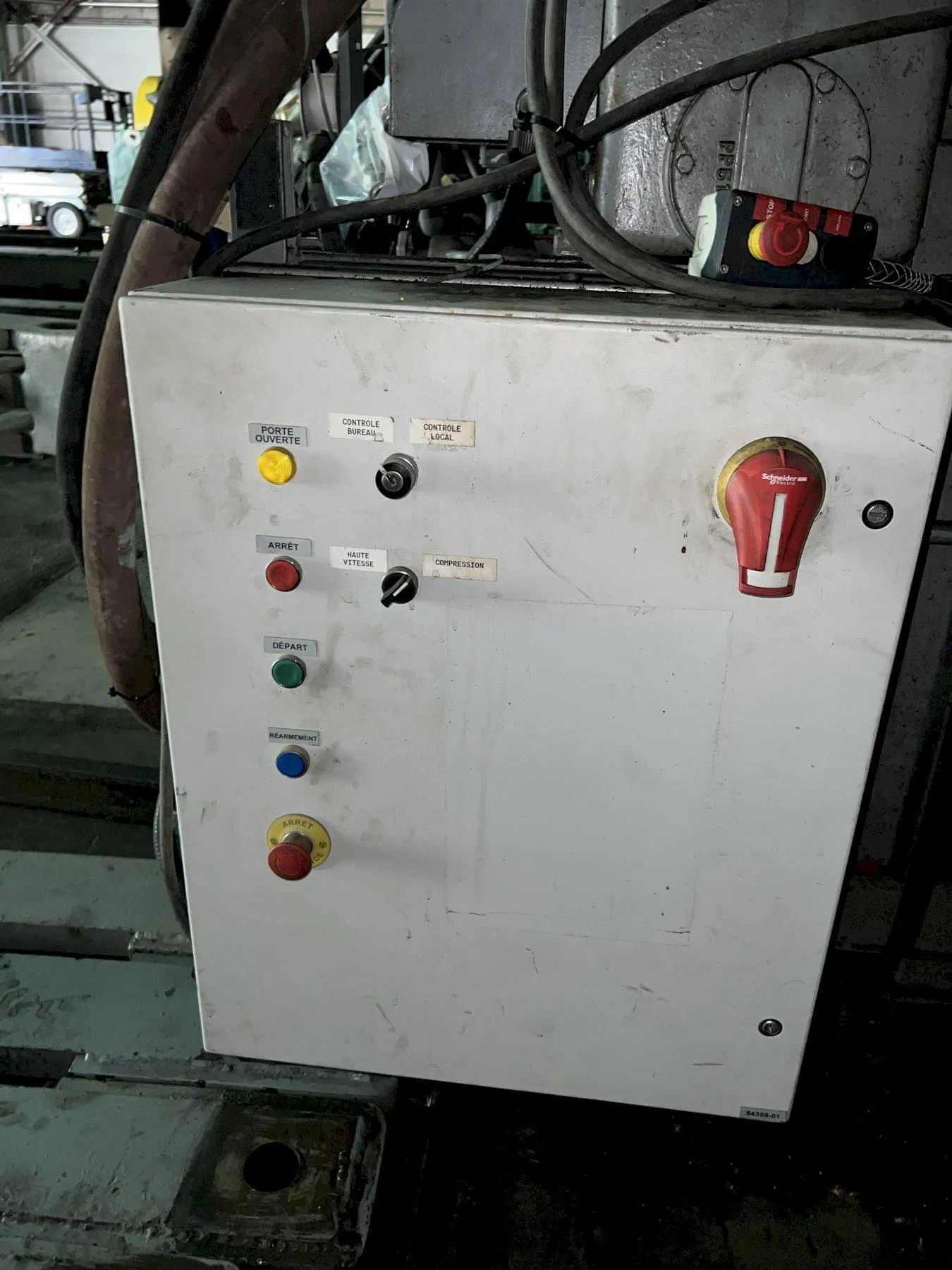

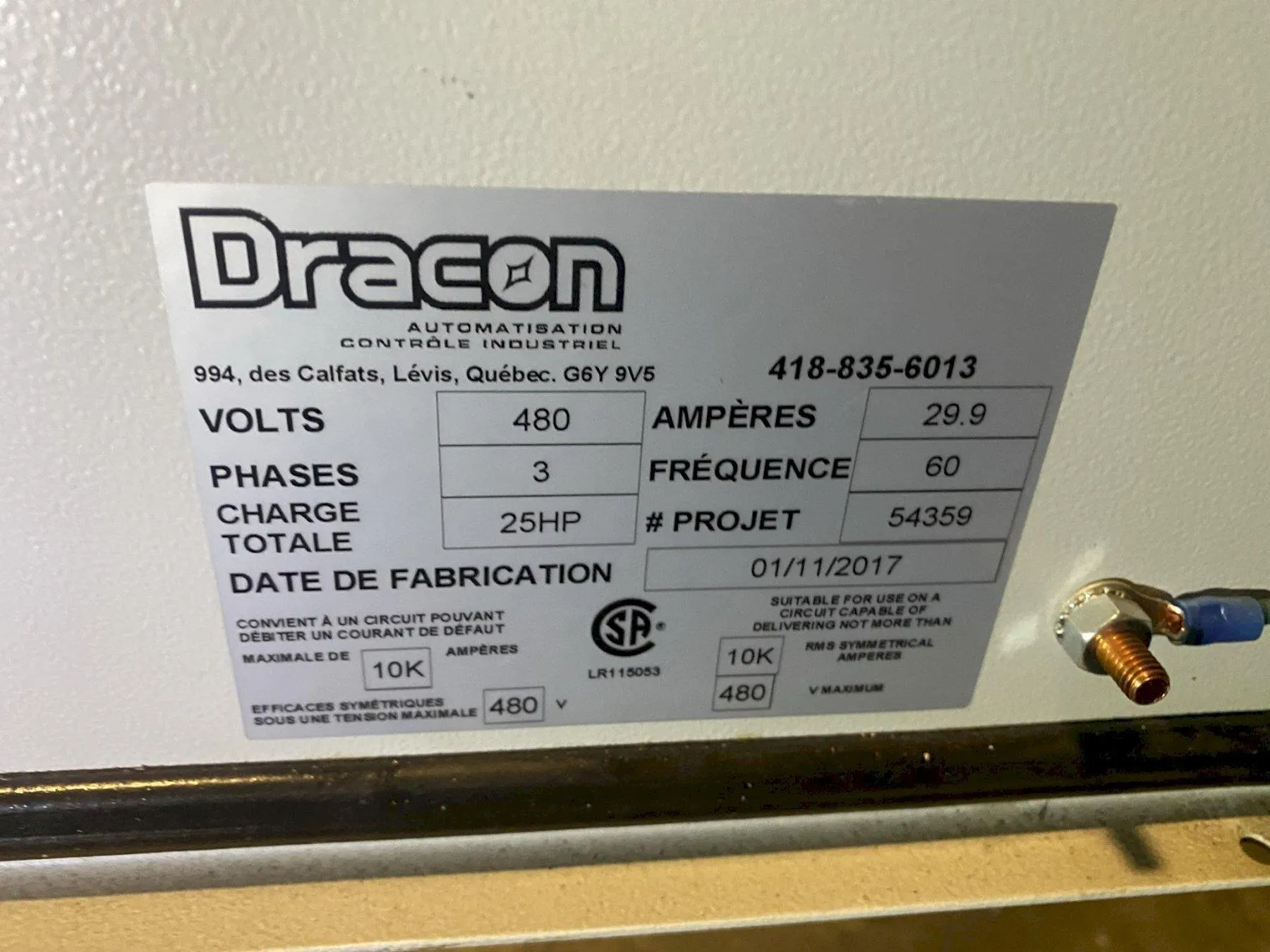

ELECTRICS UPDATED IN ............. 2017
CAPACITY ......................... 400 TON

STROKE ........................... 10"

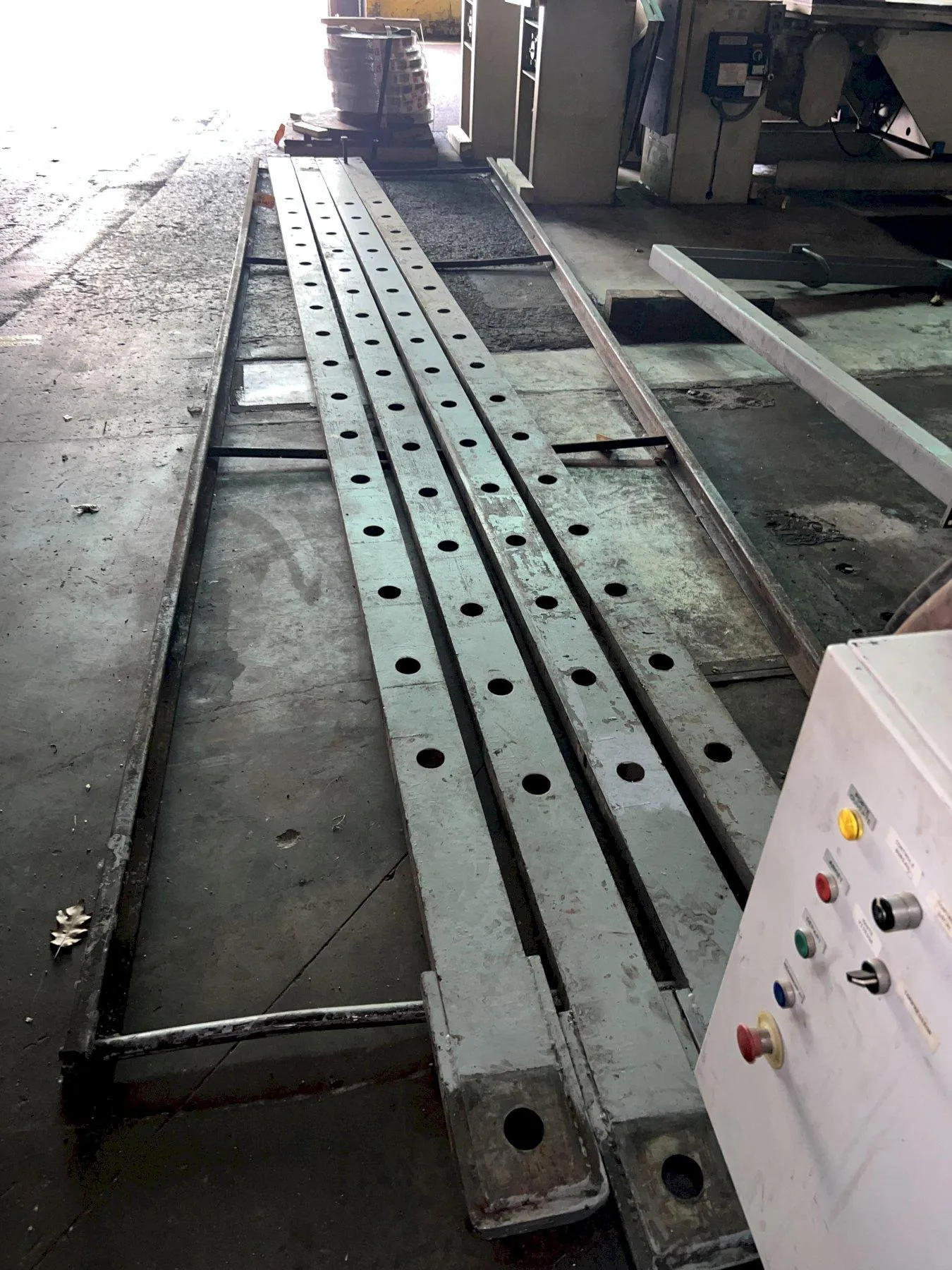

DISTANCE BETWEEN STRAIN BARS ..... 84"

DISTANCE FROM RAM TO RESISTANCE .. 12" TO 192" (16')

ADJUSTMENT HOLES ON BARS ......... 16

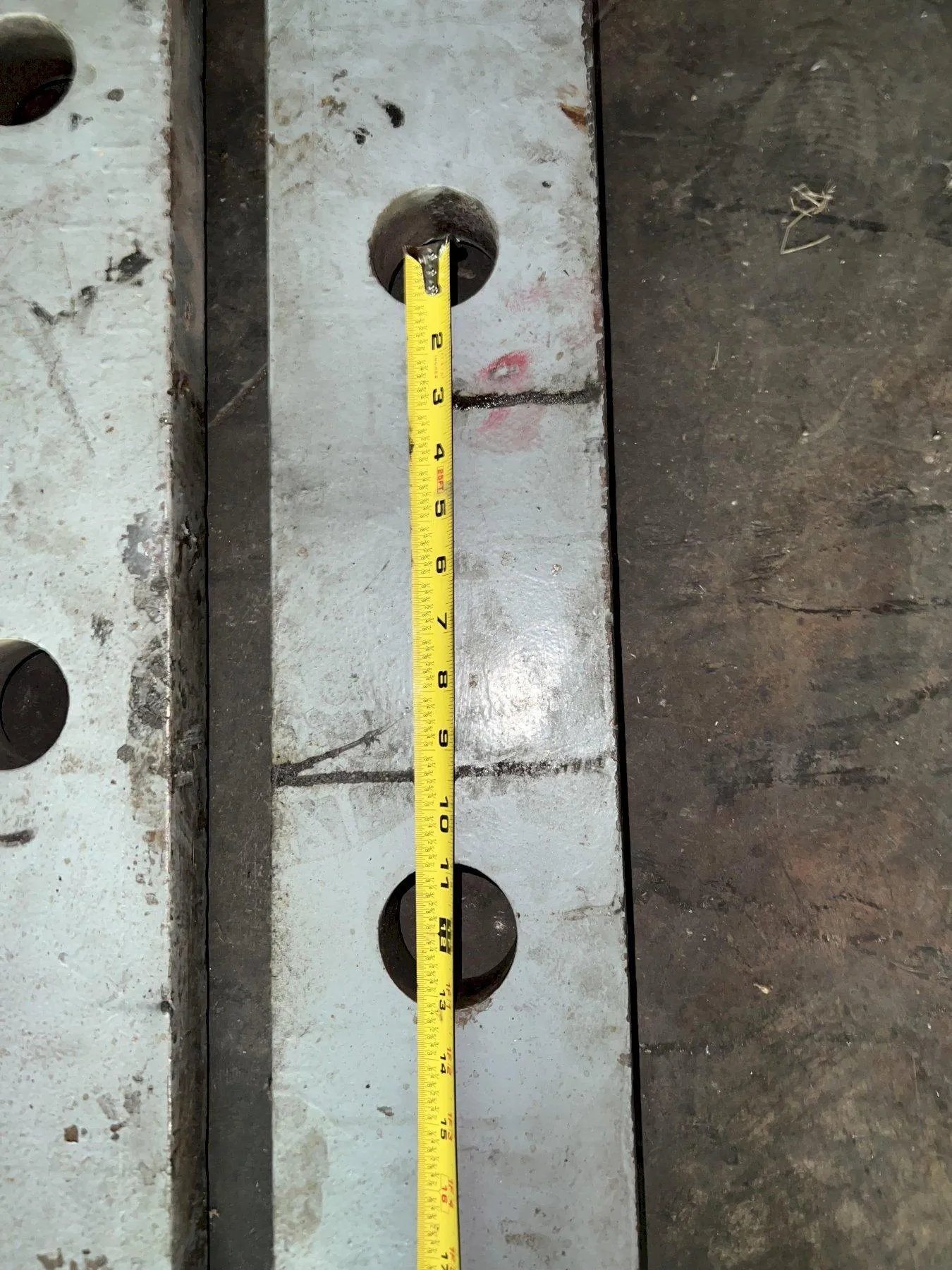

ADJUSTMENT HOLES ON CENTER ....... 12"

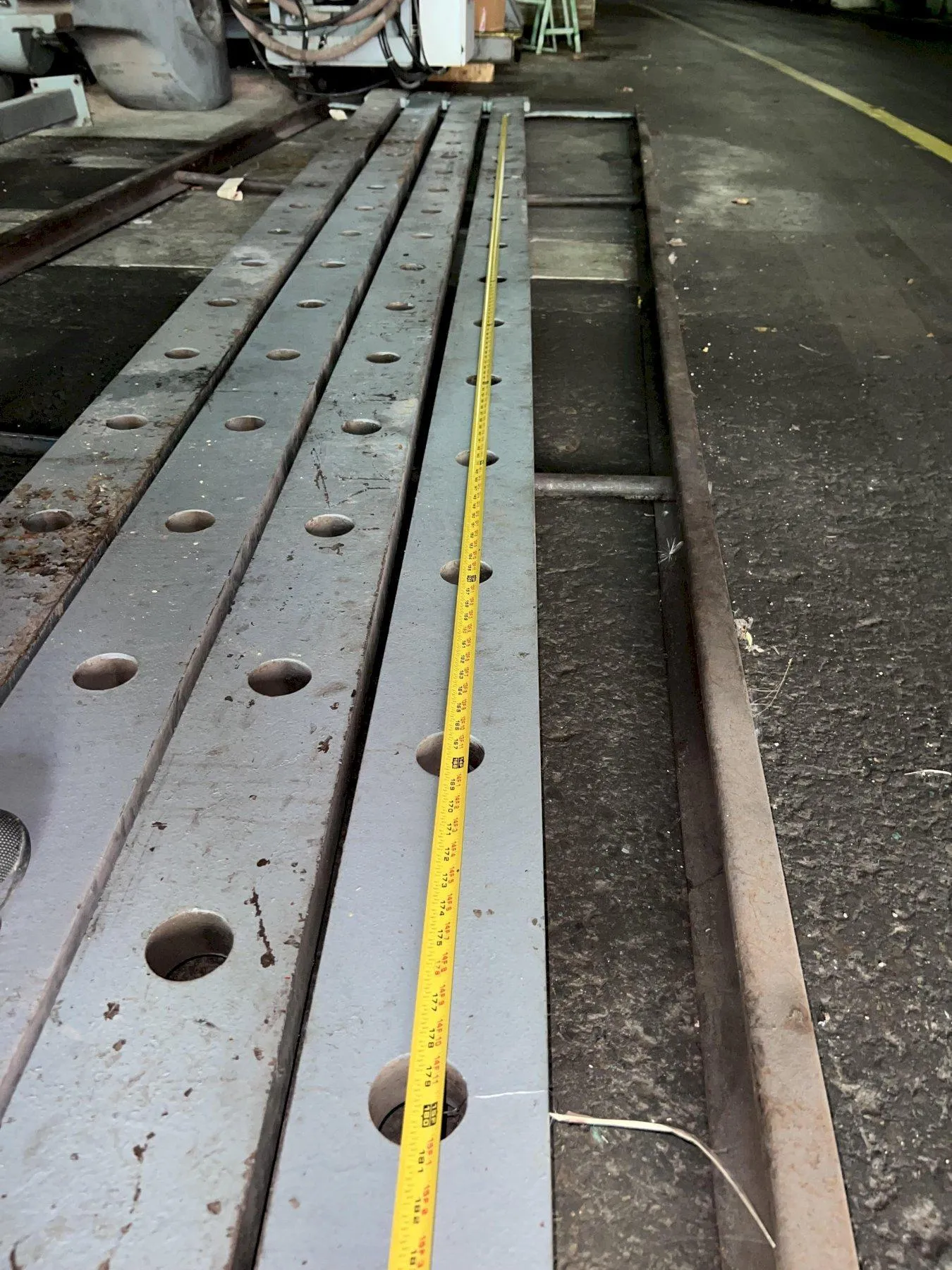

DIMENSION OF STRAIN BARS ......... 20' X 6"

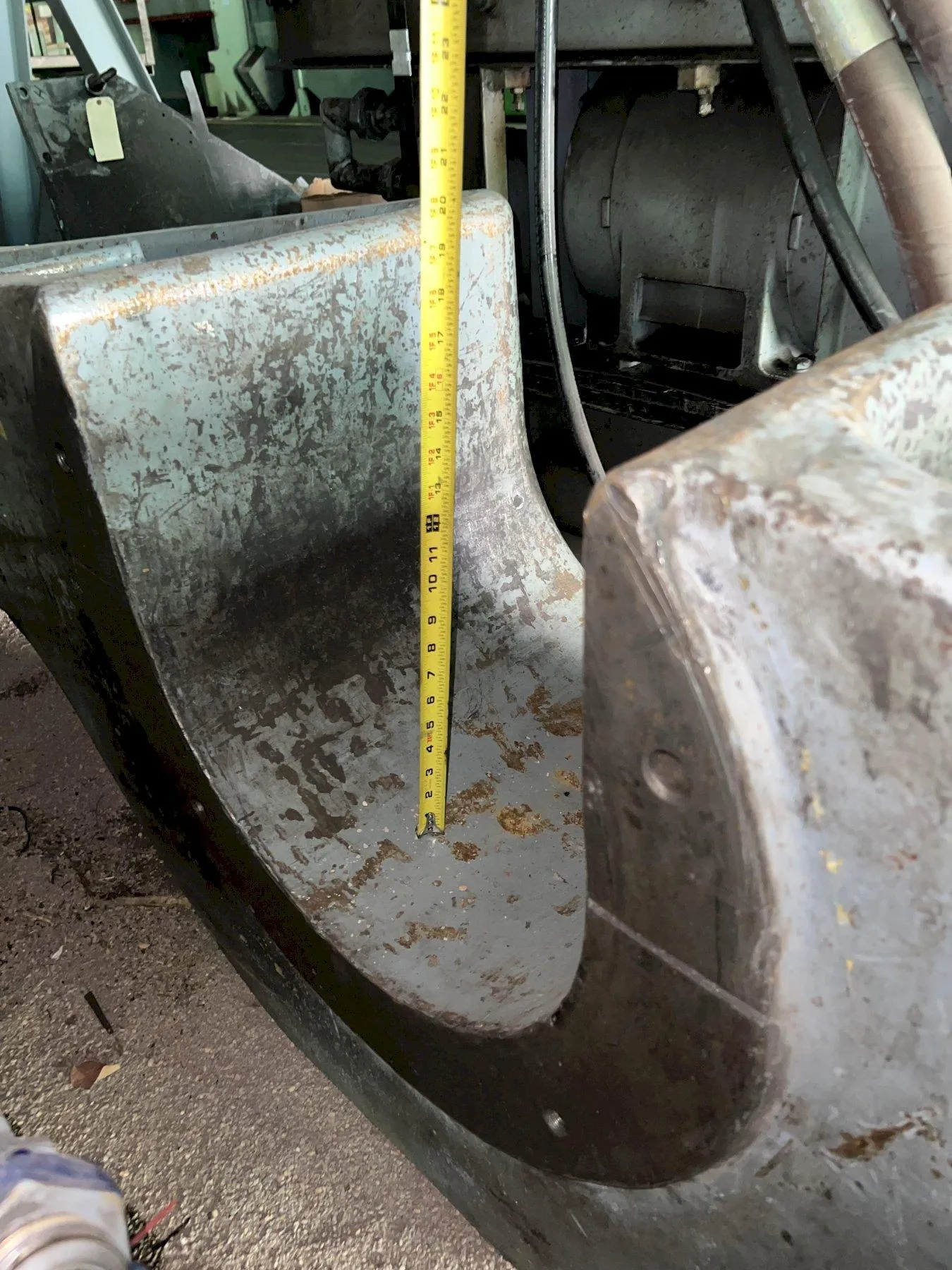

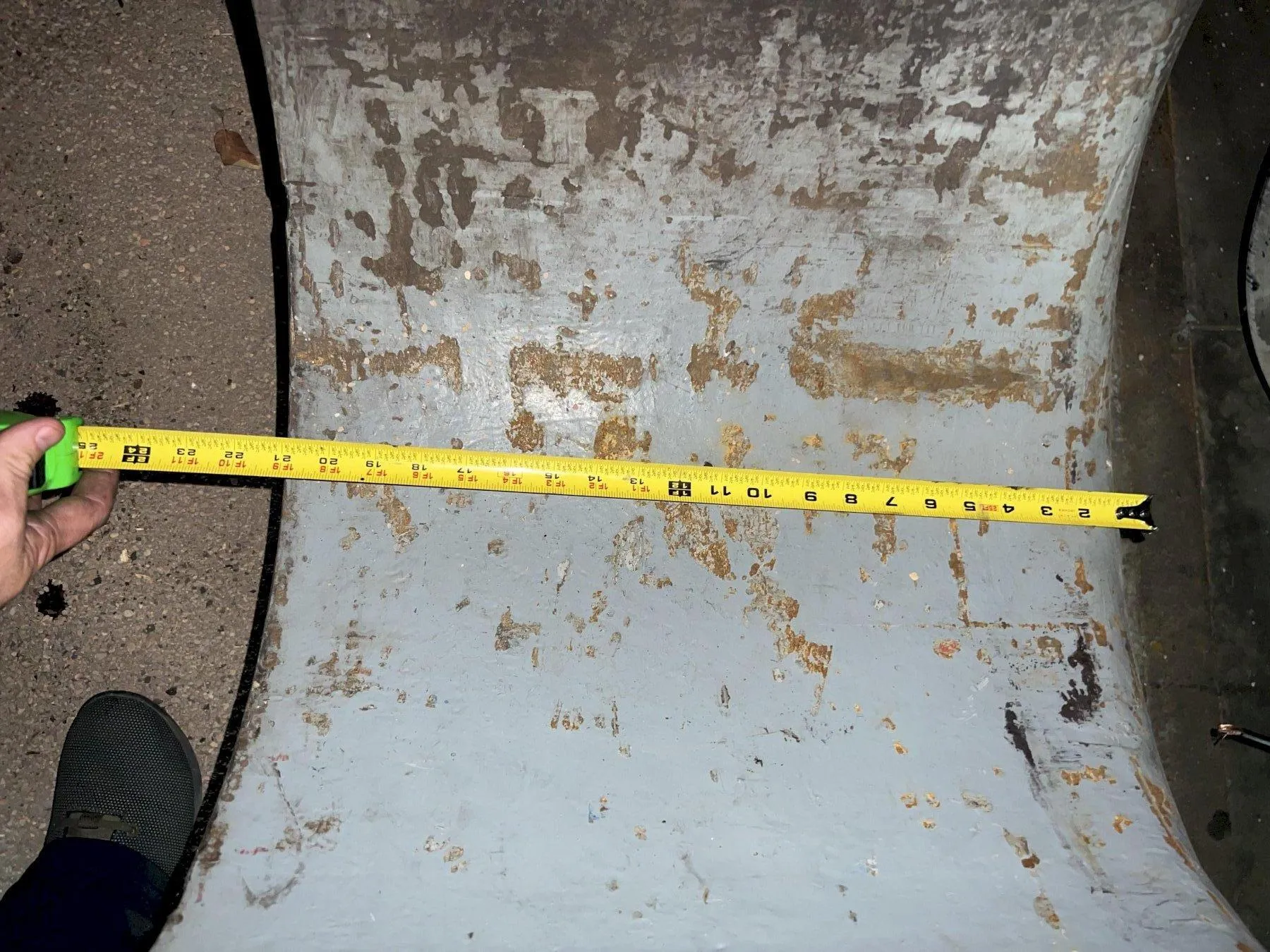

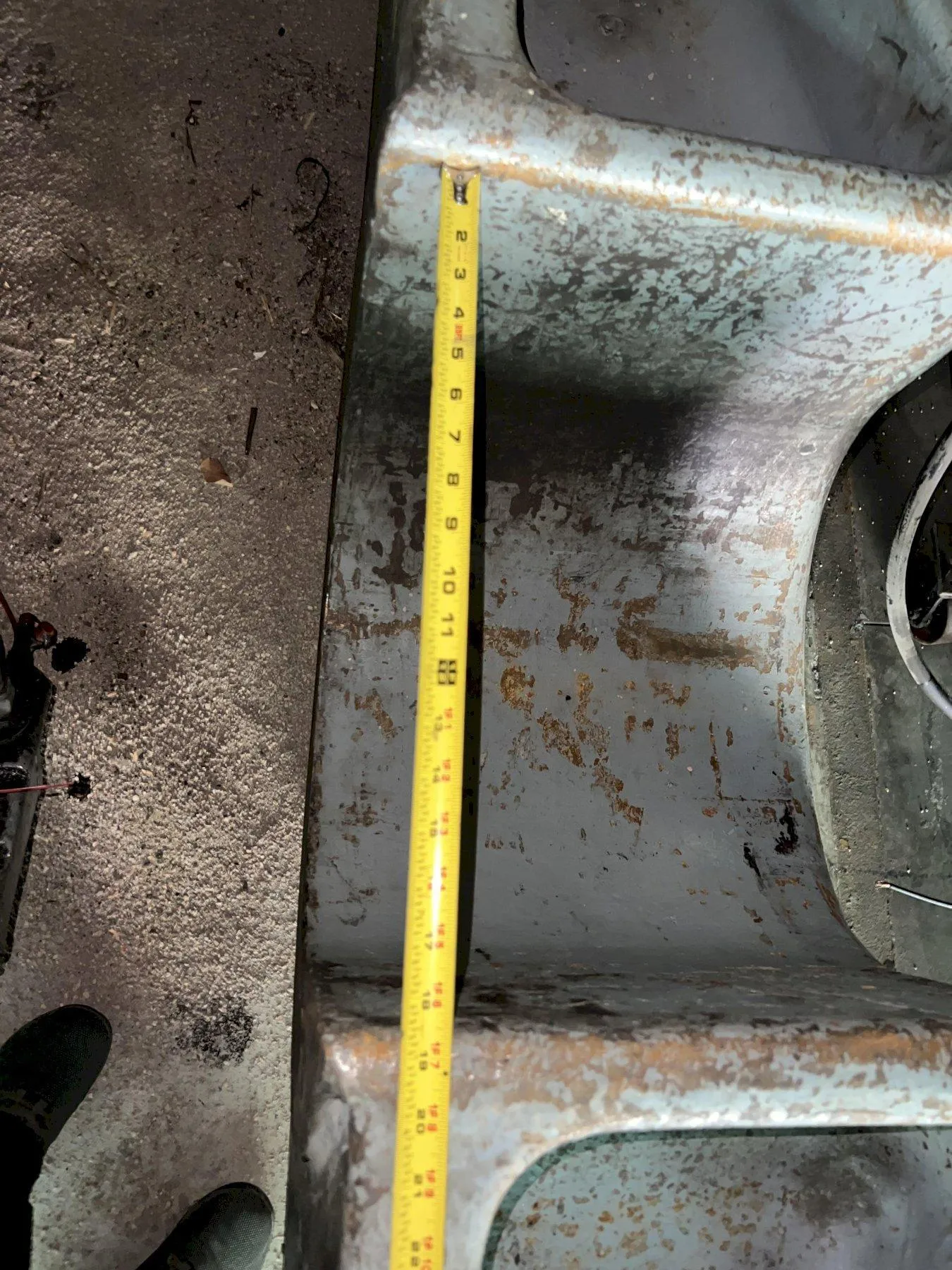

WIDTH OF RESISTANCE BLOCK ........ 21"

HOLE THROUGH RESISTANCE BLOCK .... 18-1/2"

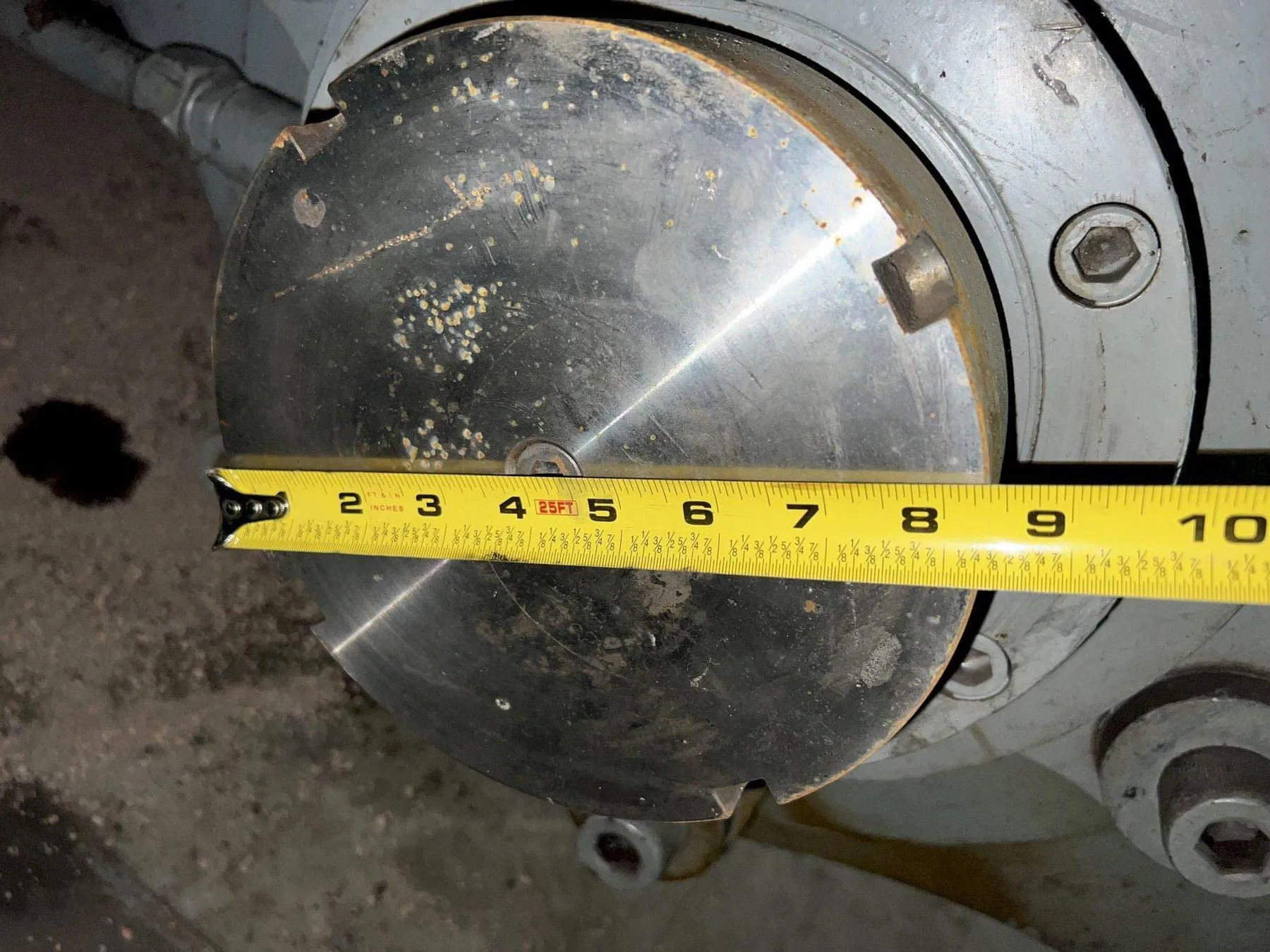

DIAMETER OF PUSHING HEAD ......... 10"

ADJUSTMENT HOLES ON BARS ......... 16

ADJUSTMENT HOLES ON CENTER ....... 12"
PRESSURE GUAGE INDICATOR ......... YES
FRAME CONSTRUCTION ............... BOLT TOGETHER

 FRAME DESIGN ..................... INCLINED

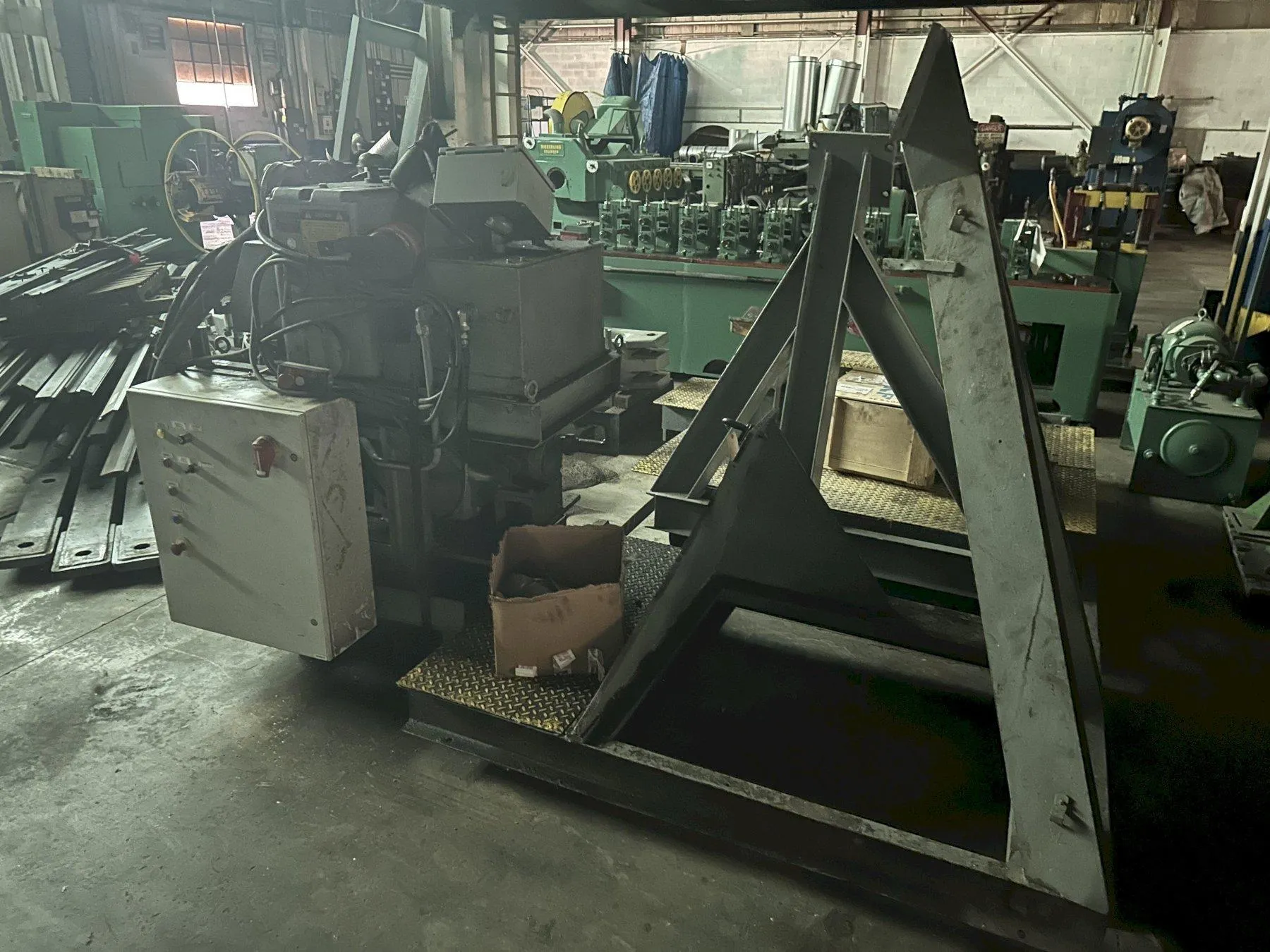

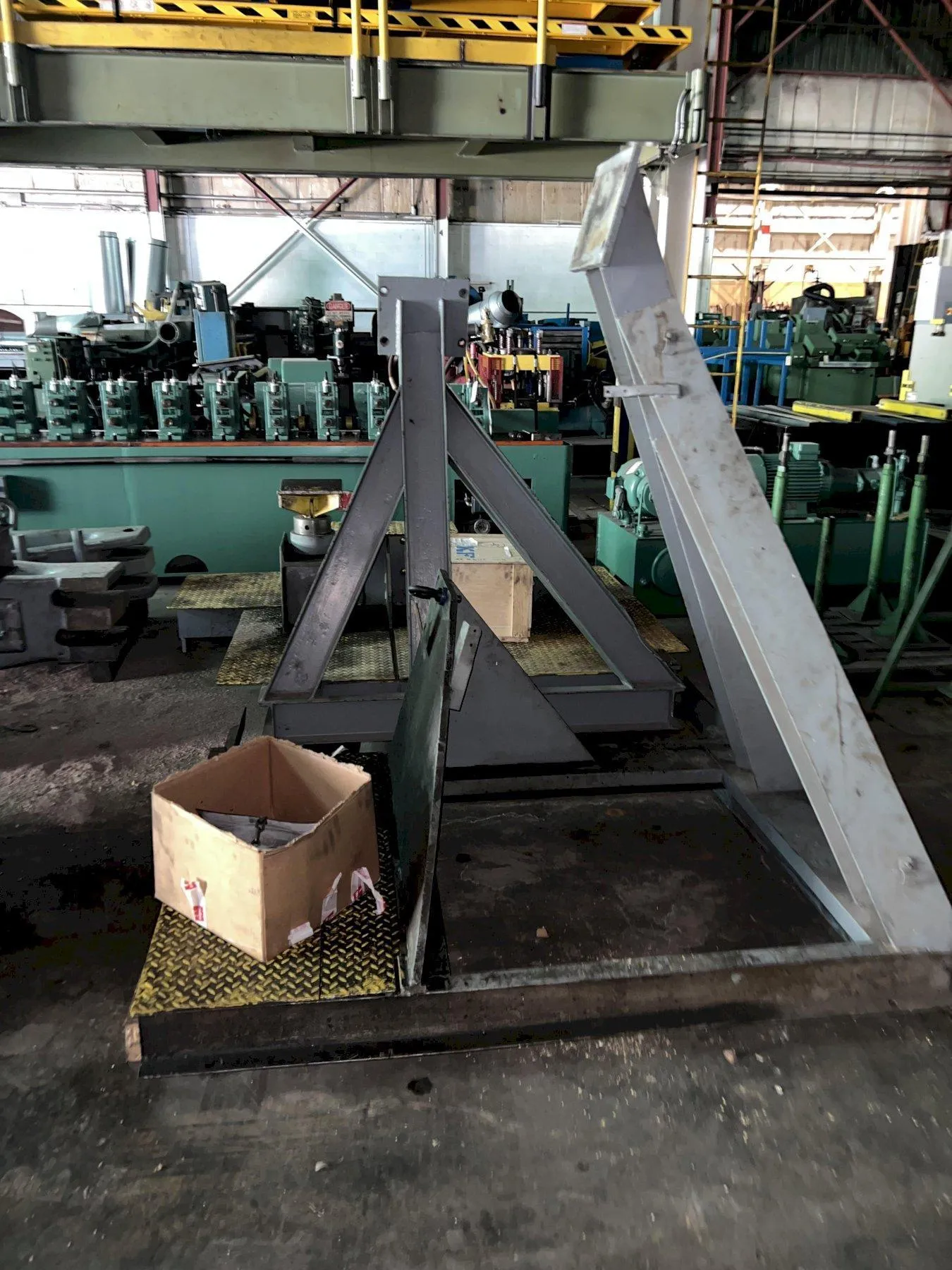

SUPPORT STAND .................... YES, ADJUSTABLE

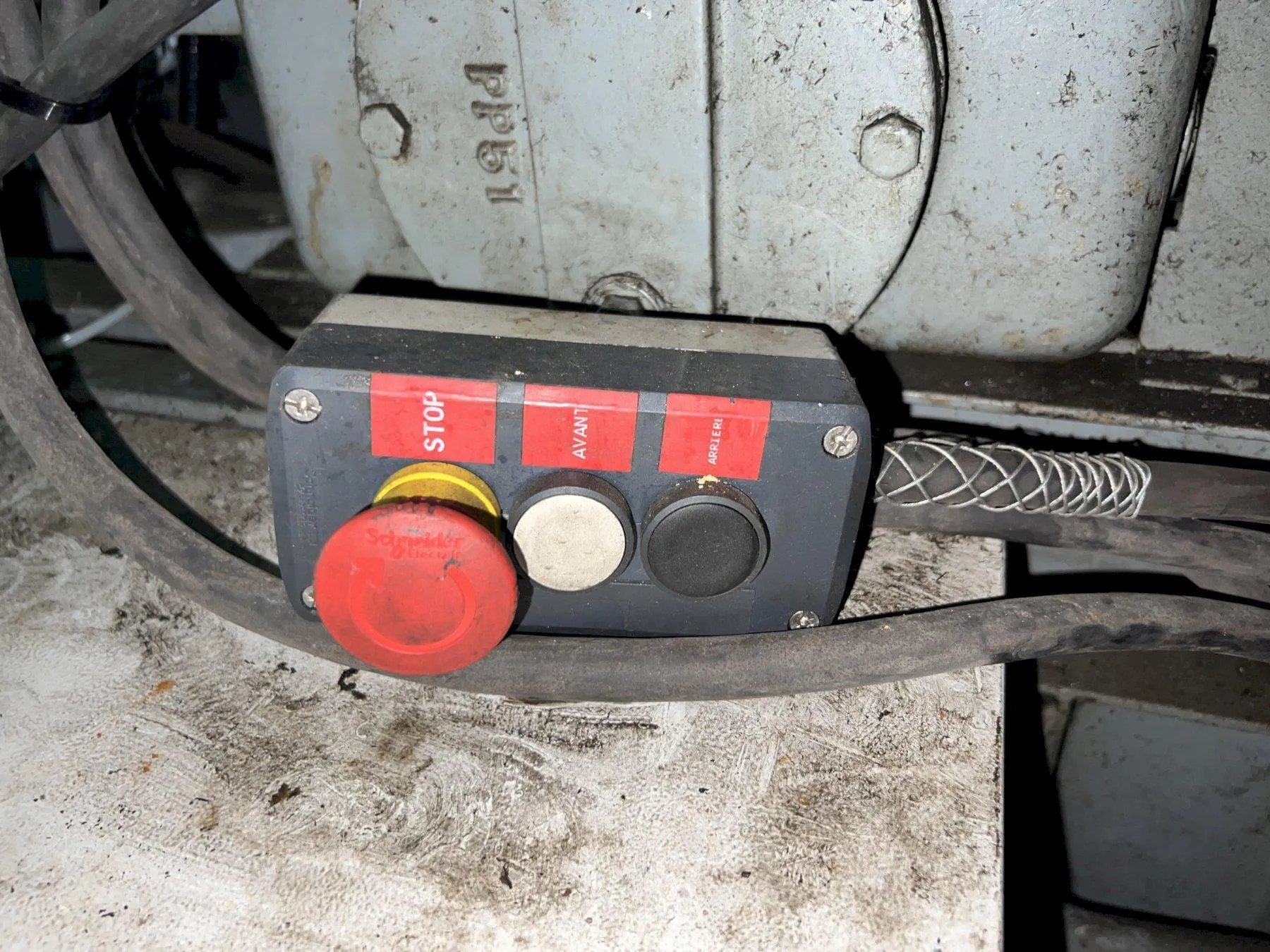

PENDANT CONTROLLER ............... YES
E-STOP BUTTON .................... YES

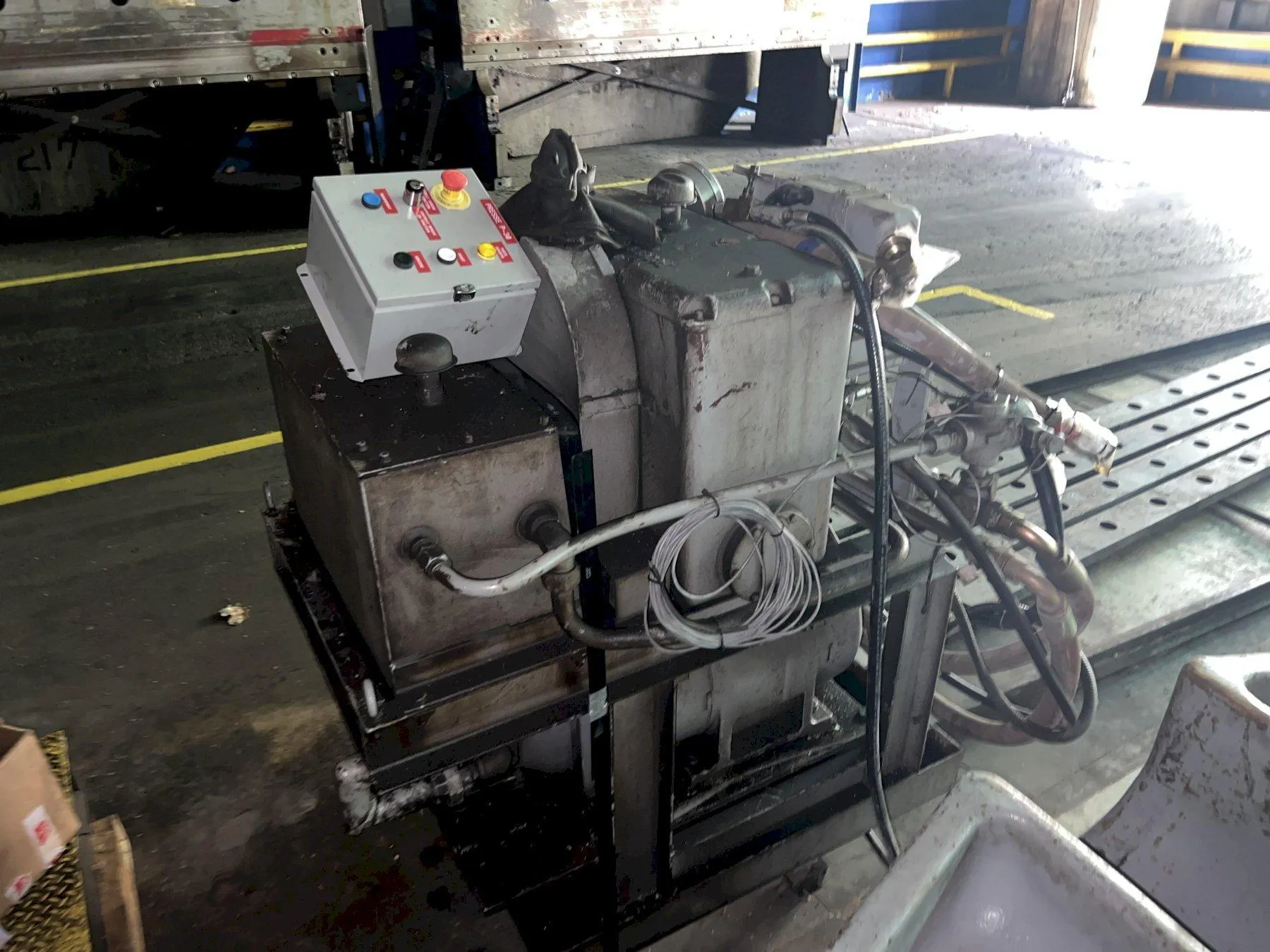

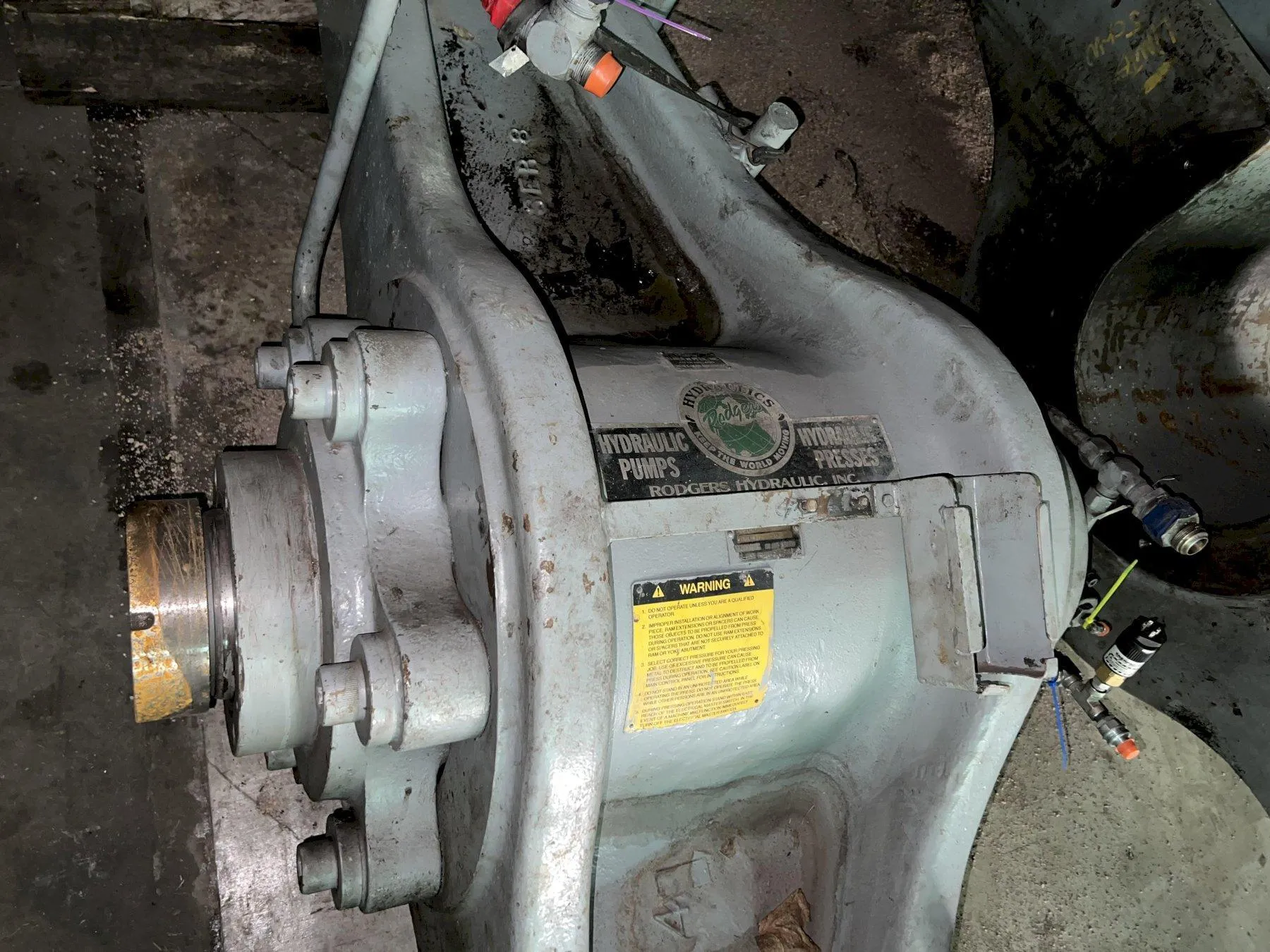

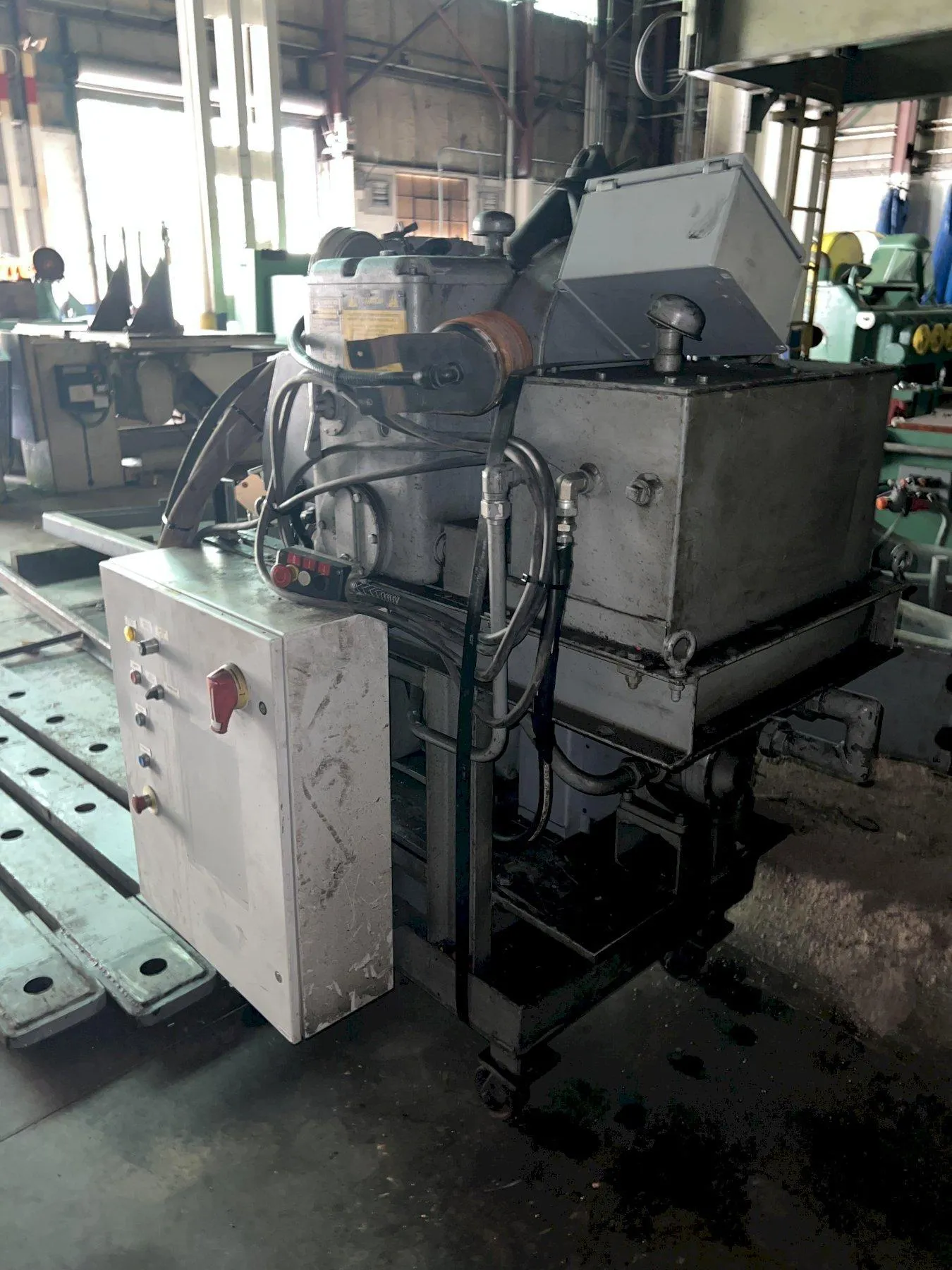

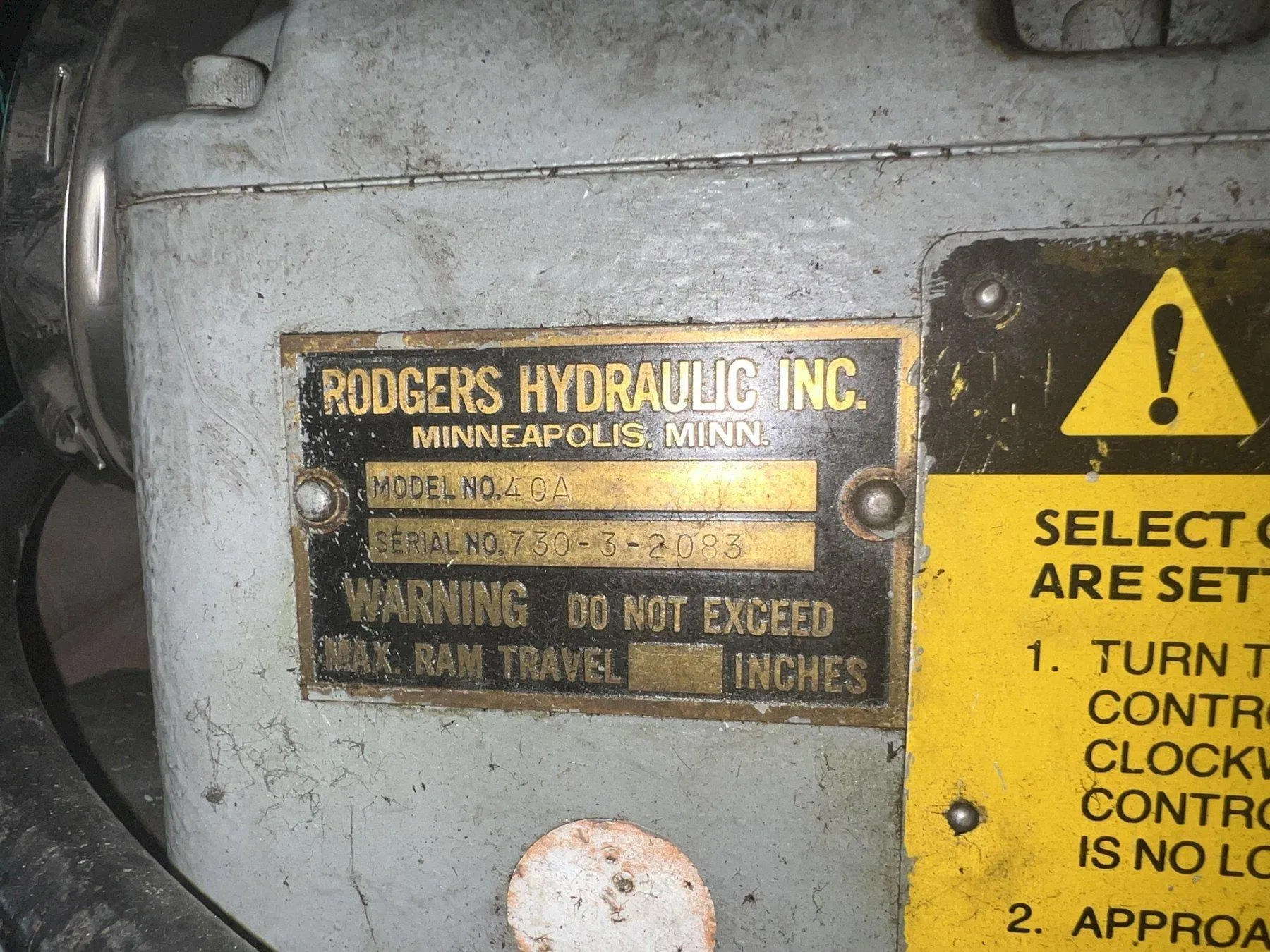

RODGERS HYDRAULIC UNIT:
SERIAL ........................... 730-3-2083
MODEL ........................... 40A
MOTOR ............................ 25 HP
