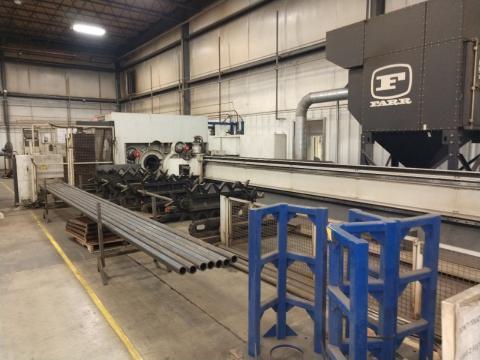

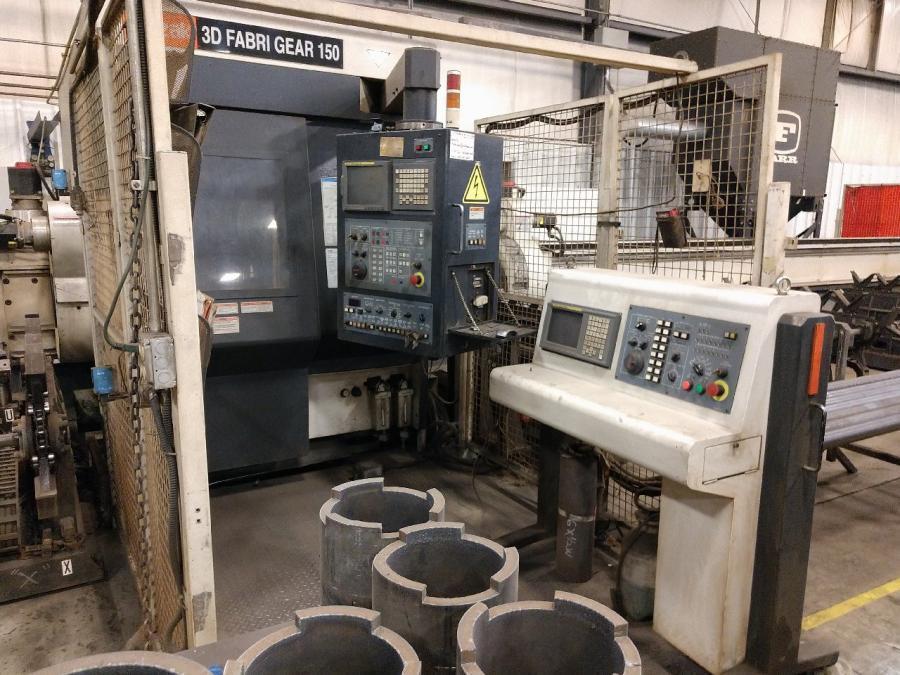

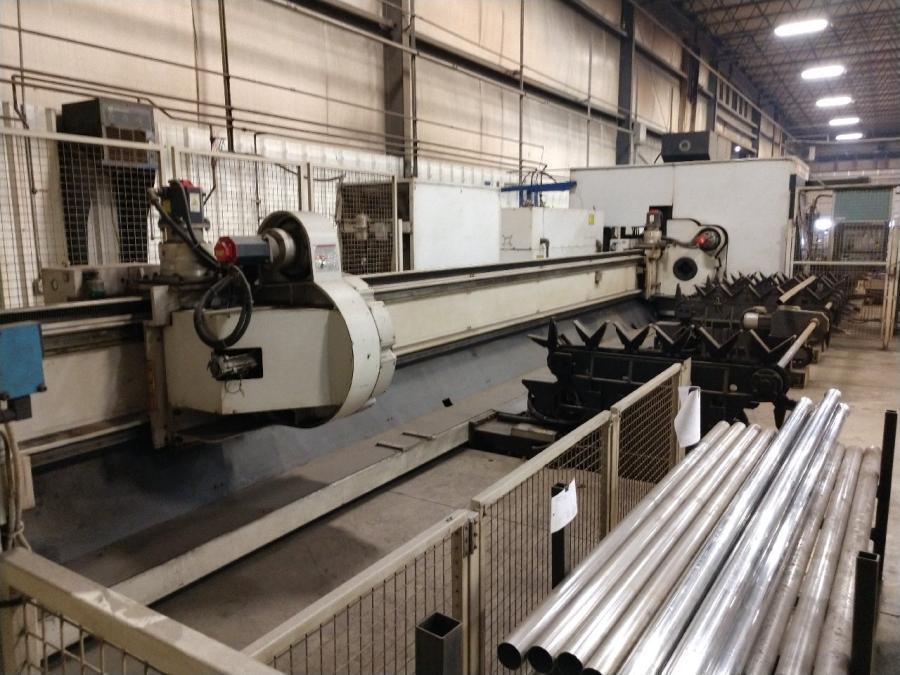

4000 WATT MAZAK FABRIGEAR 150V TUBE LASER
Year
2007
Stock #
20047
Condition
Very Good
Keep Scrolling To Learn More
Specifications
Equipped With
4000 WATT MAZAK FABRIGEAR 150V TUBE LASER
New: 2007
Specifications:
Laser Output: 4000 Watts
Max. Cutting Size, Round Material: 0.79" - 6.00"
Max. Cutting Size, Square Material: 0.79" - 6.00"
Max. Thickness, Mild Steel: 0.75"
Effective Stroke, X-Axis: 352.59"
Effective Stroke, U-Axis: 345.63"
Effective Stroke, V-Axis: 91.14"
Effective Stroke, Y-Axis: 38.78"
Effective Stroke, Z-Axis: 14.57"
A-Axis: +/- 360 degrees
B-Axis: +/- 135 degrees
Rapid Traverse Rate, X, U, V: 3937 IPM
Rapid Traverse Rate, Y: 1417 IPM
Rapid Traverse Rate, Z: 1181 IPM
Rapid Traverse Rate, A, B: 9,600 degrees/min
Rapid Traverse Rate, C: 20,000 degrees/min
Maximum Machining Feed Rate: 394 IPM
Axial Drive System: AC servo motor, Digital servo drive
Axial Drive System, X-Axis: Rack & pinion
Axial Drive System, Y, Z-Axis: Ball screws
Positioning Accuracy, X, U, & V-Axis: +/-0.002
Positioning Accuracy, Y-Axis: +/-0.0004
Repeatability, X, U, & V-Axis: +/-0.0004
Repeatability, Y & Z-Axis: +/-0.0004
Repeatability, A & B-Axis: +/- .01 degrees
Weight Approx. (Lbs.): 61,728
Electrics: 460V/3-Ph
Machine Hours Approximate Total: 27,000
